YIYI Mesh Belt Balanced Weave Belt Technical Specification
Check what matters before you request a quote: key dimensions in mm and inches, edge options, drive sprocket options and typical applications. Compare it with your current belt or drawing, then send us the drawing or photos of your old belt for review.
Text version of this document

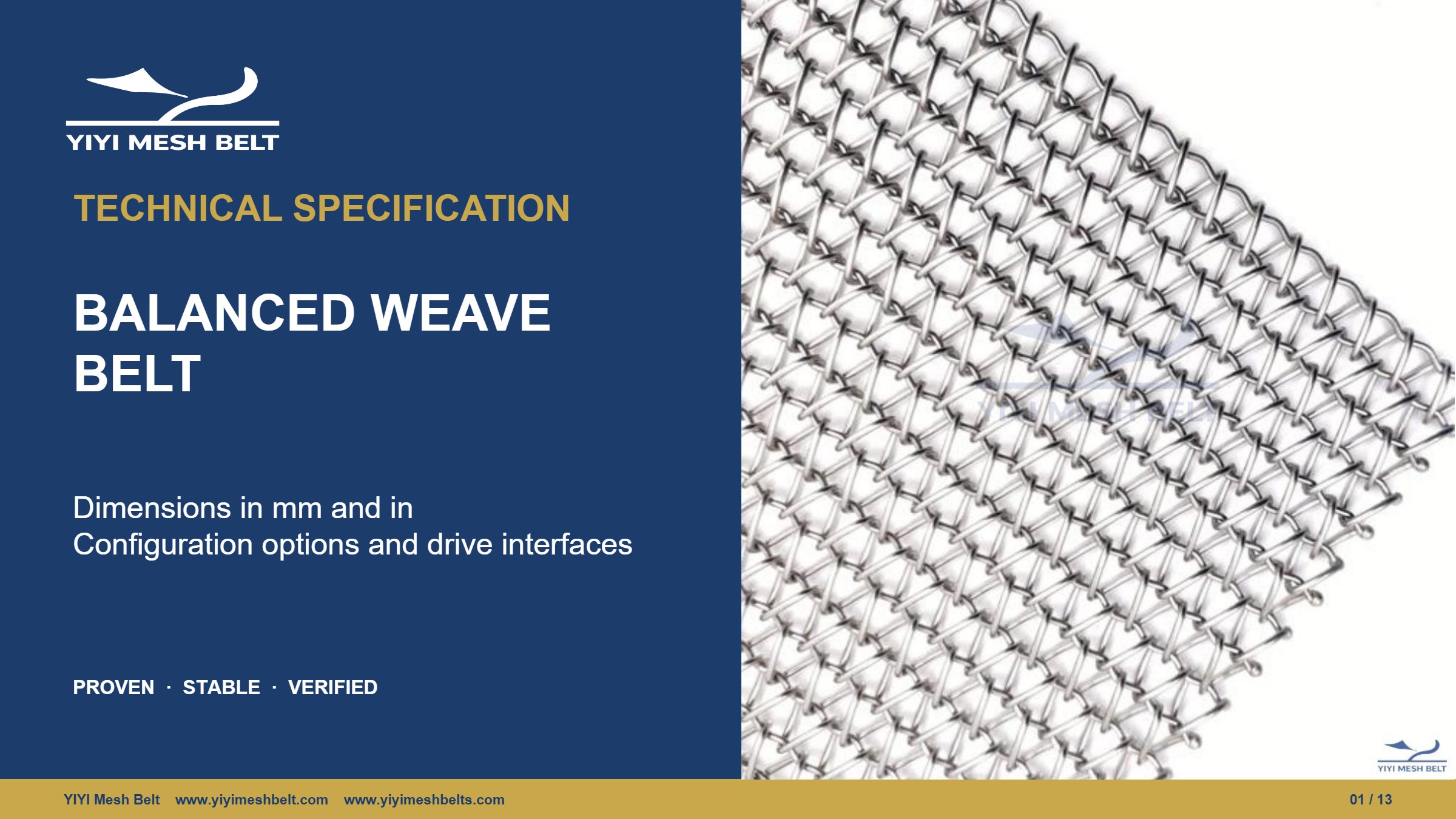

Page 1. TECHNICAL SPECIFICATION BALANCED WEAVE BELT Dimensions in mm and in Configuration options and drive interfaces PROVEN · STABLE · VERIFIED

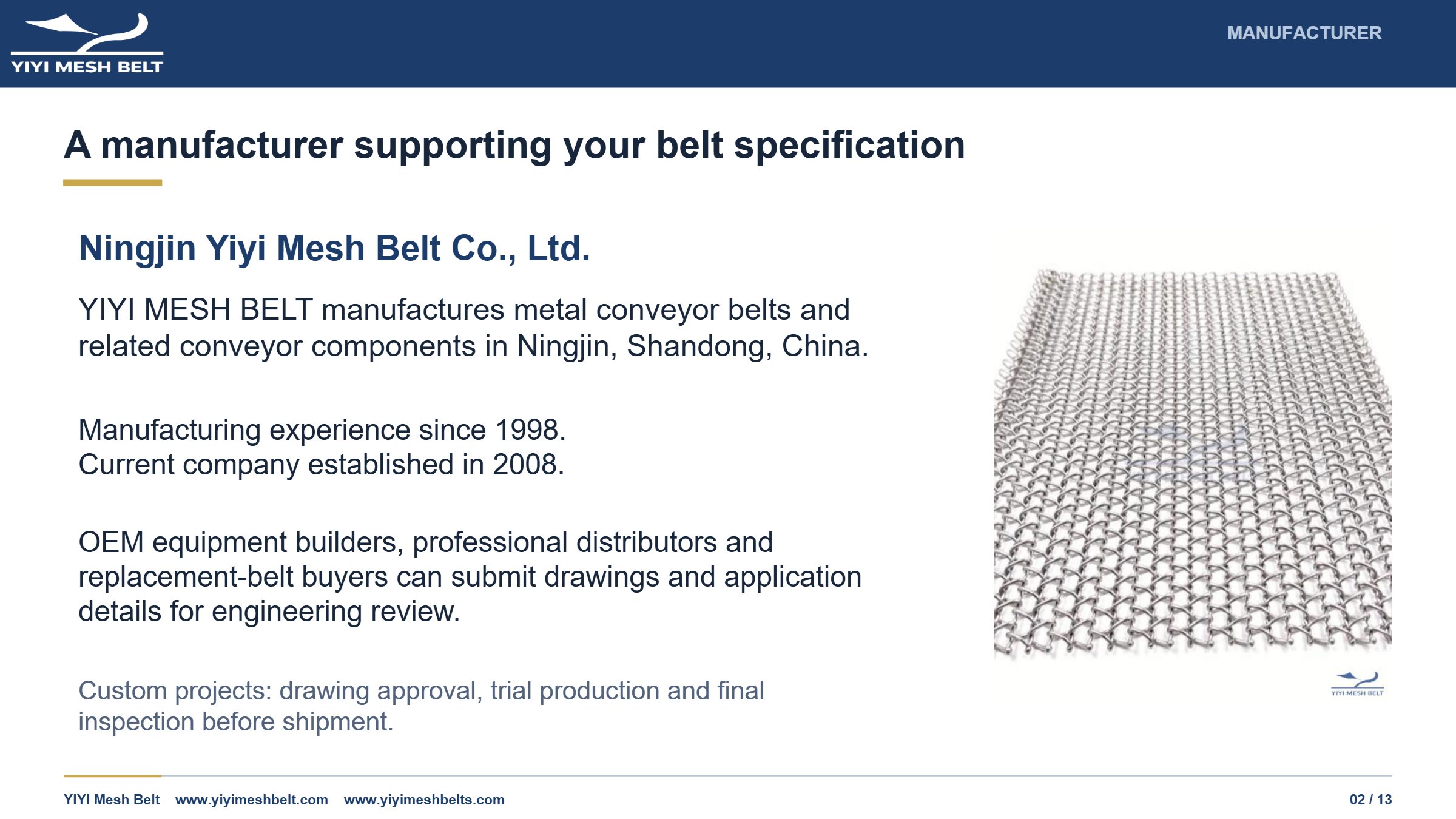

Page 2. MANUFACTURER A manufacturer supporting your belt specification Ningjin Yiyi Mesh Belt Co., Ltd. YIYI MESH BELT manufactures metal conveyor belts and related conveyor components in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. OEM equipment builders, professional distributors and replacement-belt buyers can submit drawings and application details for engineering review. Custom projects: drawing approval, trial production and final inspection before shipment.

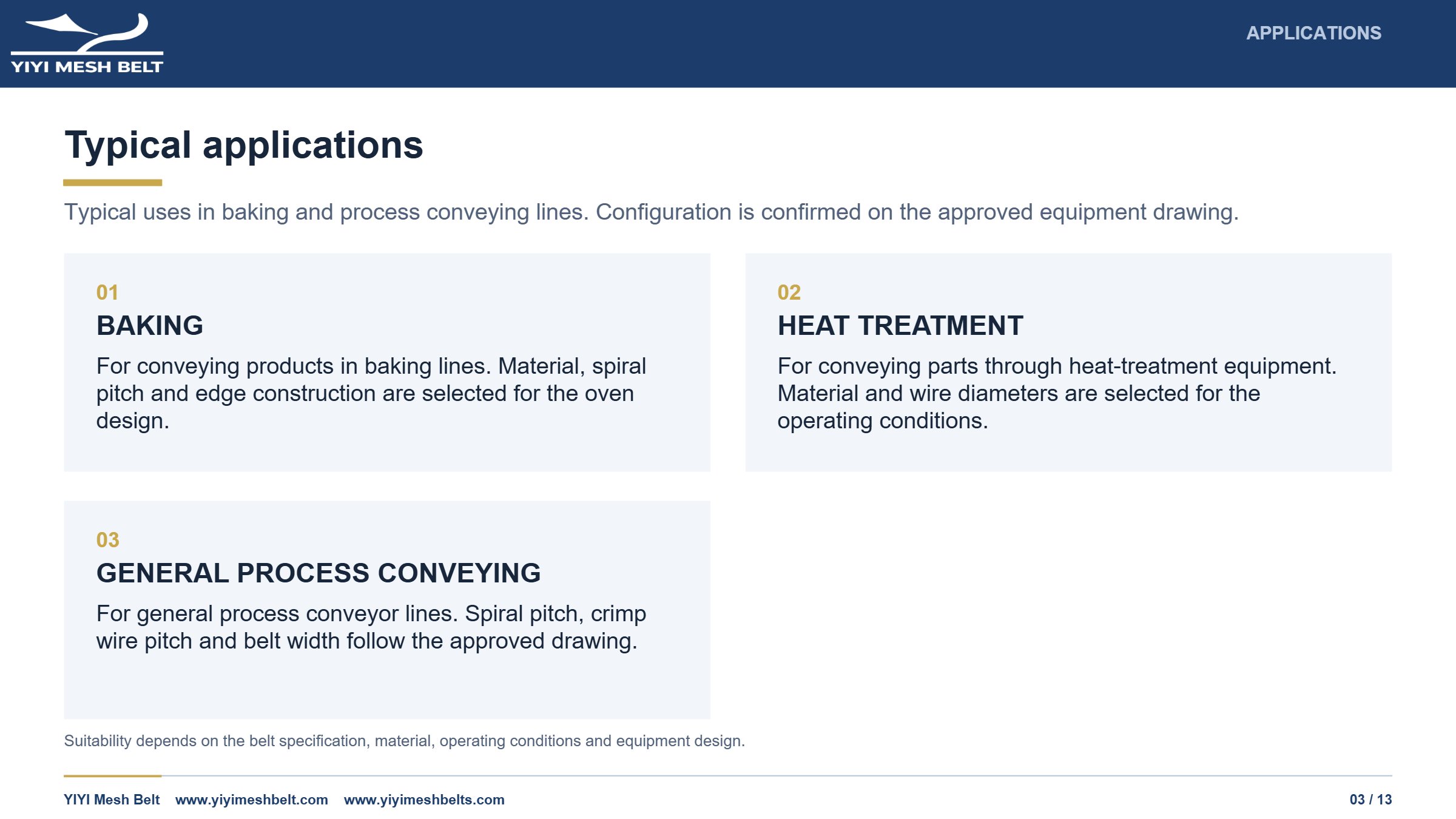

Page 3. APPLICATIONS Typical applications Typical uses in baking and process conveying lines. Configuration is confirmed on the approved equipment drawing. 01 BAKING For conveying products in baking lines. Material, spiral pitch and edge construction are selected for the oven design. 02 HEAT TREATMENT For conveying parts through heat-treatment equipment. Material and wire diameters are selected for the operating conditions. 03 GENERAL PROCESS CONVEYING For general process conveyor lines. Spiral pitch, crimp wire pitch and belt width follow the approved drawing. Suitability depends on the belt specification, material, operating conditions and equipment design.

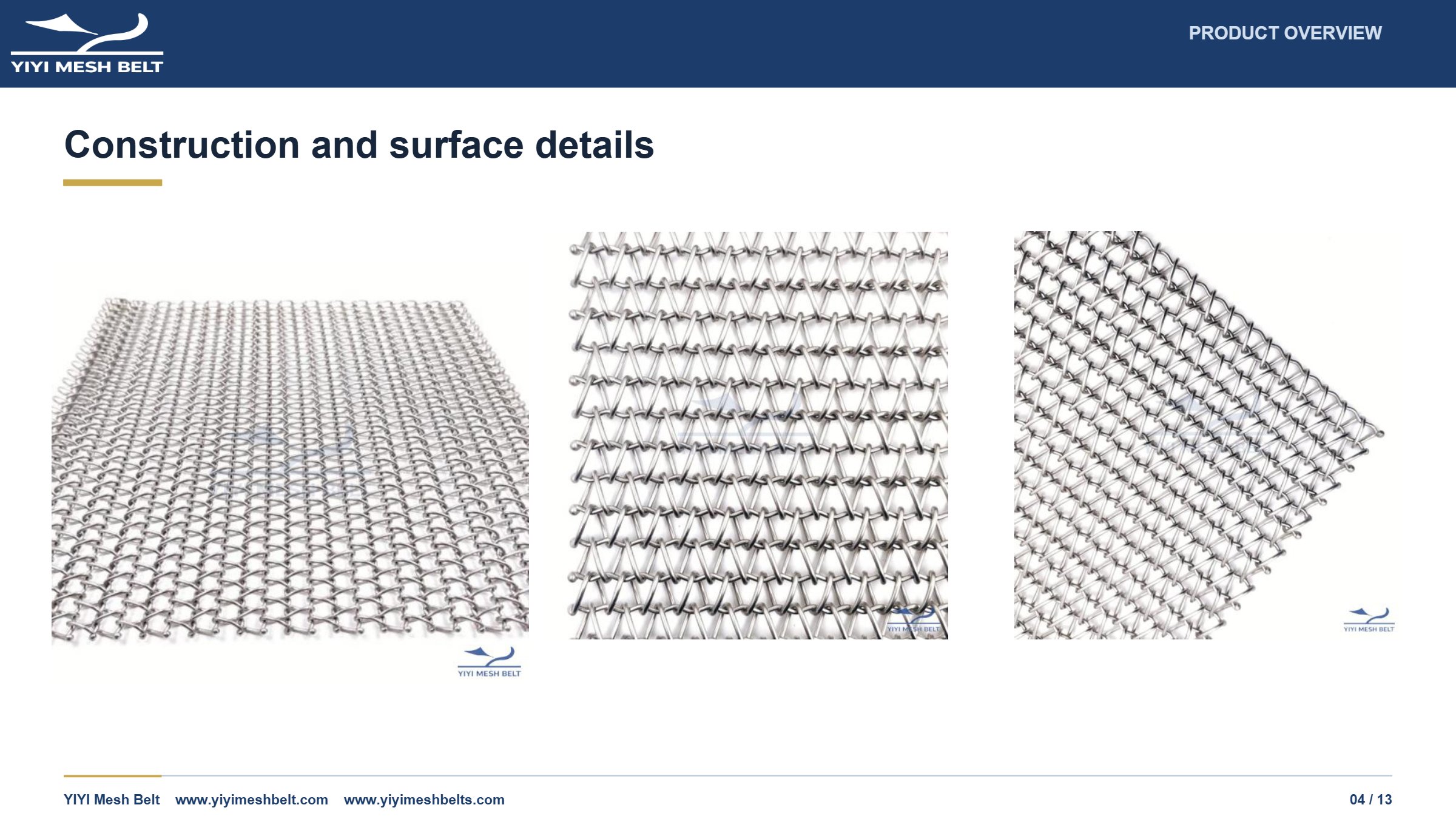

Page 4. PRODUCT OVERVIEW Construction and surface details

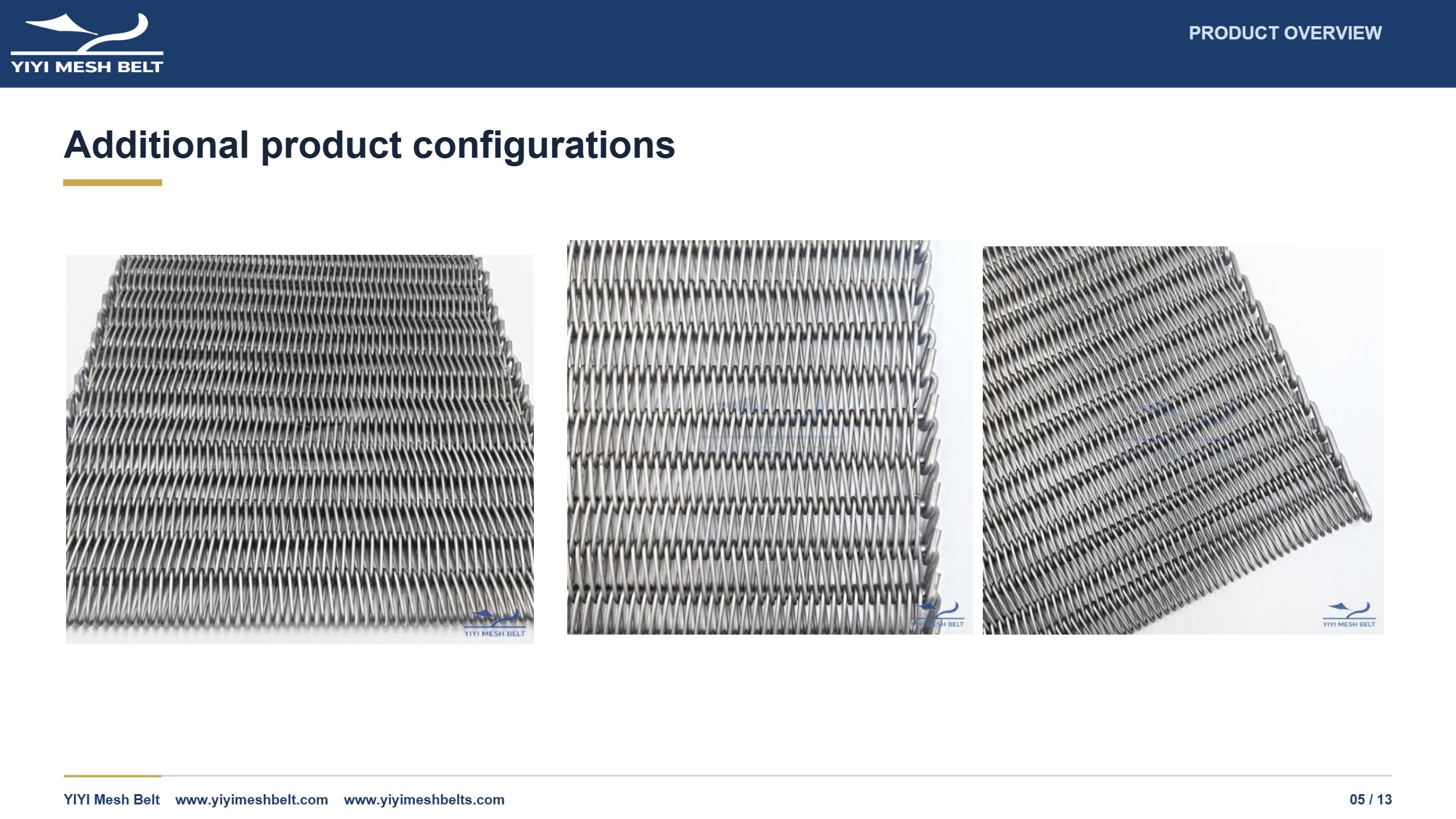

Page 5. PRODUCT OVERVIEW Additional product configurations

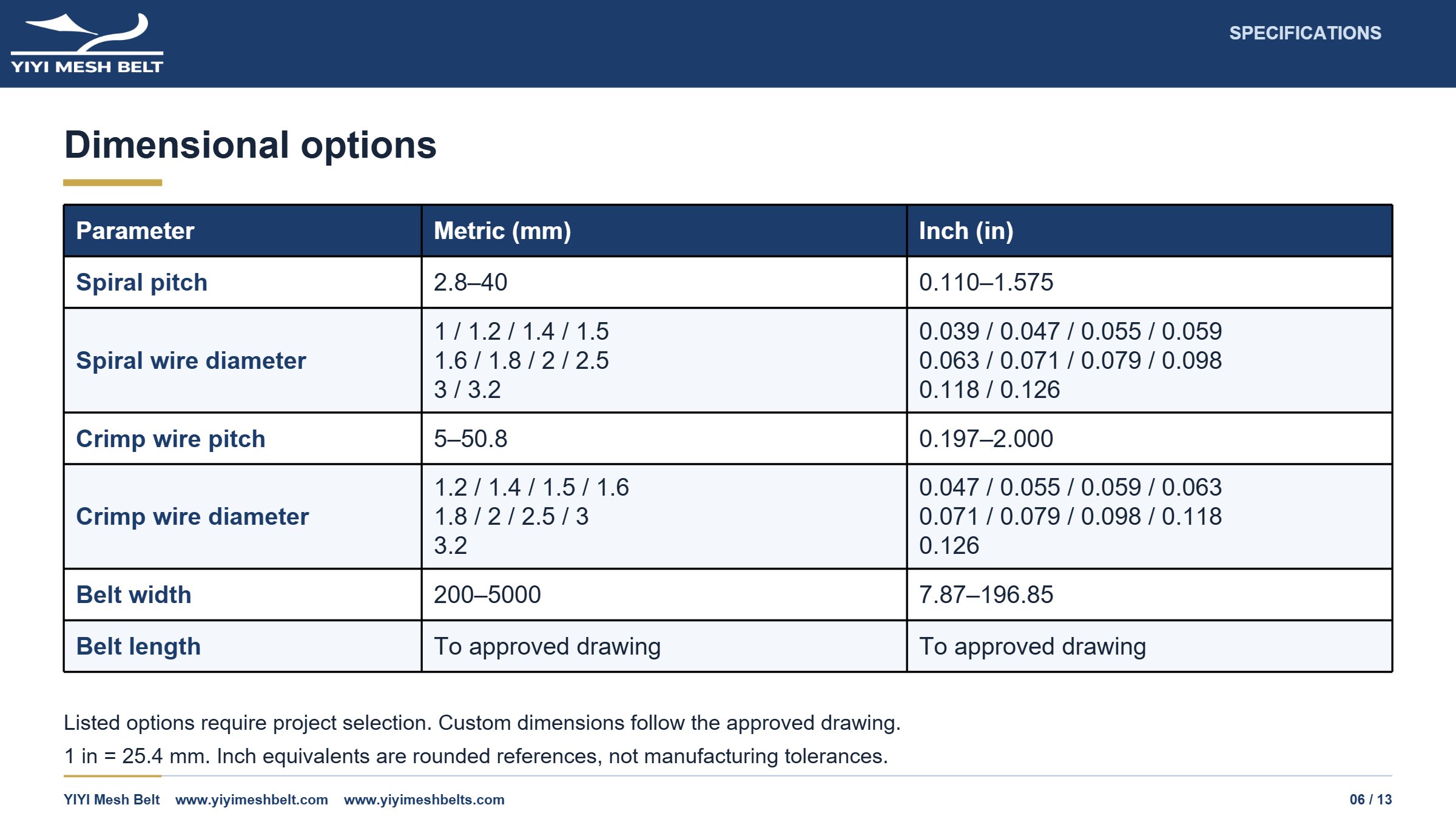

Page 6. SPECIFICATIONS Dimensional options Parameter Metric (mm) Inch (in) Spiral pitch 2.8–40 0.110–1.575 Spiral wire diameter 1 / 1.2 / 1.4 / 1.5 1.6 / 1.8 / 2 / 2.5 3 / 3.2 0.039 / 0.047 / 0.055 / 0.059 0.063 / 0.071 / 0.079 / 0.098 0.118 / 0.126 Crimp wire pitch 5–50.8 0.197–2.000 Crimp wire diameter 1.2 / 1.4 / 1.5 / 1.6 1.8 / 2 / 2.5 / 3 3.2 0.047 / 0.055 / 0.059 / 0.063 0.071 / 0.079 / 0.098 / 0.118 0.126 Belt width 200–5000 7.87–196.85 Belt length To approved drawing To approved drawing Listed options require project selection. Custom dimensions follow the approved drawing. 1 in = 25.4 mm. Inch equivalents are rounded references, not manufacturing tolerances.

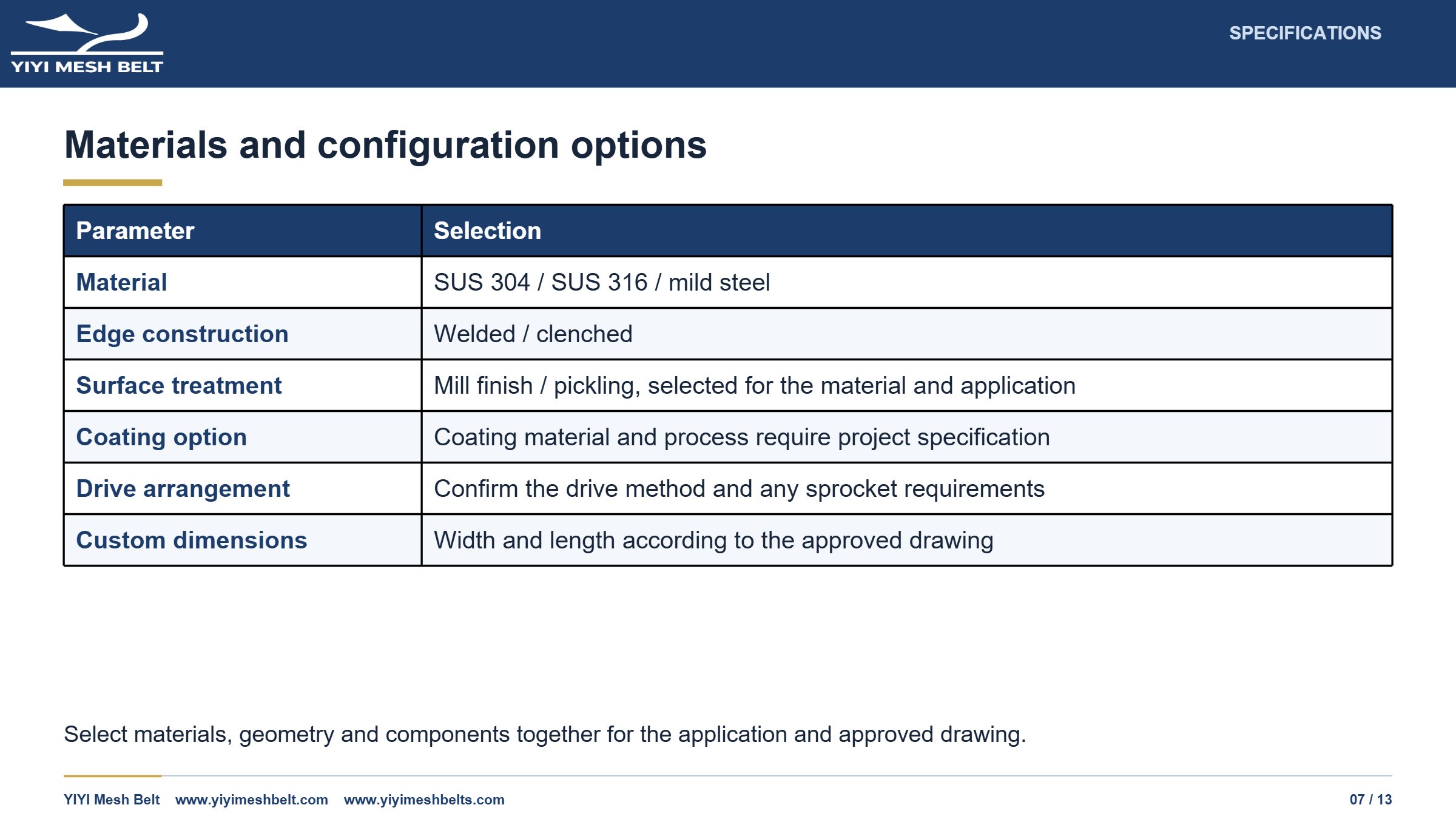

Page 7. SPECIFICATIONS Materials and configuration options Parameter Selection Material SUS 304 / SUS 316 / mild steel Edge construction Welded / clenched Surface treatment Mill finish / pickling, selected for the material and application Coating option Coating material and process require project specification Drive arrangement Confirm the drive method and any sprocket requirements Custom dimensions Width and length according to the approved drawing Select materials, geometry and components together for the application and approved drawing.

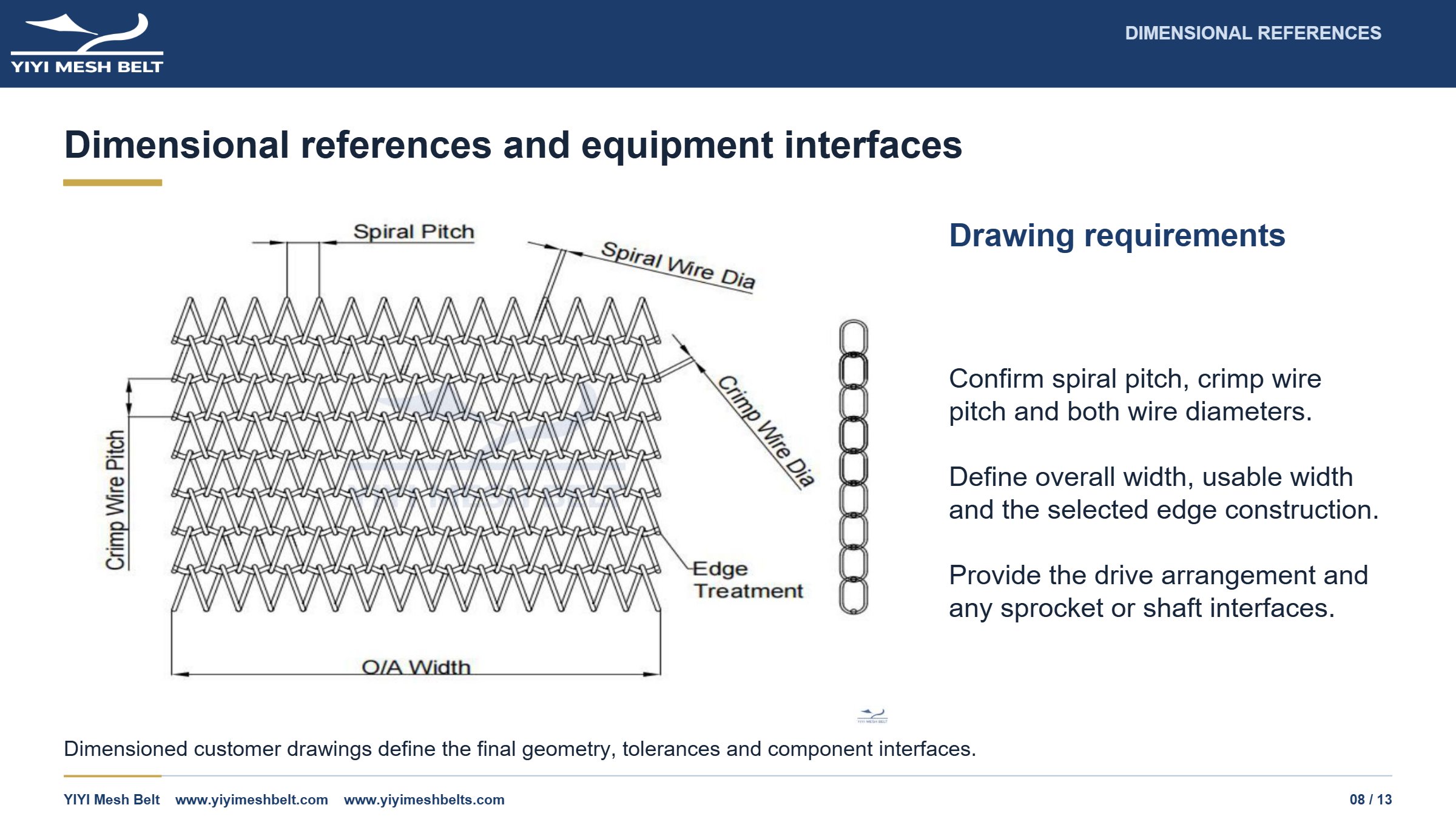

Page 8. DIMENSIONAL REFERENCES Dimensional references and equipment interfaces Drawing requirements Confirm spiral pitch, crimp wire pitch and both wire diameters. Define overall width, usable width and the selected edge construction. Provide the drive arrangement and any sprocket or shaft interfaces. Dimensioned customer drawings define the final geometry, tolerances and component interfaces.

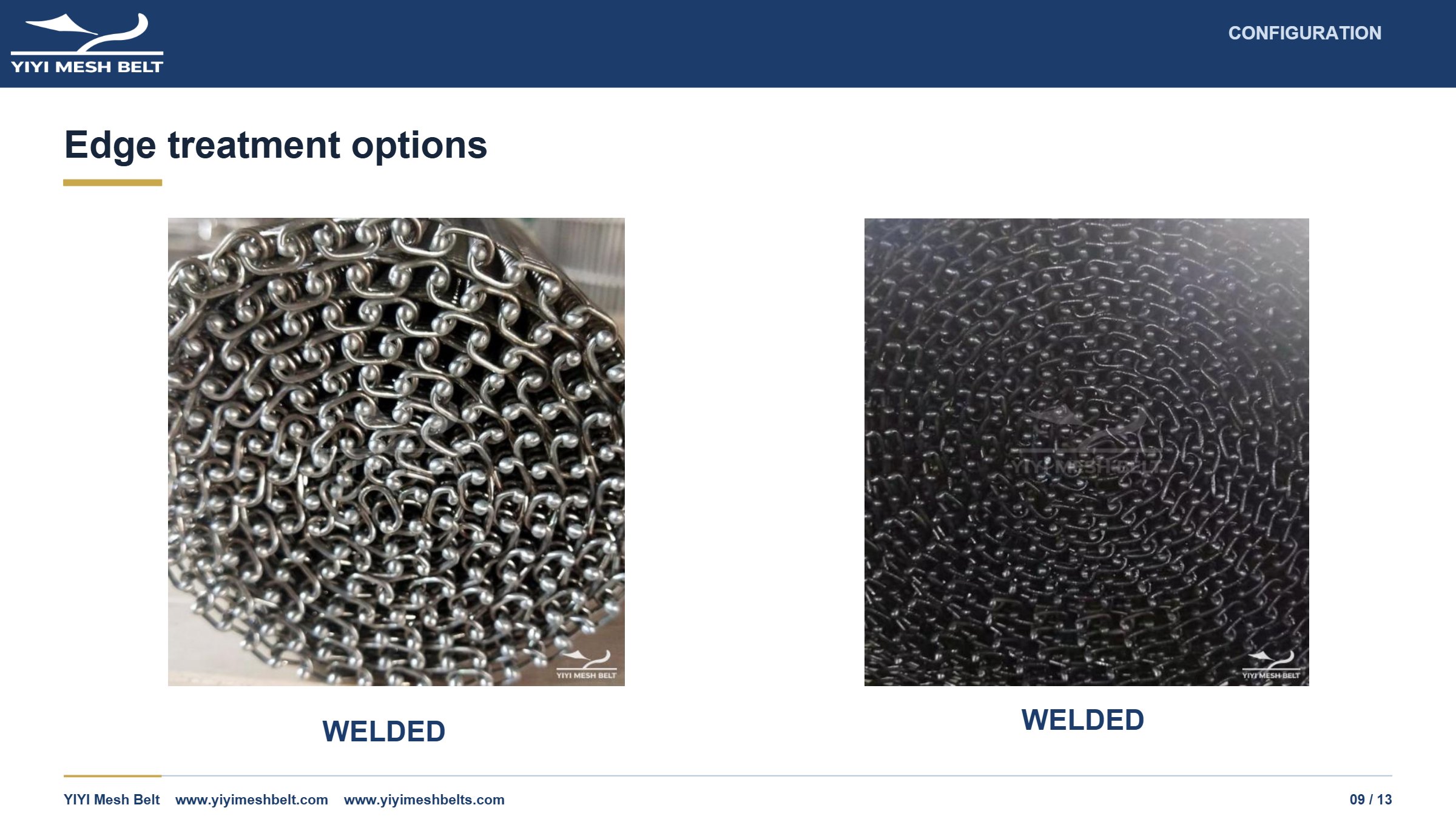

Page 9. CONFIGURATION Edge treatment options WELDED WELDED

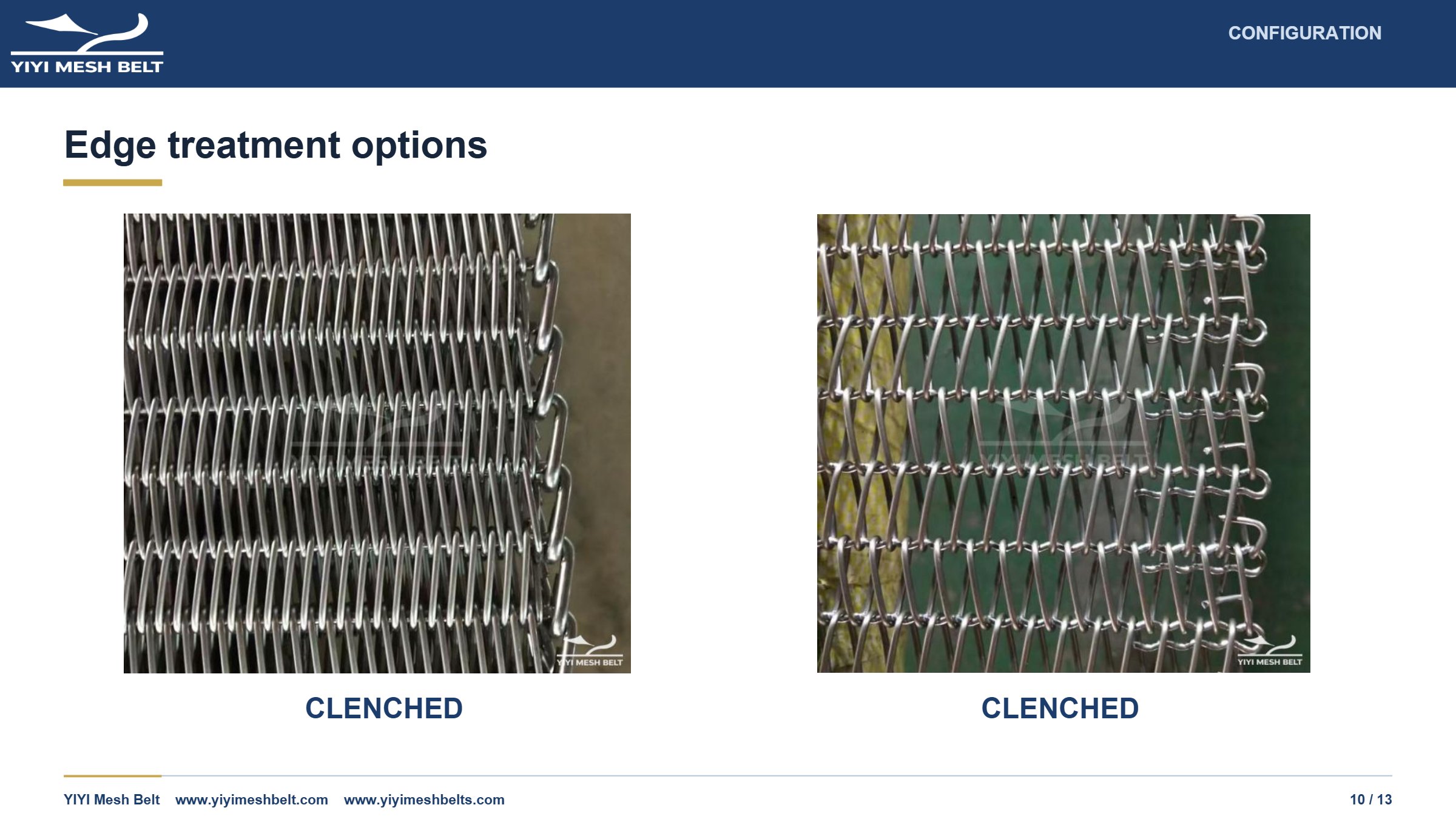

Page 10. CONFIGURATION Edge treatment options CLENCHED CLENCHED

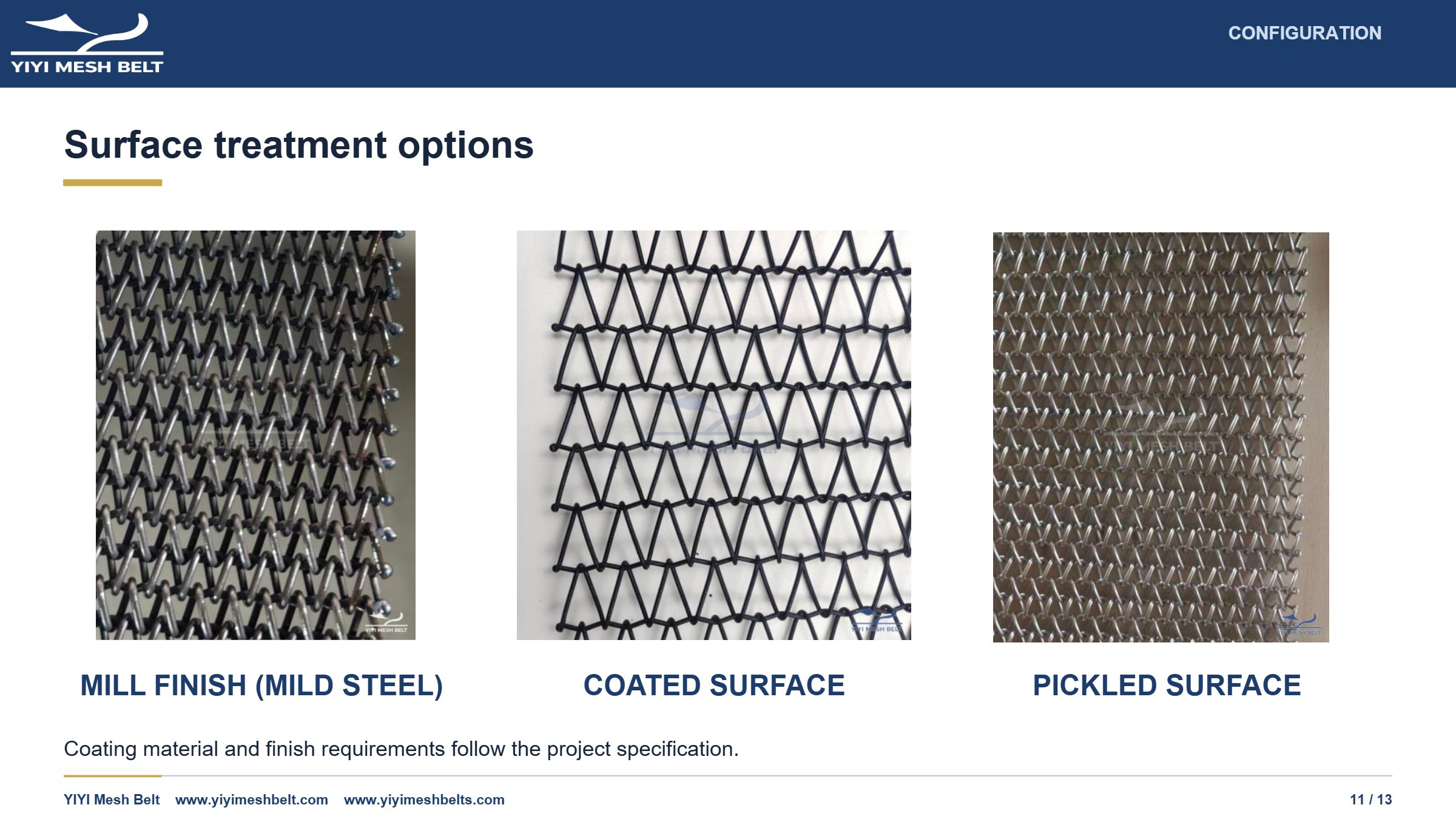

Page 11. CONFIGURATION Surface treatment options MILL FINISH (MILD STEEL) COATED SURFACE PICKLED SURFACE Coating material and finish requirements follow the project specification.

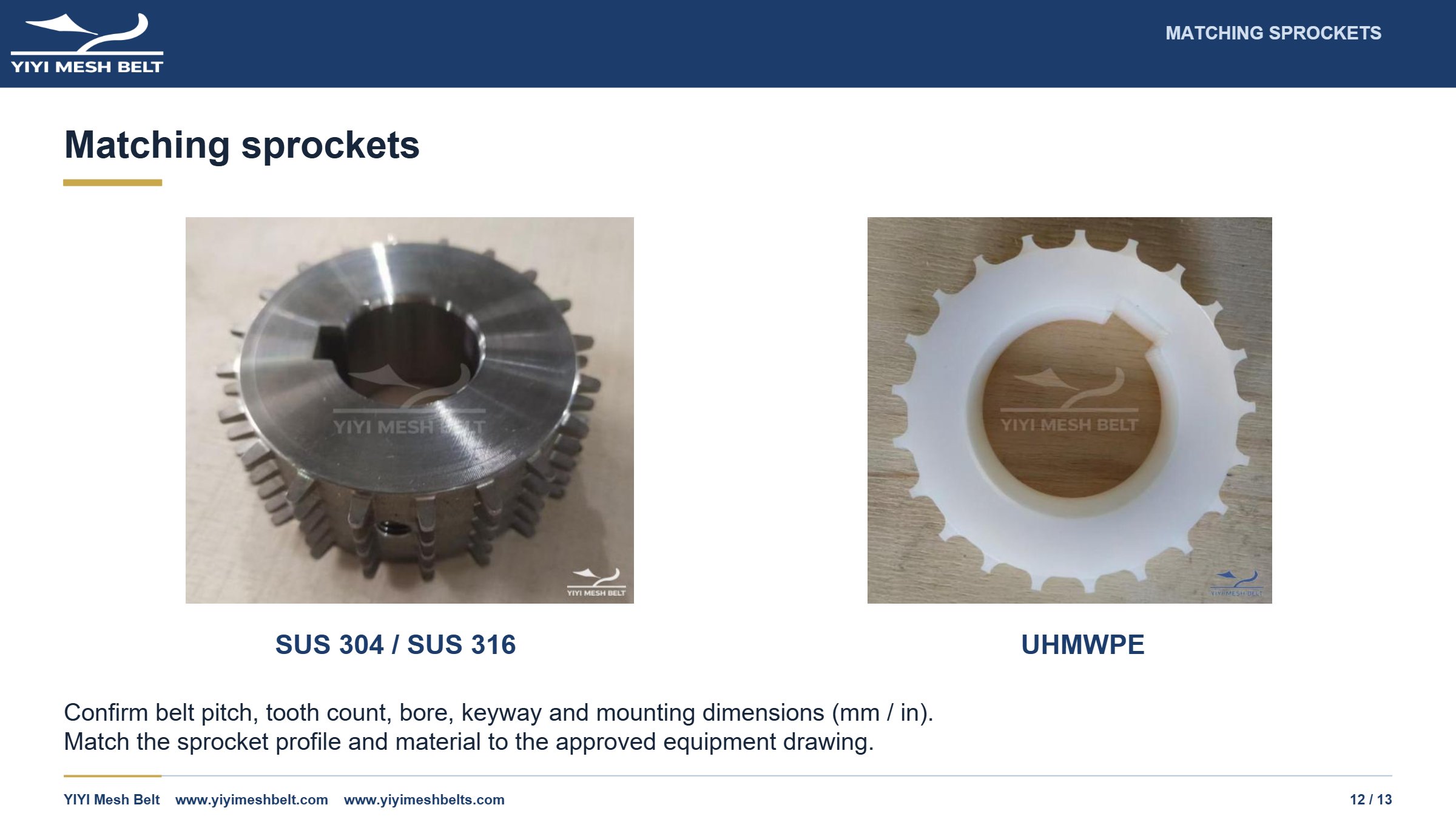

Page 12. MATCHING SPROCKETS Matching sprockets SUS 304 / SUS 316 UHMWPE Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.
Page 13. PROVEN · STABLE · VERIFIED Metal Conveyor Belt Manufacturer Email: info@yiyimeshbelt.com Phone / WhatsApp: +86 134 5177 3742 Website: www.yiyimeshbelt.com www.yiyimeshbelts.com Company: Ningjin Yiyi Mesh Belt Co., Ltd. Send Your Drawing for Specification Review Belt dimensions (mm / in) Equipment and application Operating conditions Drive and shaft details Existing belt photos / sample Request an Engineering Review for OEMs & Professional Distributors © 2026 Ningjin Yiyi Mesh Belt Co., Ltd. All rights reserved. YIYI Mesh Belt’s original technical content, photographs and videos in this document and on www.yiyimeshbelt.com and www.yiyimeshbelts.com may not be reproduced or reused without prior written permission. Third-party materials remain the property of their respective owners.
