ProductionBurnt-through weld on a self-stacking side plate
YIYI Mesh Belt control: Side-plate welds are checked in-process and at 100% final inspection before packing.
Specifications, production and materials
Metal Conveyor Belt Technical Library & Knowledge Center
This is the technical library of YIYI Mesh Belt, a metal conveyor belt manufacturer in Ningjin, Shandong, China. It publishes specifications in mm and inch, production and quality control documents and material notes for 12 belt types. Product pages and inquiries are on the official website.
Manufacturing experience since 1998. Ningjin Yiyi Mesh Belt Co., Ltd. was established in 2008 in Ningjin, Shandong, China.
1998Manufacturing experience since
100%Final inspection before packing
In stockRegular raw-material stock for drawing
In-houseStainless wire and round bar drawn
New equipmentBuilt from your equipment or belt drawing
Old-belt replacementRe-measured from the physical old belt
Second sourceBuilt to your current approved specification
Repeat order or spareBuilt to the previous approved drawing
01
Metal conveyor belts built to your drawing
The belt families where drum geometry, pitch and drive matching decide whether the line runs correctly after installation. Tap "Add to RFQ" to collect what you need; full specifications in mm and inch are on each product page.
FlagshipSpiral Freezer Belt
For spiral freezers and turning conveyors. Turn ratio, drum geometry and edge structure are reviewed together.
Custom sizes on request
Self-Stacking Belt
Each tier rests on the side stack plates of the tier below, so the belt forms its own supporting stack.
Custom sizes on request
Side Driven Belt
Side-driven, side-guided belt for spiral and turning systems. Stainless side links with a polymer or all-stainless carrying surface.
Custom sizes on request
Spiral variantSpiral Freezer Belt (Small Turning Radius)
Variant of the spiral freezer belt for tight turns where the drum leaves little room.
Custom sizes on request
Eye Link Belt
Open eye-link structure on cross rods, with reinforcement, flights or side plates as the project needs.
Custom sizes on request
Flat Wire / Honeycomb Belt
Flat strips on cross rods for an even, open carrying surface in baking, cooling and processing lines.
Custom sizes on requestNot on the list? Send your drawing or old belt. We confirm what we can build, in mm or inch.
All belt families and sprocketsProduction ranges from our technical specifications. Not on the list? Send your drawing or old belt.

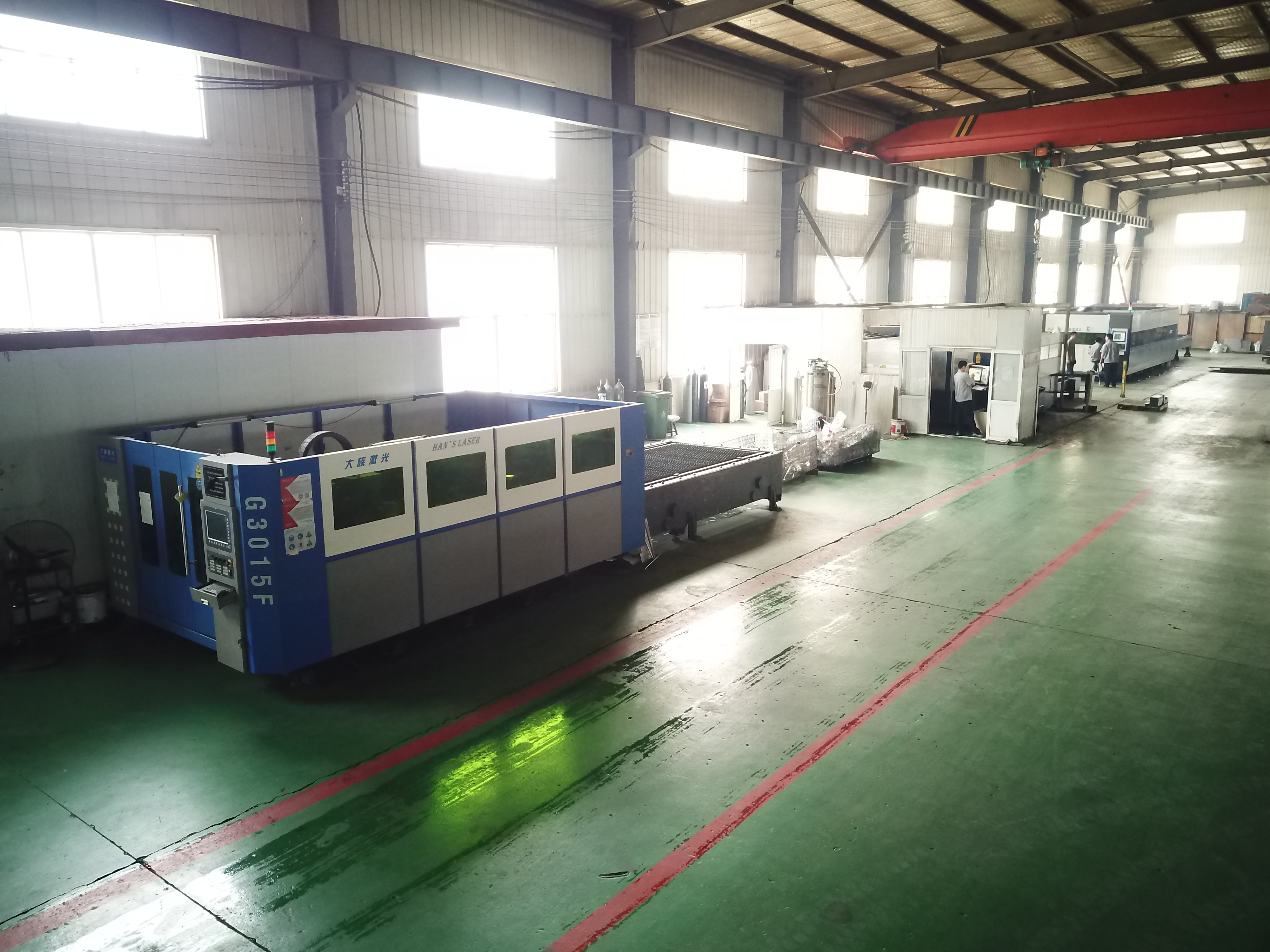

How YIYI Mesh Belt builds your belt
In our own workshop, from raw wire to the finished belt. Each step is checked before the next.
1Wire and round-bar drawing
In-house stainless wire drawing, and round-bar drawing from 12 mm raw material.
2Spiral forming
First piece checked before the batch runs.
3Belt assembly
Assembled and straightened to your drawing.
4Robotic welding
Rod-to-link welds by robot; 9 robots in the workshop.
5Inspection
Every belt measured before packing.
Selected specialist processes, such as some chains, sprockets, pickling, electropolishing and heat treatment, are sourced to the project specification and checked against finished-product requirements.
Problems a wrong belt causes, and the YIYI Mesh Belt control at each stage
All six problems on the spiral page →Production
ProductionDamaged rod surface where the link bears
YIYI Mesh Belt control: Rod surface and the link contact area are checked in-process and at 100% final inspection before packing.
ProductionRaised weld head scrapes the guide rail
YIYI Mesh Belt control: Robotic rod-to-link welding for consistent welds; every weld checked before shipment.
ProductionLink opens or breaks under load
YIYI Mesh Belt control: Every weld checked before shipment; cold welds checked by touch, not by eye alone.
ProductionRough chain rollers on an eye link belt edge disturb running
YIYI Mesh Belt control: Edge chain and rollers are checked for surface finish and free movement before packing.
ProductionScratches on the flat strips of a flat wire belt
YIYI Mesh Belt control: Flat-strip scratches, corner and joint gaps are checked at final inspection before packing.
ProductionStretched wire and oily surface on a trapezoidal mesh belt
YIYI Mesh Belt control: Wire diameter, pitch, flatness and cleanliness are checked at final inspection before packing.
ProductionBurnt, blackened edge and broken welds on a chain driven belt
YIYI Mesh Belt control: Edge welds and the chain connection are checked in-process and at 100% final inspection before packing.
Every custom belt goes through the same controls. Send your drawing for a quotation.
Specifications and technical documents
Free guides and specifications. Use them before you request a quotation, or send what you have and we fill in the rest.
12 belt types overviewFive steps from conveyor system to approved drawing, with a shortlist by system and process.Open →
Specifications for 12 belt familiesReference values in mm and inch, with technical specification PDFs to download.Open →
Find a belt by applicationFreezing, baking, frying, washing, heat treatment and heavy-duty conveying.Open →
You approve every step before we build the next.
Your order, seen from your side.
- 01You send
a drawing, a sample or your old belt. Three numbers are enough to start.
- 02You approve the drawing
We return it confirmed, with our production suggestions marked.
- 03You approve a trial piece
When you send a sample, we build a short section first for you to check.
- 04Production starts on your approval
Nothing is built in volume before you sign off.
- 05Progress updates for your order
Progress updates are agreed for each order: material, tooling and production status.
- 06You see the turning test
Spiral and turning belts are run on your drum diameter before packing.
- 07You check before it ships
Measured photos, an inspection report and the order record of your own belt.
Same process on every order, first trial or repeat. Start with your drawing →
What customers write after the belt is running.
Key points first. Click any message to read the original; customer names, companies and addresses are blacked out.
Running at −65 °C
A spiral freezer belt running “without any issues” at −60 °C, and still smooth at −65 °C in winter.
Still working well after a year
An inspector visited a plant using our belts for one year: “Everything is working well.”
More than 10 years together
“Good running performance, we never had problem with Yiyi belts … we have been cooperate more than 10 years.”
The whole process, not just the belt
“From the commercial negotiation to the arrival of the mesh belts … absolutely fantastic.”
Belt and sprockets, first sample
A 2 m side drive belt sample with two sprockets: “an excellent quality, very, very good.”
280 m delivered early
“I’m very grateful for the YiYi team’s efforts in delivering the 280 mts belt early.”
Repeat order · South America · 2026
965 mm SUS304 spiral freezer belt, 460 m, for a freezer equipment manufacturer
First ordered in 2025; the 2026 repeat was built to the customer's 3,610 mm drum, measured at first article and turned against the drum before shipment.

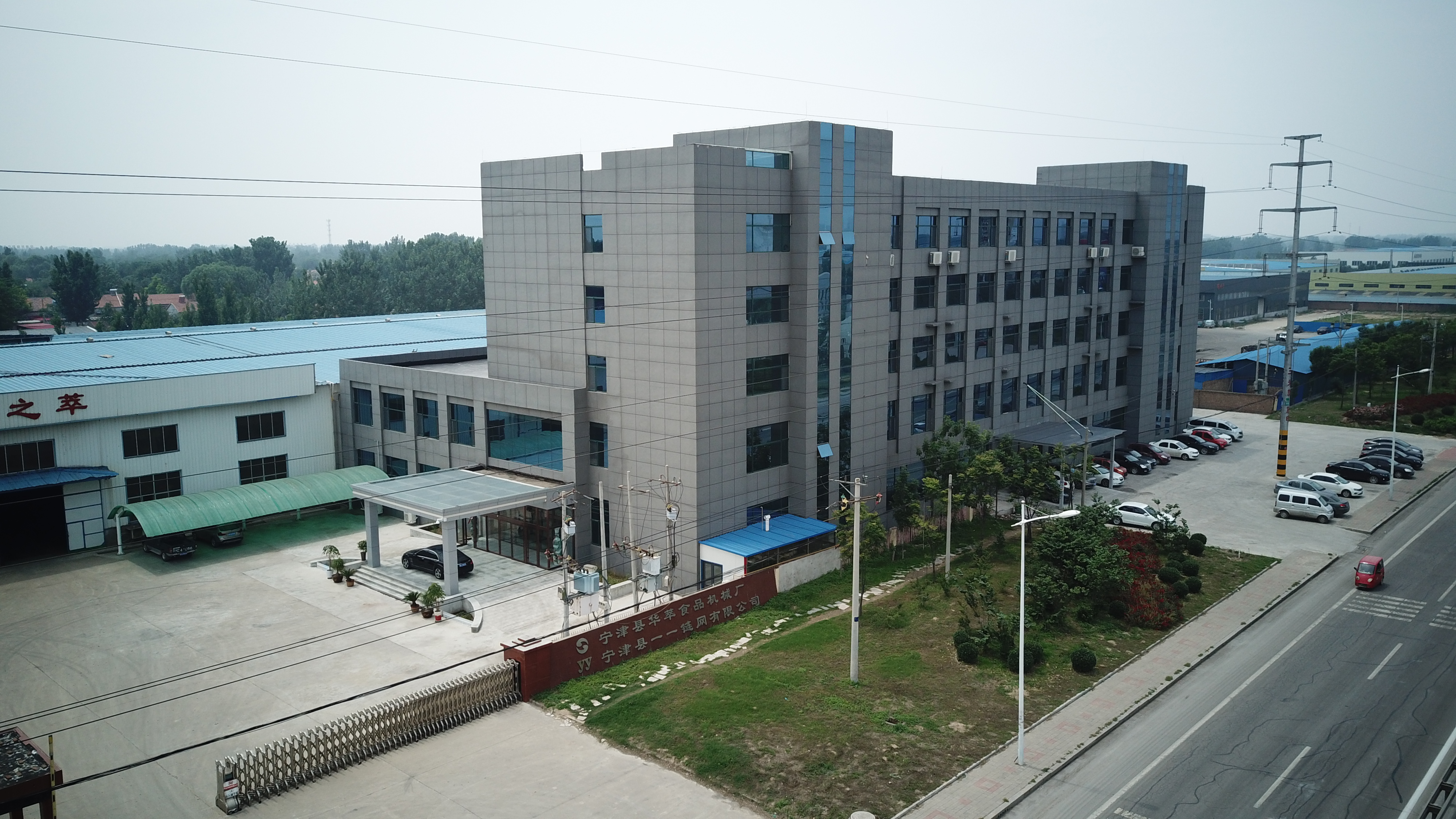

Manufacturing evidence
Manufacturing experience since 1998; Ningjin Yiyi Mesh Belt Co., Ltd. established in 2008. Full factory, quality and certificate pages are on our official website, www.yiyimeshbelt.com.
See it for yourself, live. Sunny Ye walks you through the workshop on a video call. Factory visits are welcome too.
Questions from buyers
TroubleshootingWhy does a spiral freezer belt collapse?The causes we see most often, and the checks that prevent them before the belt ships.Read the guide →
QuotationWhat to send before a quoteSend the right details once and get an accurate quotation without a long email chain.Read the guide →
How do I order a custom metal conveyor belt to my drawing?
Send your drawing, or the dimensions you have, with the application and quantity. YIYI Mesh Belt confirms the drawing with production suggestions, makes a trial piece when needed, and starts production only after your approval.
Can you make a replacement conveyor belt from an old belt without a drawing?
Yes. Photos and measured dimensions support a preliminary quotation; for formal replacement we use the physical old belt, any drawings and the equipment information, because a worn belt can differ from the original design.
How do I measure an old metal conveyor belt?
Measure pitch with a tape over 10 pitches and divide by 10, wire and rod diameter with a caliper in three places, then record the edge type, overall width and, for spiral belts, turn direction and drum diameter. The spiral page shows the four steps with photos.
Which metal conveyor belts does YIYI Mesh Belt manufacture?
Spiral freezer belts, self-stacking belts, side driven belts, small radius spiral belts, eye link belts and flat wire (honeycomb) belts, plus balanced and compound weave, chain-driven and other metal belts, with matched sprockets and spare parts.
Do you provide material documentation for stainless steel conveyor belts?
Yes. Incoming wire and rod are checked for composition with an alloy analyser, material is traceable to each order, and material documentation can be provided for your order.
What happens after I place an order?
Drawing approval with suggestions, a trial piece when you send a sample, production after your approval, progress updates agreed for each order, an order record of every requirement, a turning or running test where relevant, and measured photos plus an inspection report before shipment.
What is the lead time for a metal conveyor belt?
Lead time is confirmed with each quotation. We keep regular raw-material stock and draw stainless wire and round bar in-house; finished spiral freezer belt capacity is approximately 350–400 m per day. Capacity is not a lead time.
What does 100% final inspection mean?
Every completed formal belt is inspected before packing, including pitch, width, length, flatness, welds, structural dimensions and drive matching where applicable. It is not a zero-defect or lifetime guarantee.
Didn't find your answer?More in the Knowledge Center →
Start your order
Send your drawing or old belt. We build it to match.
Manufacturing experience since 1998, company established 2008: tell us belt type, width and quantity, and we reply with what we can build and a quotation.
