Seven process areas, the belt families used in each, and the information an engineer needs to review your line.
Start from the process — freezing, baking, frying, washing, heat treatment or heavy-duty conveying — then shortlist the belt families used for it and confirm the geometry and drive on an approved drawing. Material and temperature suitability are confirmed for each project; YIYI does not publish universal temperature limits.
Spiral and turning conveyors in freezing and cooling lines. The belt must suit the drum geometry, turn ratio and drive of the existing or new system.
Drum diameter and turn direction, turn ratio, overall and usable width, pitches, edge, drive details, product and cleaning conditions.
Processing, cooking-line transfer and freezing of meat and seafood. Open structures with flights or reinforcement are common; material and accessories are selected for the application.
Product and load, washdown and cleaning method, required flights or side plates, width and length, drive.

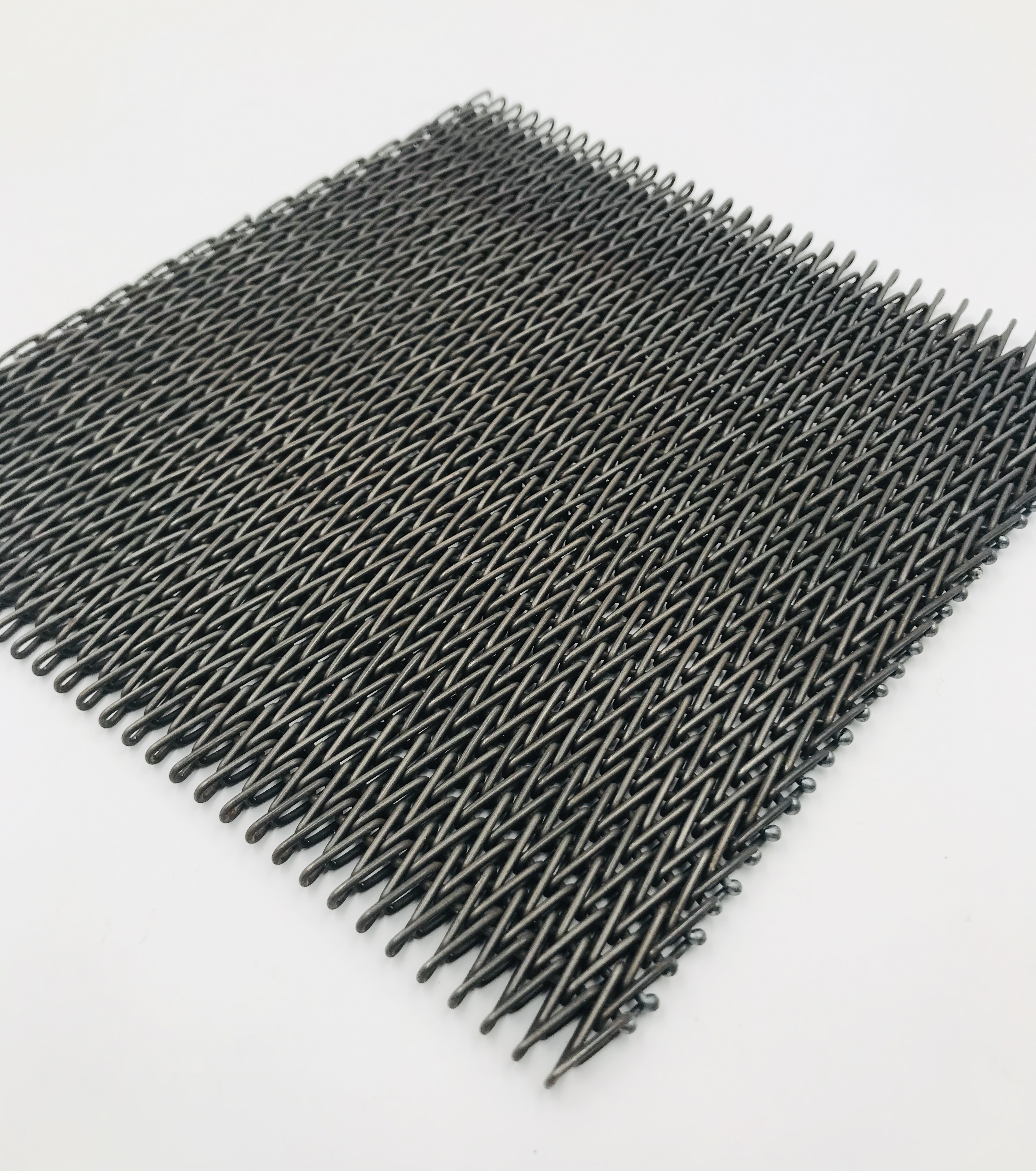

Conveying products through baking ovens and cooling lines. Material, pitch and edge construction are selected for the oven design and confirmed on the approved drawing.
Oven type, existing belt or drawing, product, width and length, pitch, wire and rod, edge, drive.
Frying, coating and small-product lines. Wire pitch, wire diameter and the number of spaces — or a close woven surface — are selected for the product.
Product size, process (frying, coating, cooling), pitch, wire diameter, space count, edge, drive arrangement.

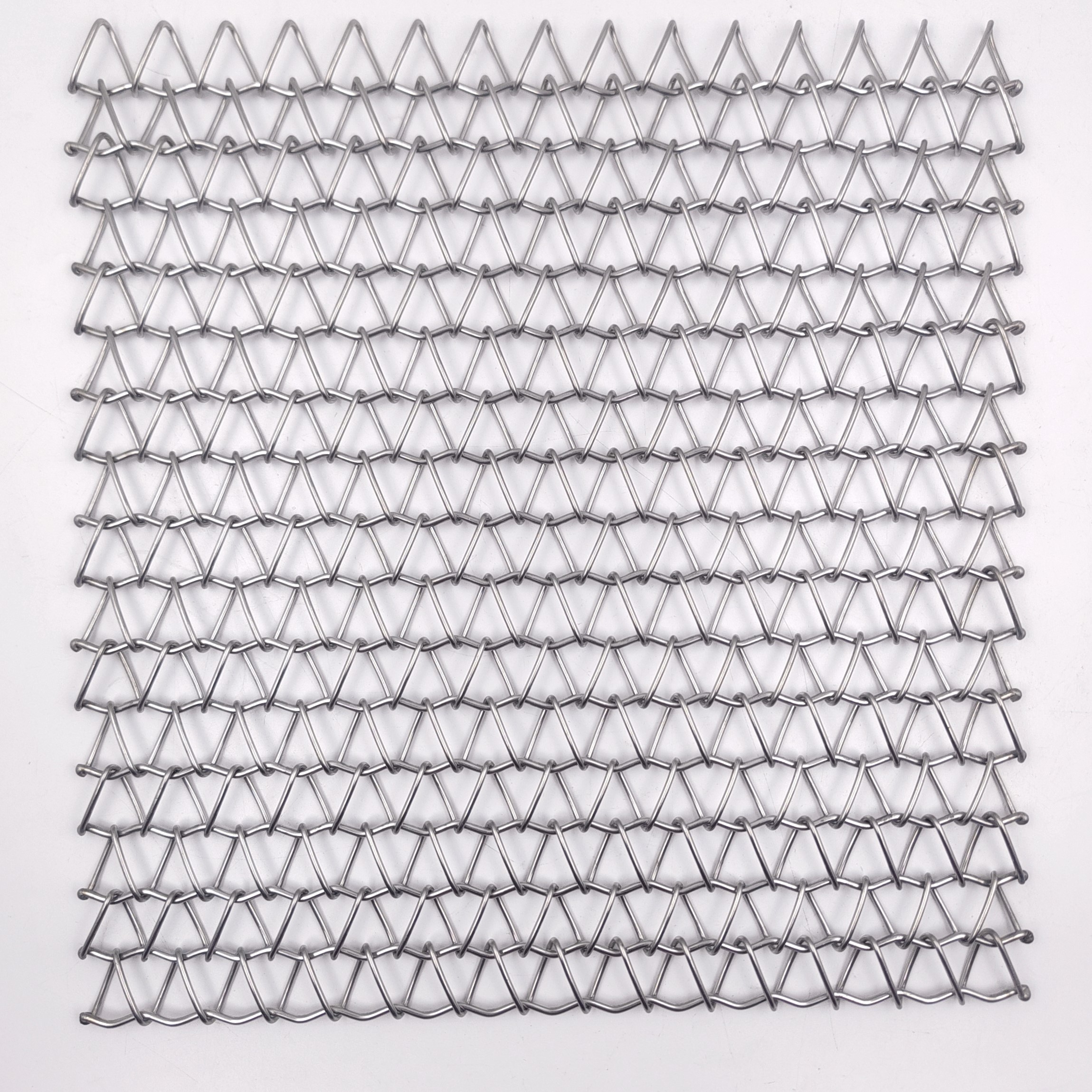

Conveying parts through heat-treatment equipment. Material, wire diameters and chain construction are selected for the operating conditions; temperature suitability is confirmed for each project.
Operating temperature profile, atmosphere, part load, width, pitch, wire and rod diameters, chain and sprocket details.

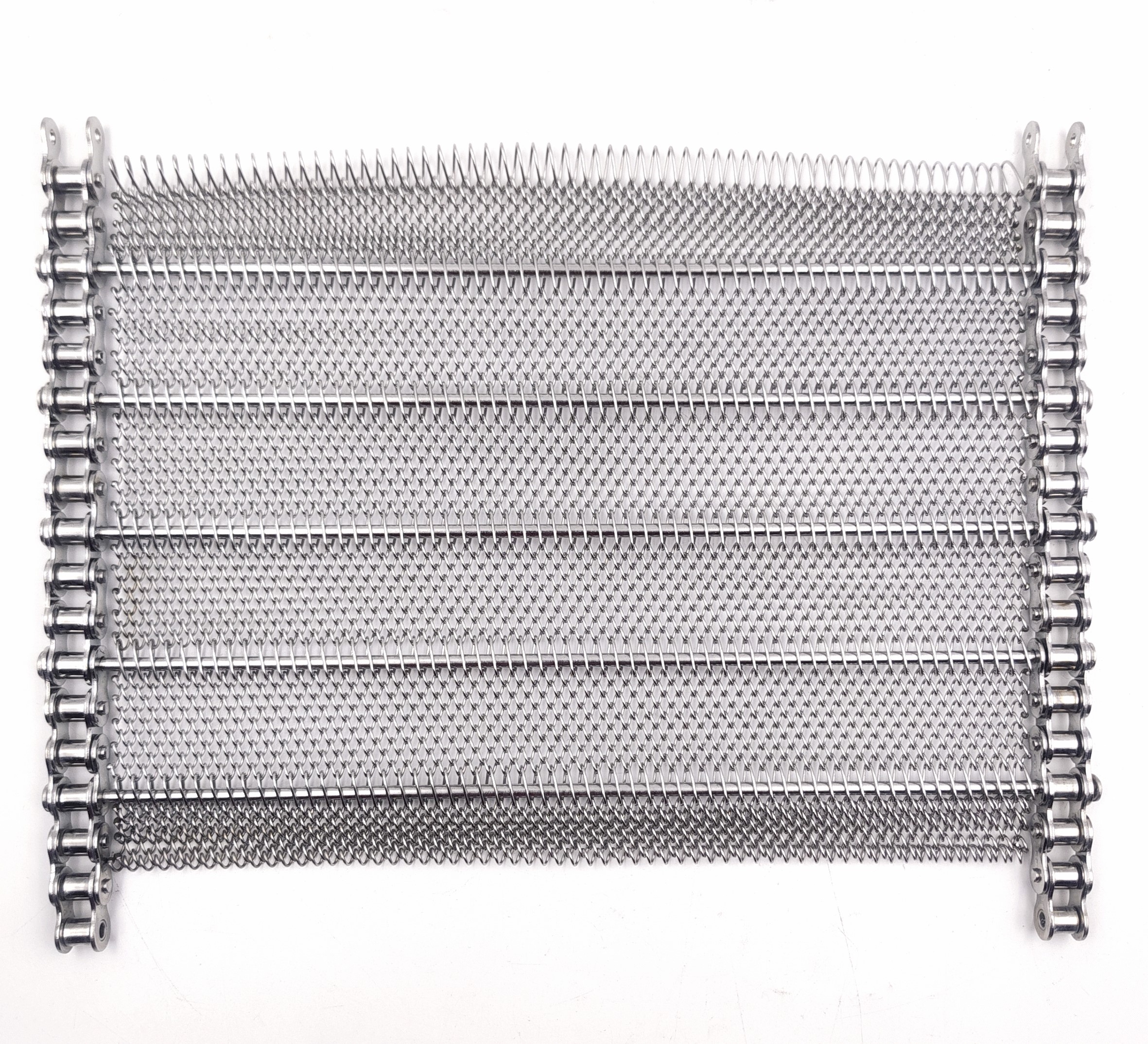

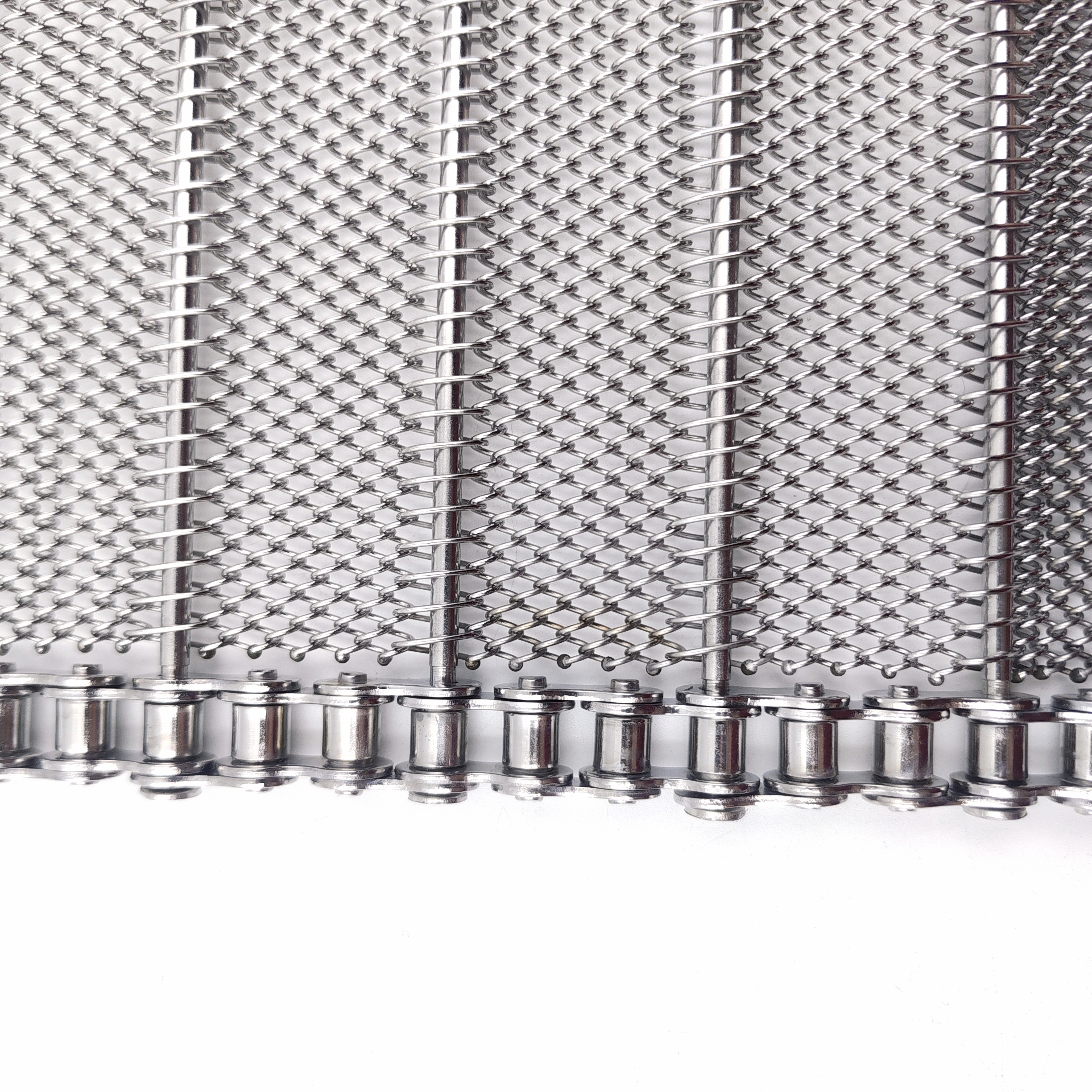

General industrial and heavier-load conveying. Belt, chain and sprocket are reviewed as one system; plate pitch and chain pitch are confirmed separately.
Load, chain type and pitch, sprocket profile, plate or mesh type, width, equipment drawing.
Conveying products and parts through washing sections. Material and surface treatment are selected for the process conditions; open area supports drainage.
Washing medium and temperature, product or part type, open-area needs, width, edge, drive.
Applications are references from the YIYI public technical specifications. Suitability depends on the belt specification, material, operating conditions and equipment design. See the 12 belt types overview or compare all 12 belt families.
Buyer guides from our production team.
A drawing, photos of the existing belt with dimensions, or the application and equipment. Email info@yiyimeshbelt.com or WhatsApp +86 134 5177 3742.
