Compound Weave Belt a close conveying surface for small products

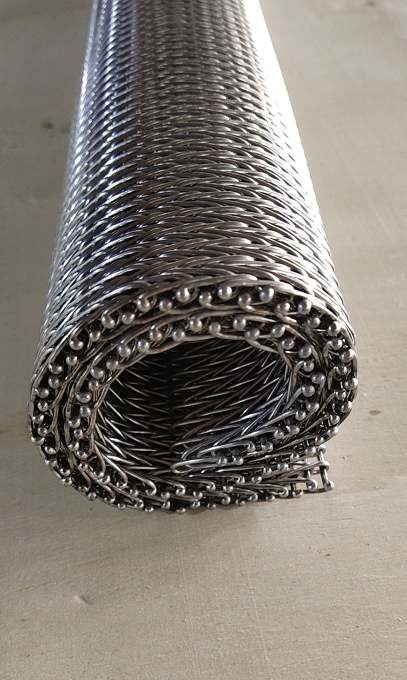

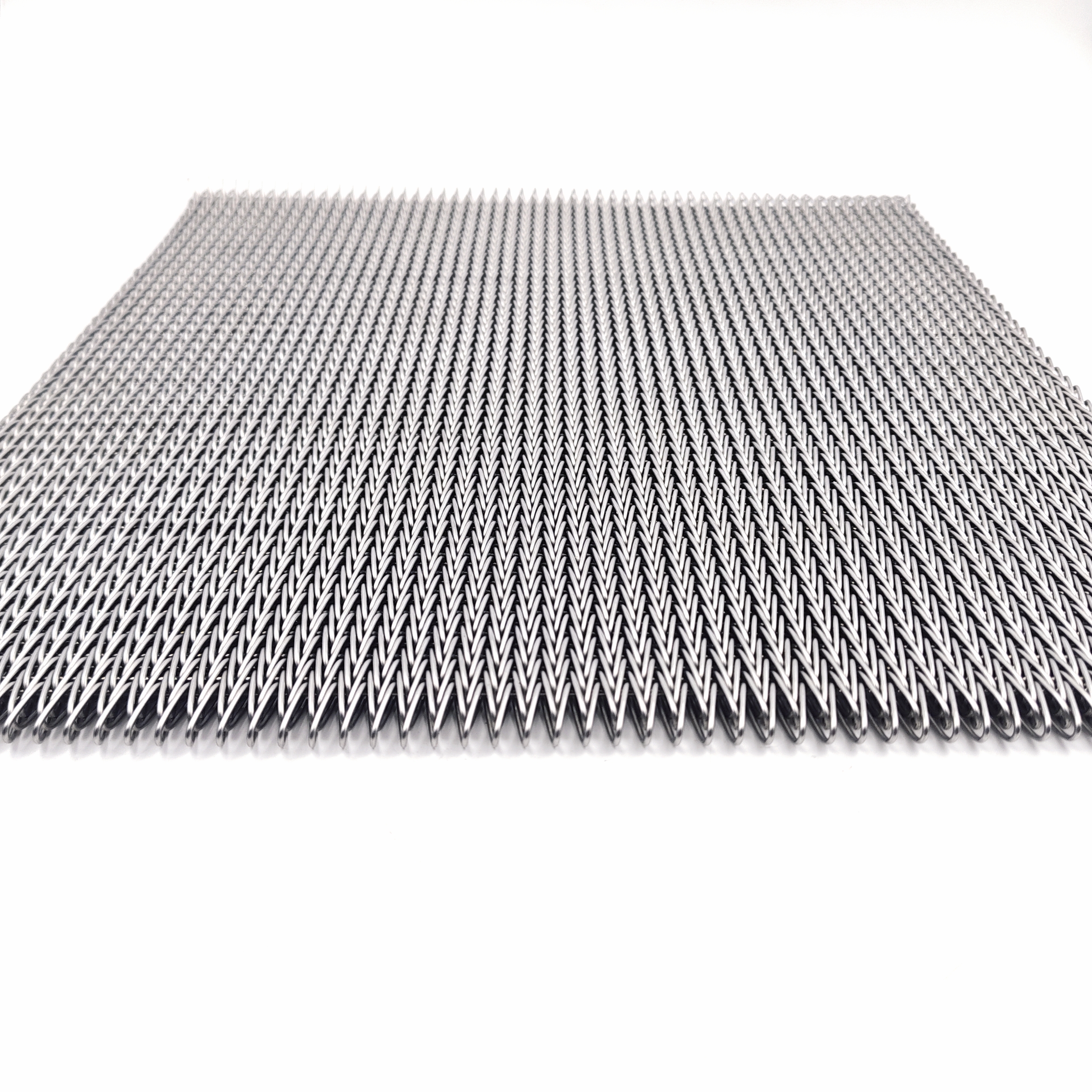

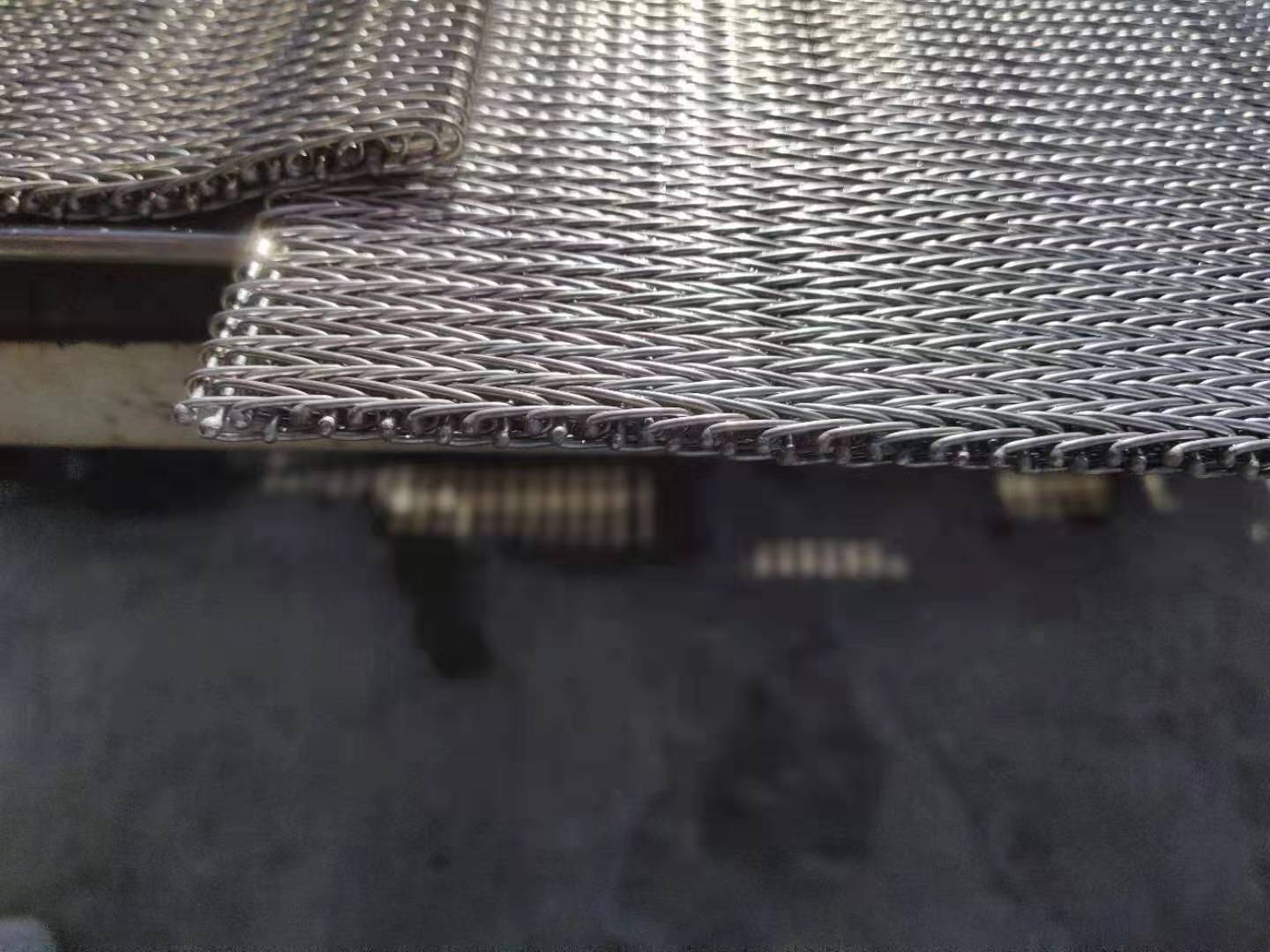

A compound weave belt is a closely woven metal conveyor belt in which several spirals are nested on each cross rod, giving a close, even conveying surface for small products. It fits only when the spiral pitch, rod pitch, wire sizes and weave arrangement match your equipment and product. YIYI Mesh Belt draws its own wire and builds each belt to the drawing or sample you approve.
Product page and inquiry on the official website: Compound Weave Belt
- Spiral pitch 6–20 mm
- Width 200–3000 mm
- SUS304 · SUS316 · mild steel
- Welded edge
Also called compound balanced weave belt or close mesh conveyor belt · Reviewed by the YIYI Mesh Belt production team, updated 2026-10-11
New equipmentBuilt from your equipment drawing
Replacing a worn beltRe-measured from the old belt or sample
Small productsPitch chosen for the product size
Repeat orderBuilt to the previous approved drawing
Compound Weave Belt specifications
Dimensional options in mm with inch references. Rod diameter and weave arrangement are confirmed on your approved drawing.
| Dimension | mm | inch |
|---|---|---|
| Spiral pitch | 6–20 | 0.236–0.787 |
| Spiral wire Ø | 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.8 / 2 / 2.5 / 3 | 0.047–0.118 |
| Rod pitch | 6–20 | 0.236–0.787 |
| Rod Ø | Confirmed on your drawing | |
| Belt width | 200–3000 / custom | 7.87–118.11 |
| Belt length | To your drawing | |
| Material · wire · edge | SUS304 / SUS316 / mild steel · round wire or custom flat wire · welded edge | |
Not in the table? Send your drawing or old belt. We confirm what we can build, in mm or inch. New to belt selection? Start with the 12 belt types overview.
Compound Weave Belt documents
Read the full specification before you send your drawing
From our Document Library: the dimensions and options to compare with your current belt, and how the belt is made and inspected.
Compound Weave Belt Technical Specification11 pages · read online page by page or download the PDF
- Spiral pitch, rod and width options in mm and inch
- Materials and configuration options
- Construction details and options
Compound Weave Belt Production and Quality Control18 pages · read online page by page or download the PDF
- Approval and inspection sequence
- Material inspection equipment
- Spiral wire forming
Wire form and side options
Choose the wire form and side construction, or send your drawing. Tap “Add to RFQ” and your choice goes into the enquiry form.
The weave and rod arrangement follow the approved drawing or your sample; flat-wire dimensions are specified separately when required.
Need a closer surface? Send your product size and we suggest the spiral and rod pitch.
Six compound weave belt problems and how production control prevents them
Problems that occur on compound weave belts in service, and the control YIYI Mesh Belt applies at each order stage.
Problem 02Quote
Mesh too open for the product
Causepitch chosen without the product size.
YIYI Mesh Belt controlspiral and rod pitch selected for the product size at the drawing stage.
Problem 03Production
Spirals formed unevenly
Causeforming not checked before weaving.
YIYI Mesh Belt controlspiral forming checked on the machine before the belt is woven.
Problem 04Production
Rough or loose edge welds
Causeedge welds not finished.
YIYI Mesh Belt controlevery edge weld checked by eye and by hand before packing.
Problem 05Production
Belt not flat
Causeuneven weave tension along the belt.
YIYI Mesh Belt controlflatness and surface checked on the inspection table.
Problem 06Pre-shipment
Width out of tolerance
Causewidth not measured along the belt.
YIYI Mesh Belt controlwidth measured with a tape at several points before shipment.
Every custom belt goes through the same controls. Send your spiral pitch, rod pitch and belt width for a fit check. Read replacing a belt without the original drawing.
Production and inspection
Six checkpoints between raw material and packing. Spiral wire is drawn in our own workshop; every belt is inspected before it ships. Full detail: manufacturing and quality control.
01Material in
Wire drawn in-house. Diameter, composition and hardness checked per batch.
02Spiral forming
Spirals formed and checked on the forming machine.
03Weaving
Spirals woven onto the rods to the approved arrangement.
04Trial section
Spiral and rod pitch measured against your approved drawing before full production.
05Surface check
Surface, flatness and edges checked along the belt.
06Final inspection
Pitch, width and edges checked on every belt before packing.
- In stock
- regular raw-material stock for drawing
- In-house

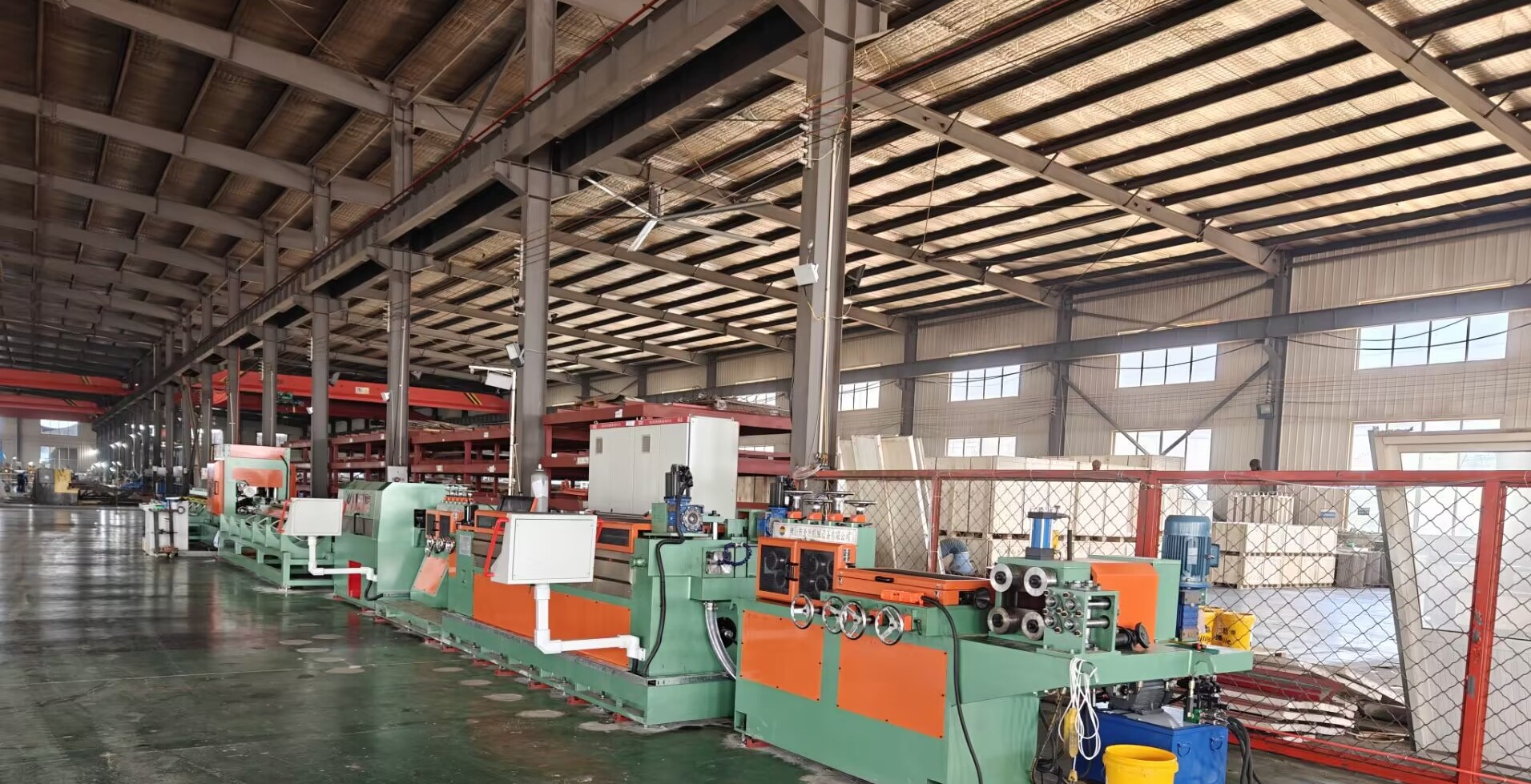

- stainless wire and round-bar drawing
- 100%
- final inspection before packing
- Traceable
- material documentation available for your order
What you receive
- Drawing approvalYour drawing confirmed, with our production suggestions.
- Trial pieceA trial section for your approval when you send a sample.
- Production after approvalMass production starts only on what you approved.
- Progress updatesProgress updates are agreed for each order, covering material and tooling status.
- Before shipmentMeasured photos and the inspection report of your own belt.
A belt that does not meet the approved drawing does not go to packing: it is recorded, reworked or remade, and inspected again. 100% final inspection is not a zero-defect or lifetime guarantee. Lead time is confirmed per order.
See your own belt measured before it ships. Ask for a video call from the workshop.
