Problem 01Quote
Replacement belt does not fit
Causespaces counted wrongly, or pitch and wire not measured over enough pitches.
YIYI Mesh Belt controlspaces counted across the width and pitch measured over 10 wires before drawing.
trapezoidal mesh belt specifications · YIYI Mesh Belt technical library
Trapezoidal Mesh Belt pitch, wire and spaces counted to your belt

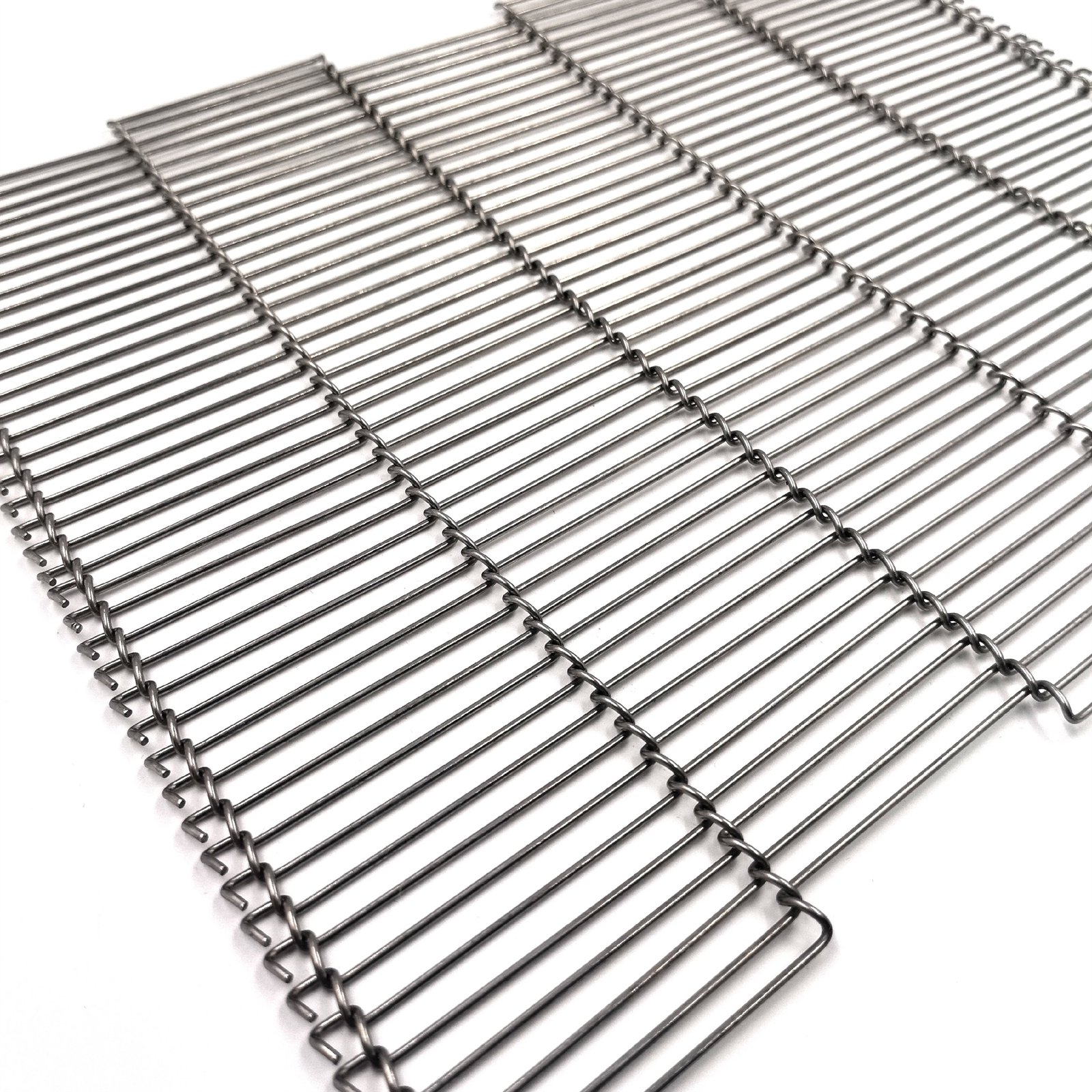

A trapezoidal mesh belt is a wire-formed metal conveyor belt made of bent cross wires linked into trapezoidal spaces, used in frying, coating and custom food conveyor lines. It fits only when the wire pitch, wire diameter, number of spaces, edge type and drive match your equipment. YIYI Mesh Belt forms these belts on automatic equipment and builds each one to the drawing you approve.
Product page and inquiry on the official website: Trapezoidal Mesh Belt
- Wire pitch 4–23.8 mm
- Width 76–2352 mm
- SUS304 · SUS316
- SLE or DLE edge
Also called wire formed belt or honeycomb wire belt · Reviewed by the YIYI Mesh Belt production team, updated 2026-10-11
New equipmentBuilt from your equipment drawing
Replacing a worn beltRe-measured from the old belt or sample
Frying and coatingPitch and wire chosen for the product
Repeat orderBuilt to the previous approved drawing
Trapezoidal Mesh Belt specifications
Dimensional options in mm with inch references. Number of spaces, edge size and edge type are confirmed on your approved drawing.
| Dimension | mm | inch |
|---|---|---|
| Wire pitch | 4–23.8 | 0.157–0.937 |
| Wire Ø | 1 / 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.8 / 1.9 / 2 / 2.3 / 2.35 / 2.5 / 2.8 | 0.039–0.110 |
| Number of spaces | At least 3, counted across the width | |
| Edge size | Confirmed on your drawing | |
| Belt width | 76–2352 / custom | 2.99–92.60 |
| Belt length | To your drawing | |
| Material · edge · finish | SUS304 / SUS316 · SLE (single-loop) or DLE (double-loop) edge · pressed or unpressed edge, confirmed from your belt or photos | |
Not in the table? Send your drawing or old belt. We confirm what we can build, in mm or inch. New to belt selection? Start with the 12 belt types overview.
Trapezoidal Mesh Belt documents
Read the full specification before you send your drawing
From our Document Library: the dimensions and options to compare with your current belt, and how the belt is made and inspected.
Trapezoidal Mesh Belt Technical Specification14 pages · read online page by page or download the PDF
- Wire pitch, wire and width options in mm and inch
- Single-loop and double-loop edges
- Matching sprockets
Trapezoidal Mesh Belt Production and Quality Control13 pages · read online page by page or download the PDF
- Approval and inspection sequence
- Material inspection equipment
- Trial production and first-article inspection
Edges, construction and sprockets
Choose the edge, construction and sprockets, or send your drawing. Tap “Add to RFQ” and your choice goes into the enquiry form.
Custom and sprockets
The edge size and whether the edge is pressed are confirmed for each belt; they are not taken from a general rule.
Belt and sprockets as one system. See drive sprockets for other profiles.
Six trapezoidal mesh belt problems and how production control prevents them
Problems that occur on trapezoidal mesh belts in service, and the control YIYI Mesh Belt applies at each order stage.
Problem 02Quote
Edge built the wrong way
Causepressed and unpressed edges confused; they look and install differently.
YIYI Mesh Belt controledge type confirmed from the customer’s belt or photos at quotation and shown on the drawing.
Problem 03Quote
Sprocket does not mesh
Causesprocket pitch not matched to the belt pitch.
YIYI Mesh Belt controlsprocket matched to the belt on the drawing and run on the belt before shipment.
Problem 04Production
Pitch varies along the belt
Causeforming not checked across the full length.
YIYI Mesh Belt controlpitch measured over 10 wires on the trial section and again before shipment.
Problem 05Pre-shipment
Water marks or labels left on the belt
Causebelt not dried, or production labels not removed.
YIYI Mesh Belt controlwhite-glove wipe for water and oil and a full-length check for labels before packing.
Problem 06Pre-shipment
Width out of tolerance
Causewidth not measured along the belt.
YIYI Mesh Belt controlwidth measured with a tape at several points before packing.
Every custom belt goes through the same controls. Send your wire pitch, wire diameter, number of spaces and width for a fit check. Read replacing a belt without the original drawing.
Production and inspection
Six checkpoints between raw material and packing. Belts are formed on automatic equipment in our own workshop; every belt is inspected before it ships. Full detail: manufacturing and quality control.
01Material in
Round bar drawn in-house. Diameter, composition and hardness checked per batch.
02Trial section
Pitch, wire and spaces measured against your approved drawing before full production.
03Wire check
Wire diameter and pitch checked with a caliper on the trial section.
04Sprocket check
Sprocket-driven belts run on their sprocket before shipment.

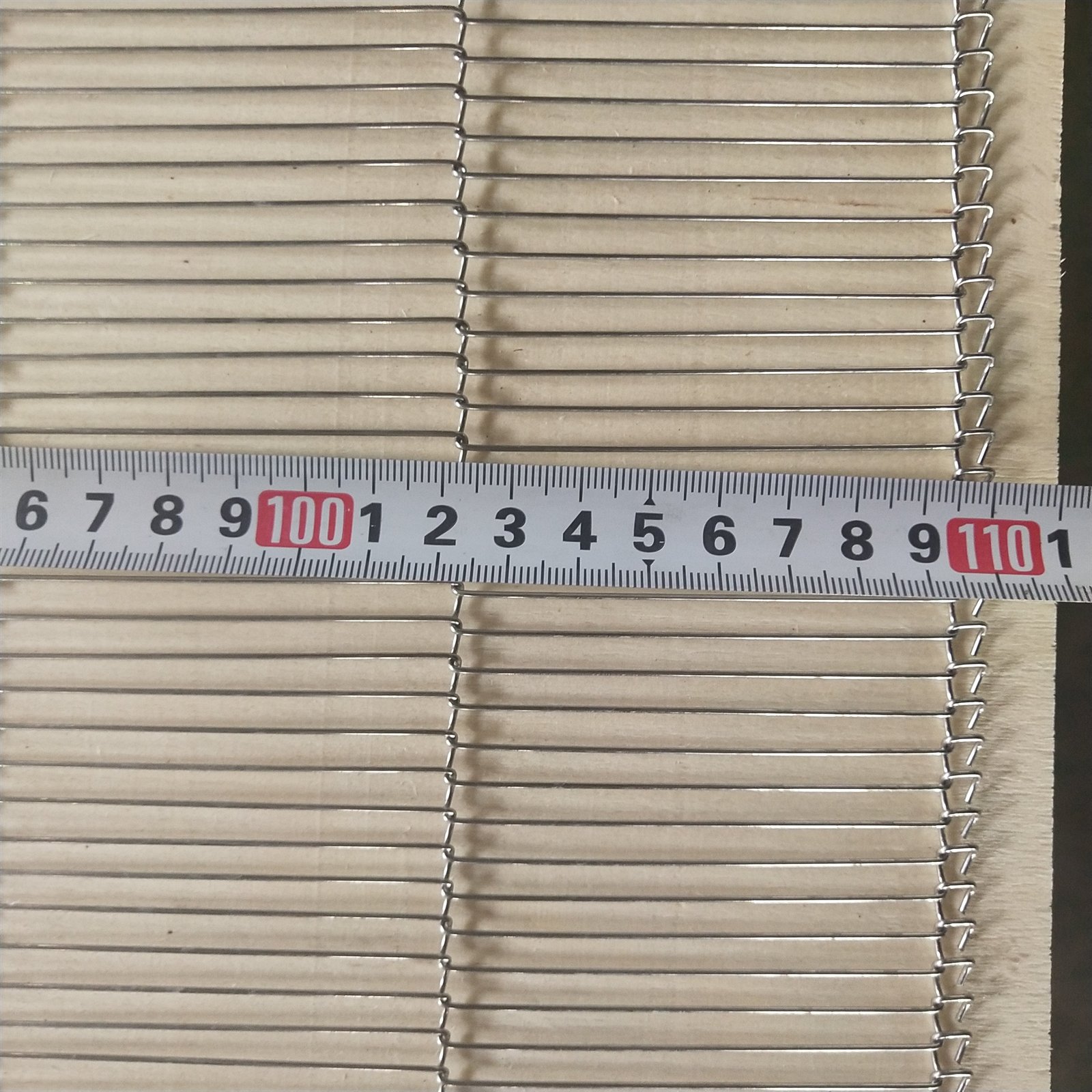

05Edge check
Edge size and finish checked along the belt.
06Final inspection
Pitch, width, edges and cleanliness checked on every belt before packing.

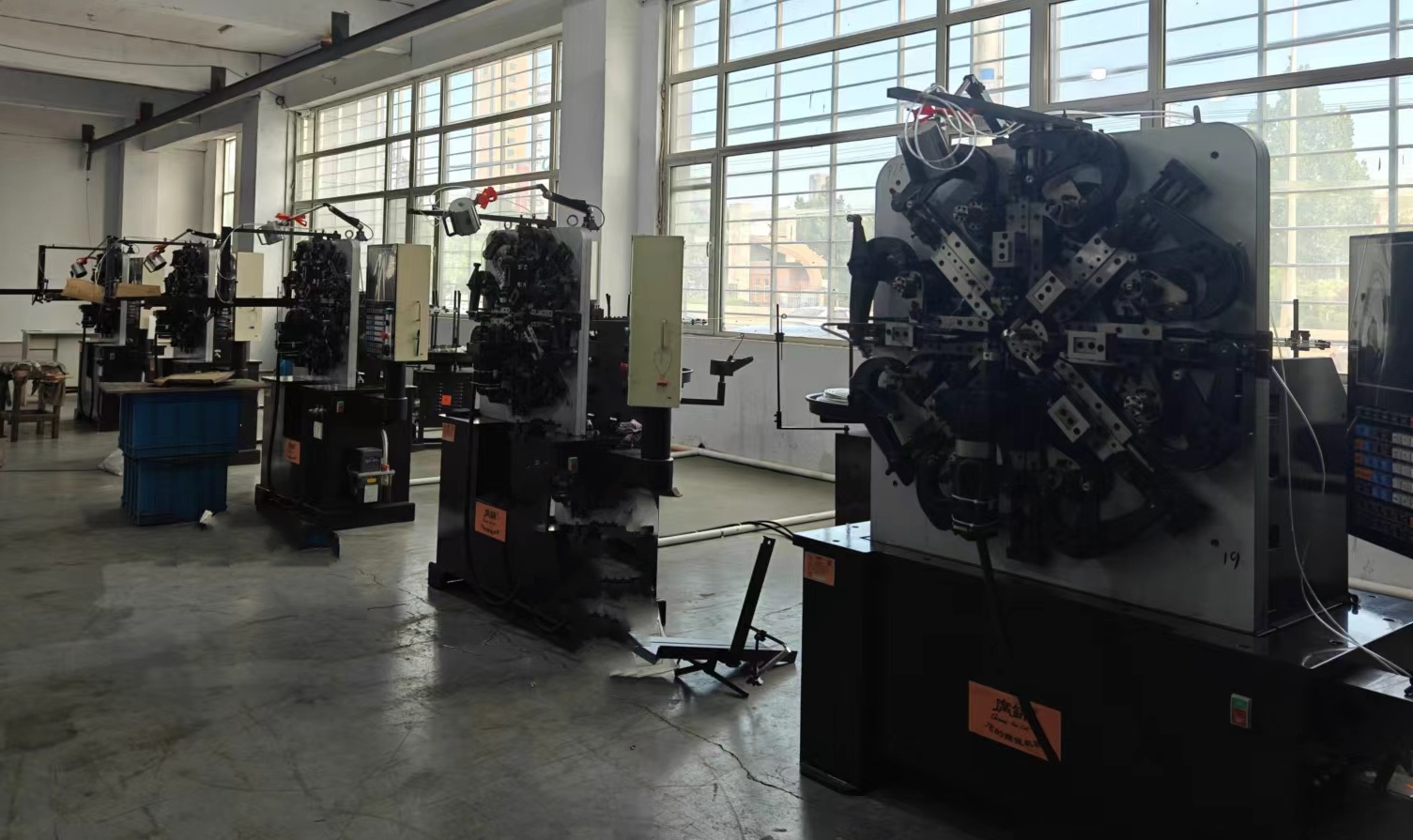

15 automatic machines, used only for trapezoidal belts
Our trapezoidal belts are formed on 15 dedicated automatic machines in our own workshop. Each cross wire is bent by a programmed forming head, so the same programme that made your approved trial section makes the full order and any repeat order.
- In stock
- regular raw-material stock for drawing
- In-house
- stainless wire and round-bar drawing
- 100%
- final inspection before packing
- Traceable
- material documentation available for your order
What you receive
- Drawing approvalYour drawing confirmed, with our production suggestions.
- Trial pieceA trial section for your approval when you send a sample.
- Production after approvalMass production starts only on what you approved.
- Progress updatesProgress updates are agreed for each order, covering material and tooling status.
- Before shipmentMeasured photos and the inspection report of your own belt.
A belt that does not meet the approved drawing does not go to packing: it is recorded, reworked or remade, and inspected again. 100% final inspection is not a zero-defect or lifetime guarantee. Lead time is confirmed per order.
See your own belt measured before it ships. Ask for a video call from the workshop.
Trapezoidal Mesh Belt questions
What is a trapezoidal mesh belt?
A trapezoidal mesh belt is a wire-formed metal conveyor belt made of bent cross wires linked into trapezoidal spaces. It is used in frying, coating and custom food conveyor lines.
Which specifications are available?
Wire pitch 4–23.8 mm, wire 1–2.8 mm and width 76–2352 mm, with at least 3 spaces across the width. The number of spaces and edge size are confirmed on the drawing.
What is the difference between SLE and DLE?
SLE is a single-loop edge and DLE a double-loop edge. The edge type, edge size and whether the edge is pressed are confirmed for each belt.
Which materials are available?
SUS304 or SUS316, chosen for your process conditions.
Do you supply sprockets?
Yes. Stainless steel, nylon, UHMWPE or POM sprockets are matched to the belt pitch, tooth count, bore and keyway on the drawing.
How do I measure an old trapezoidal mesh belt?

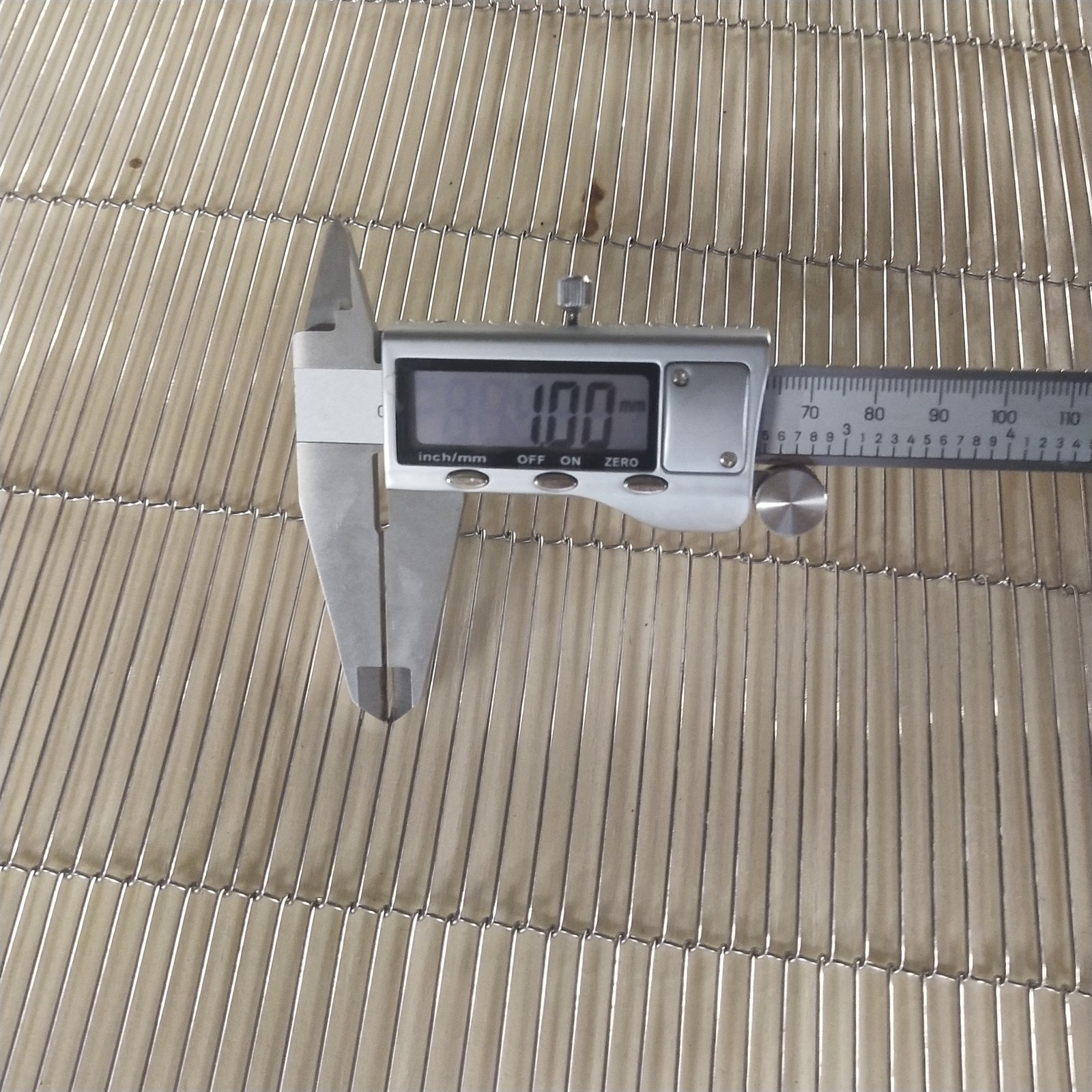

Measure pitch over 10 wires and divide by 10, the wire with a caliper, count the spaces across the width and measure one, then overall width and edge size. Note the edge type and whether it is pressed.
Trapezoidal Mesh Belt projects
We keep project records on our official website: what the customer sent, how we built it, and how it was measured. See Trapezoidal Mesh Belt projects on the official website →
Plan your trapezoidal mesh belt project
Select
Production capability
Quotation
Send 3 numbers. Get a fit check and a quotation.
Belt width, wire pitch and number of spaces are enough to start. We reply with what we can build and a quotation. Add a drawing or a photo of the old belt if you have one.
