YIYI Mesh Belt Trapezoidal Mesh Belt Technical Specification
Check what matters before you request a quote: key dimensions in mm and inches, edge options, drive sprocket options and typical applications. Compare it with your current belt or drawing, then send us the drawing or photos of your old belt for review.
Text version of this document

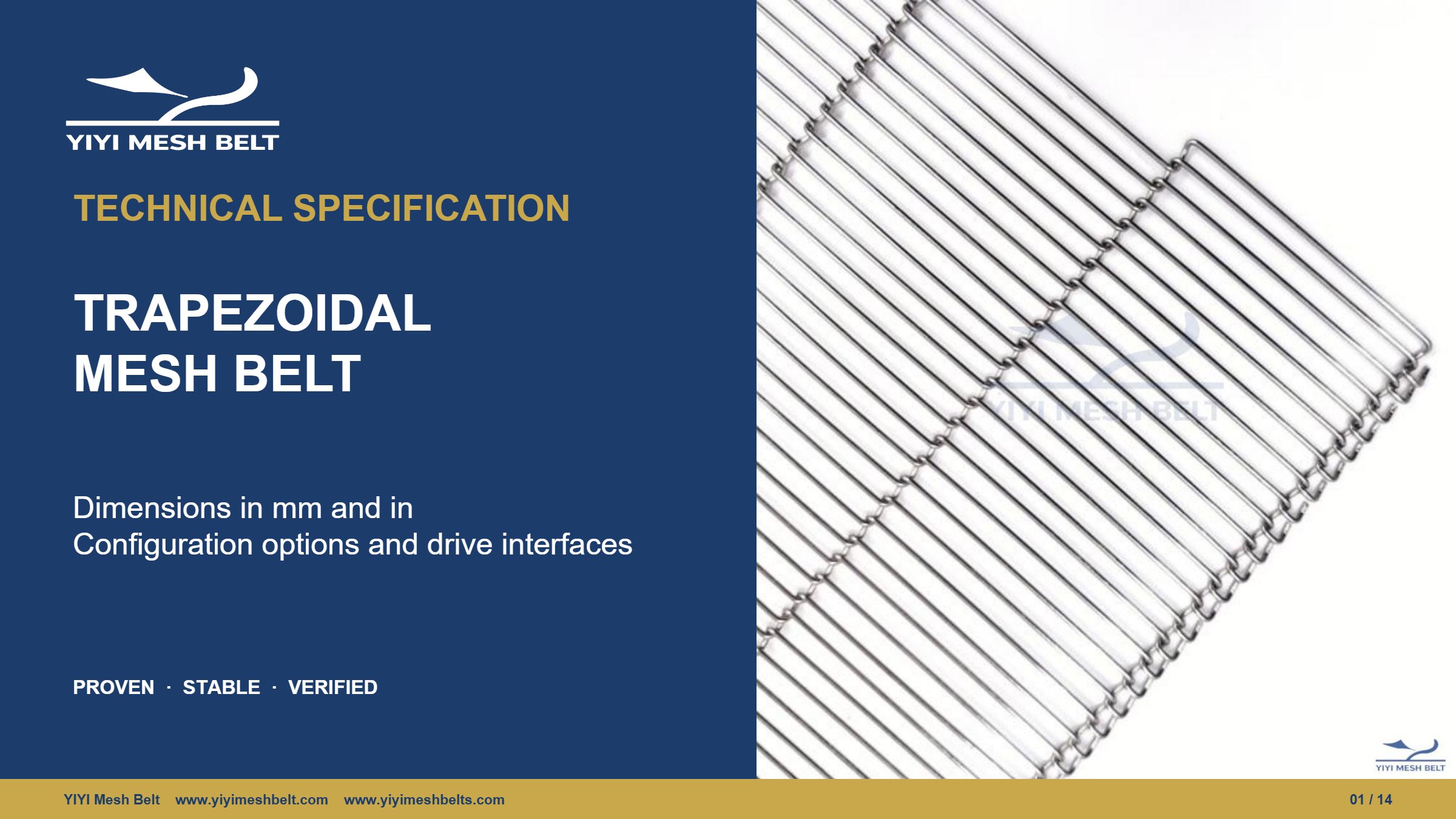

Page 1. TECHNICAL SPECIFICATION TRAPEZOIDAL MESH BELT Dimensions in mm and in Configuration options and drive interfaces PROVEN · STABLE · VERIFIED

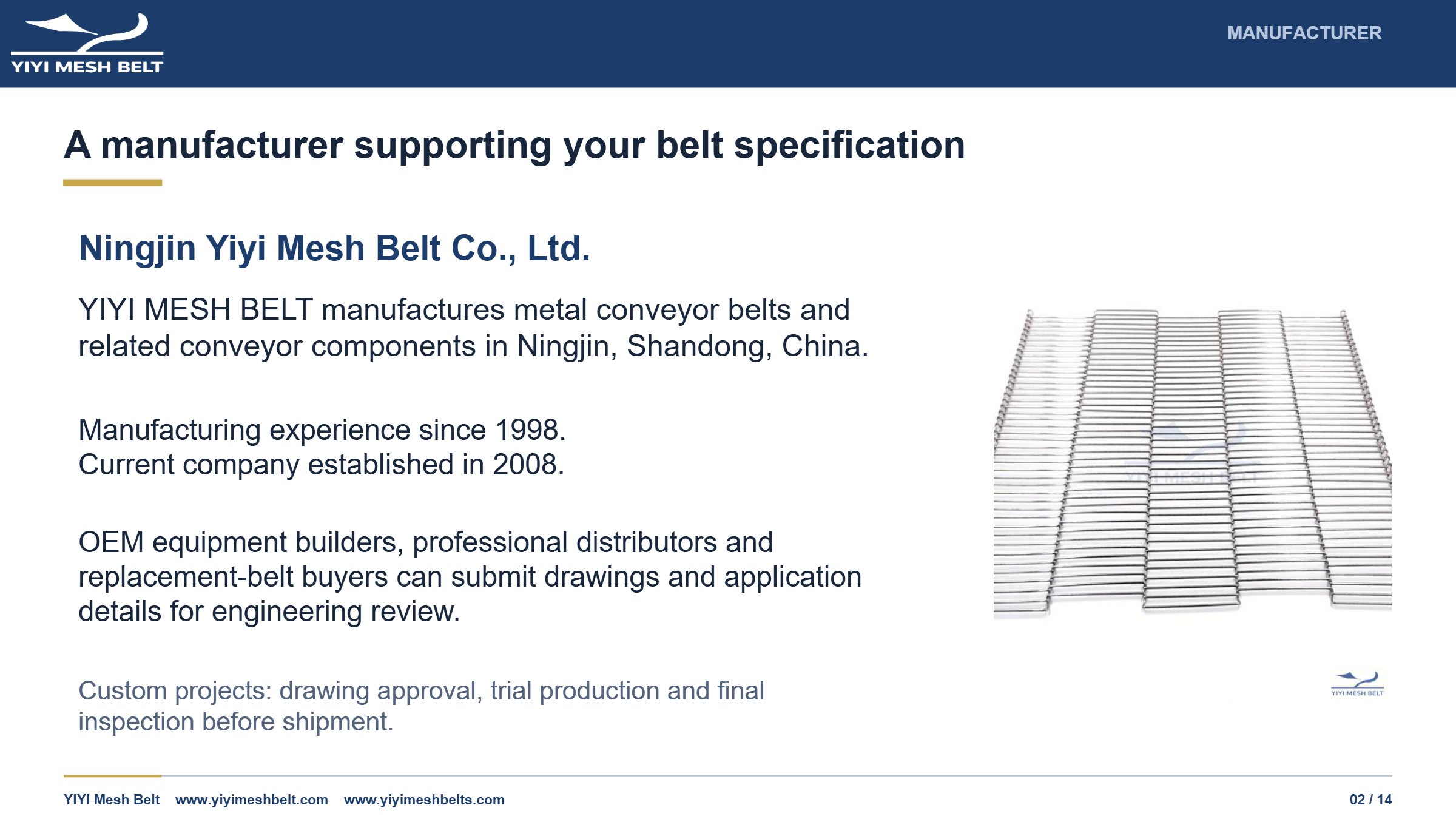

Page 2. MANUFACTURER A manufacturer supporting your belt specification Ningjin Yiyi Mesh Belt Co., Ltd. YIYI MESH BELT manufactures metal conveyor belts and related conveyor components in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. OEM equipment builders, professional distributors and replacement-belt buyers can submit drawings and application details for engineering review. Custom projects: drawing approval, trial production and final inspection before shipment.

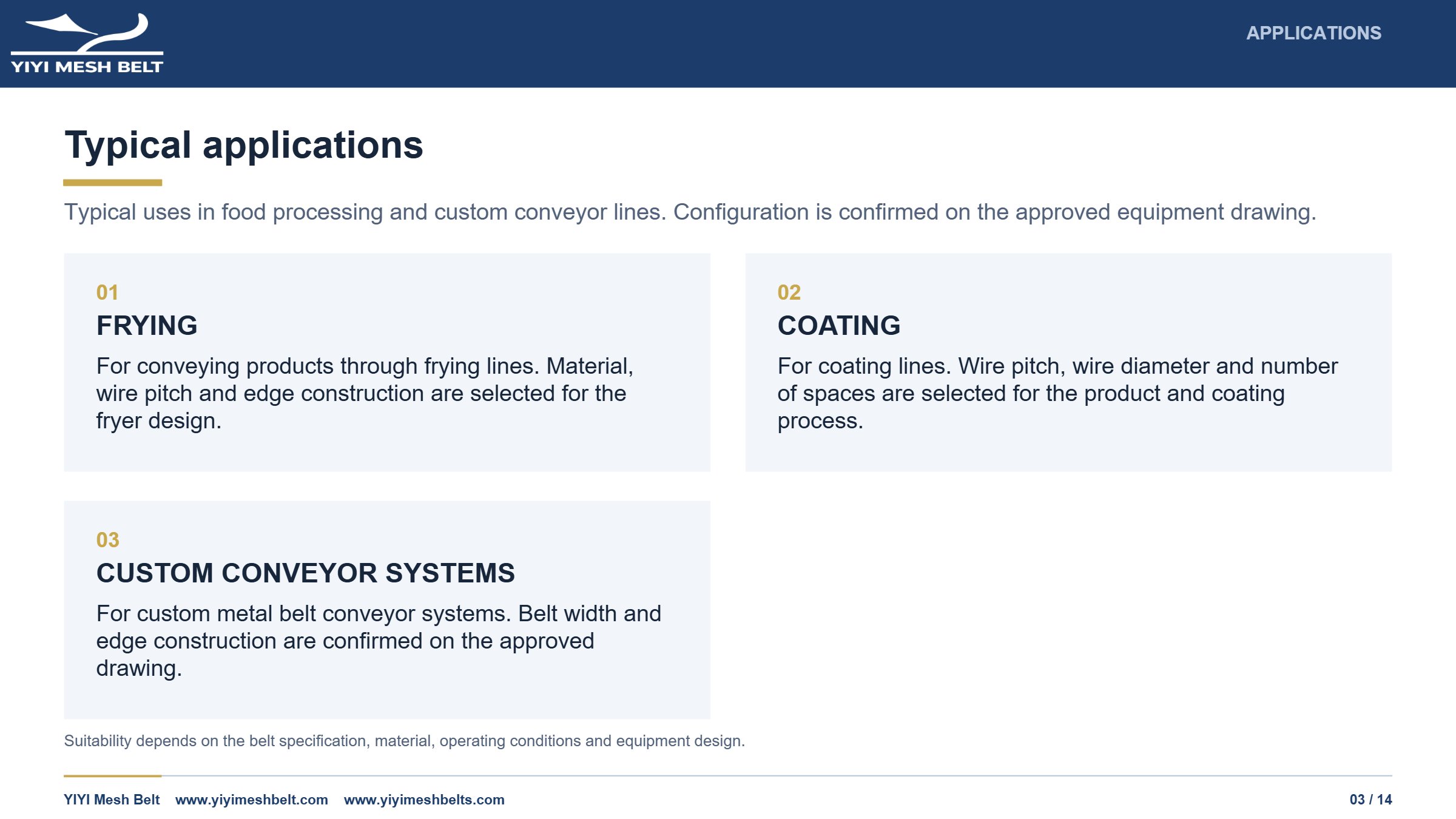

Page 3. APPLICATIONS Typical applications Typical uses in food processing and custom conveyor lines. Configuration is confirmed on the approved equipment drawing. 01 FRYING For conveying products through frying lines. Material, wire pitch and edge construction are selected for the fryer design. 02 COATING For coating lines. Wire pitch, wire diameter and number of spaces are selected for the product and coating process. 03 CUSTOM CONVEYOR SYSTEMS For custom metal belt conveyor systems. Belt width and edge construction are confirmed on the approved drawing. Suitability depends on the belt specification, material, operating conditions and equipment design.

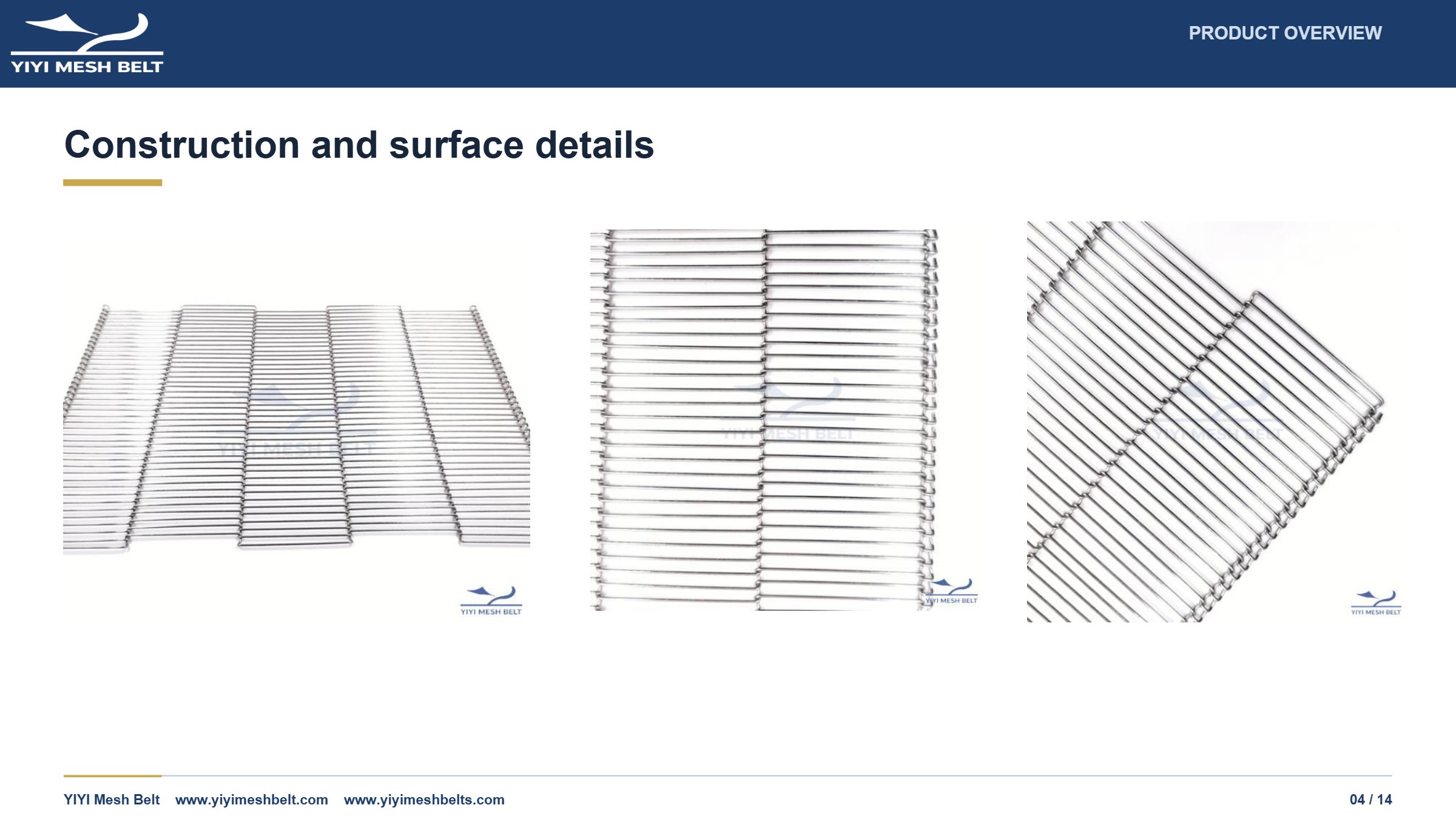

Page 4. PRODUCT OVERVIEW Construction and surface details

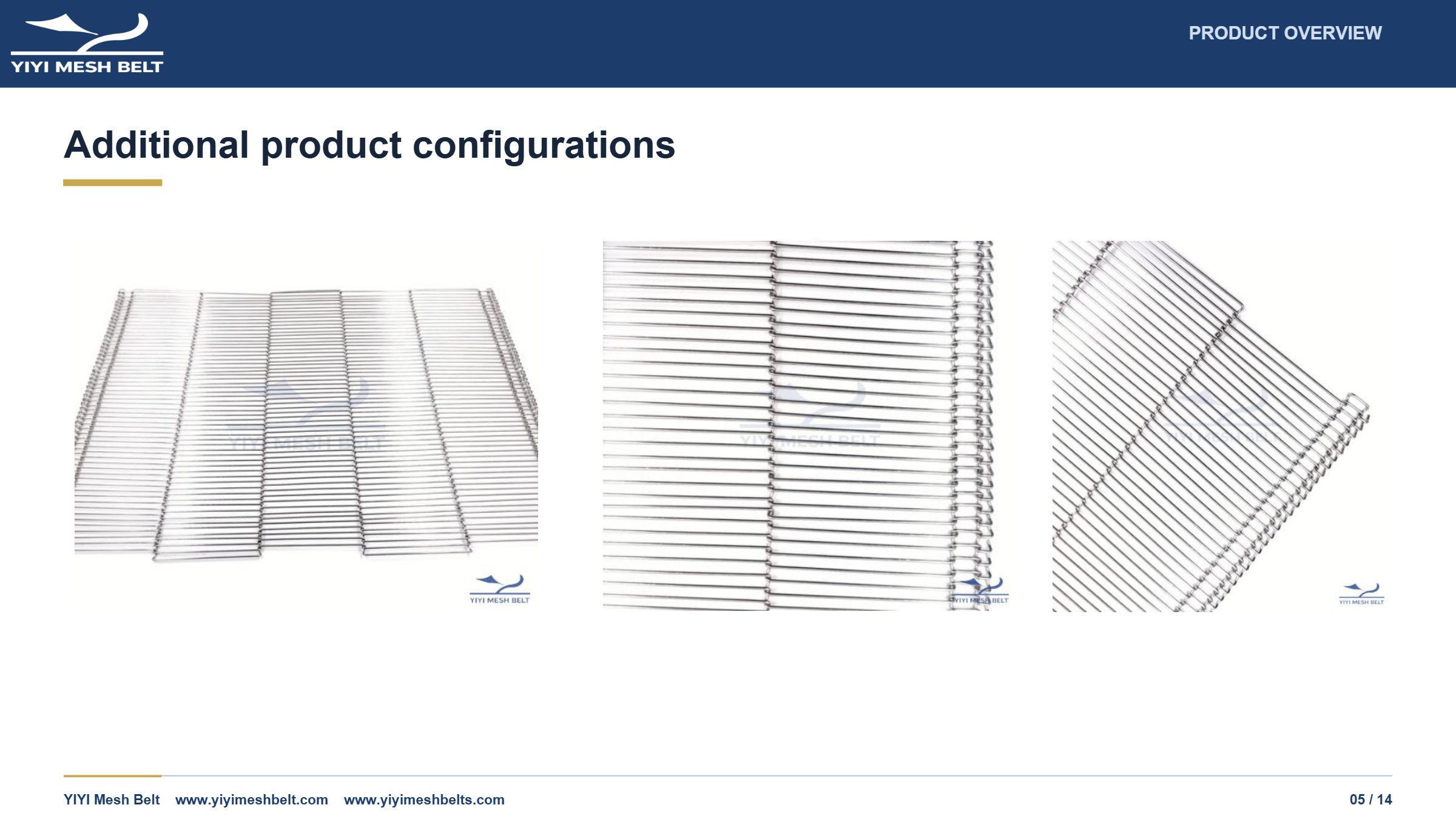

Page 5. PRODUCT OVERVIEW Additional product configurations

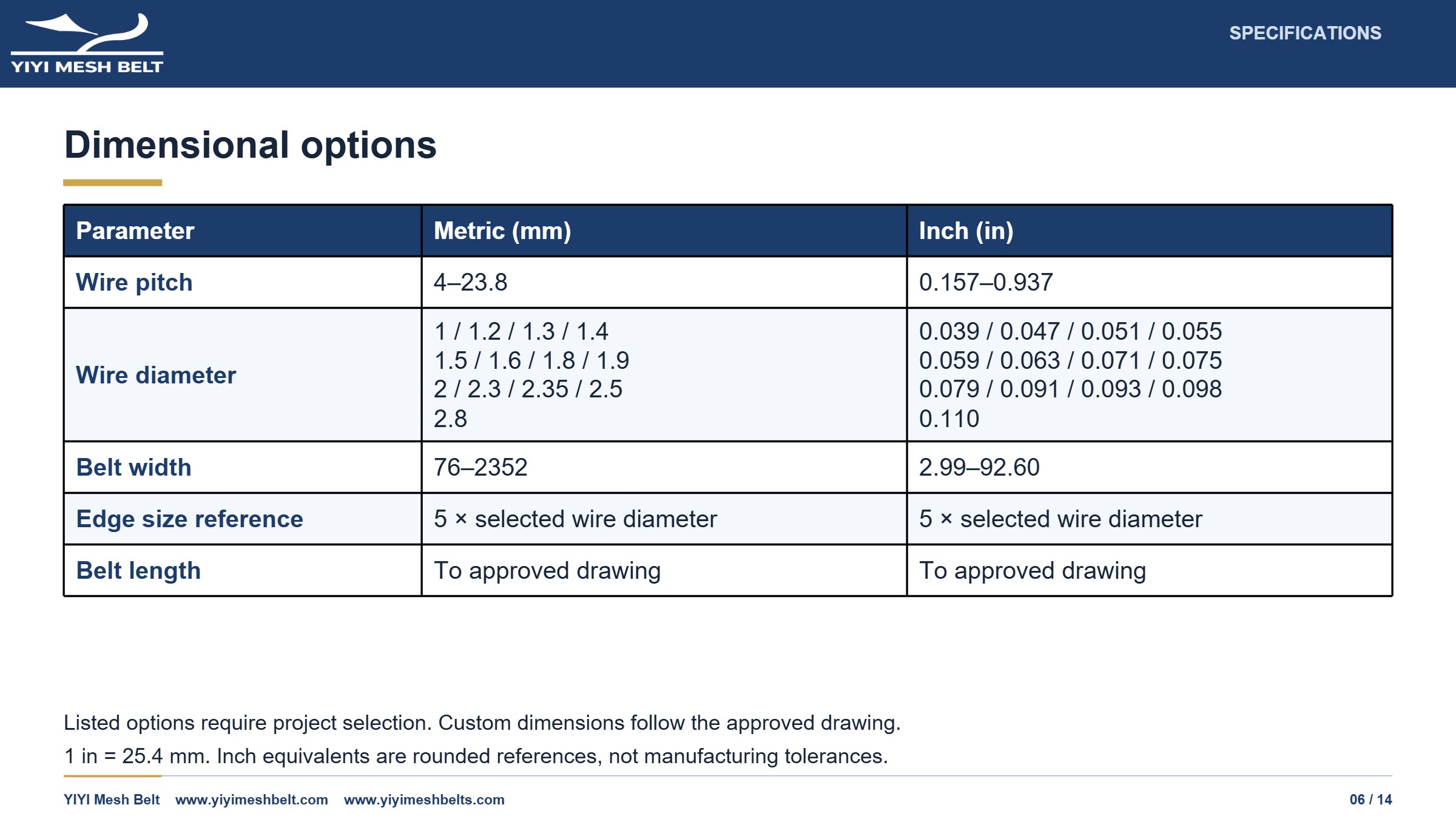

Page 6. SPECIFICATIONS Dimensional options Parameter Metric (mm) Inch (in) Wire pitch 4–23.8 0.157–0.937 Wire diameter 1 / 1.2 / 1.3 / 1.4 1.5 / 1.6 / 1.8 / 1.9 2 / 2.3 / 2.35 / 2.5 2.8 0.039 / 0.047 / 0.051 / 0.055 0.059 / 0.063 / 0.071 / 0.075 0.079 / 0.091 / 0.093 / 0.098 0.110 Belt width 76–2352 2.99–92.60 Edge size reference 5 × selected wire diameter 5 × selected wire diameter Belt length To approved drawing To approved drawing Listed options require project selection. Custom dimensions follow the approved drawing. 1 in = 25.4 mm. Inch equivalents are rounded references, not manufacturing tolerances.

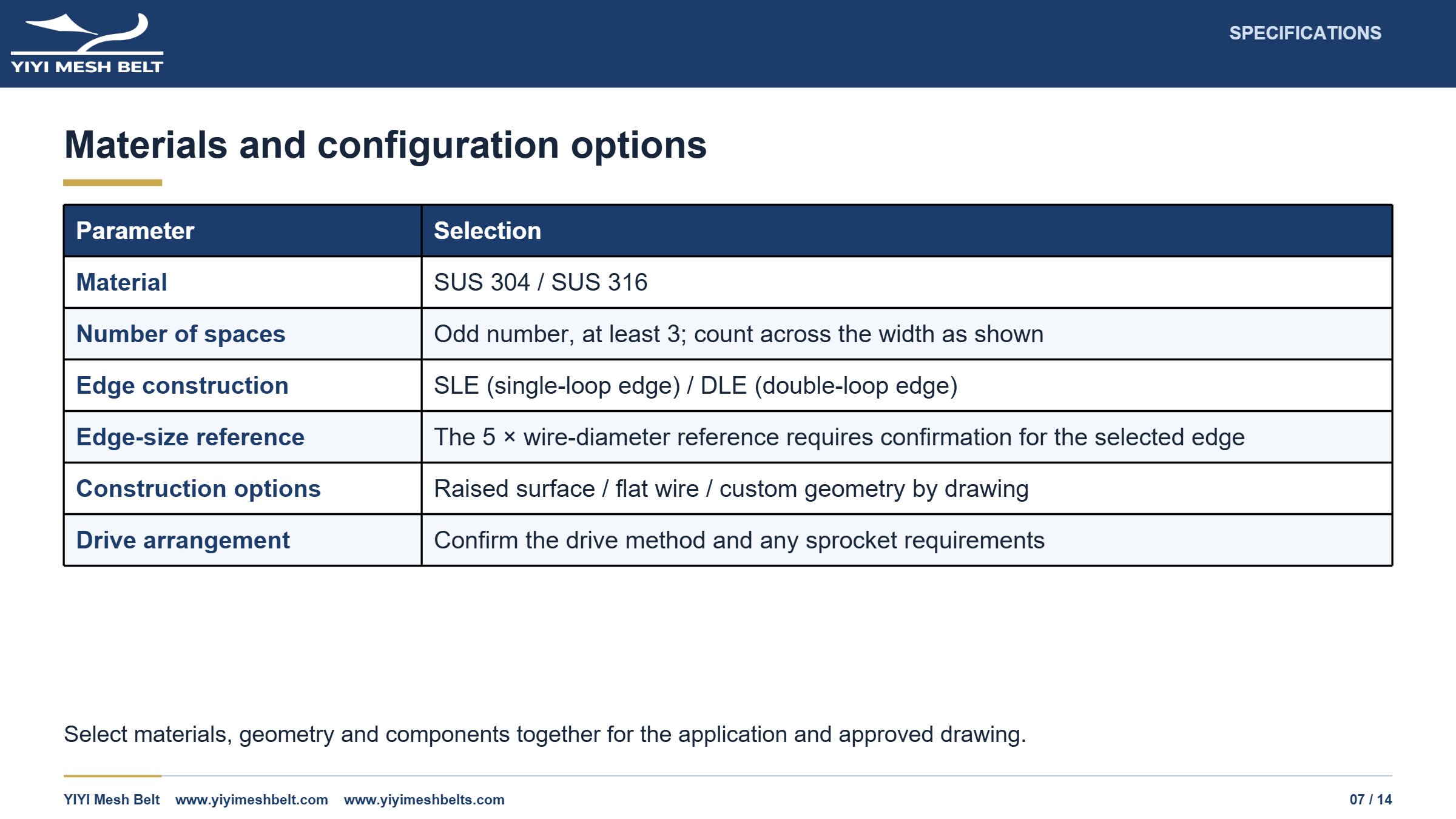

Page 7. SPECIFICATIONS Materials and configuration options Parameter Selection Material SUS 304 / SUS 316 Number of spaces Odd number, at least 3; count across the width as shown Edge construction SLE (single-loop edge) / DLE (double-loop edge) Edge-size reference The 5 × wire-diameter reference requires confirmation for the selected edge Construction options Raised surface / flat wire / custom geometry by drawing Drive arrangement Confirm the drive method and any sprocket requirements Select materials, geometry and components together for the application and approved drawing.

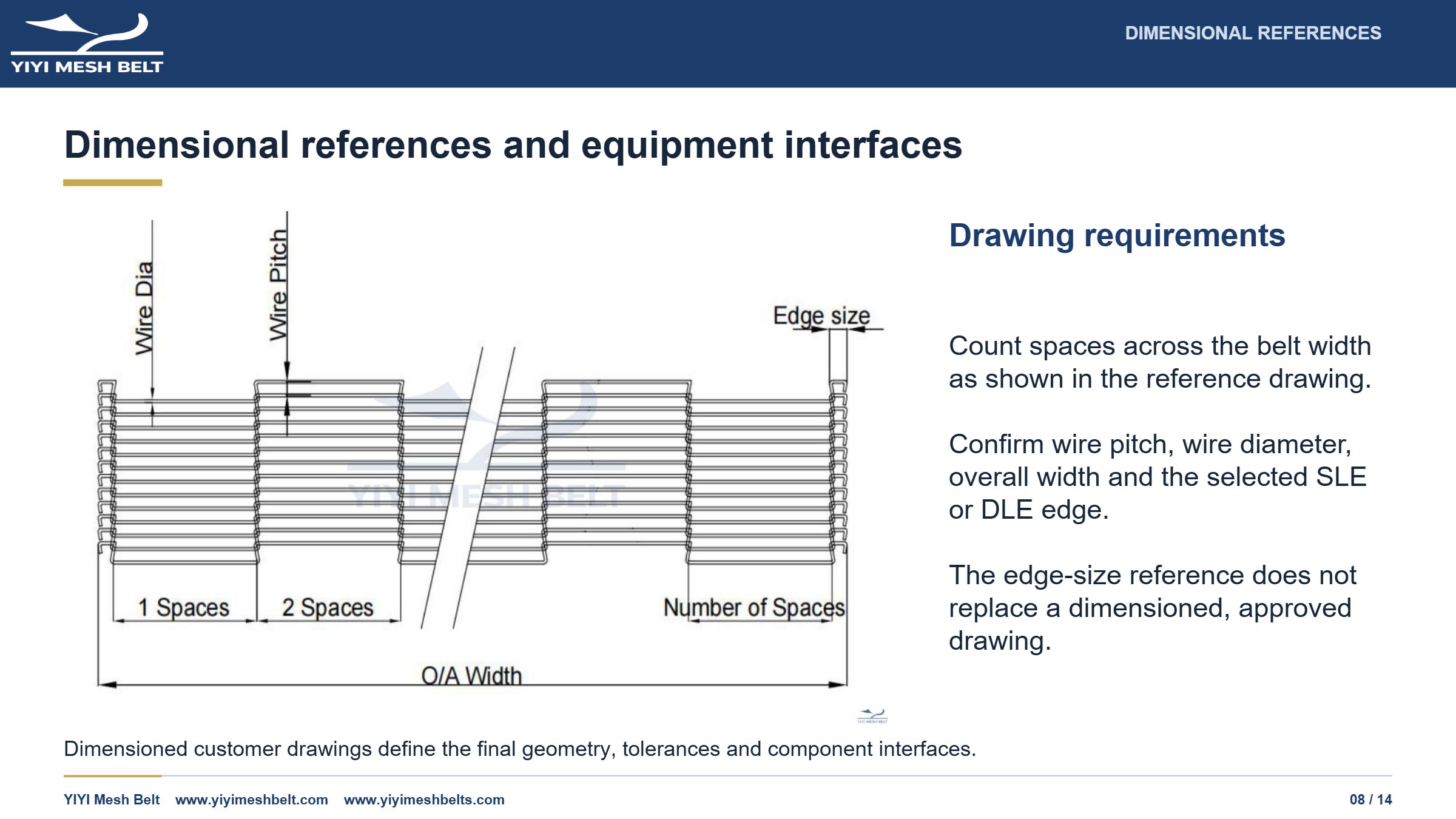

Page 8. DIMENSIONAL REFERENCES Dimensional references and equipment interfaces Drawing requirements Count spaces across the belt width as shown in the reference drawing. Confirm wire pitch, wire diameter, overall width and the selected SLE or DLE edge. The edge-size reference does not replace a dimensioned, approved drawing. Dimensioned customer drawings define the final geometry, tolerances and component interfaces.

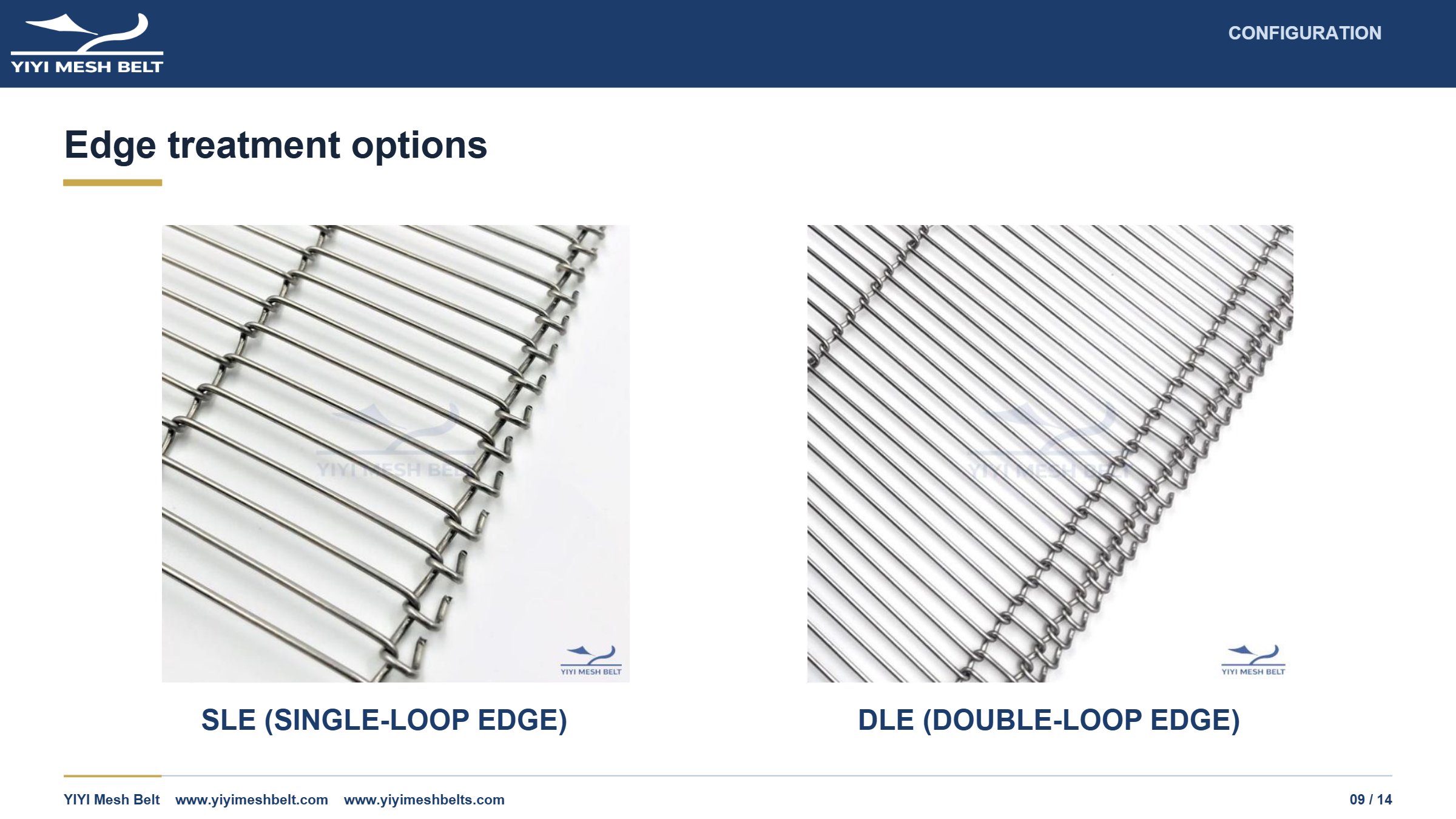

Page 9. CONFIGURATION Edge treatment options SLE (SINGLE-LOOP EDGE) DLE (DOUBLE-LOOP EDGE)

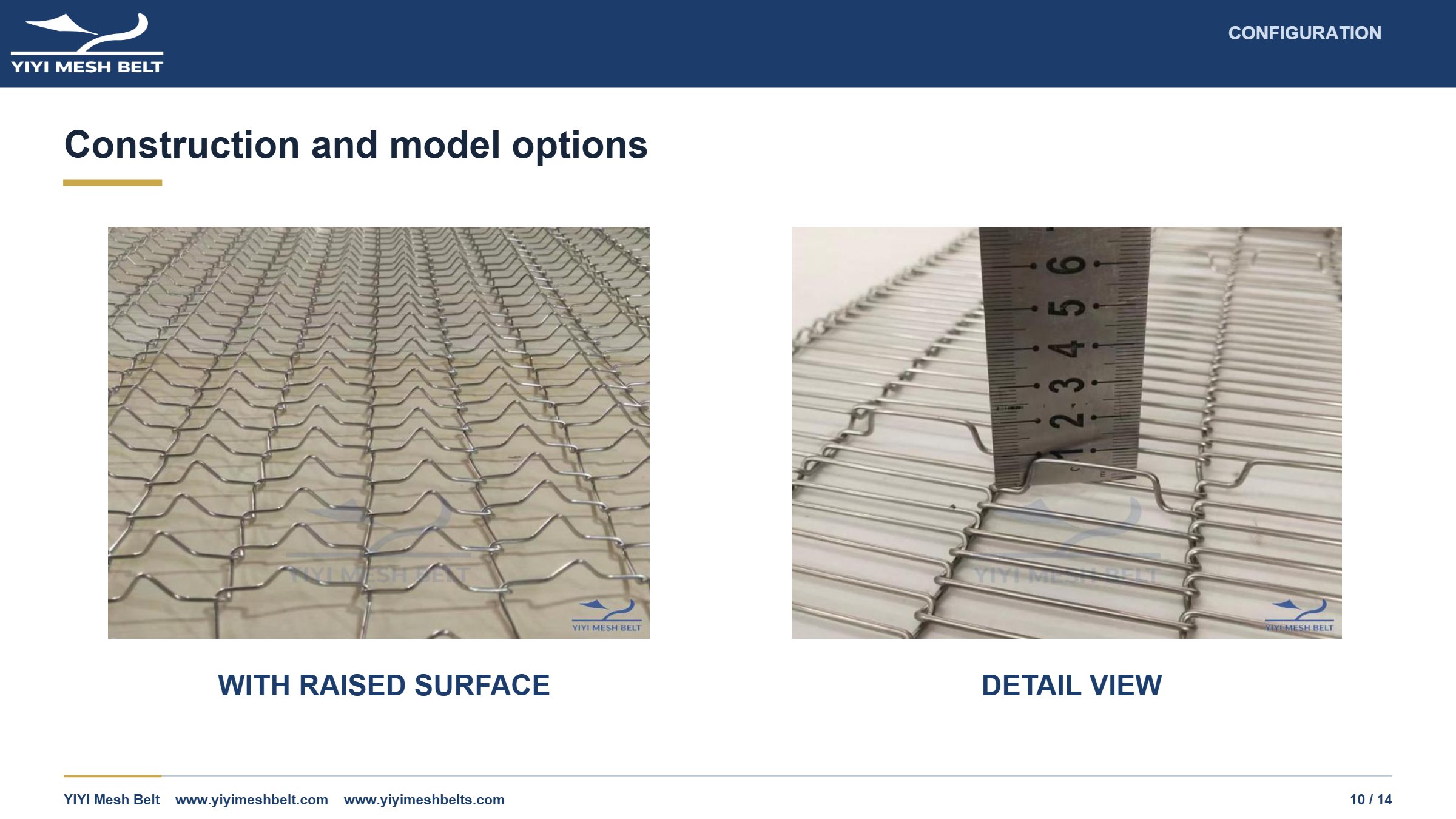

Page 10. CONFIGURATION Construction and model options WITH RAISED SURFACE DETAIL VIEW

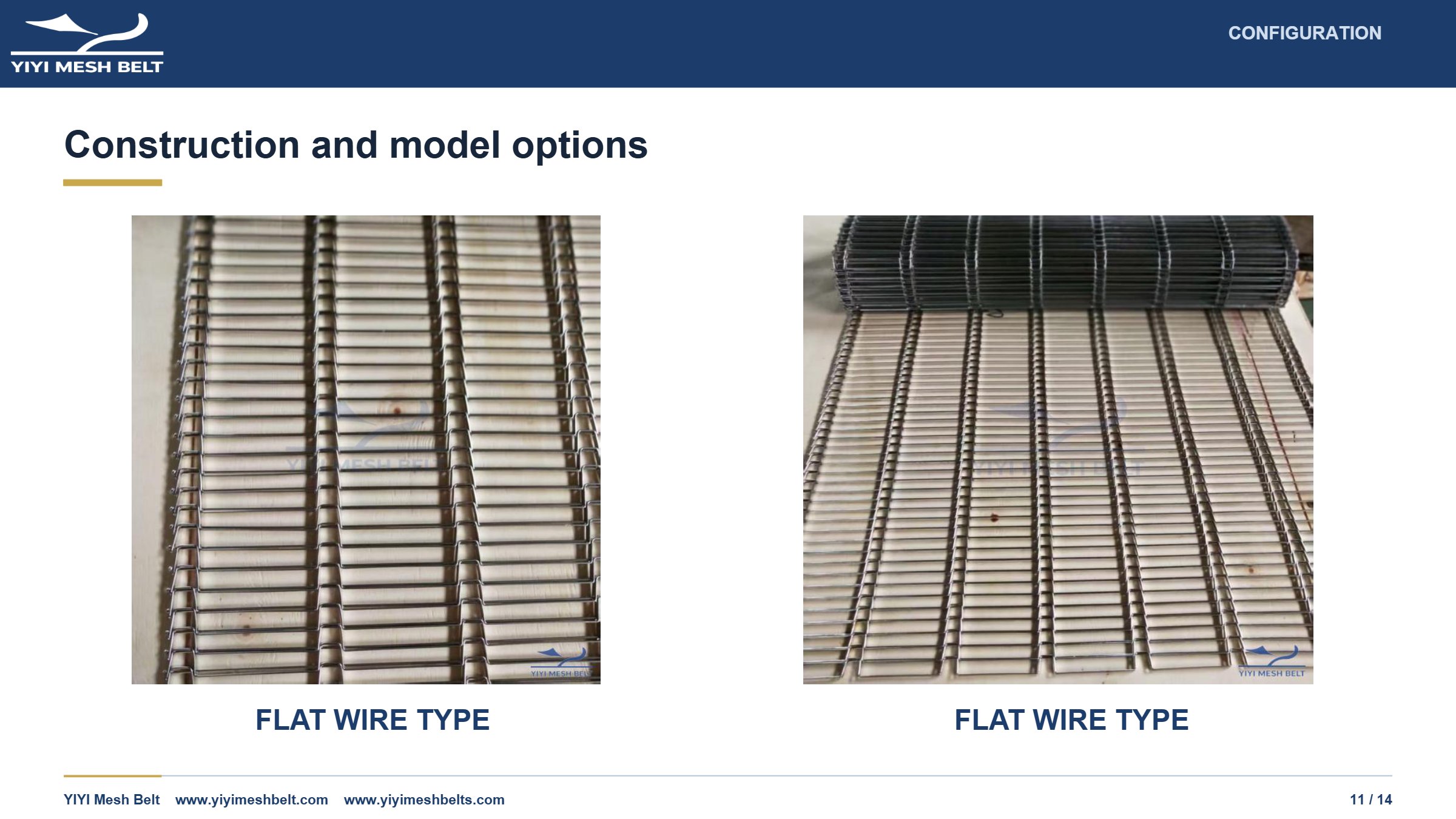

Page 11. CONFIGURATION Construction and model options FLAT WIRE TYPE FLAT WIRE TYPE

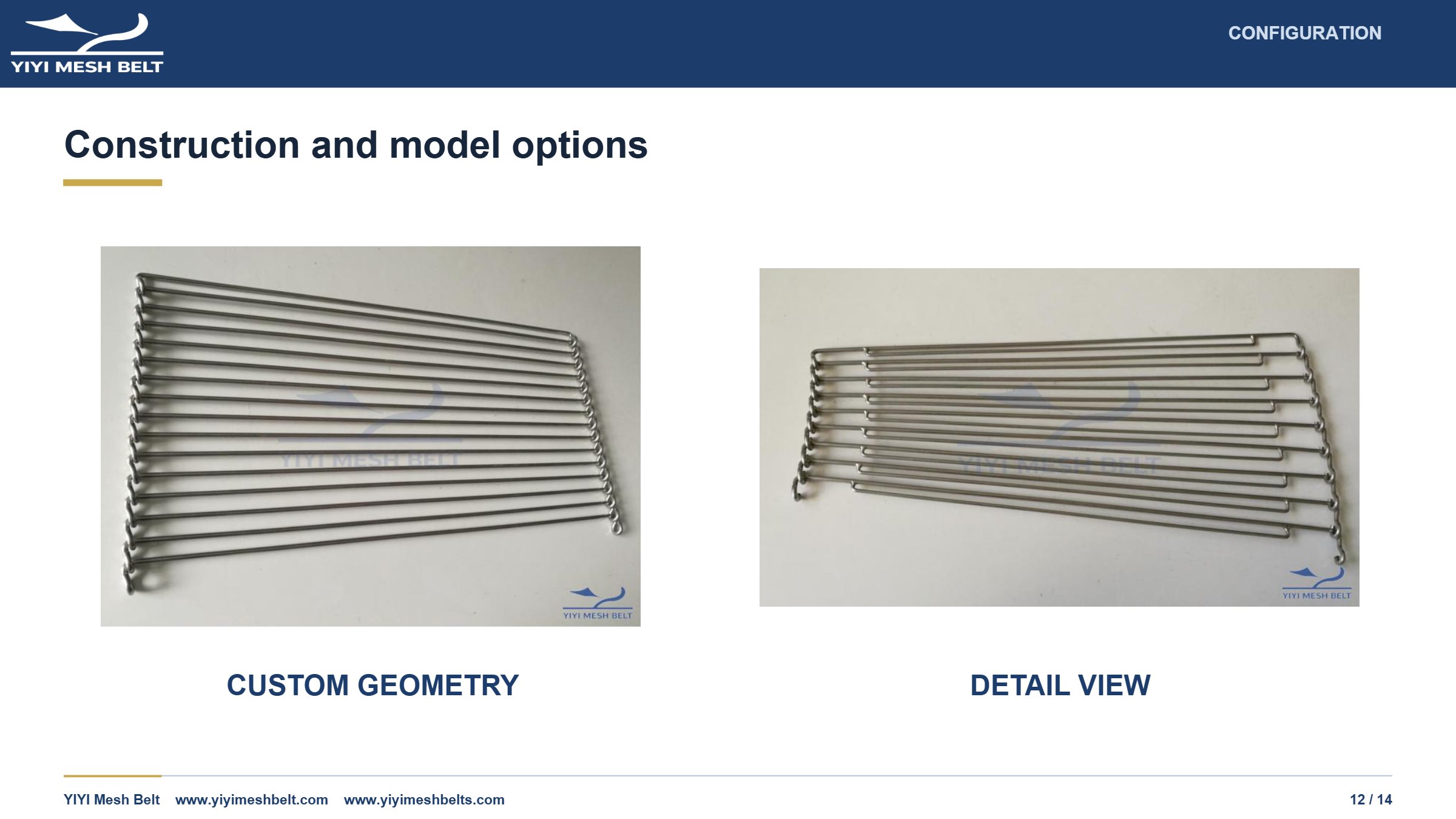

Page 12. CONFIGURATION Construction and model options CUSTOM GEOMETRY DETAIL VIEW

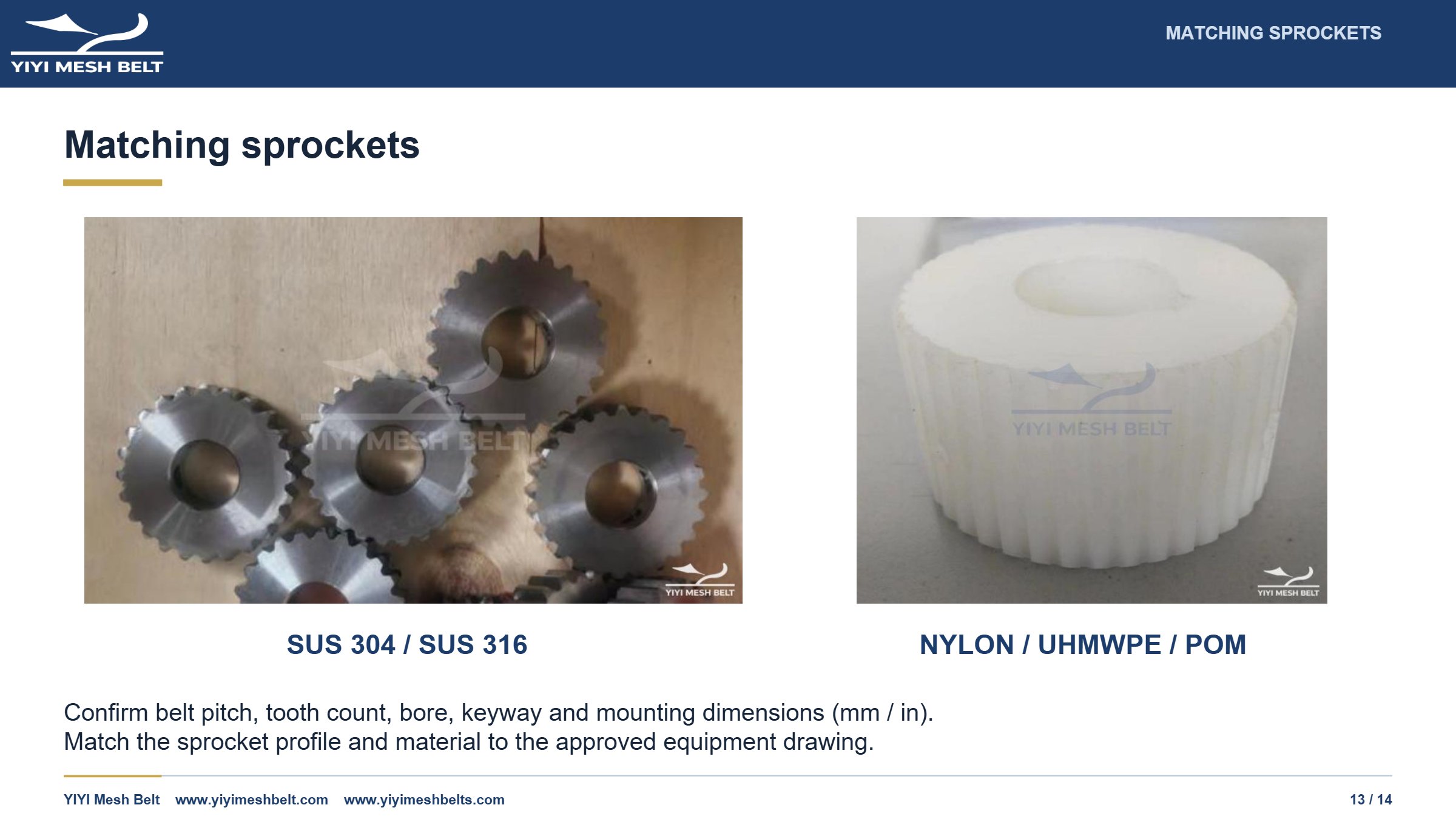

Page 13. MATCHING SPROCKETS Matching sprockets SUS 304 / SUS 316 NYLON / UHMWPE / POM Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.
Page 14. PROVEN · STABLE · VERIFIED Metal Conveyor Belt Manufacturer Email: info@yiyimeshbelt.com Phone / WhatsApp: +86 134 5177 3742 Website: www.yiyimeshbelt.com www.yiyimeshbelts.com Company: Ningjin Yiyi Mesh Belt Co., Ltd. Send Your Drawing for Specification Review Belt dimensions (mm / in) Equipment and application Operating conditions Drive and shaft details Existing belt photos / sample Request an Engineering Review for OEMs & Professional Distributors © 2026 Ningjin Yiyi Mesh Belt Co., Ltd. All rights reserved. YIYI Mesh Belt’s original technical content, photographs and videos in this document and on www.yiyimeshbelt.com and www.yiyimeshbelts.com may not be reproduced or reused without prior written permission. Third-party materials remain the property of their respective owners.
