YIYI Mesh Belt Compound Weave Belt Technical Specification
Check what matters before you request a quote: key dimensions in mm and inches, pitch options, edge options, drive sprocket options and typical applications. Compare it with your current belt or drawing, then send us the drawing or photos of your old belt for review.
Text version of this document

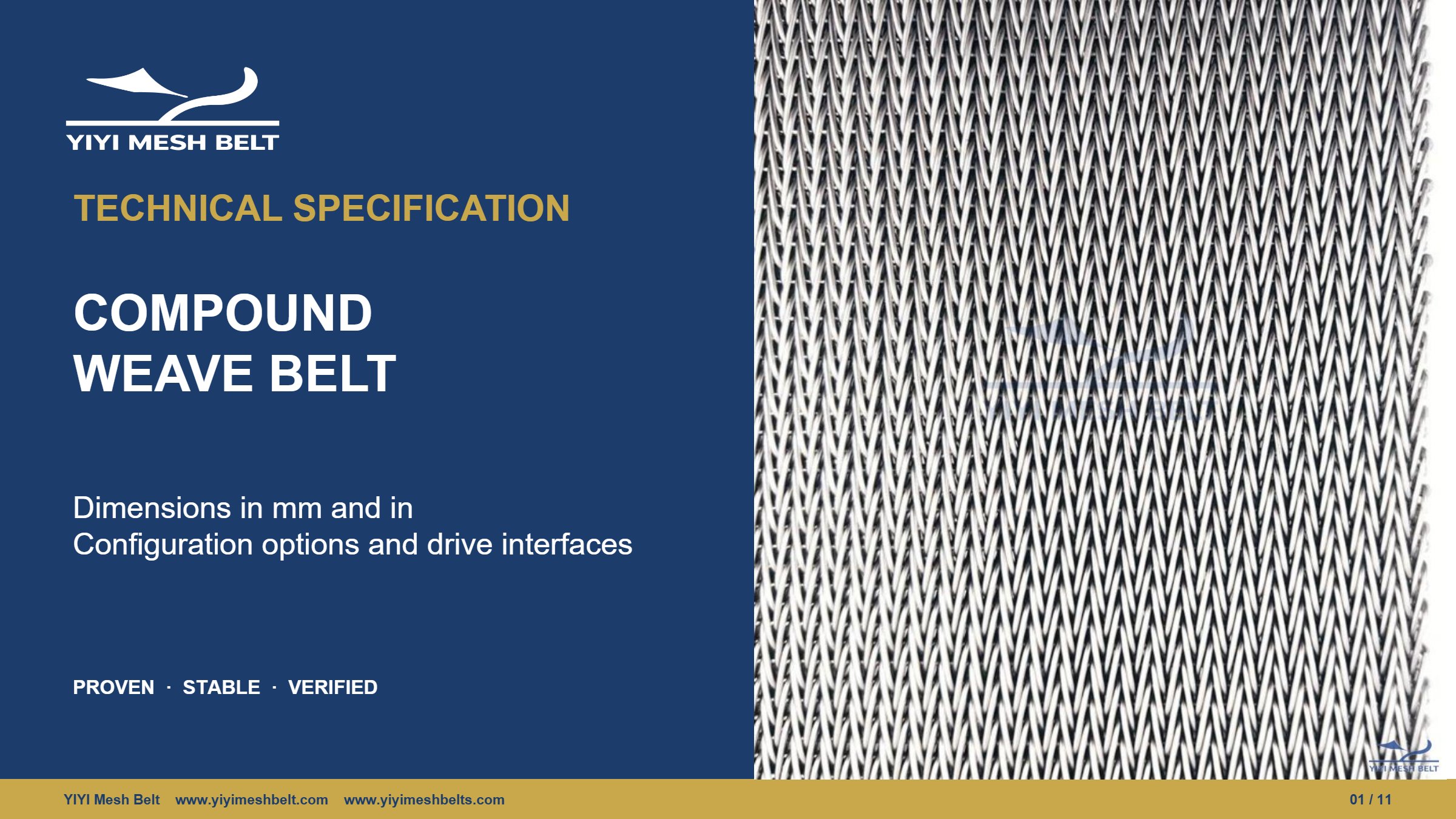

Page 1. TECHNICAL SPECIFICATION COMPOUND WEAVE BELT Dimensions in mm and in Configuration options and drive interfaces PROVEN · STABLE · VERIFIED

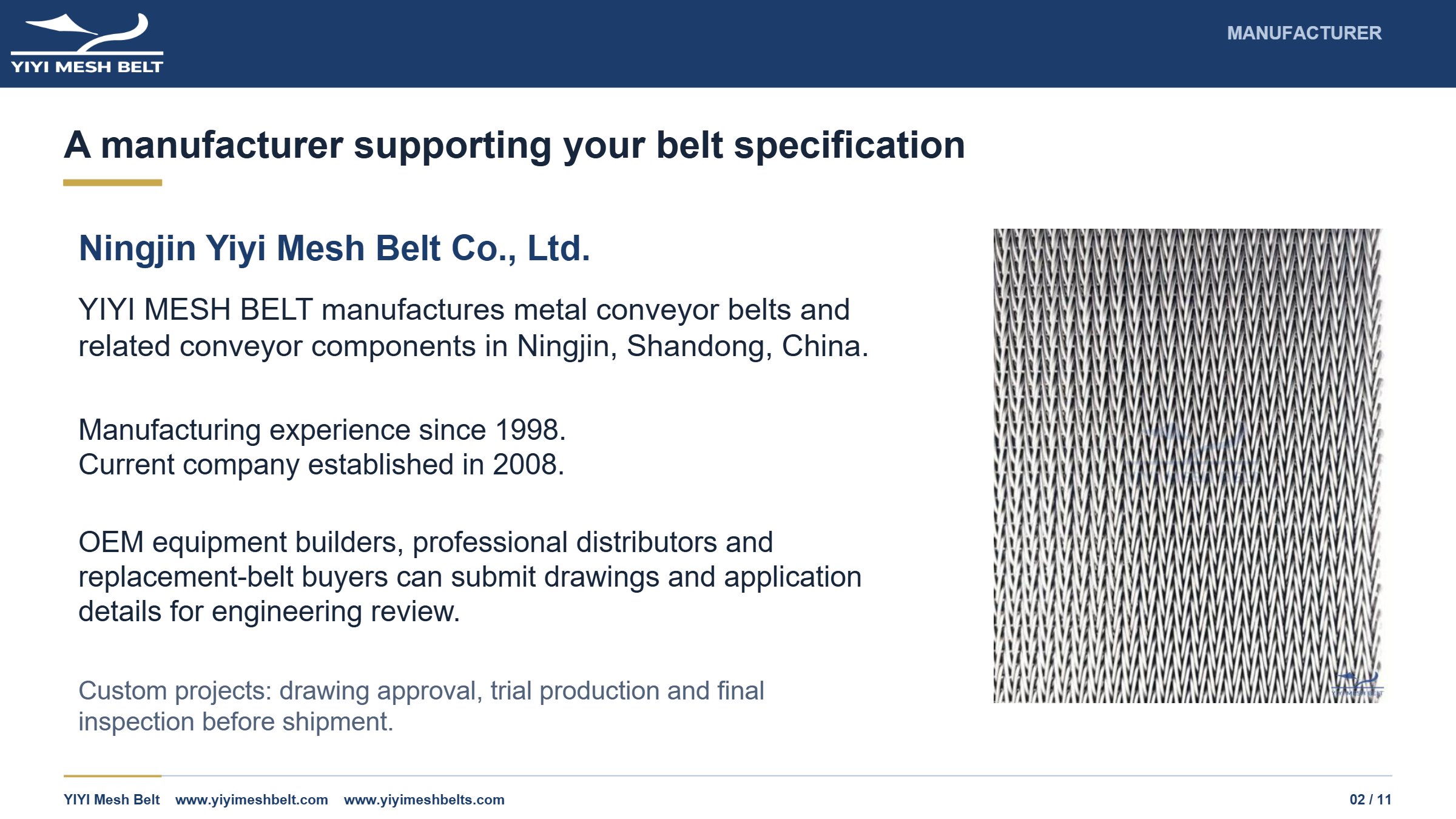

Page 2. MANUFACTURER A manufacturer supporting your belt specification Ningjin Yiyi Mesh Belt Co., Ltd. YIYI MESH BELT manufactures metal conveyor belts and related conveyor components in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. OEM equipment builders, professional distributors and replacement-belt buyers can submit drawings and application details for engineering review. Custom projects: drawing approval, trial production and final inspection before shipment.

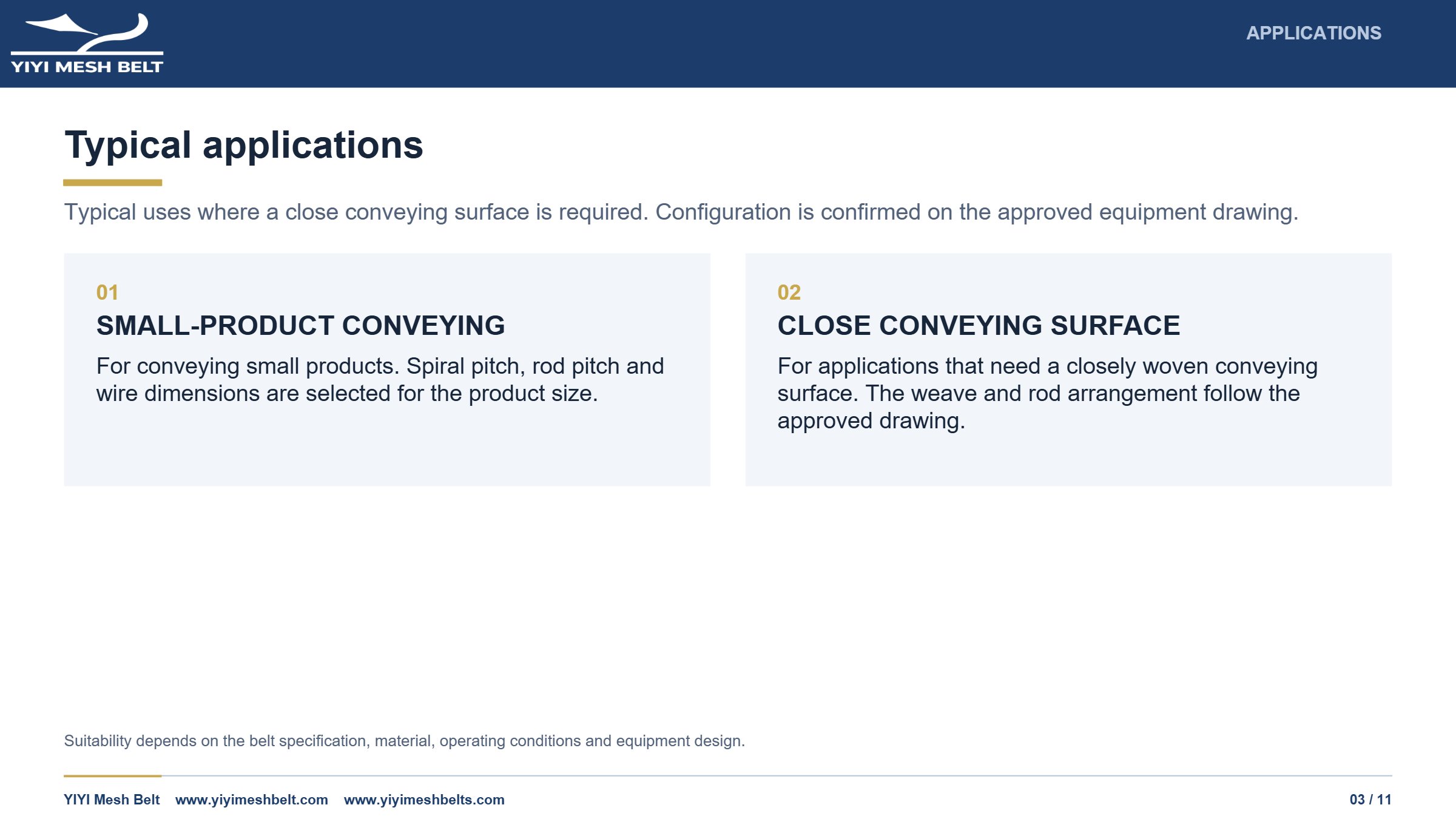

Page 3. APPLICATIONS Typical applications Typical uses where a close conveying surface is required. Configuration is confirmed on the approved equipment drawing. 01 SMALL-PRODUCT CONVEYING For conveying small products. Spiral pitch, rod pitch and wire dimensions are selected for the product size. 02 CLOSE CONVEYING SURFACE For applications that need a closely woven conveying surface. The weave and rod arrangement follow the approved drawing. Suitability depends on the belt specification, material, operating conditions and equipment design.

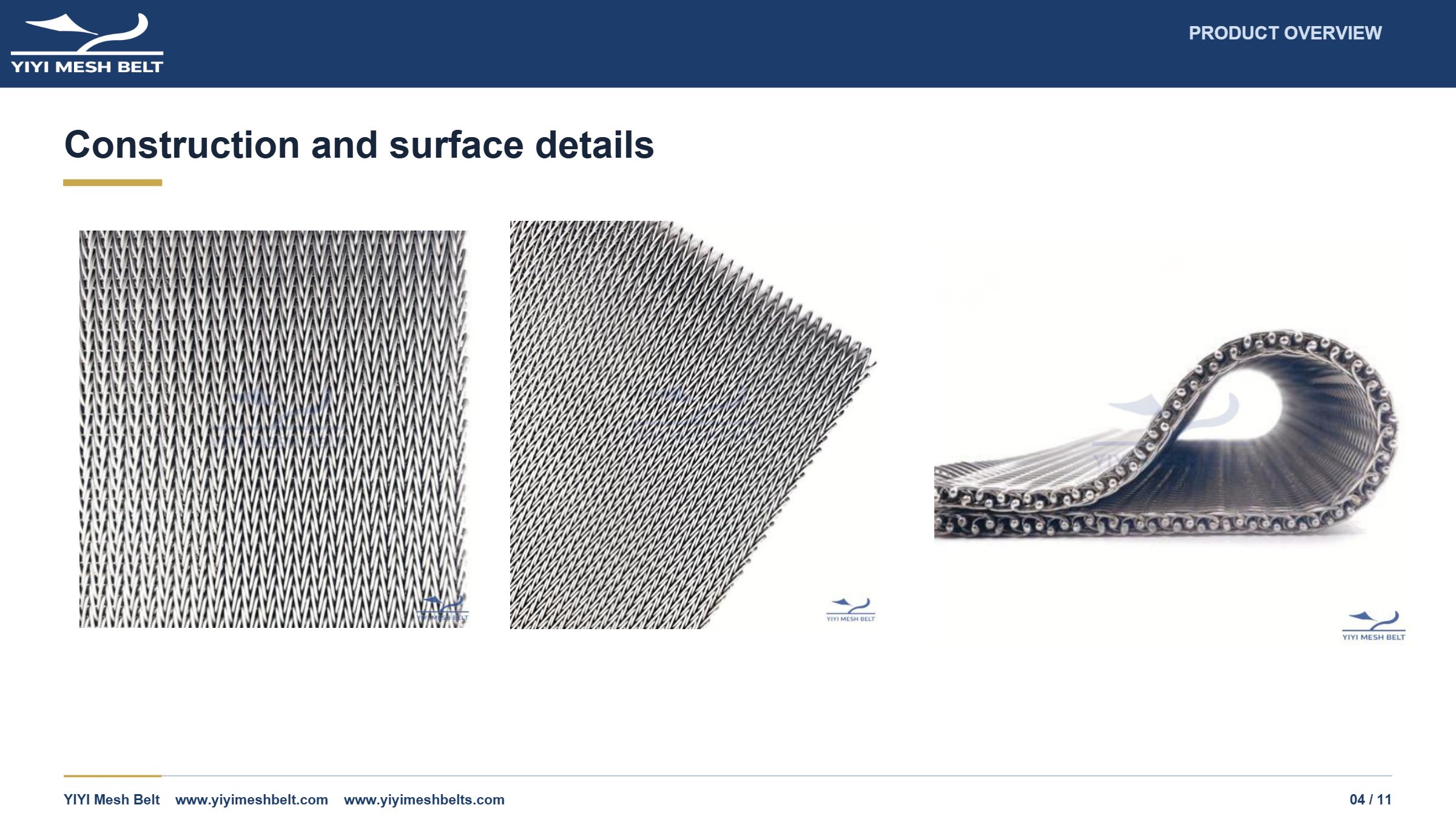

Page 4. PRODUCT OVERVIEW Construction and surface details

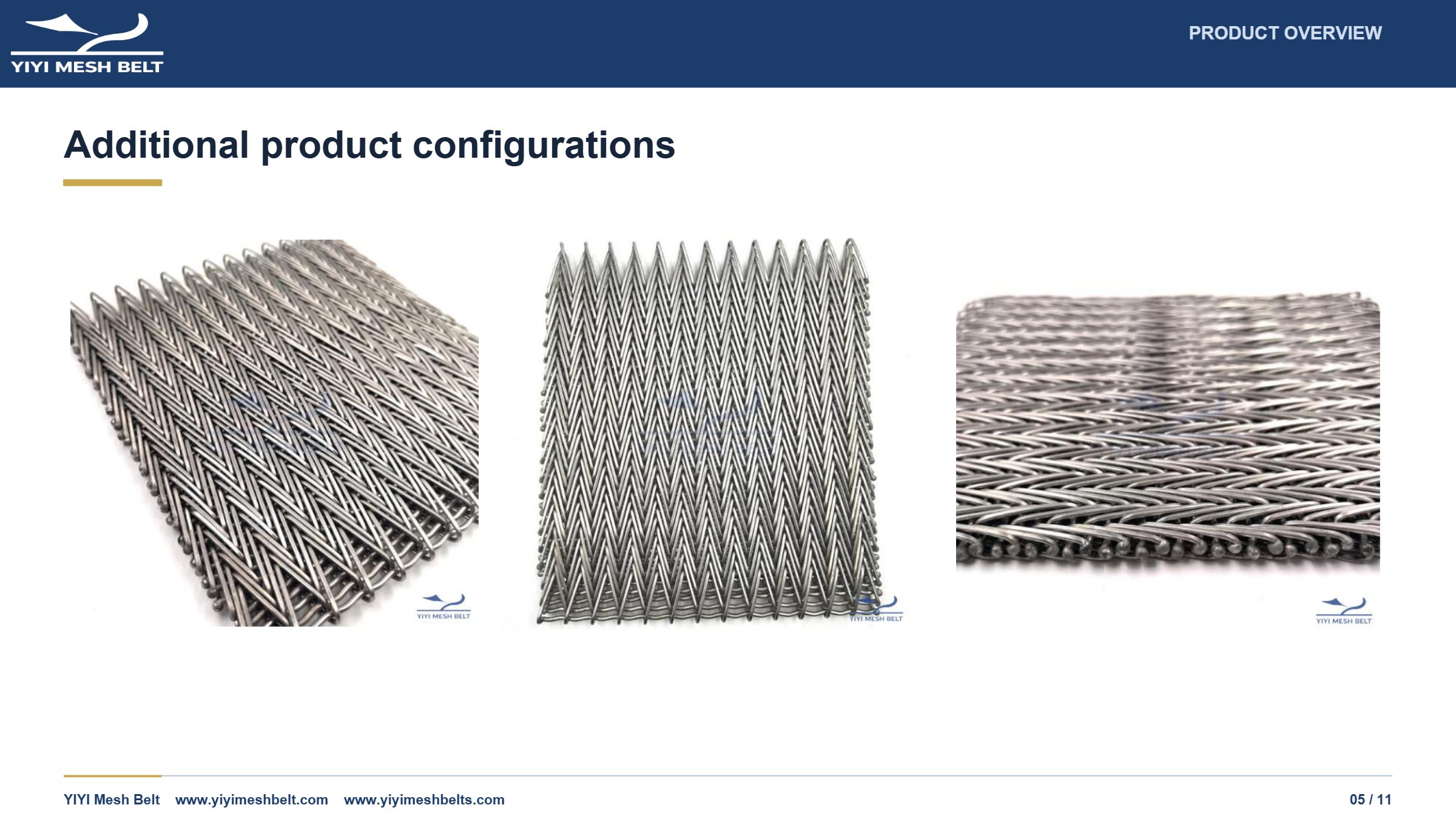

Page 5. PRODUCT OVERVIEW Additional product configurations

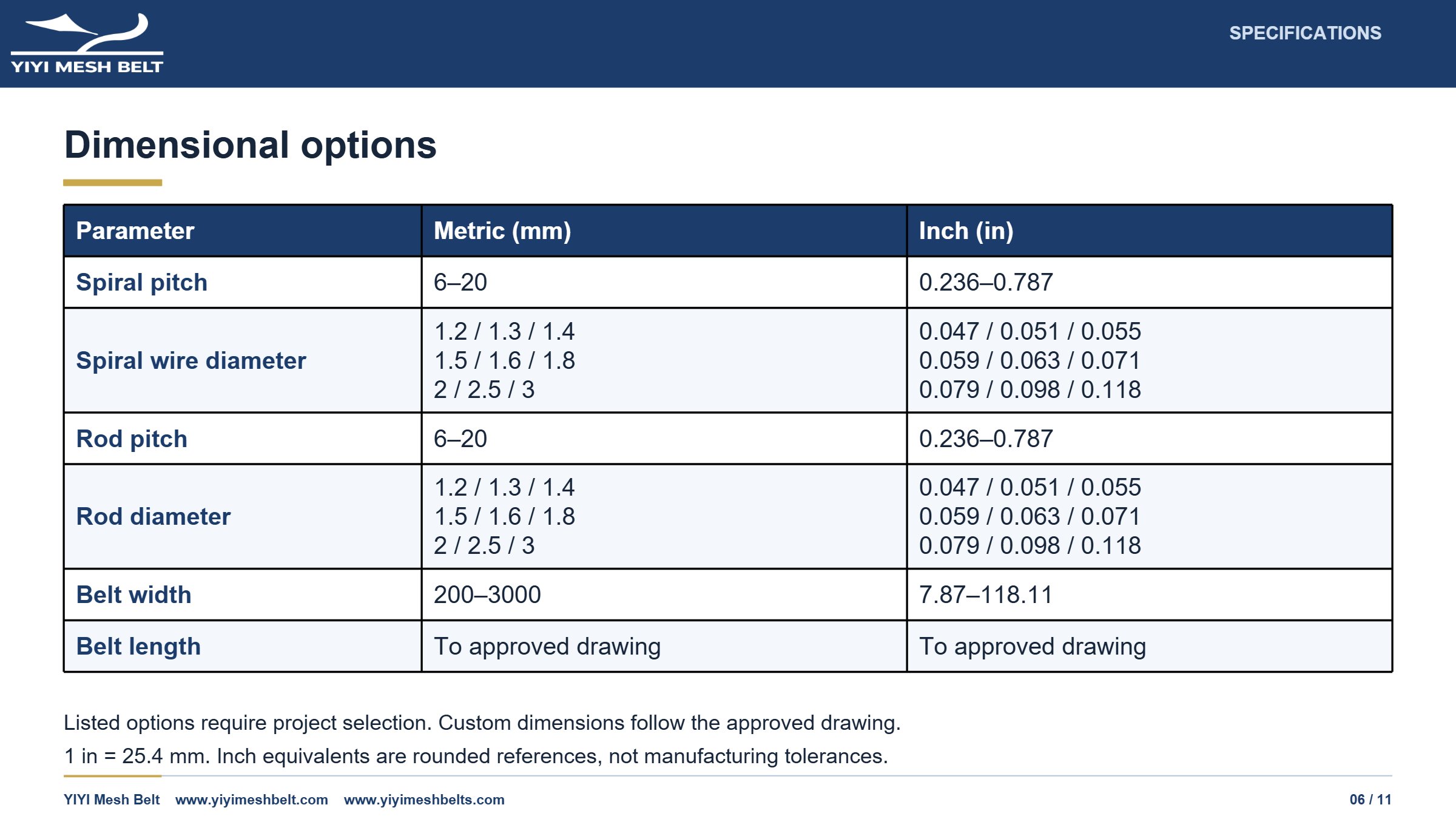

Page 6. SPECIFICATIONS Dimensional options Parameter Metric (mm) Inch (in) Spiral pitch 6–20 0.236–0.787 Spiral wire diameter 1.2 / 1.3 / 1.4 1.5 / 1.6 / 1.8 2 / 2.5 / 3 0.047 / 0.051 / 0.055 0.059 / 0.063 / 0.071 0.079 / 0.098 / 0.118 Rod pitch 6–20 0.236–0.787 Rod diameter 1.2 / 1.3 / 1.4 1.5 / 1.6 / 1.8 2 / 2.5 / 3 0.047 / 0.051 / 0.055 0.059 / 0.063 / 0.071 0.079 / 0.098 / 0.118 Belt width 200–3000 7.87–118.11 Belt length To approved drawing To approved drawing Listed options require project selection. Custom dimensions follow the approved drawing. 1 in = 25.4 mm. Inch equivalents are rounded references, not manufacturing tolerances.

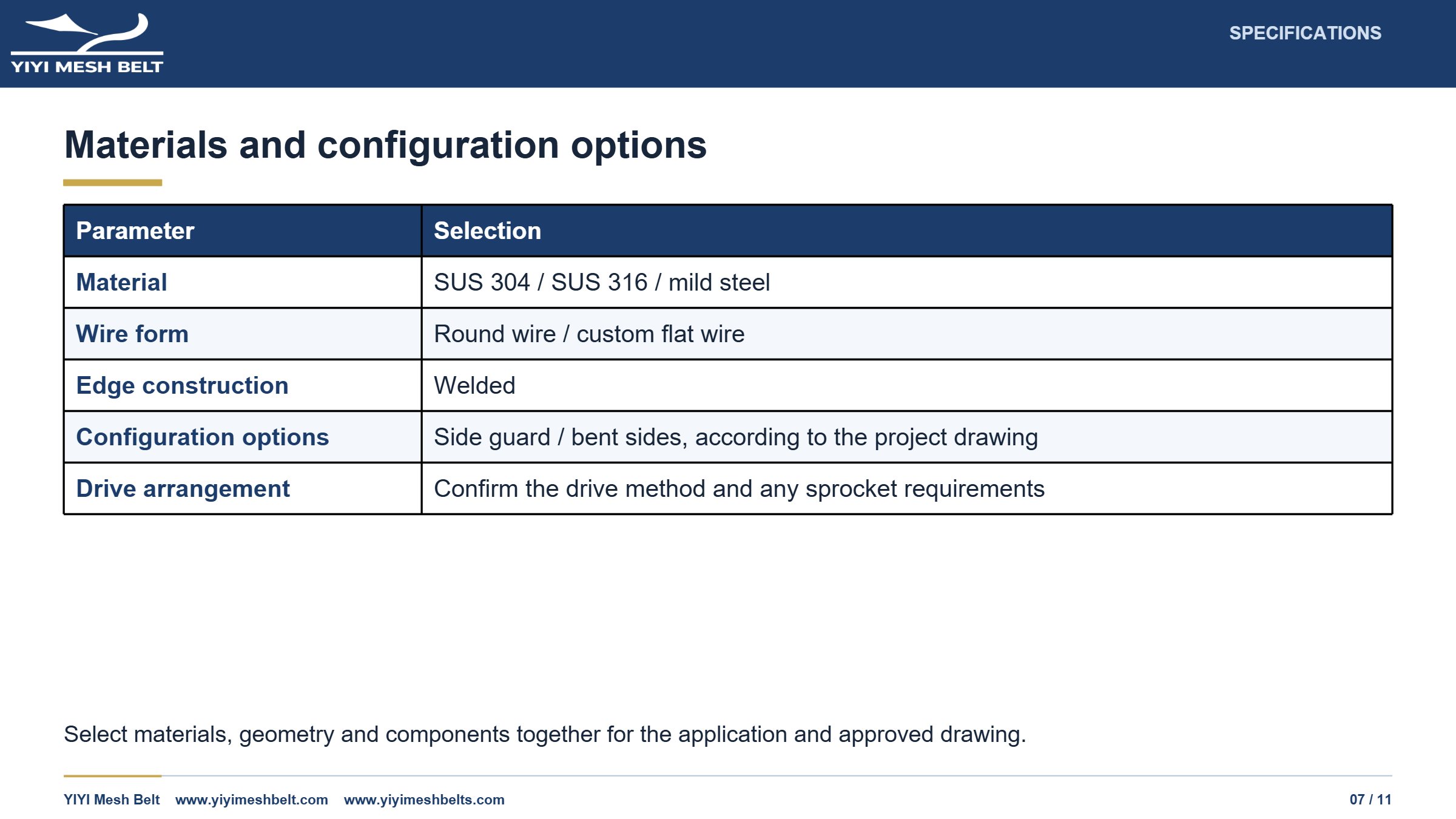

Page 7. SPECIFICATIONS Materials and configuration options Parameter Selection Material SUS 304 / SUS 316 / mild steel Wire form Round wire / custom flat wire Edge construction Welded Configuration options Side guard / bent sides, according to the project drawing Drive arrangement Confirm the drive method and any sprocket requirements Select materials, geometry and components together for the application and approved drawing.

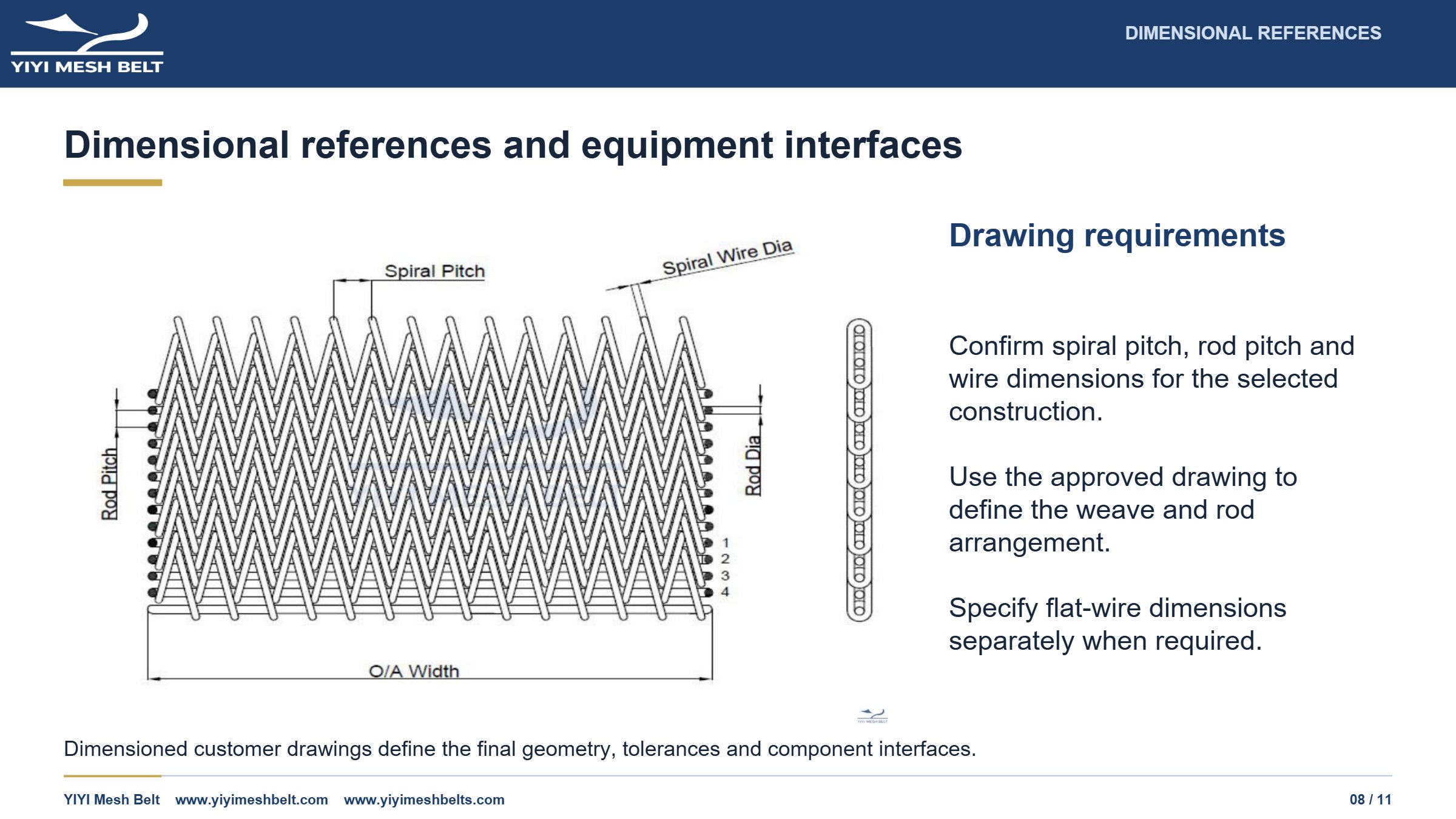

Page 8. DIMENSIONAL REFERENCES Dimensional references and equipment interfaces Drawing requirements Confirm spiral pitch, rod pitch and wire dimensions for the selected construction. Use the approved drawing to define the weave and rod arrangement. Specify flat-wire dimensions separately when required. Dimensioned customer drawings define the final geometry, tolerances and component interfaces.

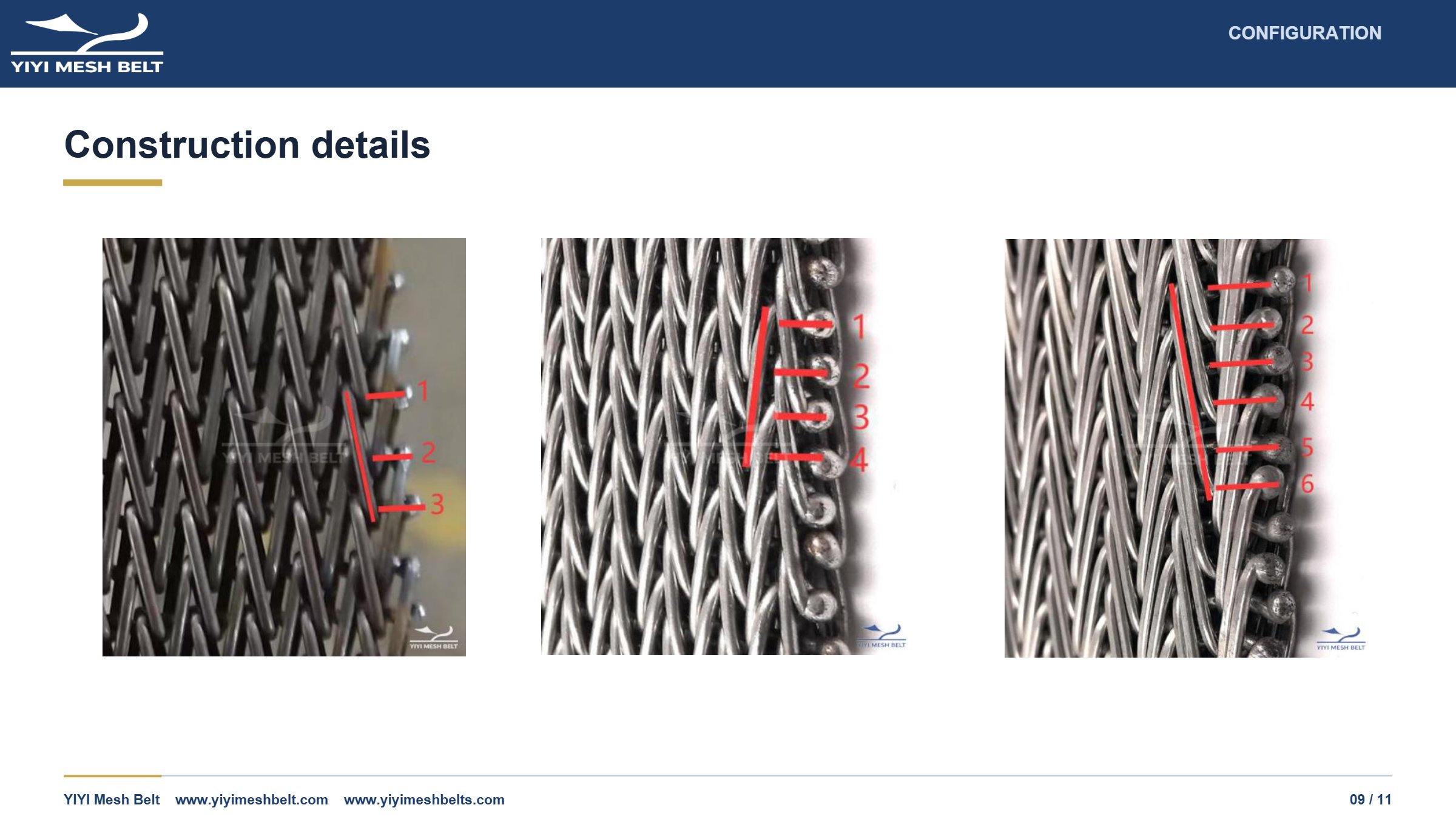

Page 9. CONFIGURATION Construction details

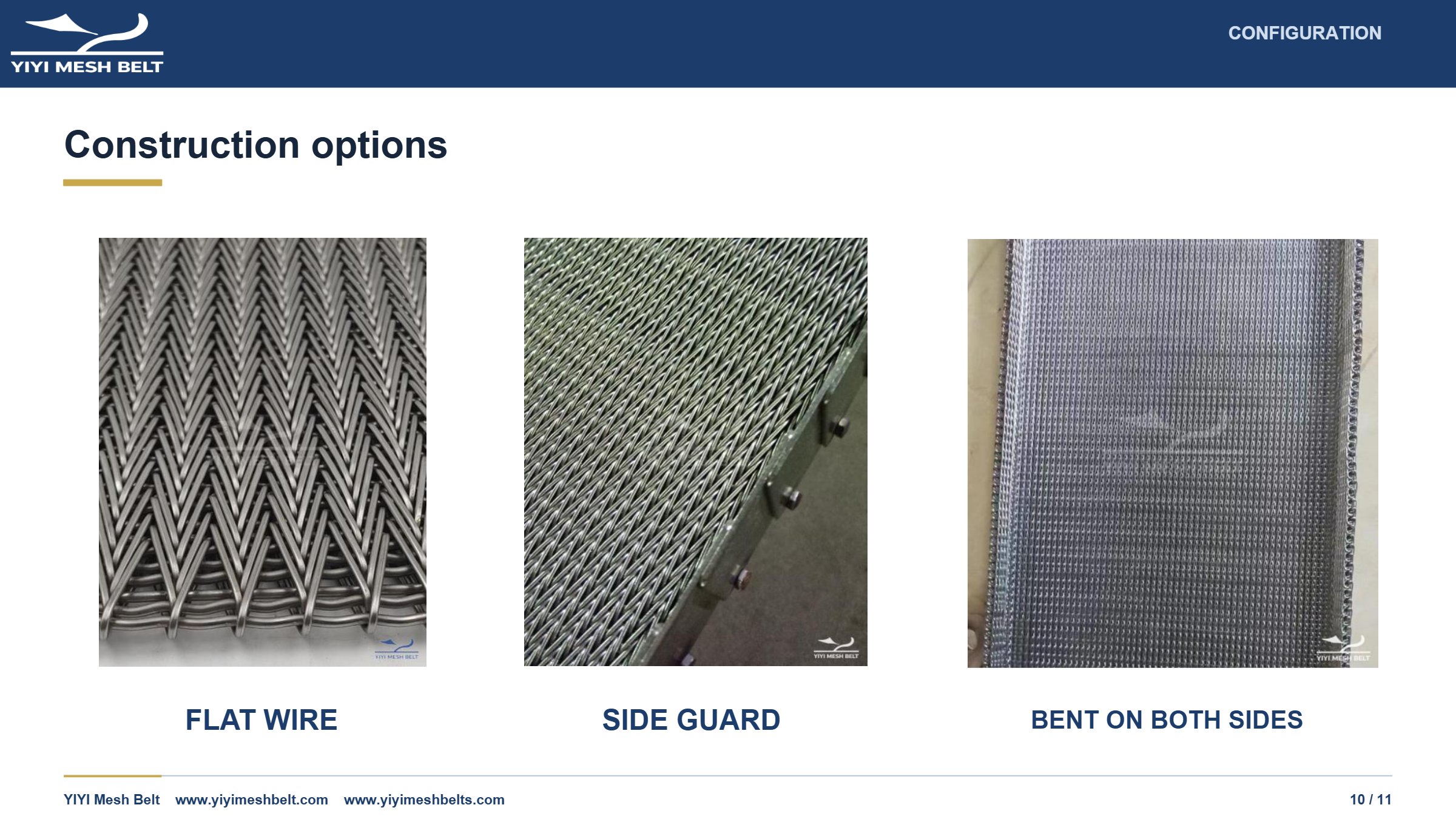

Page 10. CONFIGURATION Construction options FLAT WIRE SIDE GUARD BENT ON BOTH SIDES
Page 11. PROVEN · STABLE · VERIFIED Metal Conveyor Belt Manufacturer Email: info@yiyimeshbelt.com Phone / WhatsApp: +86 134 5177 3742 Website: www.yiyimeshbelt.com www.yiyimeshbelts.com Company: Ningjin Yiyi Mesh Belt Co., Ltd. Send Your Drawing for Specification Review Belt dimensions (mm / in) Equipment and application Operating conditions Drive and shaft details Existing belt photos / sample Request an Engineering Review for OEMs & Professional Distributors © 2026 Ningjin Yiyi Mesh Belt Co., Ltd. All rights reserved. YIYI Mesh Belt’s original technical content, photographs and videos in this document and on www.yiyimeshbelt.com and www.yiyimeshbelts.com may not be reproduced or reused without prior written permission. Third-party materials remain the property of their respective owners.
