YIYI Mesh Belt Chain Driven Belt Technical Specification
YIYI Mesh Belt Chain Driven Belt: SUS 304 / SUS 316 / carbon steel; spiral pitch 3–20 mm; mesh rod pitch 4–20 mm; wire diameter 1 / 1.2 / 1.4 / 1.6 / 1.8 / 2 / 2.5 / 3 mm. Built to the drawing you approve by Ningjin Yiyi Mesh Belt Co., Ltd. This 19-page specification lists the options in mm and inches so you can compare them with your current belt before you request a quote. Check what matters before you request a quote: key dimensions in mm and inches, pitch options, standard and heavy-duty configurations, edge options, accessories, drive sprocket options and typical applications. Compare it with your current belt or drawing, then send us the drawing or photos of your old belt for review.
Chain Driven Belt on the official website →
Jump to what you need
Page 4Construction and surface detailsClose-up of the mesh, chain and edge construction.
Page 6Dimensional optionsSpiral pitch, rod pitch, wire and rod sizes, chain pitch and width in mm and inch.
Page 7Materials and configuration optionsSelect materials, geometry and components together for the application and approved drawing.
Page 10Chain pitch optionsSeven chain pitches from 12.7 to 63.5 mm (0.500 to 2.500 in), shown with photos.
Page 12Edge treatment optionsOptions shown: Washer Welded, Cotter Pin.
Page 17Matching sprocketsConfirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in).


















Summary: what this 19-page technical specification covers
This YIYI Mesh Belt technical specification for the Chain Driven Belt is published by Ningjin Yiyi Mesh Belt Co., Ltd. (Ningjin, Shandong, China). Each item links to the page in the flipbook above.
- Page 3 · Applications: Typical applications
- Pages 4–5 · Product Overview: Construction and surface details; Additional product configurations
- Pages 6–7 · Specifications: Dimensional options; Materials and configuration options
- Page 8 · Dimensional References: Dimensional references and equipment interfaces
- Pages 9–16 · Configuration: Material options for project conditions; Chain pitch options; Edge treatment options; Accessories and construction options
- Pages 17–18 · Matching Sprockets: Matching sprockets
Key parameters
| Parameter | Metric (mm) | Inch (in) |
|---|---|---|
| Spiral pitch | 3–20 | 0.118–0.787 |
| Mesh rod pitch | 4–20 | 0.157–0.787 |
| Wire diameter | 1 / 1.2 / 1.4 / 1.6 / 1.8 / 2 / 2.5 / 3 | 0.039 / 0.047 / 0.055 / 0.063 / 0.071 / 0.079 / 0.098 / 0.118 |
| Cross rod diameter | 4 / 5 / 6 / 8 / 9 | 0.157 / 0.197 / 0.236 / 0.315 / 0.354 |
| Chain pitch | 12.7 / 15.875 / 25.4 / 31.75 / 38.1 / 50.8 / 63.5 | 0.500 / 0.625 / 1.000 / 1.250 / 1.500 / 2.000 / 2.500 |
| Belt width | 300–5000 | 11.81–196.85 |
| Belt length | To approved drawing | To approved drawing |
| Parameter | Selection |
|---|---|
| Material | SUS 304 / SUS 316 / carbon steel |
| Chain references | #40 / #50 / C2042 / C2052 / C2062 / C2082 / C2102 |
| Chain construction | Solid or hollow pin construction, confirmed by drawing |
| Edge construction | Washer welded / cotter pin |
| Accessories | Side guide / tube / side roller / square bar / flights / side plate |
| Belt, chain and sprocket | Confirm the chain standard, selected pitch and sprocket profile together |
1 in = 25.4 mm; inch values are rounded references. Listed values are options, not free combinations: the belt is built to the drawing you approve.
FAQ
What belt width options does the YIYI Mesh Belt Chain Driven Belt have?
Belt width: 300–5000 mm (11.81–196.85 in), as listed in the technical specification (page 6). Inch values are rounded references; the final value is confirmed on the approved drawing.
What spiral pitch options does the YIYI Mesh Belt Chain Driven Belt have?
Spiral pitch: 3–20 mm (0.118–0.787 in), as listed in the technical specification (page 6). Inch values are rounded references; the final value is confirmed on the approved drawing.
What mesh rod pitch options does the YIYI Mesh Belt Chain Driven Belt have?
Mesh rod pitch: 4–20 mm (0.157–0.787 in), as listed in the technical specification (page 6). Inch values are rounded references; the final value is confirmed on the approved drawing.
Which material options are available for the Chain Driven Belt?
SUS 304 / SUS 316 / carbon steel (page 7). Options are project-dependent and confirmed on the approved drawing.
Which edge construction options are available for the Chain Driven Belt?
Washer welded / cotter pin (page 7). Options are project-dependent and confirmed on the approved drawing.
Which accessory options are available for the Chain Driven Belt?
Side guide / tube / side roller / square bar / flights / side plate (page 7). Options are project-dependent and confirmed on the approved drawing.
Can matching sprockets be supplied with the Chain Driven Belt?
Yes, matching sprockets are supplied to drawing — SUS 304 / SUS 316 — CHAIN BELT SPROCKET. Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing. (page 17)
Text version of this document
Page 1. TECHNICAL SPECIFICATION CHAIN DRIVEN BELT Dimensions in mm and in Configuration options and drive interfaces PROVEN · STABLE · VERIFIED

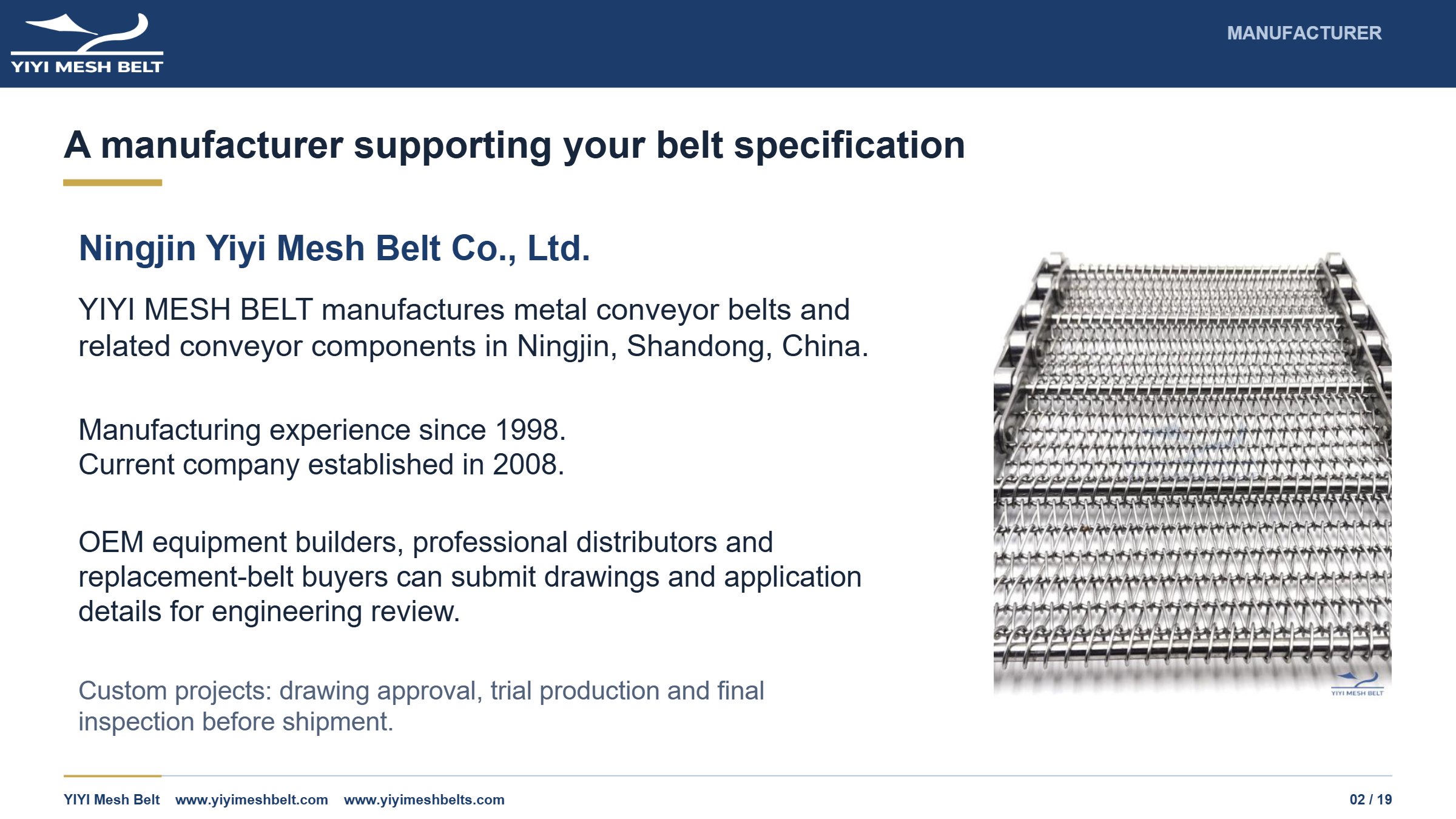

Page 2. MANUFACTURER A manufacturer supporting your belt specification Ningjin Yiyi Mesh Belt Co., Ltd. YIYI MESH BELT manufactures metal conveyor belts and related conveyor components in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. OEM equipment builders, professional distributors and replacement-belt buyers can submit drawings and application details for engineering review. Custom projects: drawing approval, trial production and final inspection before shipment.

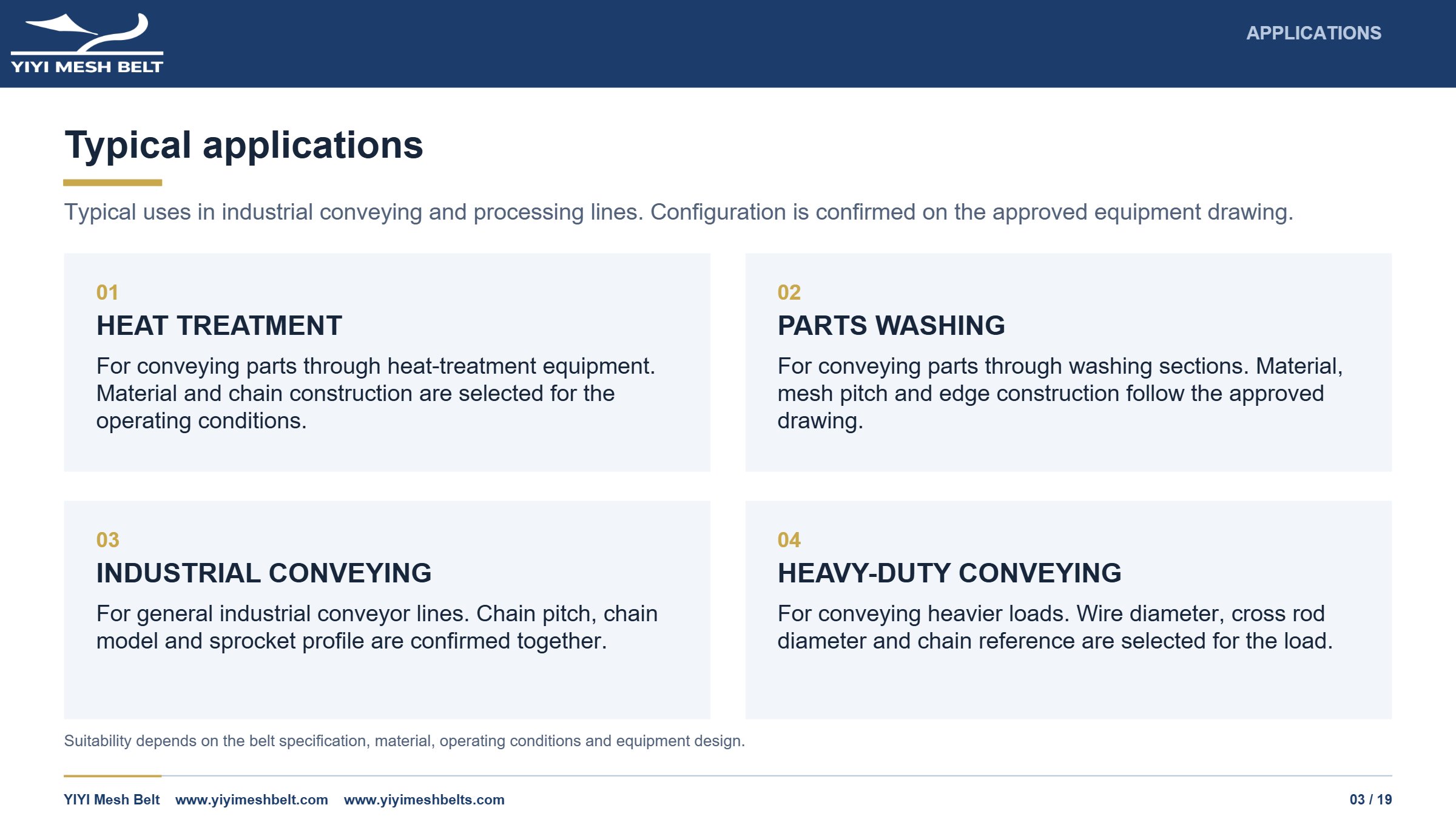

Page 3. APPLICATIONS Typical applications Typical uses in industrial conveying and processing lines. Configuration is confirmed on the approved equipment drawing. 01 HEAT TREATMENT For conveying parts through heat-treatment equipment. Material and chain construction are selected for the operating conditions. 02 PARTS WASHING For conveying parts through washing sections. Material, mesh pitch and edge construction follow the approved drawing. 03 INDUSTRIAL CONVEYING For general industrial conveyor lines. Chain pitch, chain model and sprocket profile are confirmed together. 04 HEAVY-DUTY CONVEYING For conveying heavier loads. Wire diameter, cross rod diameter and chain reference are selected for the load. Suitability depends on the belt specification, material, operating conditions and equipment design.

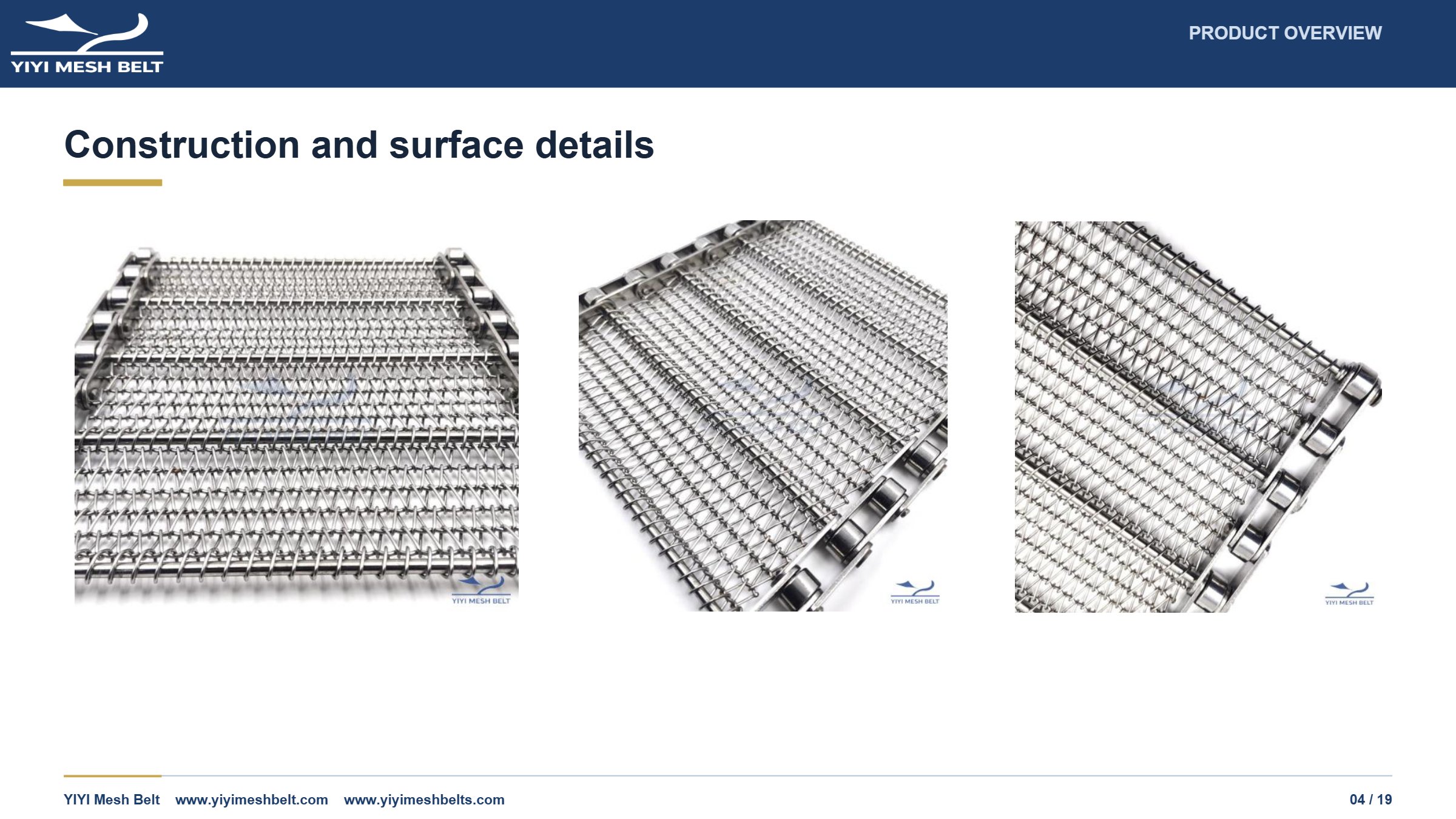

Page 4. PRODUCT OVERVIEW Construction and surface details

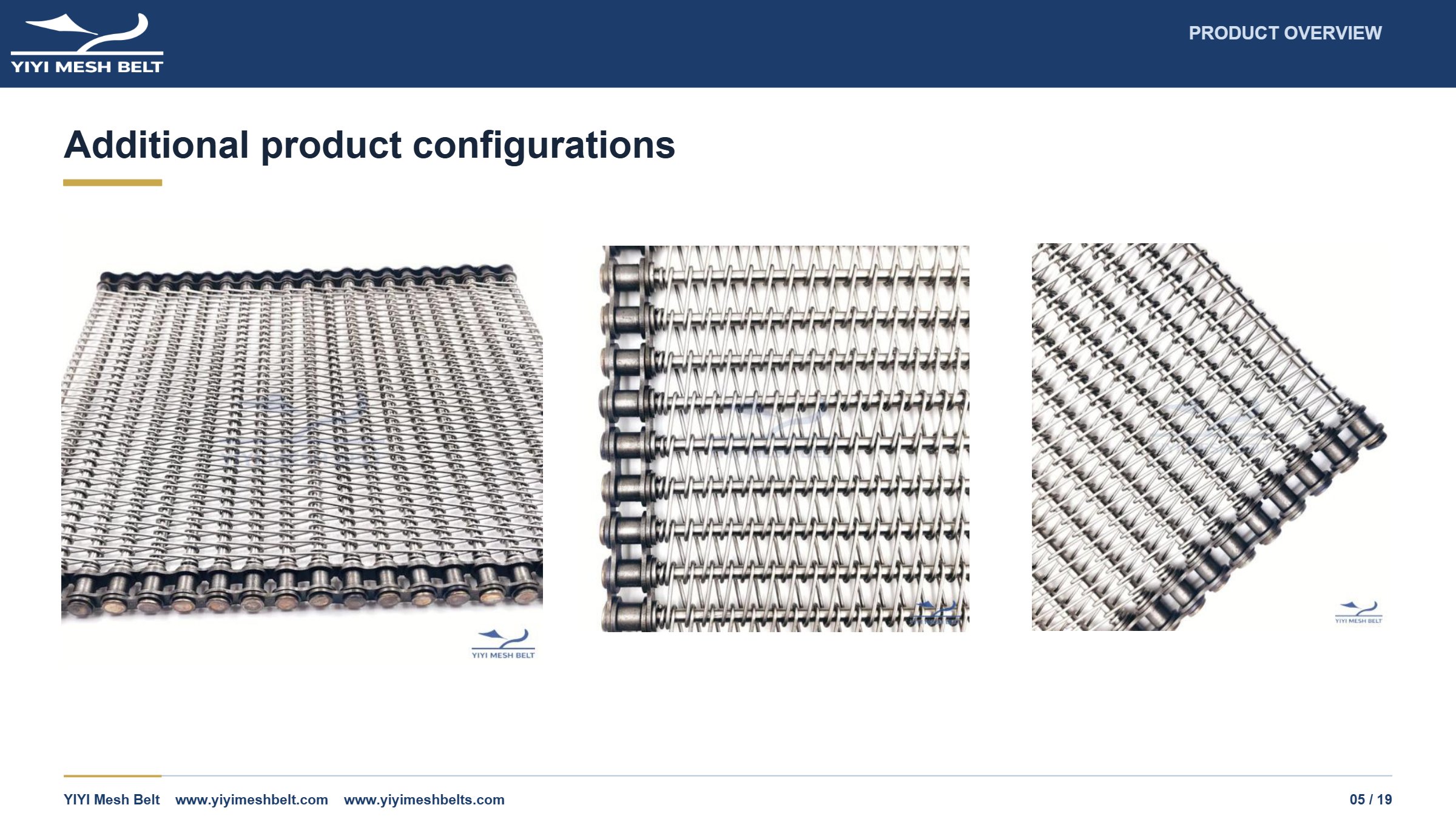

Page 5. PRODUCT OVERVIEW Additional product configurations

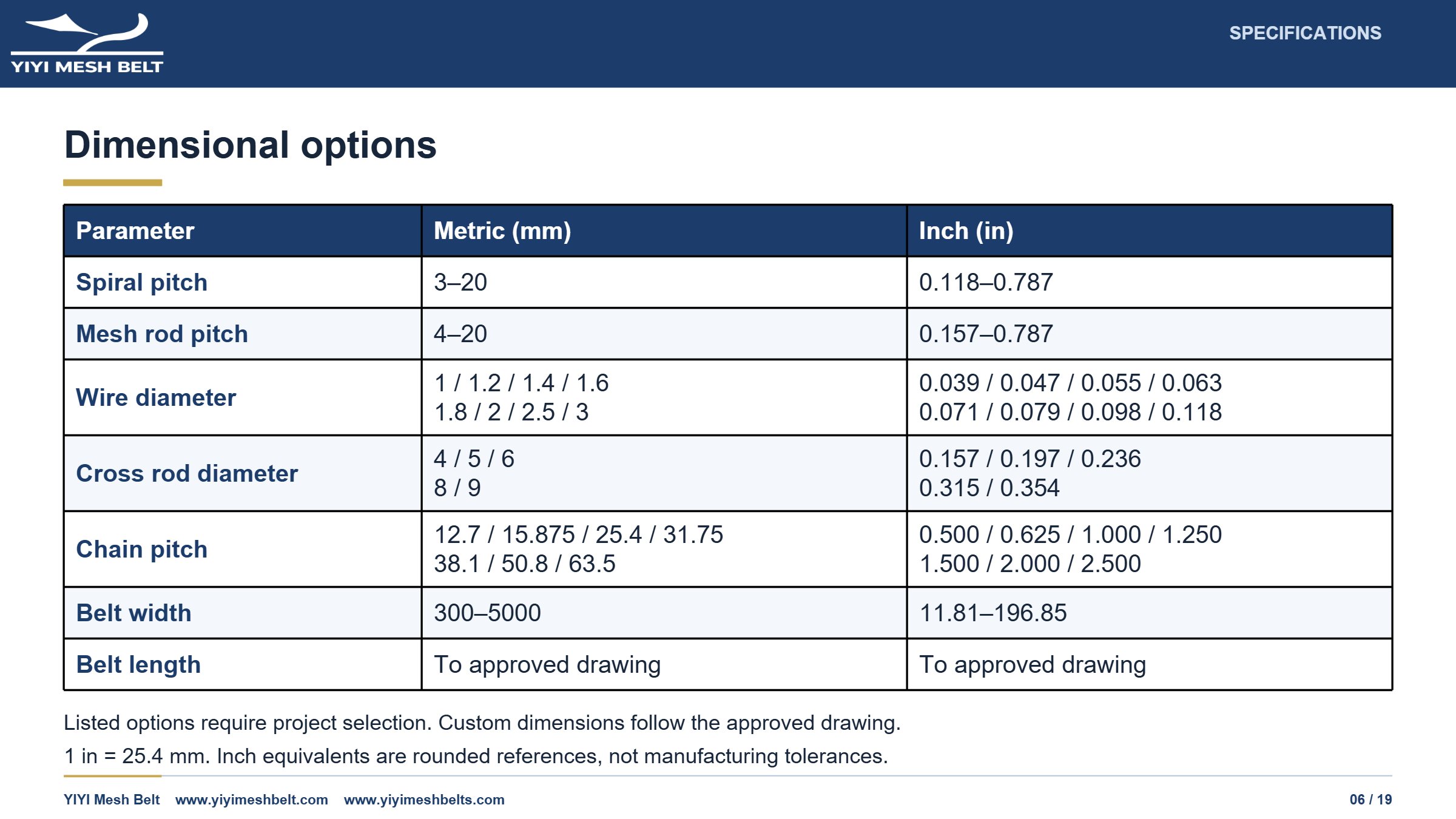

Page 6. SPECIFICATIONS Dimensional options Parameter Metric (mm) Inch (in) Spiral pitch 3–20 0.118–0.787 Mesh rod pitch 4–20 0.157–0.787 Wire diameter 1 / 1.2 / 1.4 / 1.6 1.8 / 2 / 2.5 / 3 0.039 / 0.047 / 0.055 / 0.063 0.071 / 0.079 / 0.098 / 0.118 Cross rod diameter 4 / 5 / 6 8 / 9 0.157 / 0.197 / 0.236 0.315 / 0.354 Chain pitch 12.7 / 15.875 / 25.4 / 31.75 38.1 / 50.8 / 63.5 0.500 / 0.625 / 1.000 / 1.250 1.500 / 2.000 / 2.500 Belt width 300–5000 11.81–196.85 Belt length To approved drawing To approved drawing Listed options require project selection. Custom dimensions follow the approved drawing. 1 in = 25.4 mm. Inch equivalents are rounded references, not manufacturing tolerances.

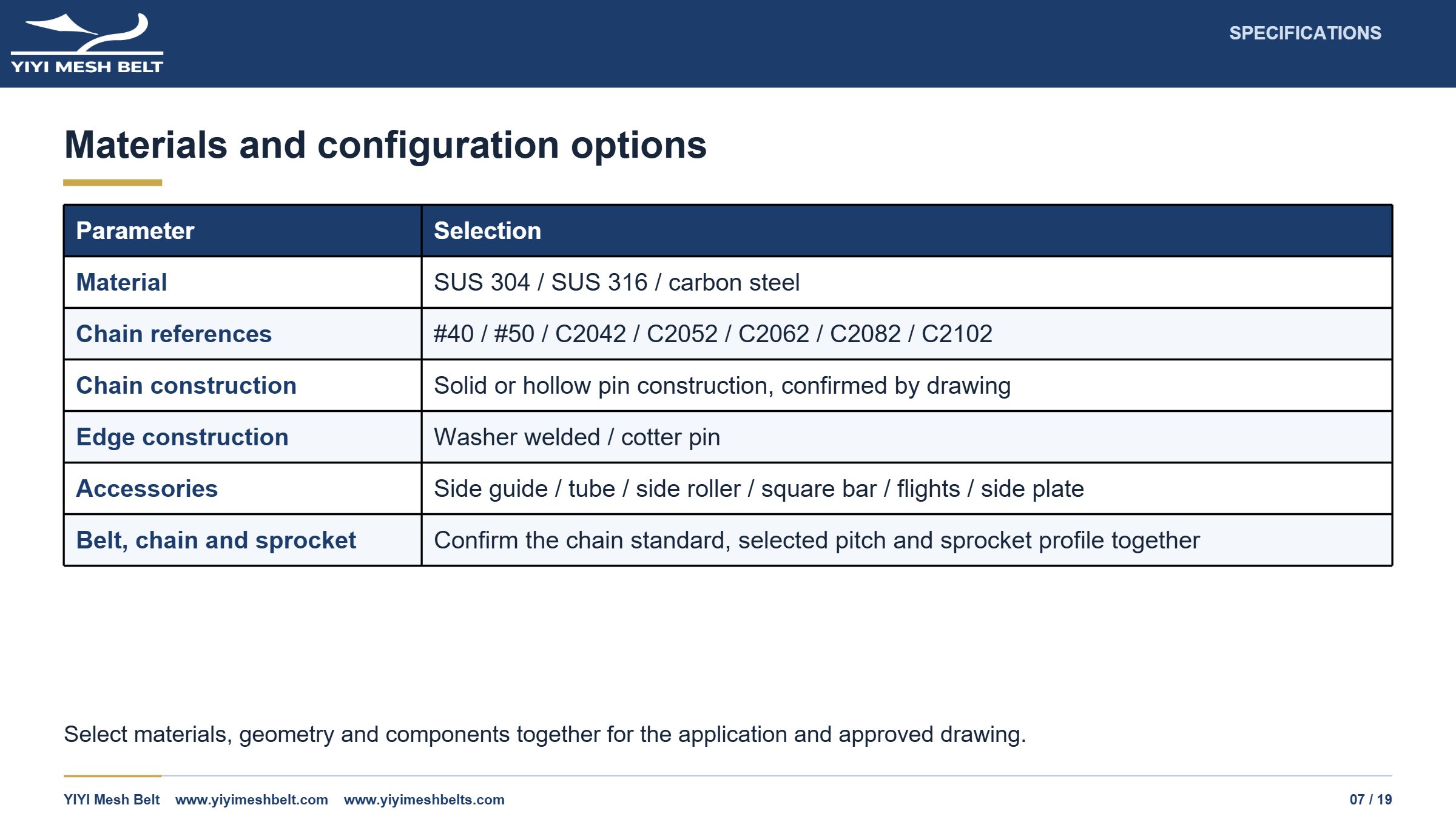

Page 7. SPECIFICATIONS Materials and configuration options Parameter Selection Material SUS 304 / SUS 316 / carbon steel Chain references #40 / #50 / C2042 / C2052 / C2062 / C2082 / C2102 Chain construction Solid or hollow pin construction, confirmed by drawing Edge construction Washer welded / cotter pin Accessories Side guide / tube / side roller / square bar / flights / side plate Belt, chain and sprocket Confirm the chain standard, selected pitch and sprocket profile together Select materials, geometry and components together for the application and approved drawing.

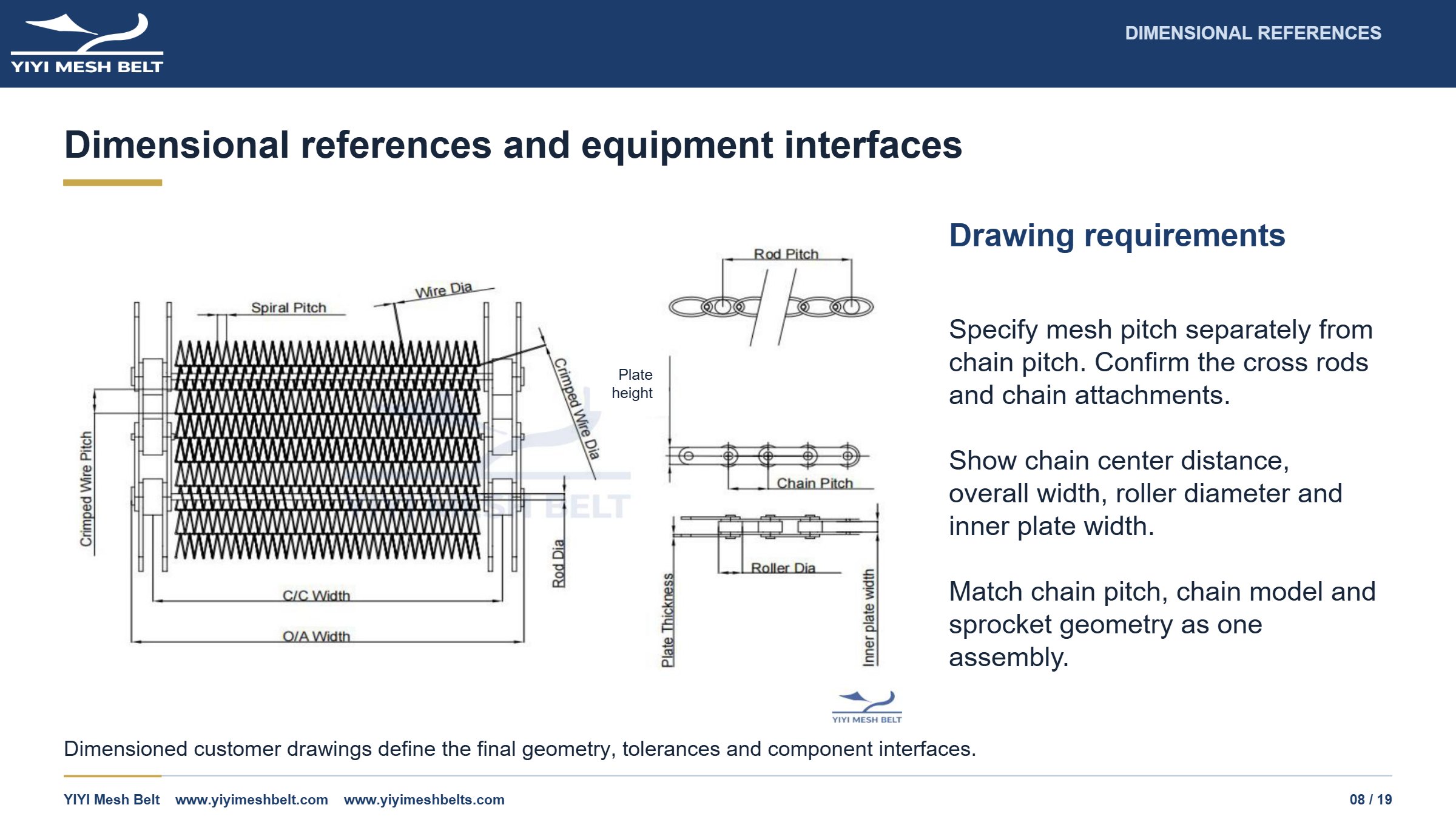

Page 8. DIMENSIONAL REFERENCES Dimensional references and equipment interfaces Drawing requirements Specify mesh pitch separately from chain pitch. Confirm the cross rods and chain attachments. Show chain center distance, overall width, roller diameter and inner plate width. Match chain pitch, chain model and sprocket geometry as one assembly. Dimensioned customer drawings define the final geometry, tolerances and component interfaces. Plate height

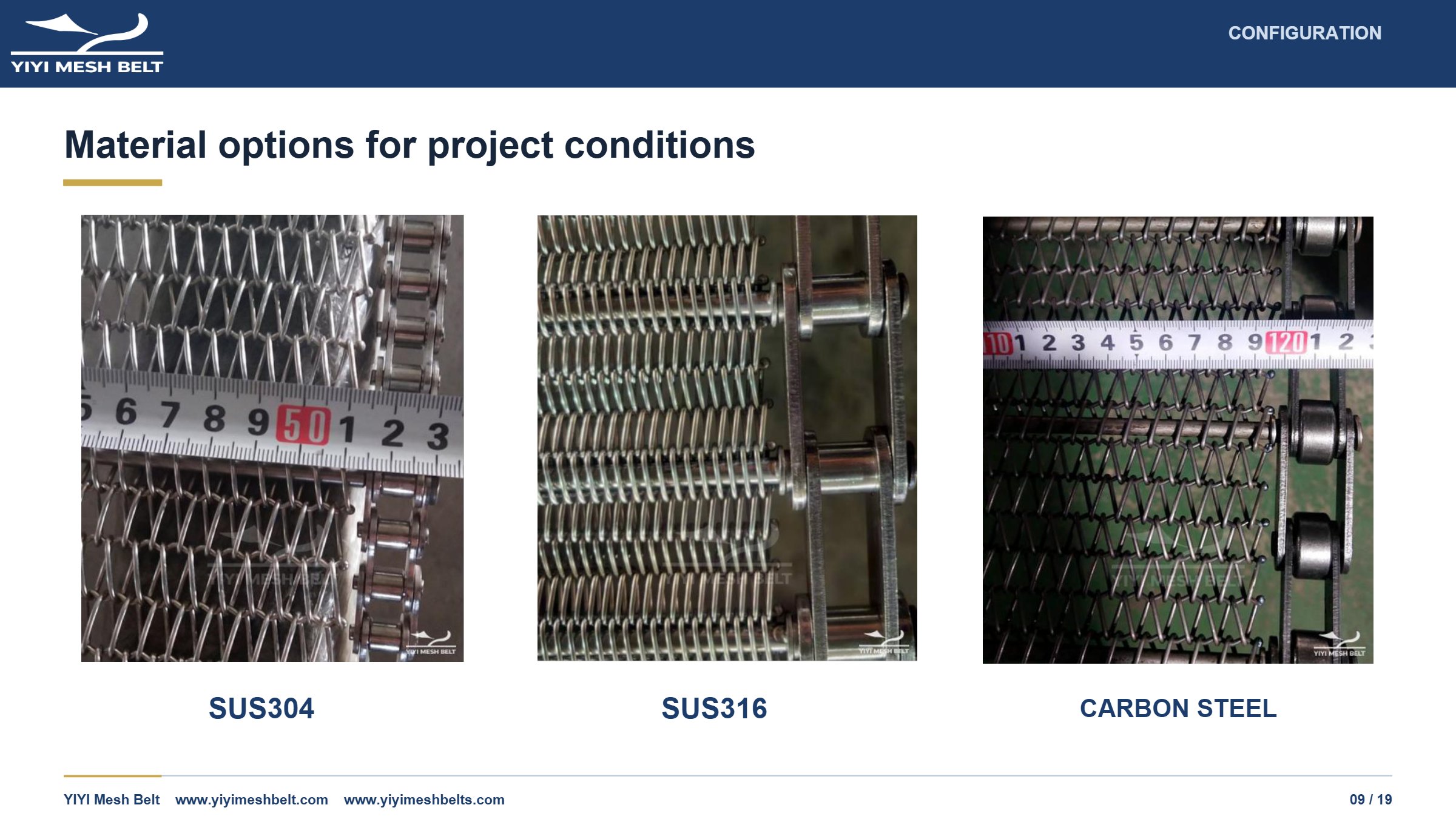

Page 9. CONFIGURATION Material options for project conditions SUS304 SUS316 CARBON STEEL

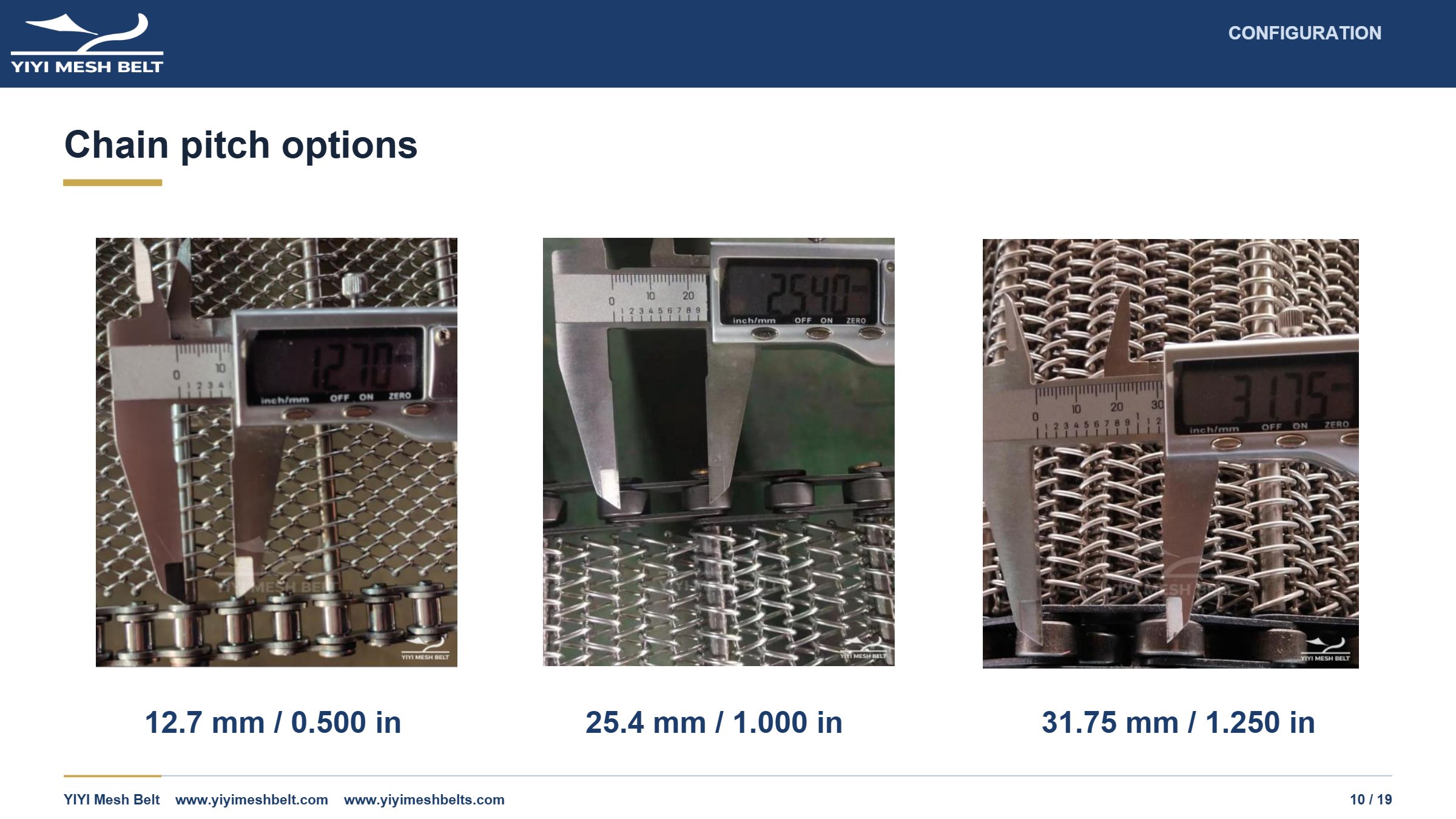

Page 10. CONFIGURATION Chain pitch options 12.7 mm / 0.500 in 25.4 mm / 1.000 in 31.75 mm / 1.250 in

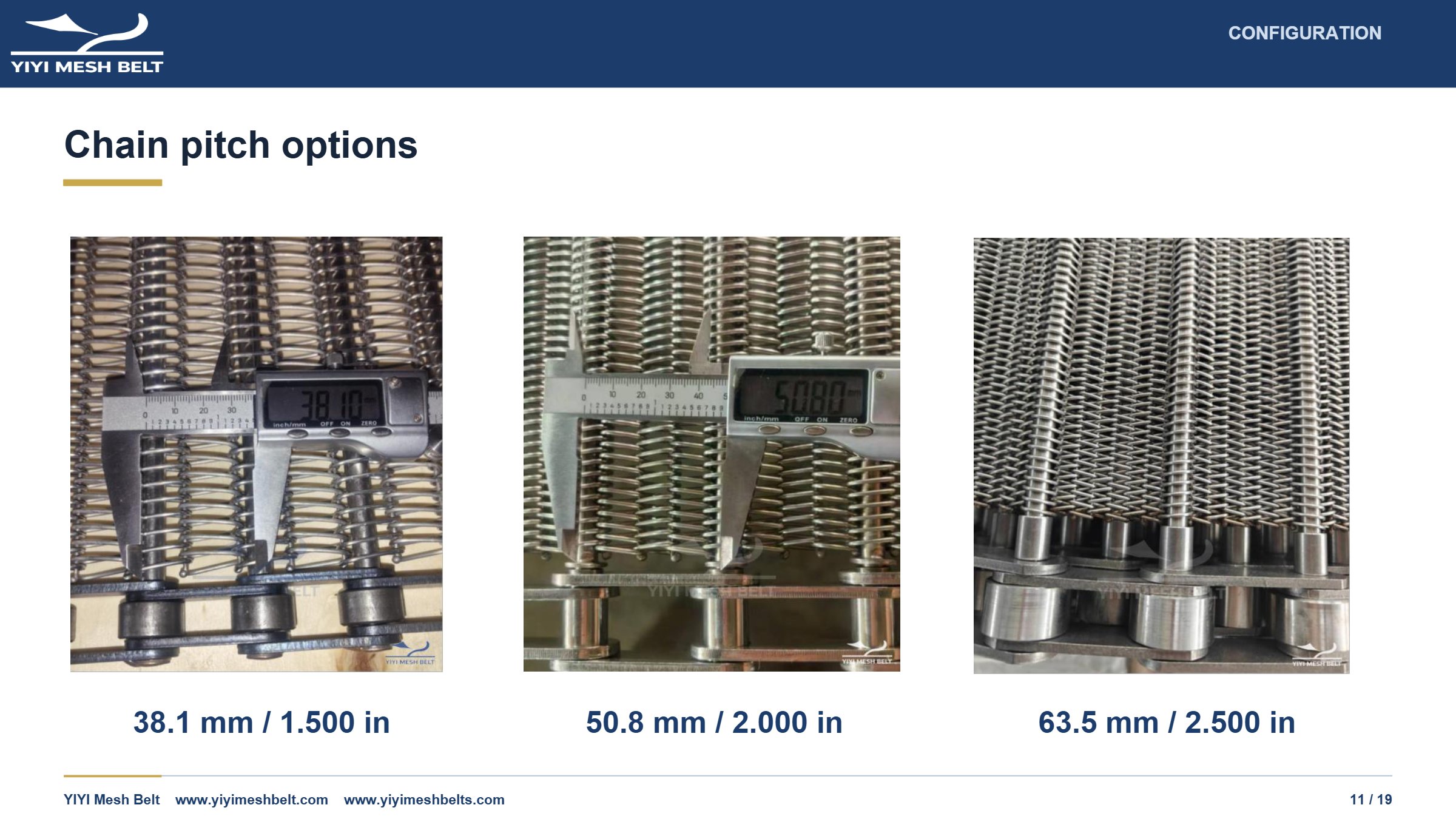

Page 11. CONFIGURATION Chain pitch options 38.1 mm / 1.500 in 50.8 mm / 2.000 in 63.5 mm / 2.500 in

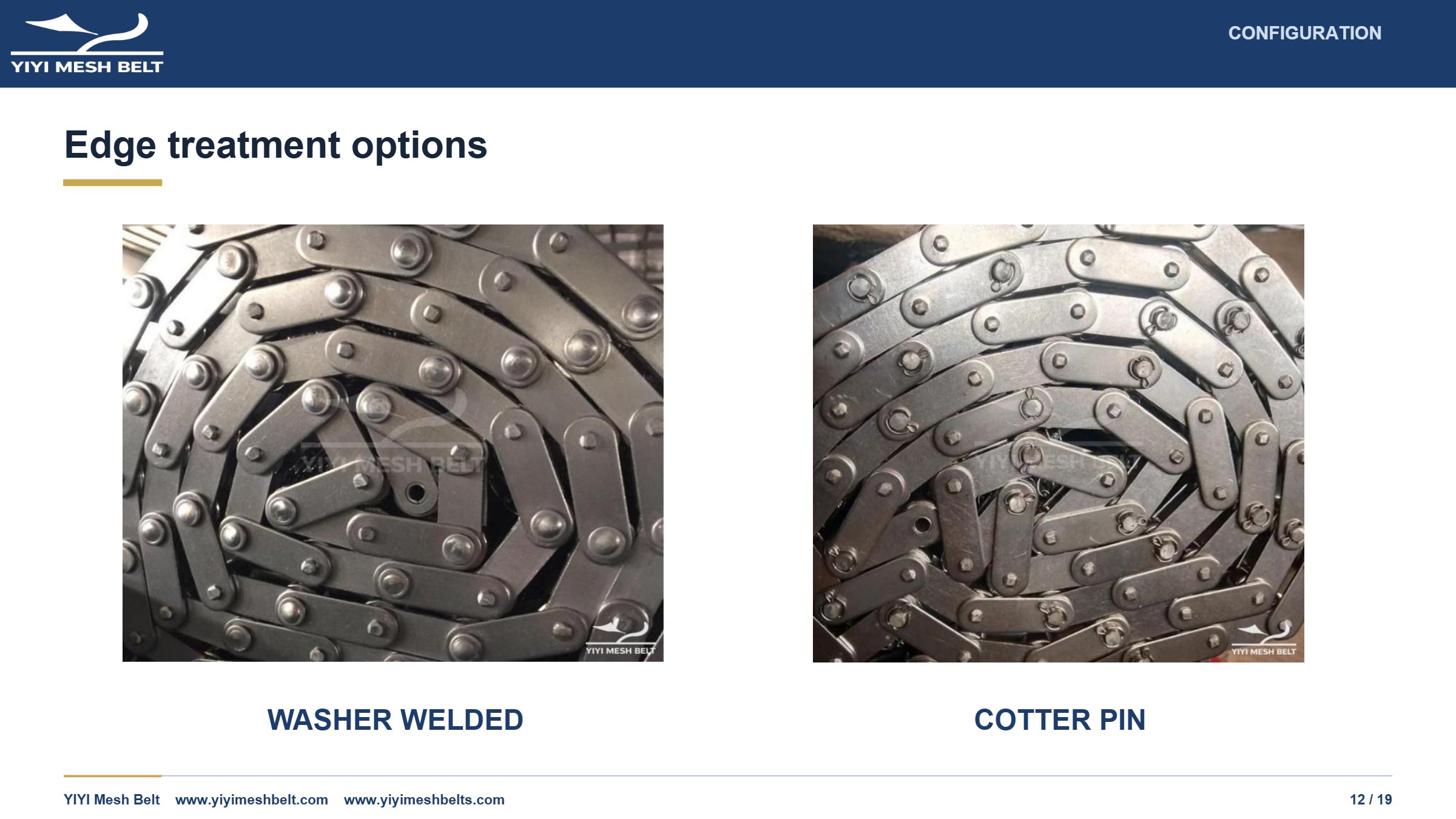

Page 12. CONFIGURATION Edge treatment options WASHER WELDED COTTER PIN

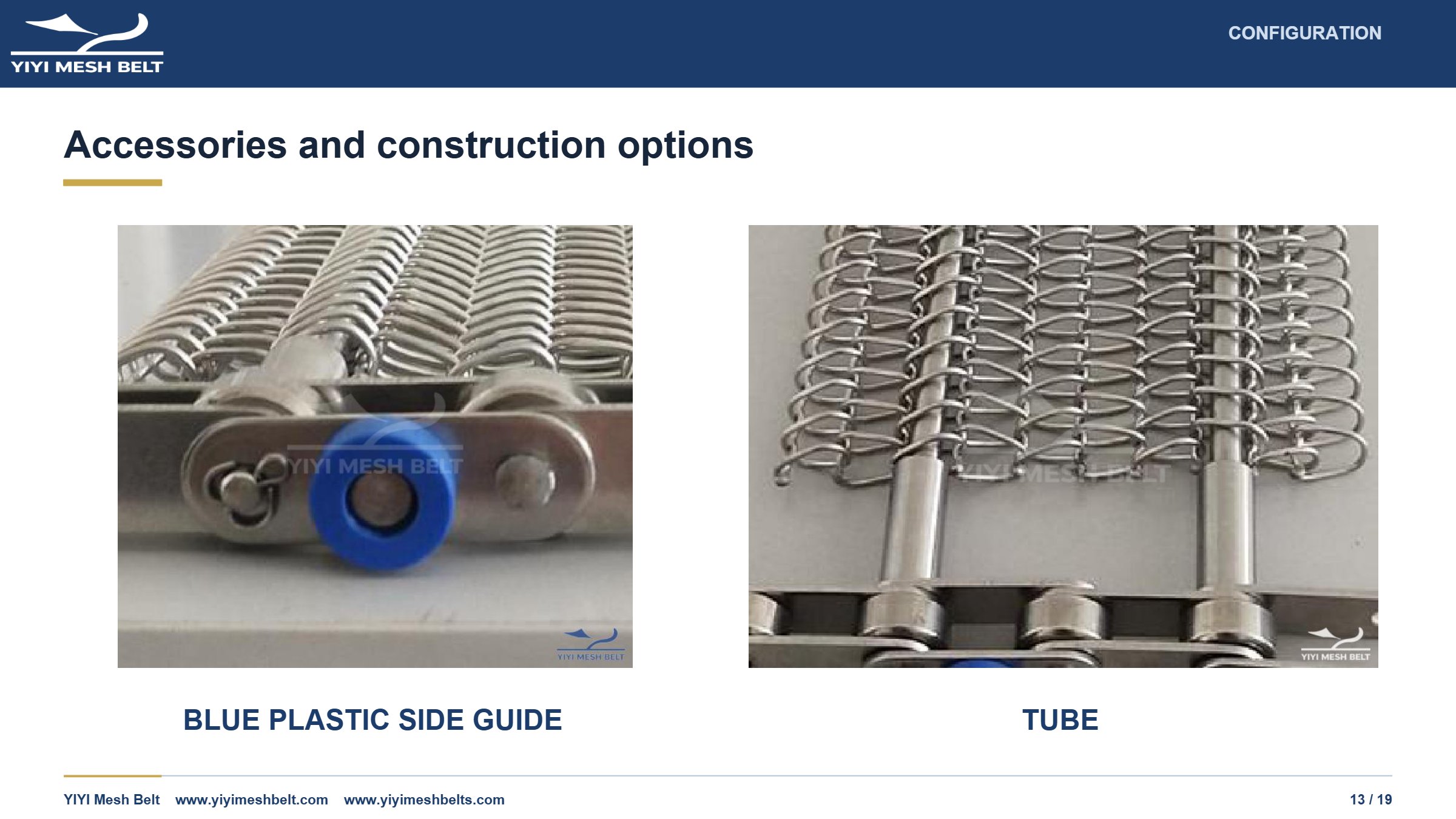

Page 13. CONFIGURATION Accessories and construction options BLUE PLASTIC SIDE GUIDE TUBE

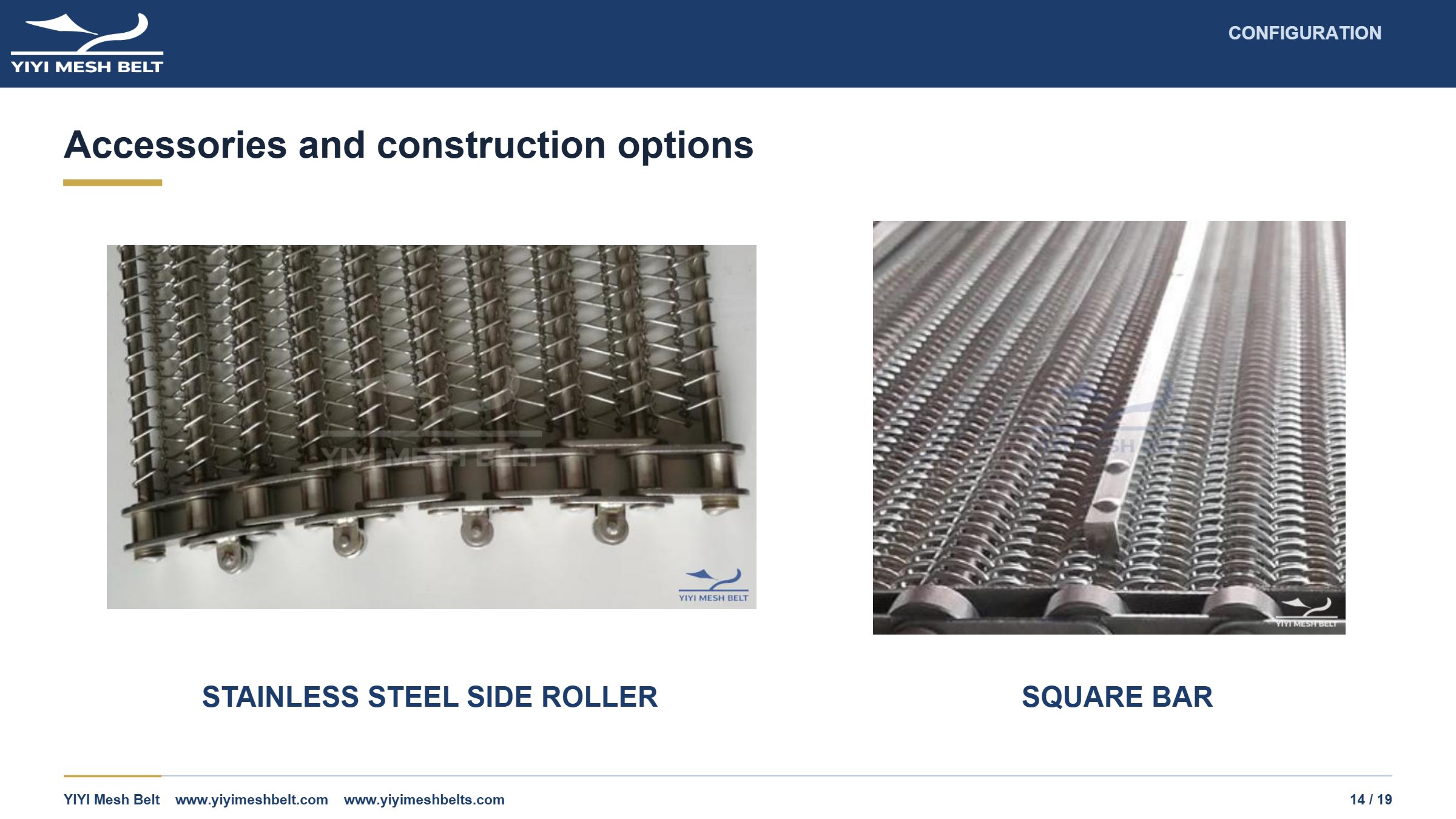

Page 14. CONFIGURATION Accessories and construction options STAINLESS STEEL SIDE ROLLER SQUARE BAR

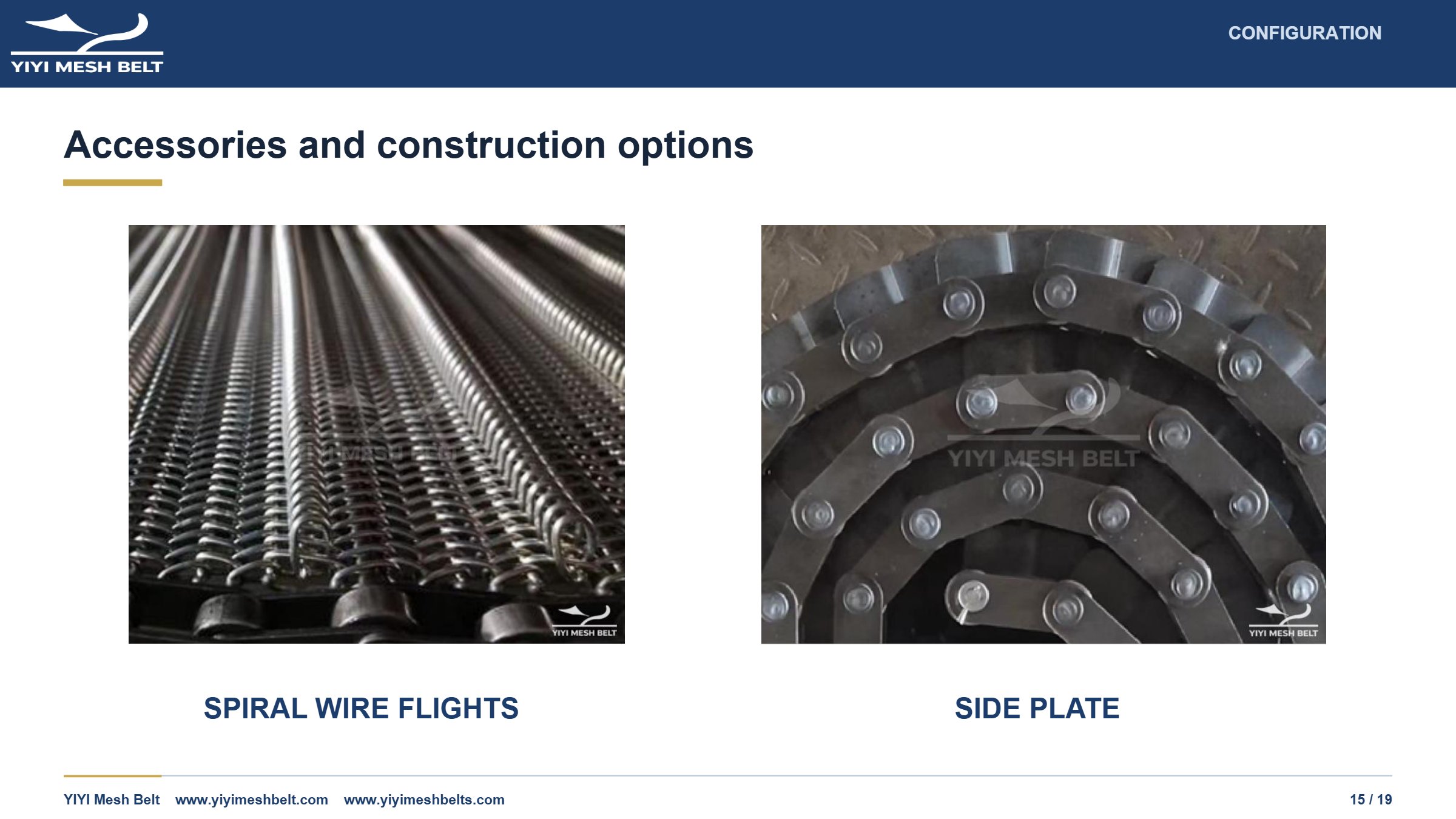

Page 15. CONFIGURATION Accessories and construction options SPIRAL WIRE FLIGHTS SIDE PLATE

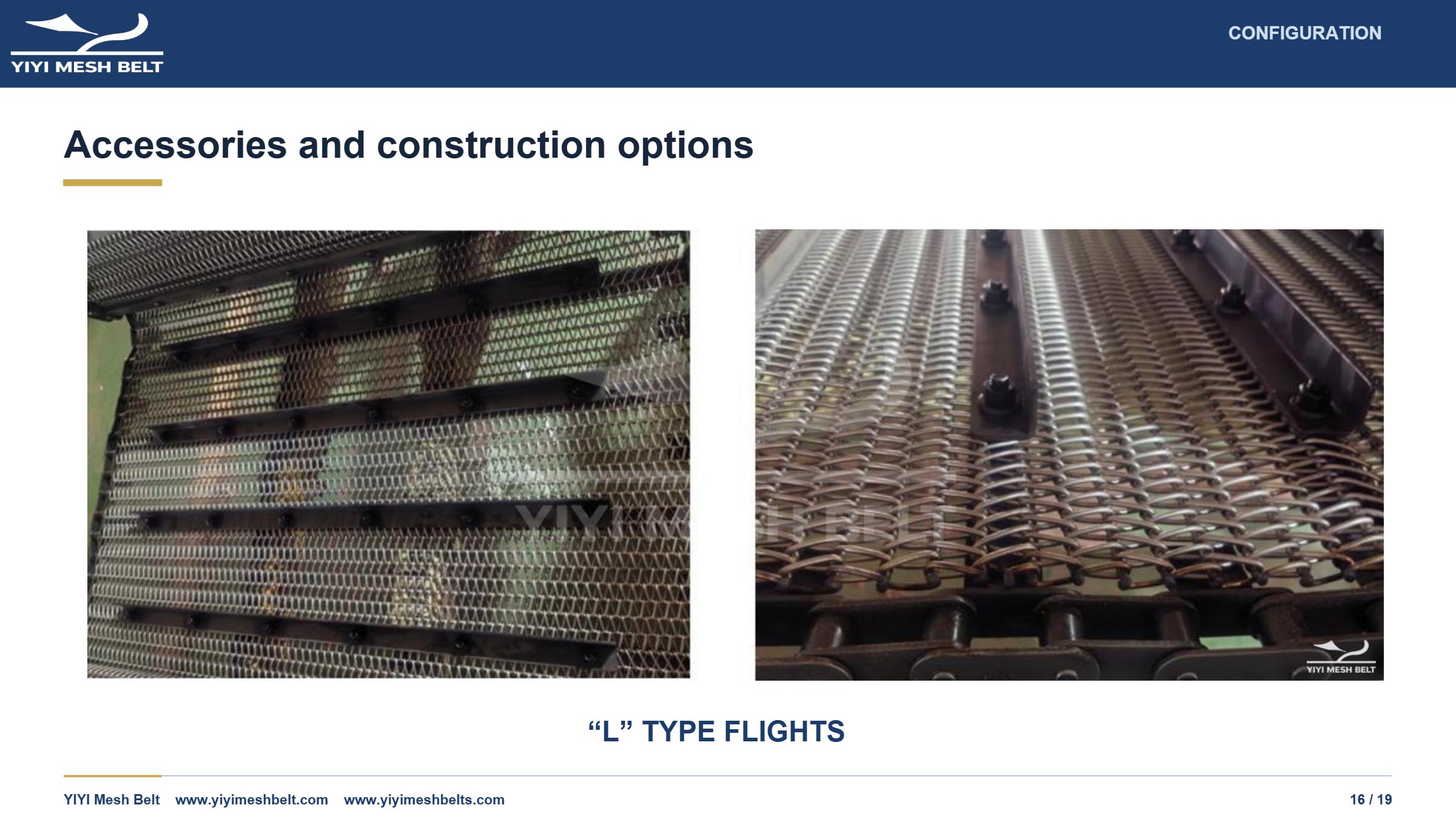

Page 16. CONFIGURATION Accessories and construction options “L” TYPE FLIGHTS

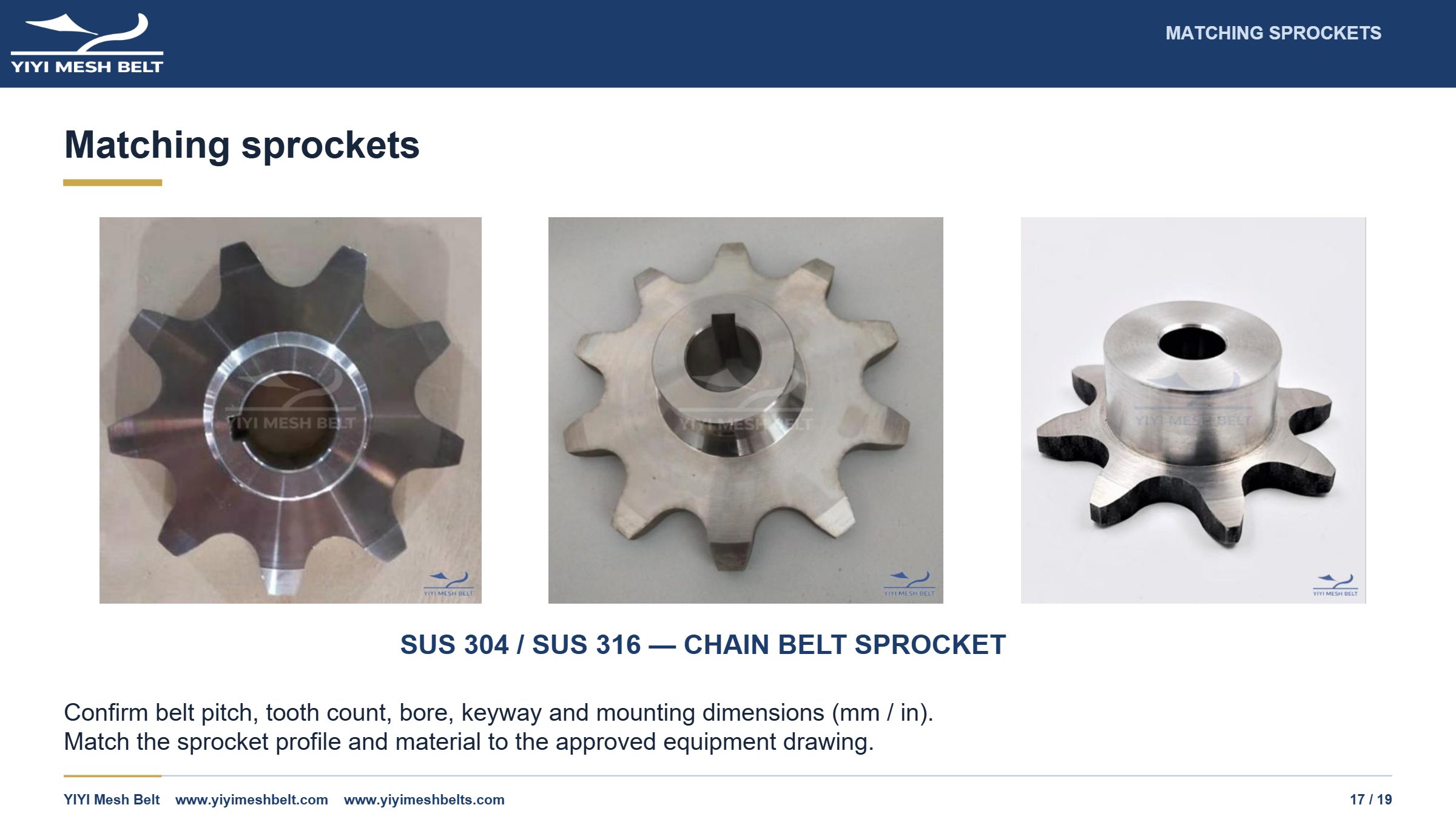

Page 17. MATCHING SPROCKETS Matching sprockets SUS 304 / SUS 316 — CHAIN BELT SPROCKET Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.

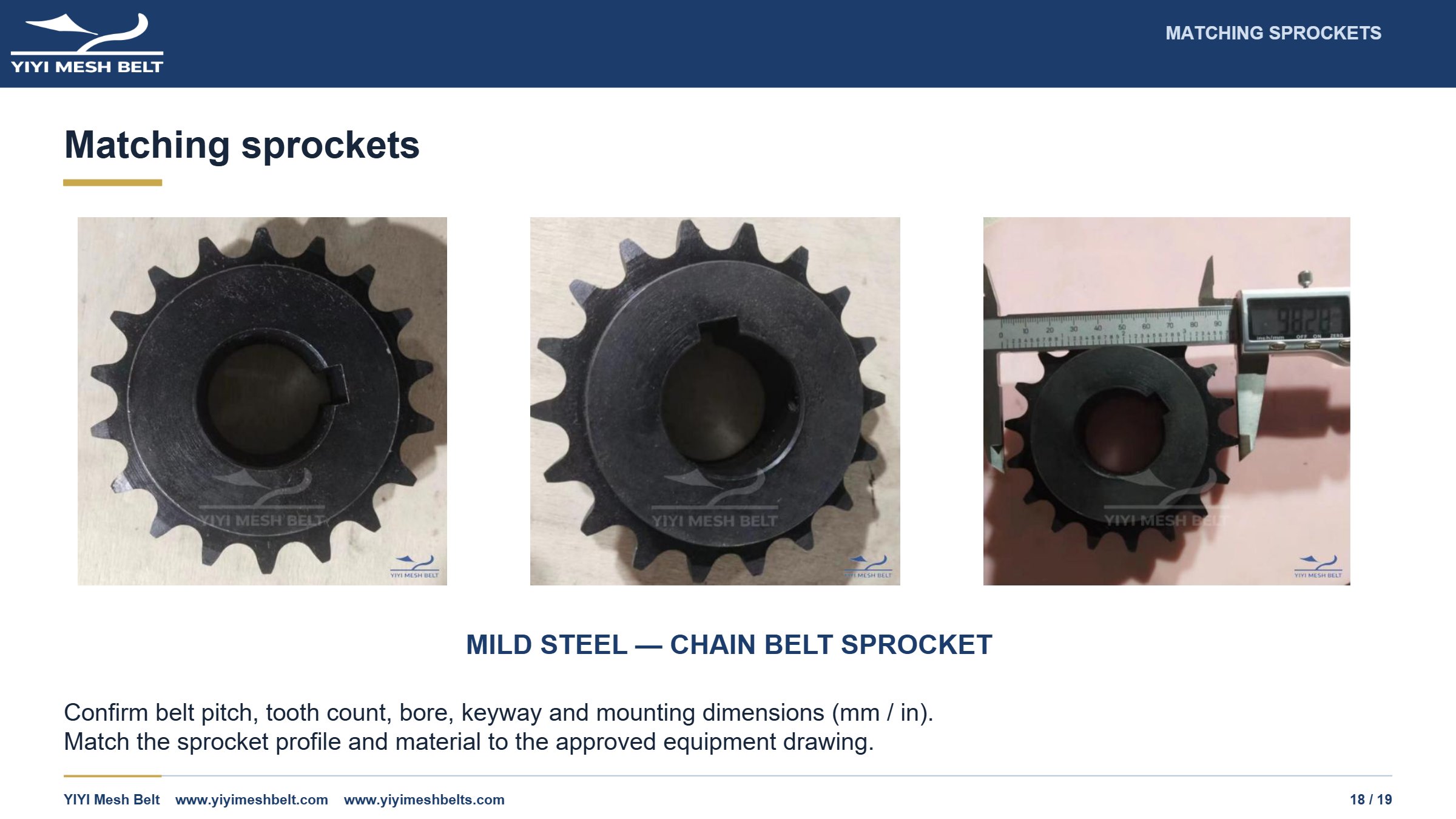

Page 18. MATCHING SPROCKETS Matching sprockets MILD STEEL — CHAIN BELT SPROCKET Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.
Page 19. PROVEN · STABLE · VERIFIED Metal Conveyor Belt Manufacturer Email: info@yiyimeshbelt.com Phone / WhatsApp: +86 134 5177 3742 Website: www.yiyimeshbelt.com www.yiyimeshbelts.com Company: Ningjin Yiyi Mesh Belt Co., Ltd. Send Your Drawing for Specification Review Belt dimensions (mm / in) Equipment and application Operating conditions Drive and shaft details Existing belt photos / sample Request an Engineering Review for OEMs & Professional Distributors © 2026 Ningjin Yiyi Mesh Belt Co., Ltd. All rights reserved. YIYI Mesh Belt’s original technical content, photographs and videos in this document and on www.yiyimeshbelt.com and www.yiyimeshbelts.com may not be reproduced or reused without prior written permission. Third-party materials remain the property of their respective owners.
