YIYI Mesh Belt Chain Plate / Plate Link Belt Production and Quality Control
See how your Chain Plate / Plate Link Belt is made and checked before it ships: drawing approval, trial production and first-article inspection, material testing, in-process dimensional checks, wooden-case packing and project records for repeat orders. Use it as a checklist of what to confirm with us before production.
Text version of this document

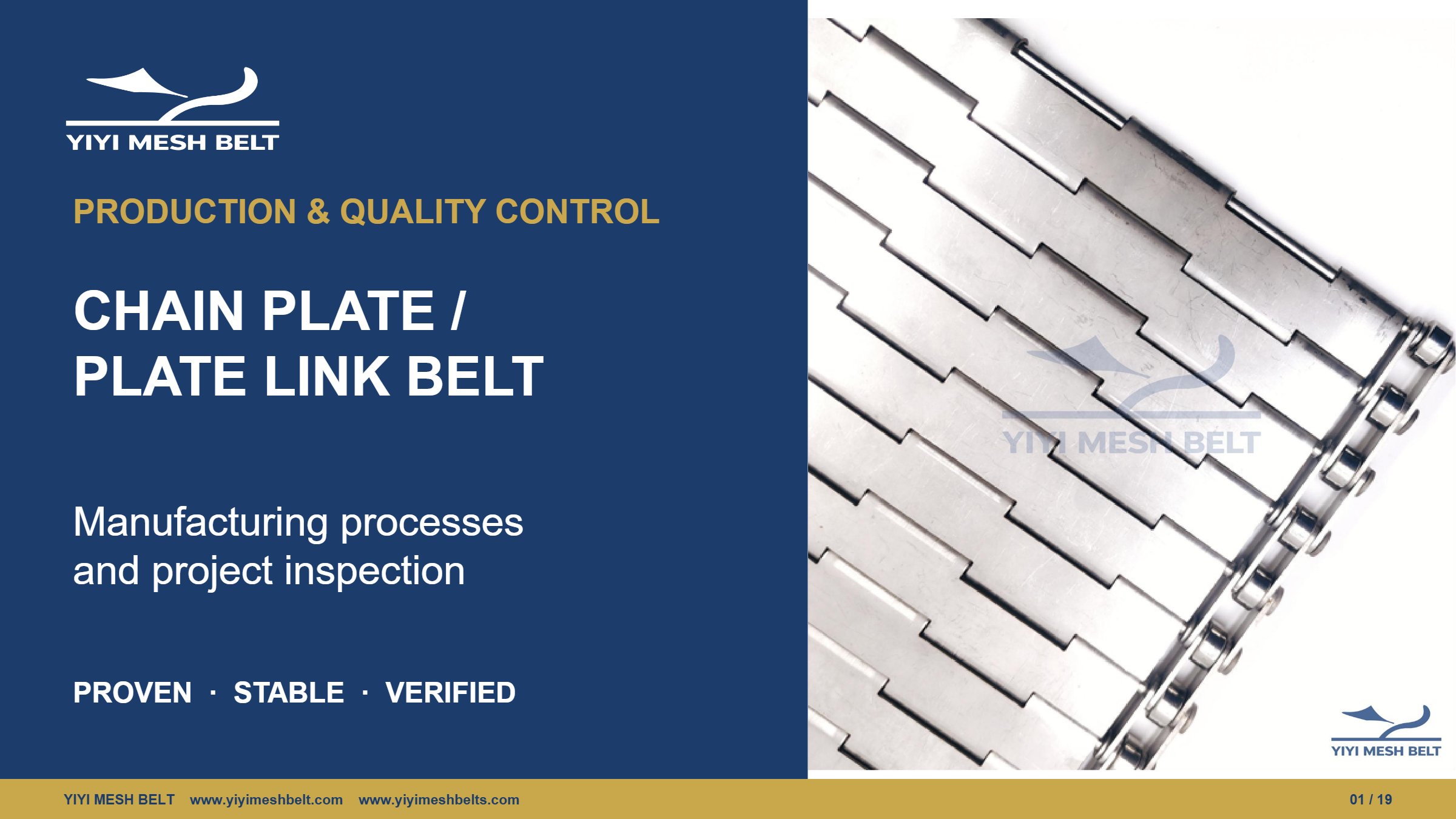

Page 1. PRODUCTION & QUALITY CONTROL CHAIN PLATE / PLATE LINK BELT Manufacturing processes and project inspection PROVEN · STABLE · VERIFIED
Page 2. MANUFACTURER Manufacturing and project control Ningjin Yiyi Mesh Belt Co., Ltd. A manufacturer of metal conveyor belts and related conveyor components based in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. Core belt forming, assembly, welding and inspection are managed in-house. Selected surface treatments and supporting components use external suppliers. YIYI MESH BELT manufacturing site

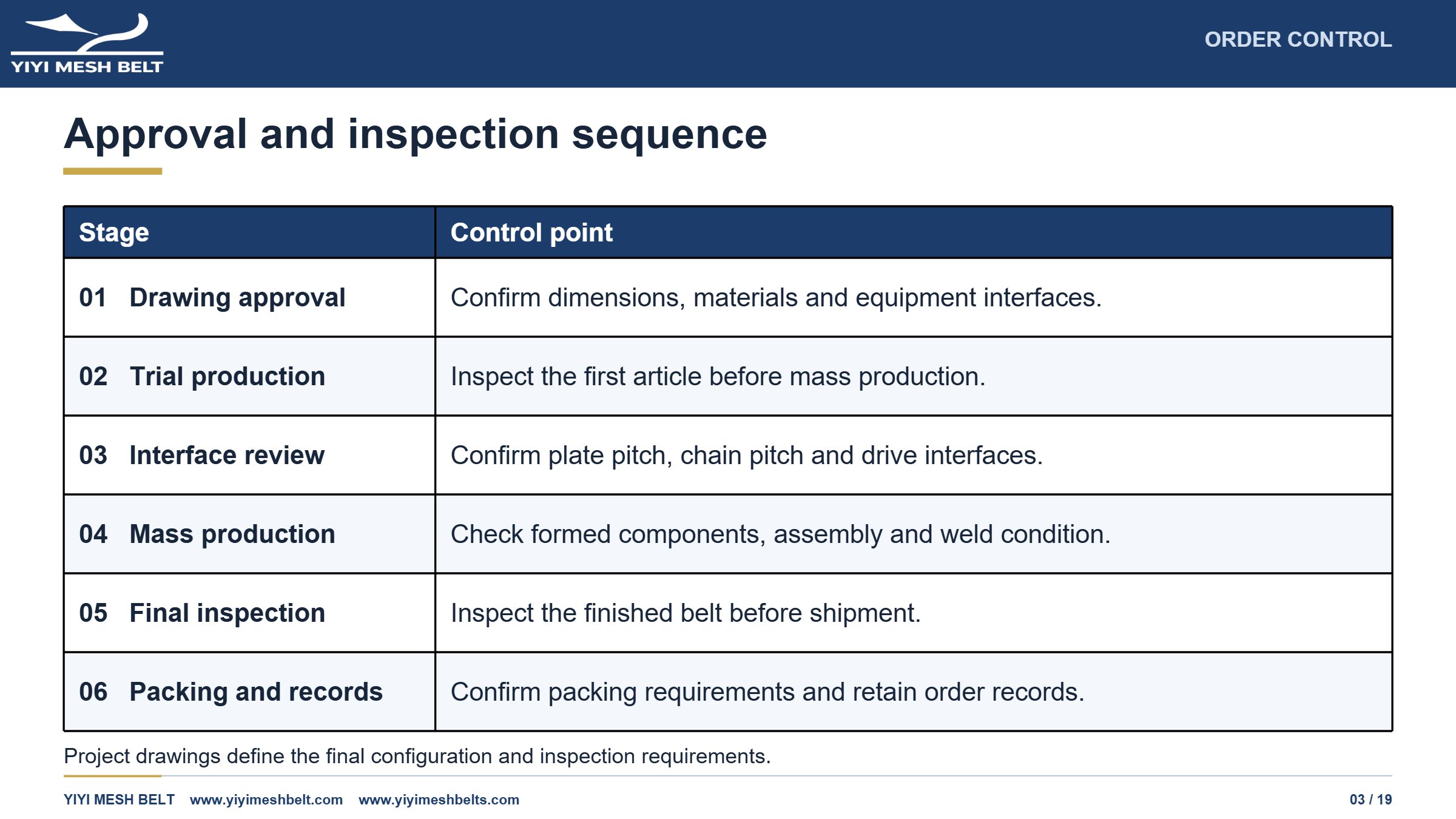

Page 3. ORDER CONTROL Approval and inspection sequence Stage Control point 01 Drawing approval Confirm dimensions, materials and equipment interfaces. 02 Trial production Inspect the first article before mass production. 03 Interface review Confirm plate pitch, chain pitch and drive interfaces. 04 Mass production Check formed components, assembly and weld condition. 05 Final inspection Inspect the finished belt before shipment. 06 Packing and records Confirm packing requirements and retain order records. Project drawings define the final configuration and inspection requirements.

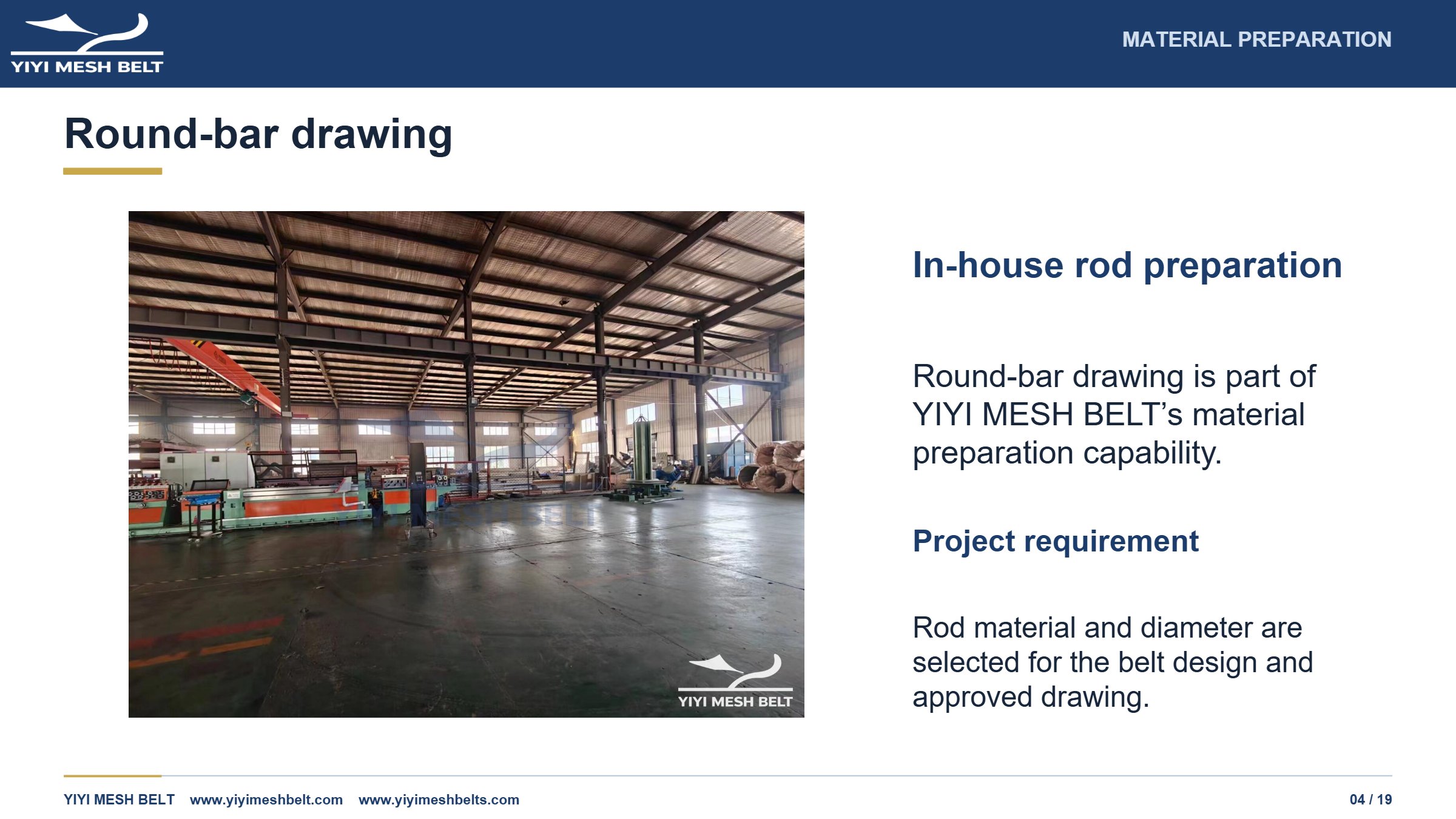

Page 4. MATERIAL PREPARATION Round-bar drawing In-house rod preparation Round-bar drawing is part of YIYI MESH BELT’s material preparation capability. Project requirement Rod material and diameter are selected for the belt design and approved drawing.

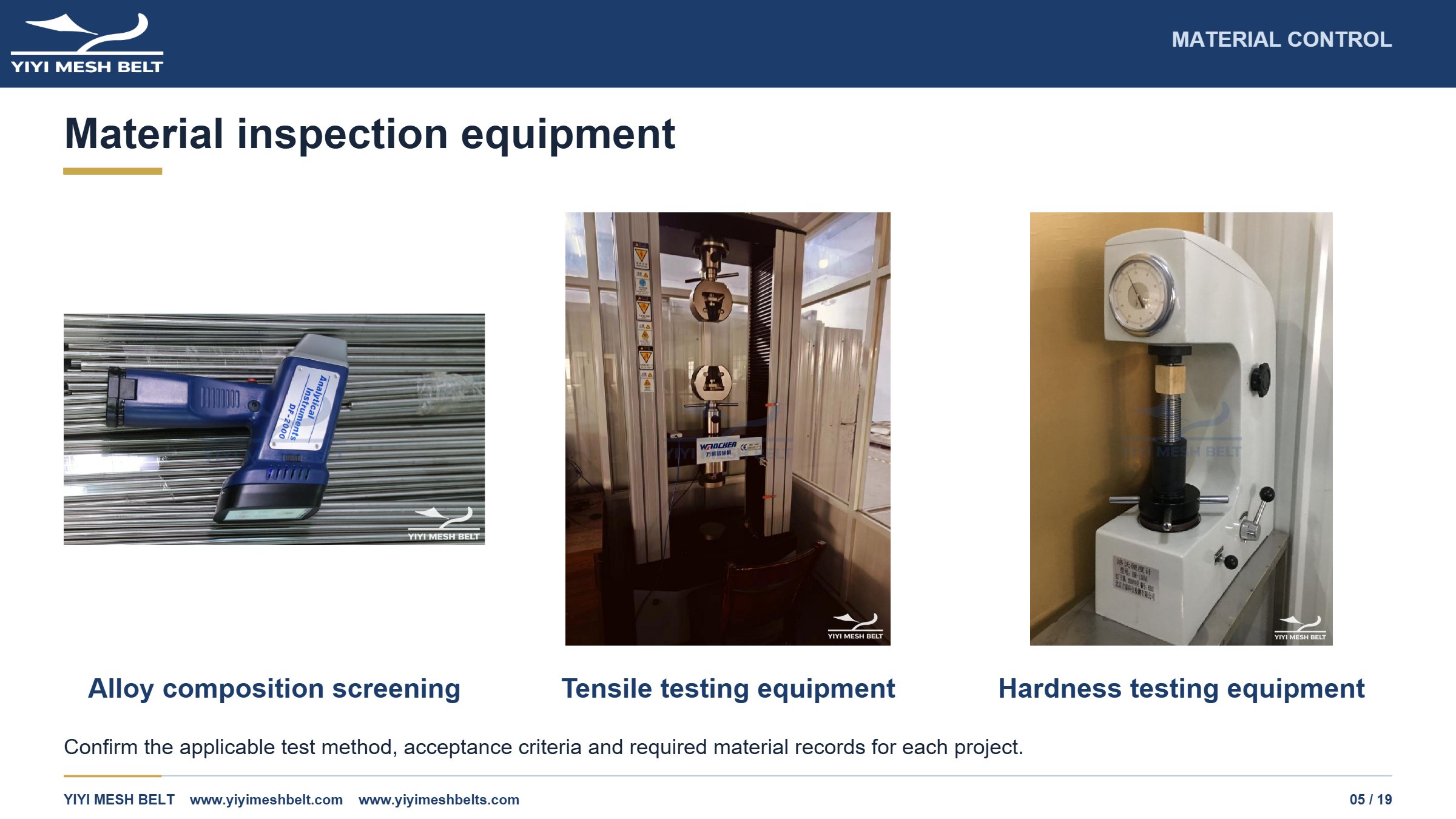

Page 5. MATERIAL CONTROL Material inspection equipment Alloy composition screening Tensile testing equipment Hardness testing equipment Confirm the applicable test method, acceptance criteria and required material records for each project.

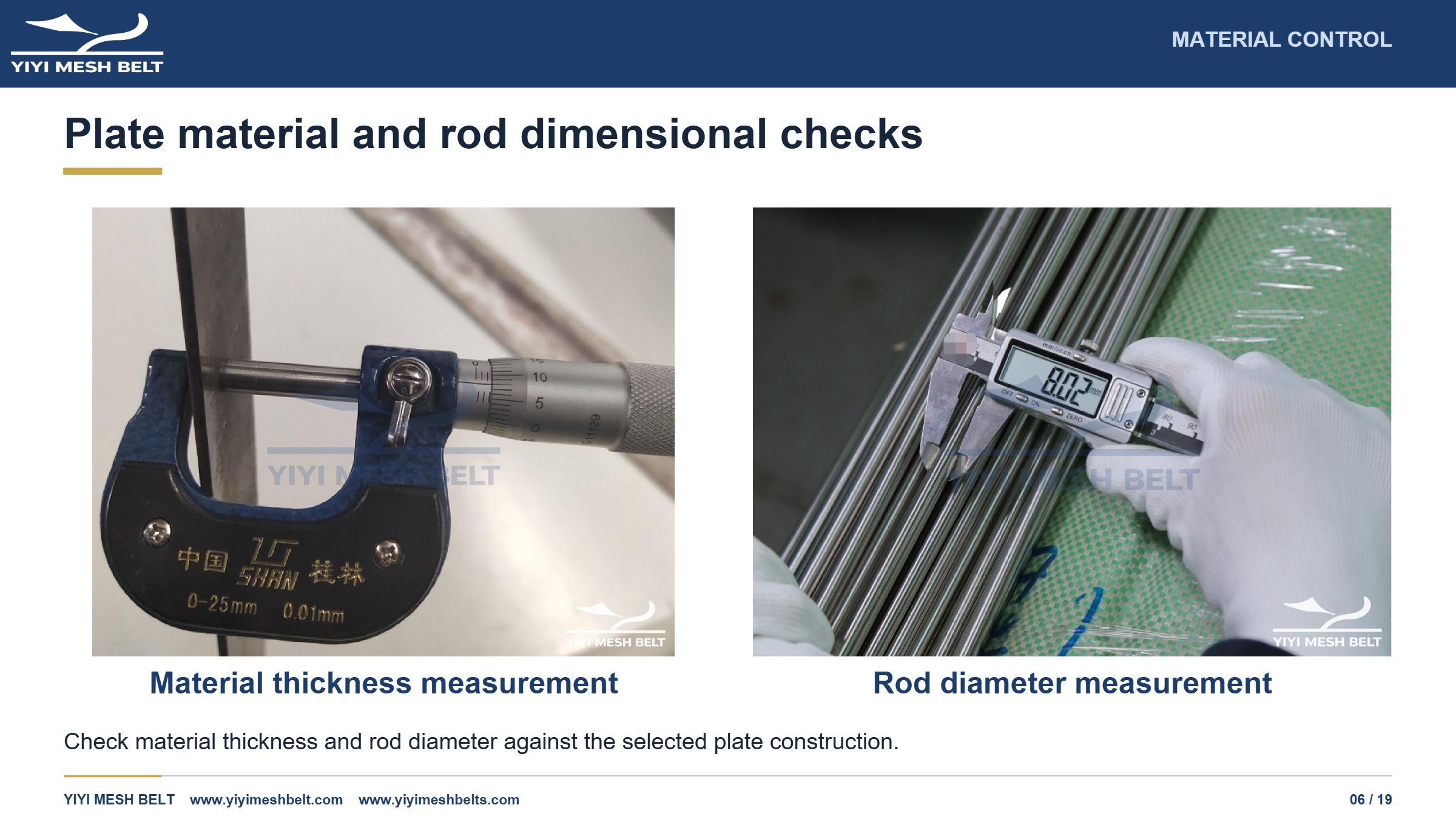

Page 6. MATERIAL CONTROL Plate material and rod dimensional checks Material thickness measurement Rod diameter measurement Check material thickness and rod diameter against the selected plate construction.

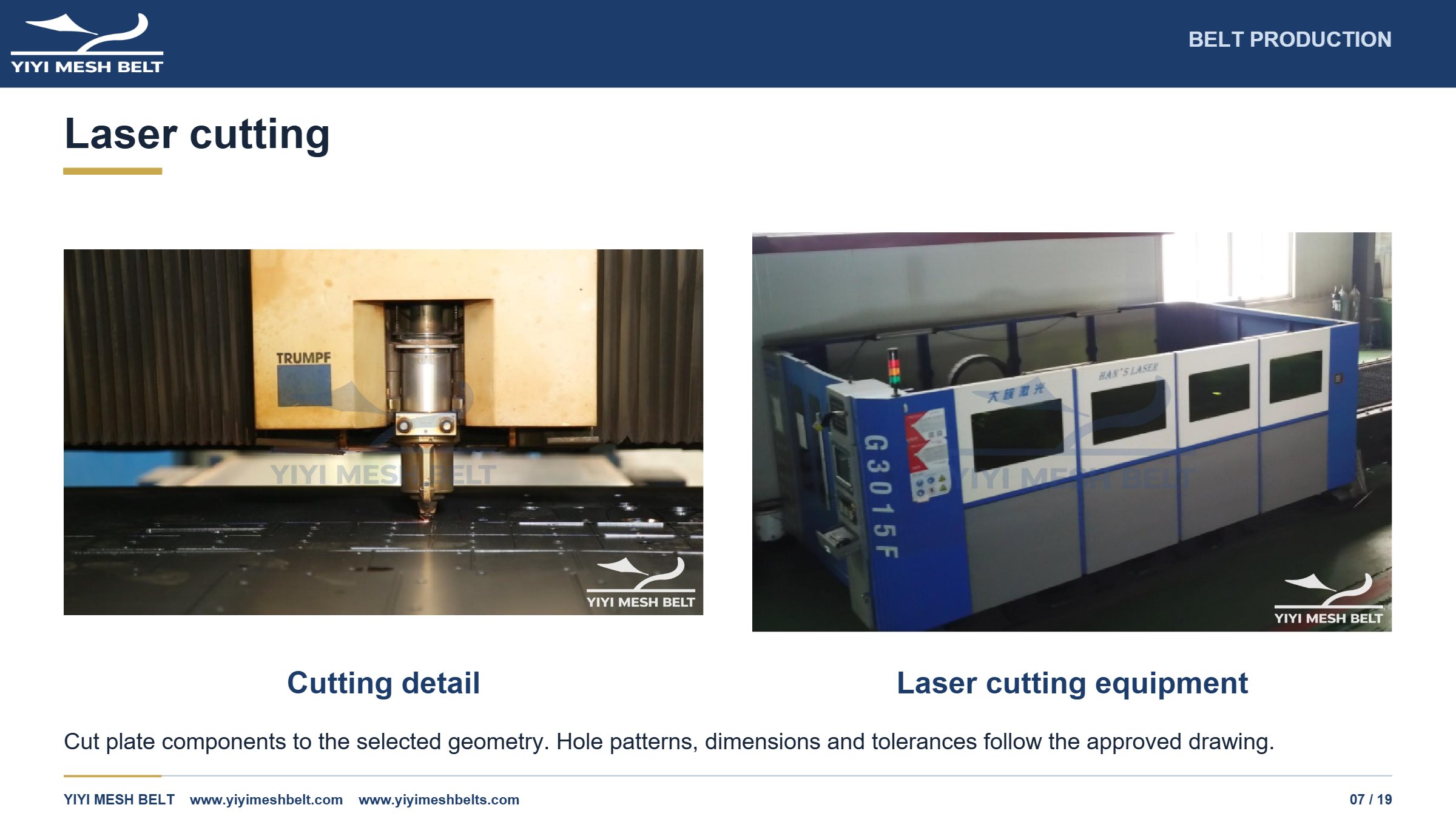

Page 7. BELT PRODUCTION Laser cutting Cutting detail Laser cutting equipment Cut plate components to the selected geometry. Hole patterns, dimensions and tolerances follow the approved drawing.

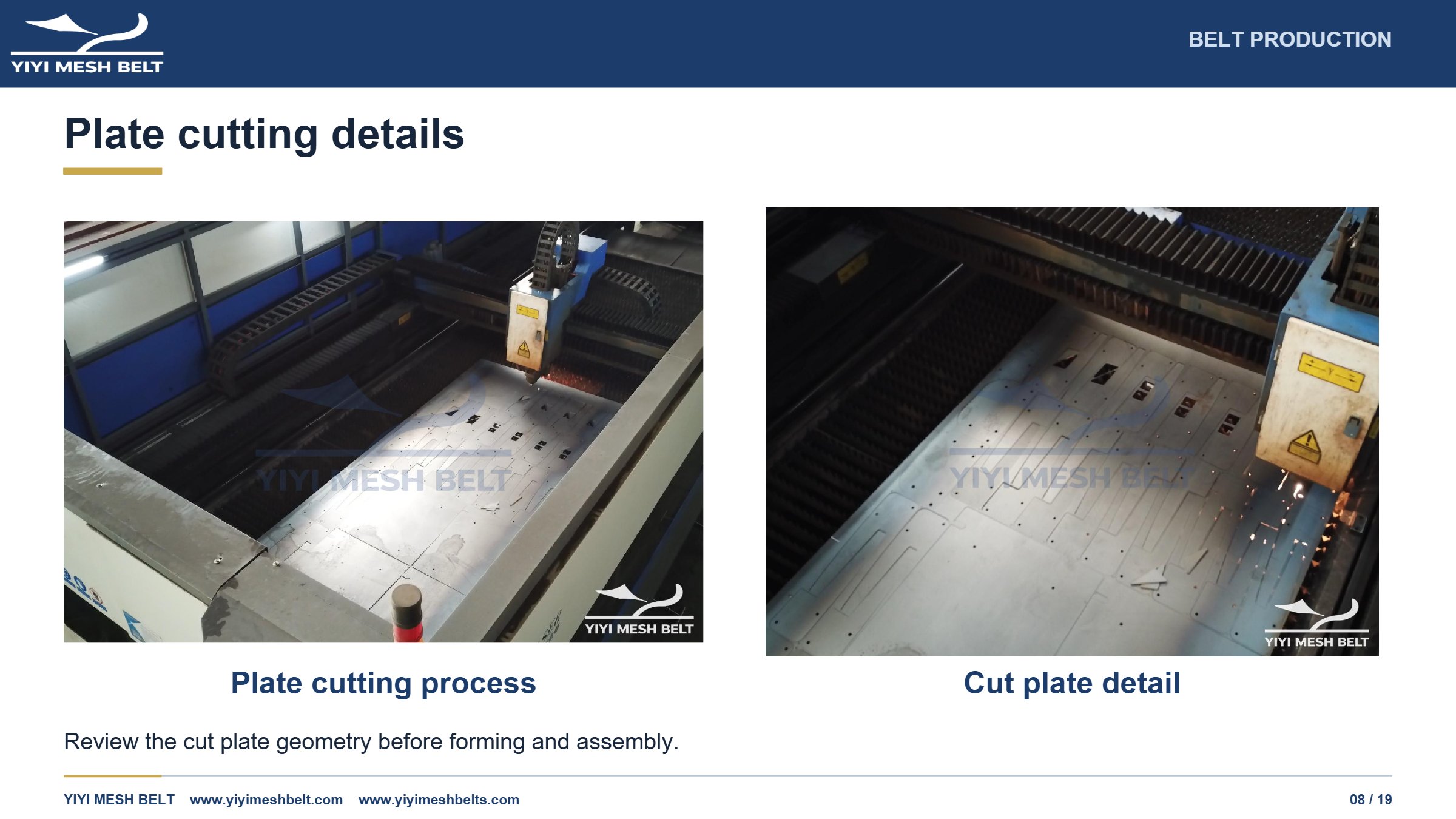

Page 8. BELT PRODUCTION Plate cutting details Plate cutting process Cut plate detail Review the cut plate geometry before forming and assembly.

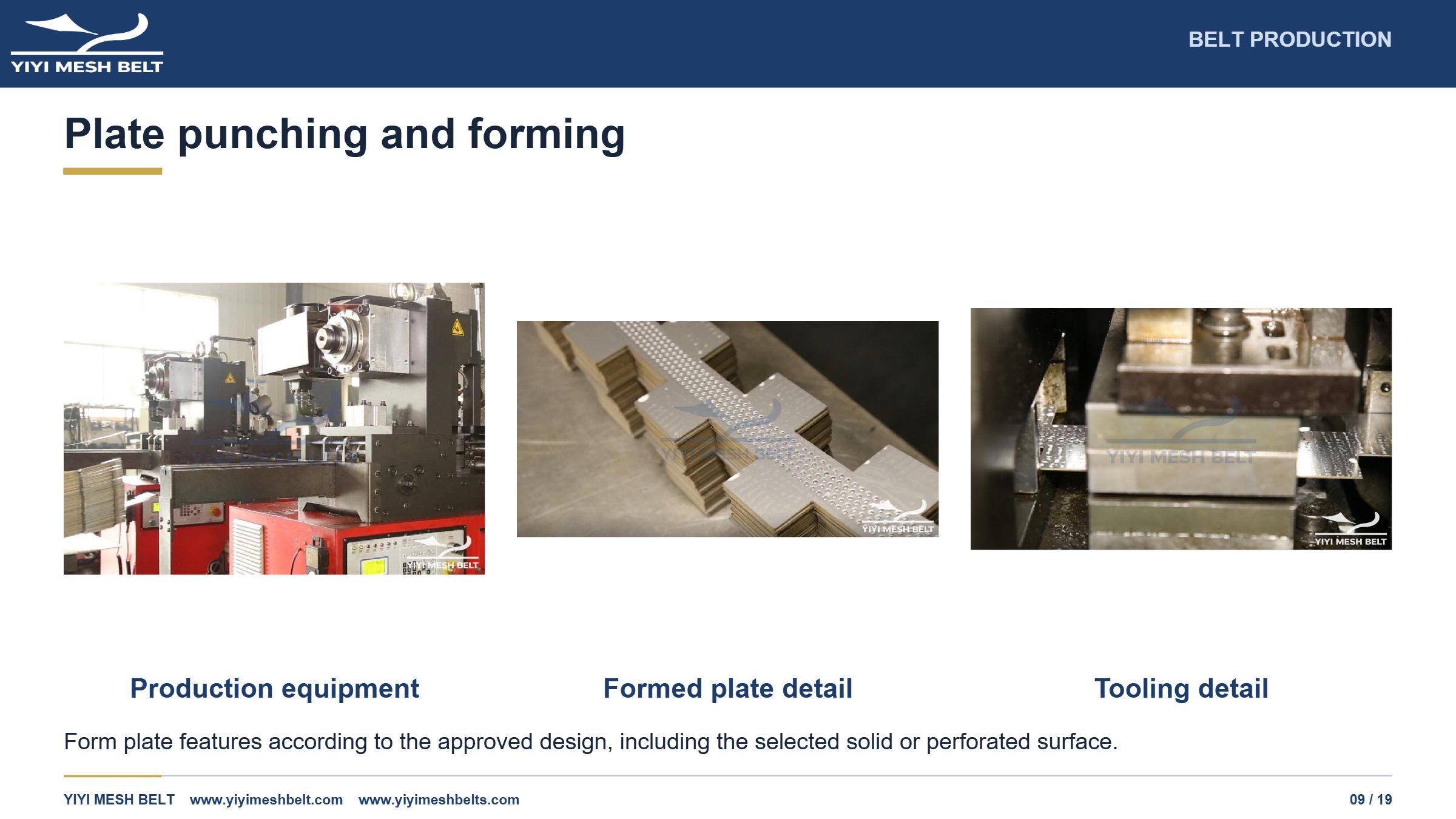

Page 9. BELT PRODUCTION Plate punching and forming Production equipment Formed plate detail Tooling detail Form plate features according to the approved design, including the selected solid or perforated surface.

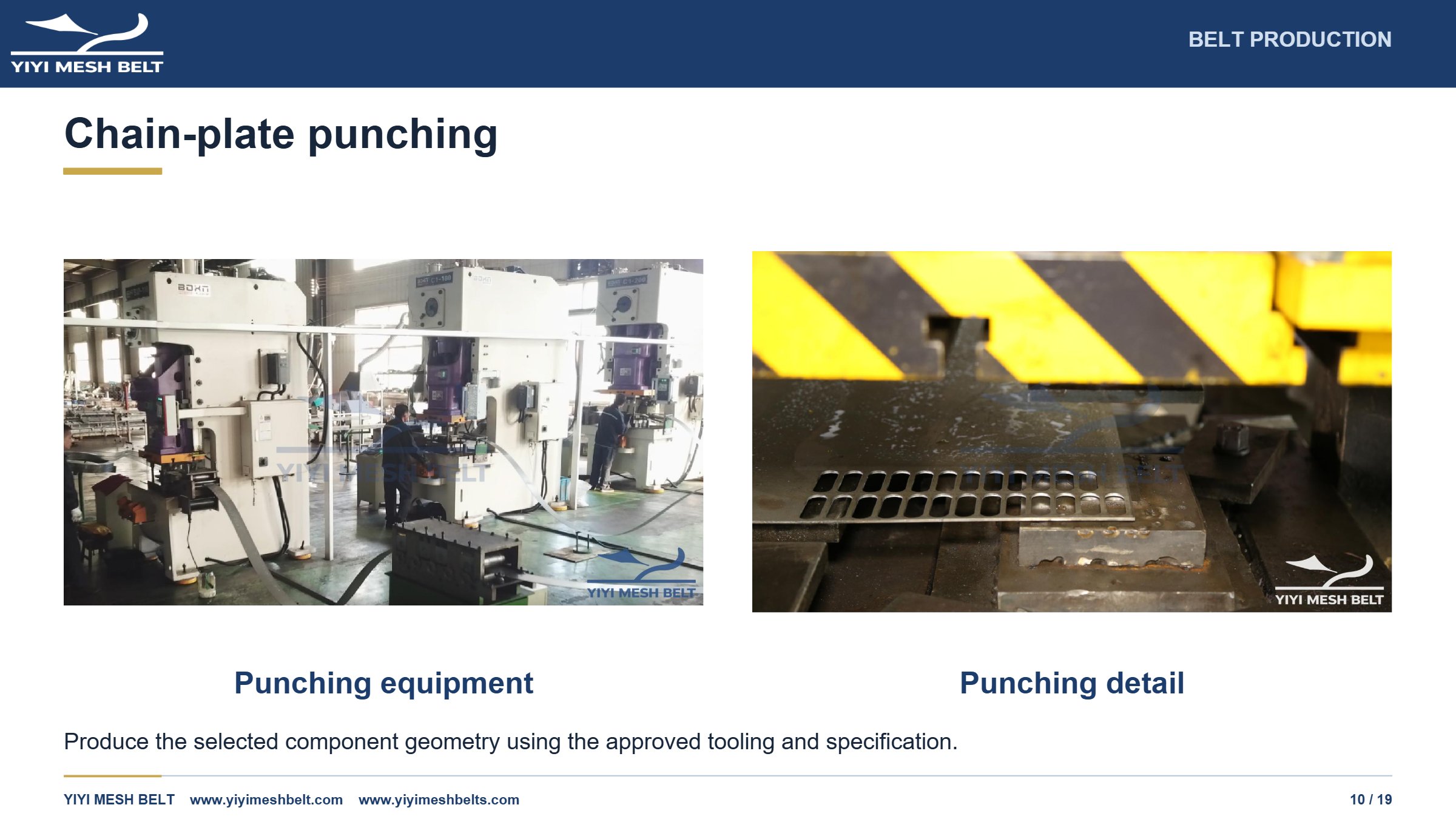

Page 10. BELT PRODUCTION Chain-plate punching Punching equipment Punching detail Produce the selected component geometry using the approved tooling and specification.

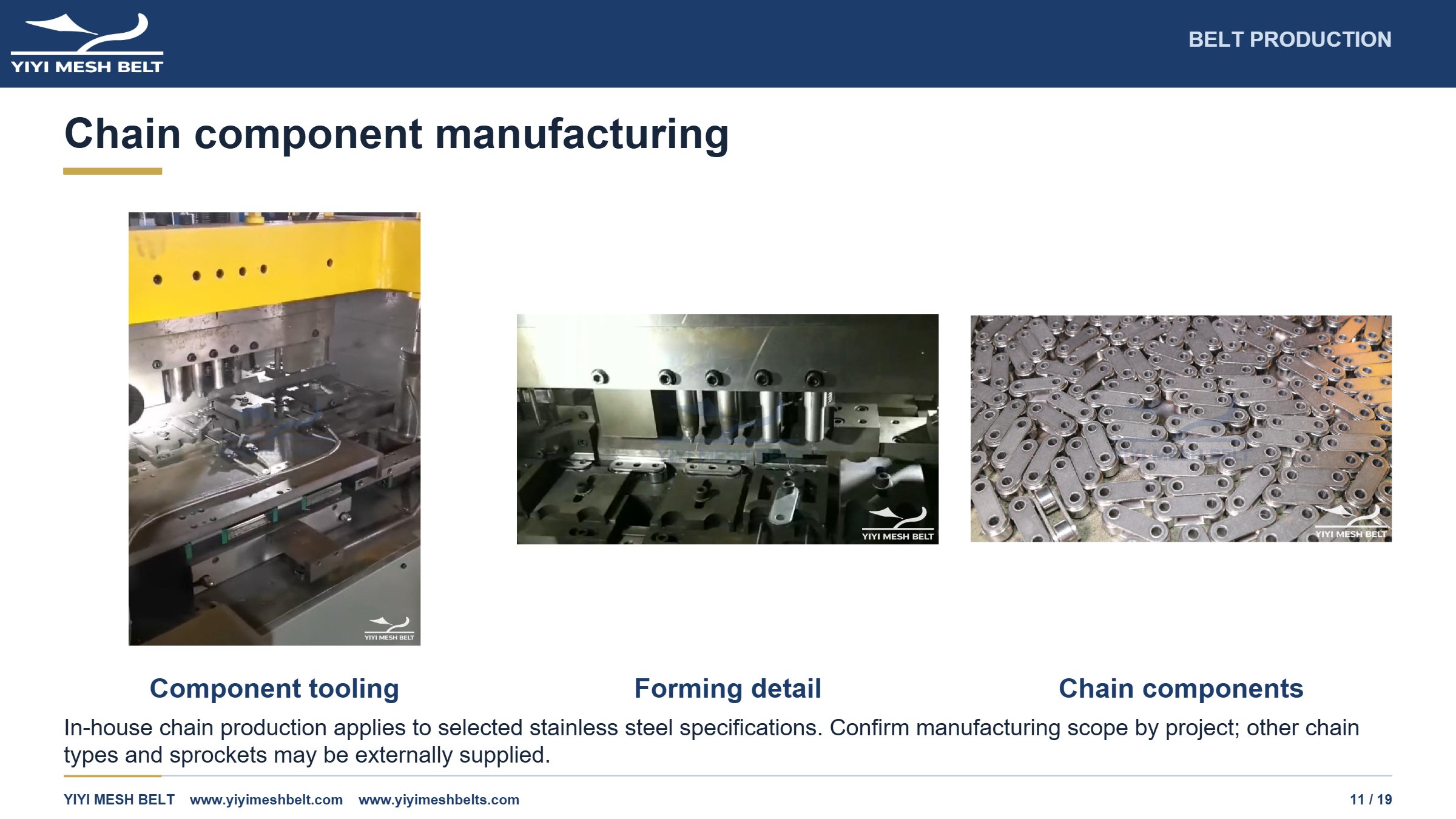

Page 11. BELT PRODUCTION Chain component manufacturing Component tooling Forming detail Chain components In-house chain production applies to selected stainless steel specifications. Confirm manufacturing scope by project; other chain types and sprockets may be externally supplied.

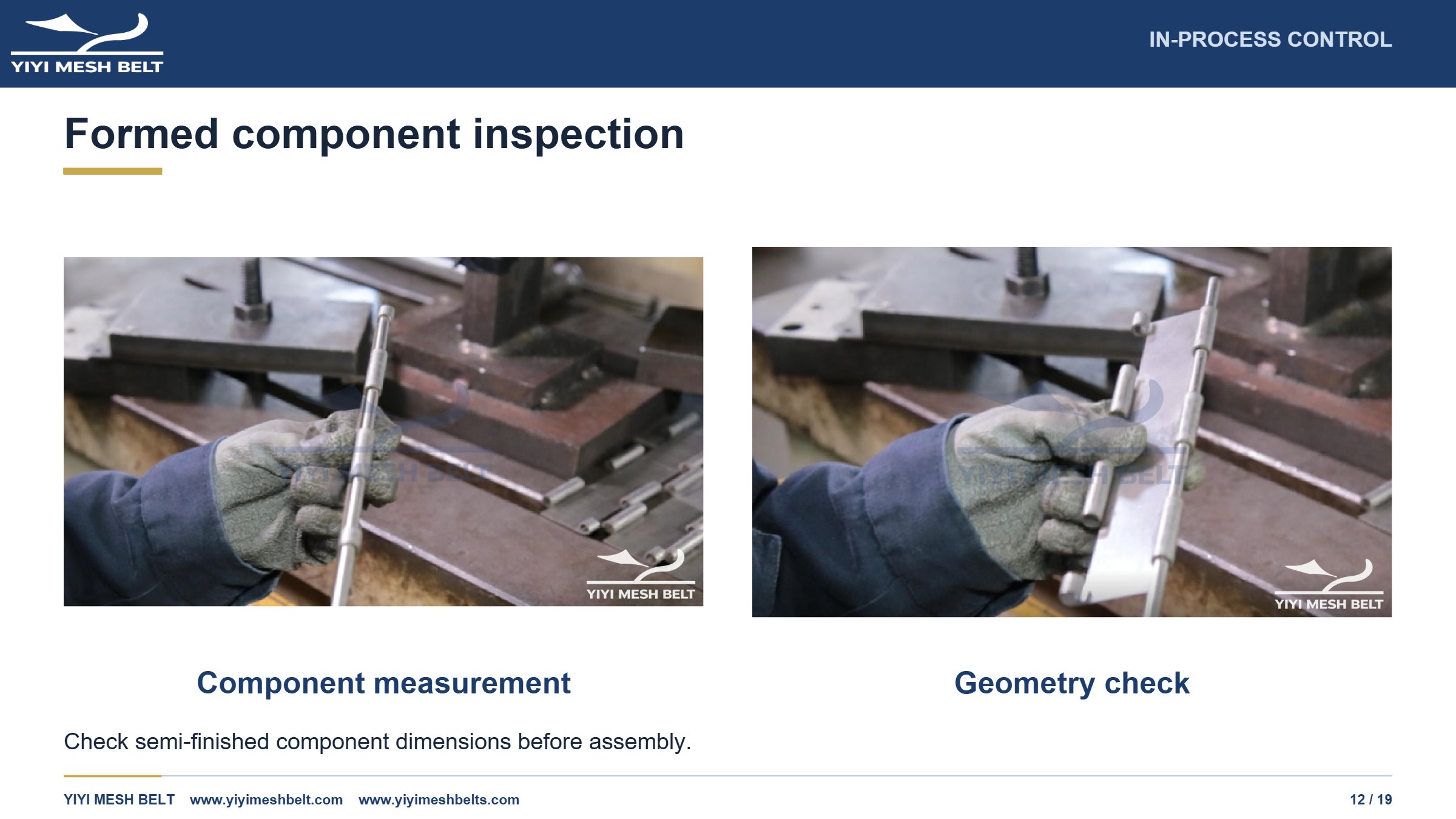

Page 12. IN-PROCESS CONTROL Formed component inspection Component measurement Geometry check Check semi-finished component dimensions before assembly.

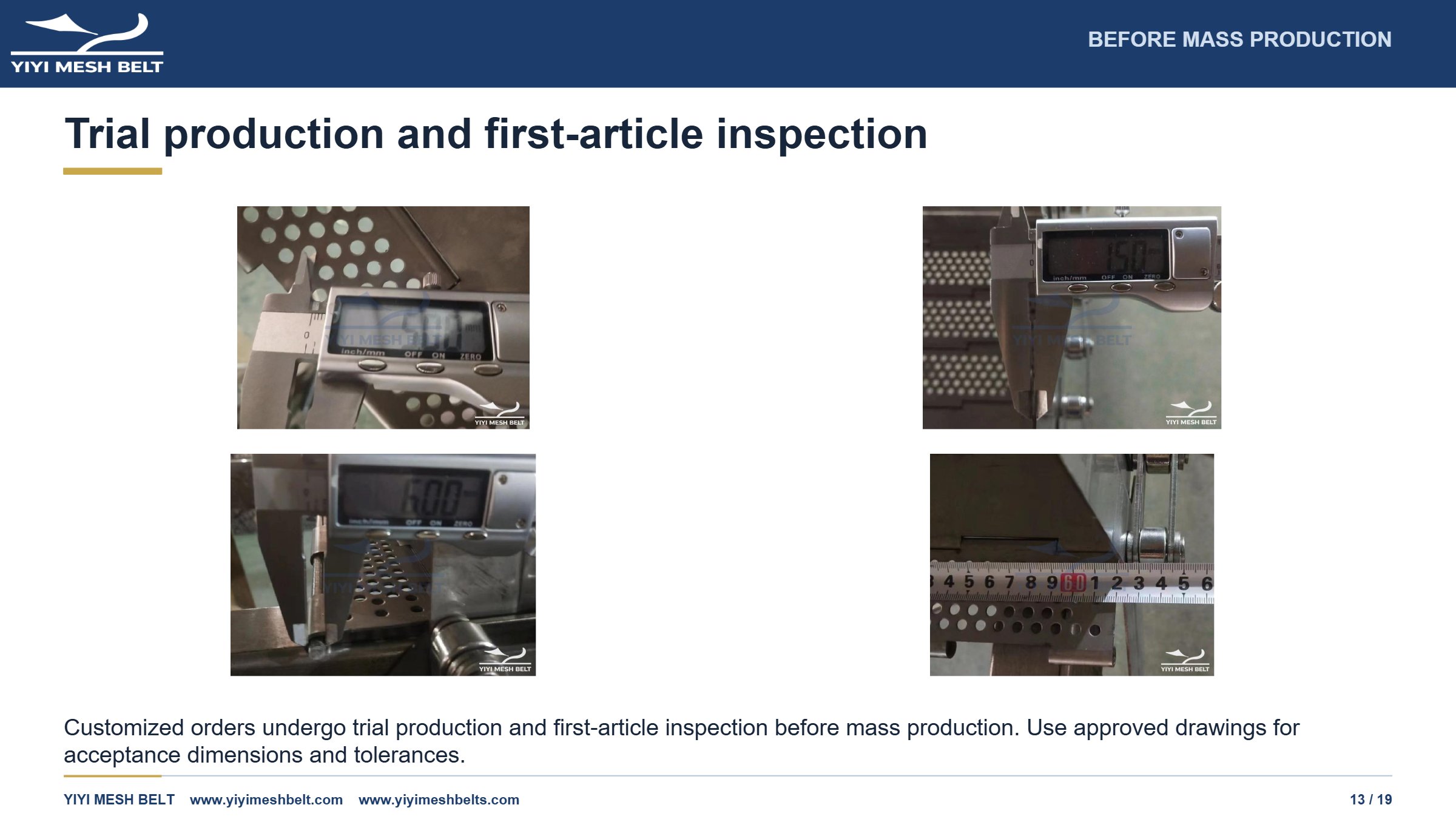

Page 13. BEFORE MASS PRODUCTION Trial production and first-article inspection Customized orders undergo trial production and first-article inspection before mass production. Use approved drawings for acceptance dimensions and tolerances.

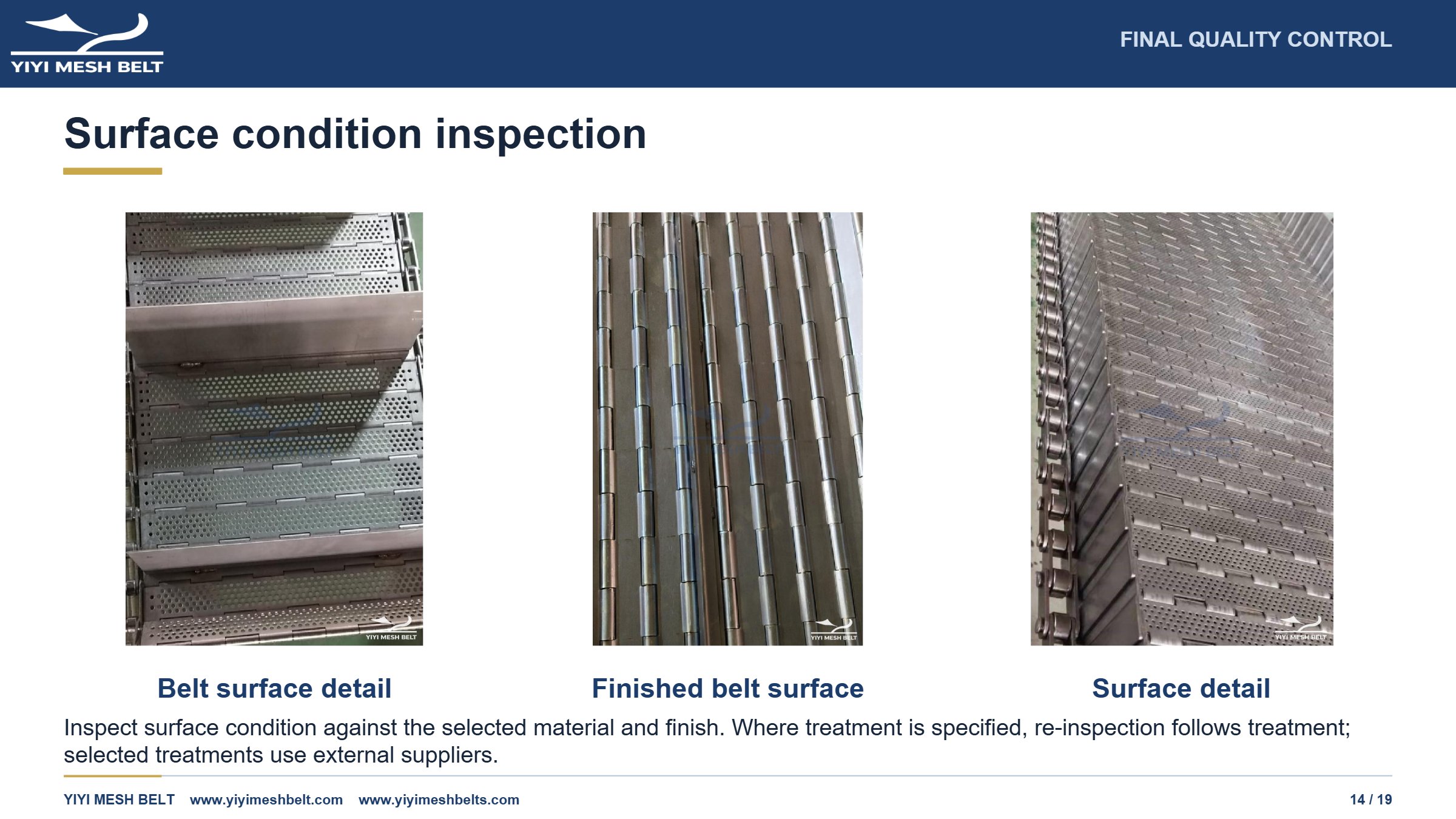

Page 14. FINAL QUALITY CONTROL Surface condition inspection Belt surface detail Finished belt surface Surface detail Inspect surface condition against the selected material and finish. Where treatment is specified, re-inspection follows treatment; selected treatments use external suppliers.

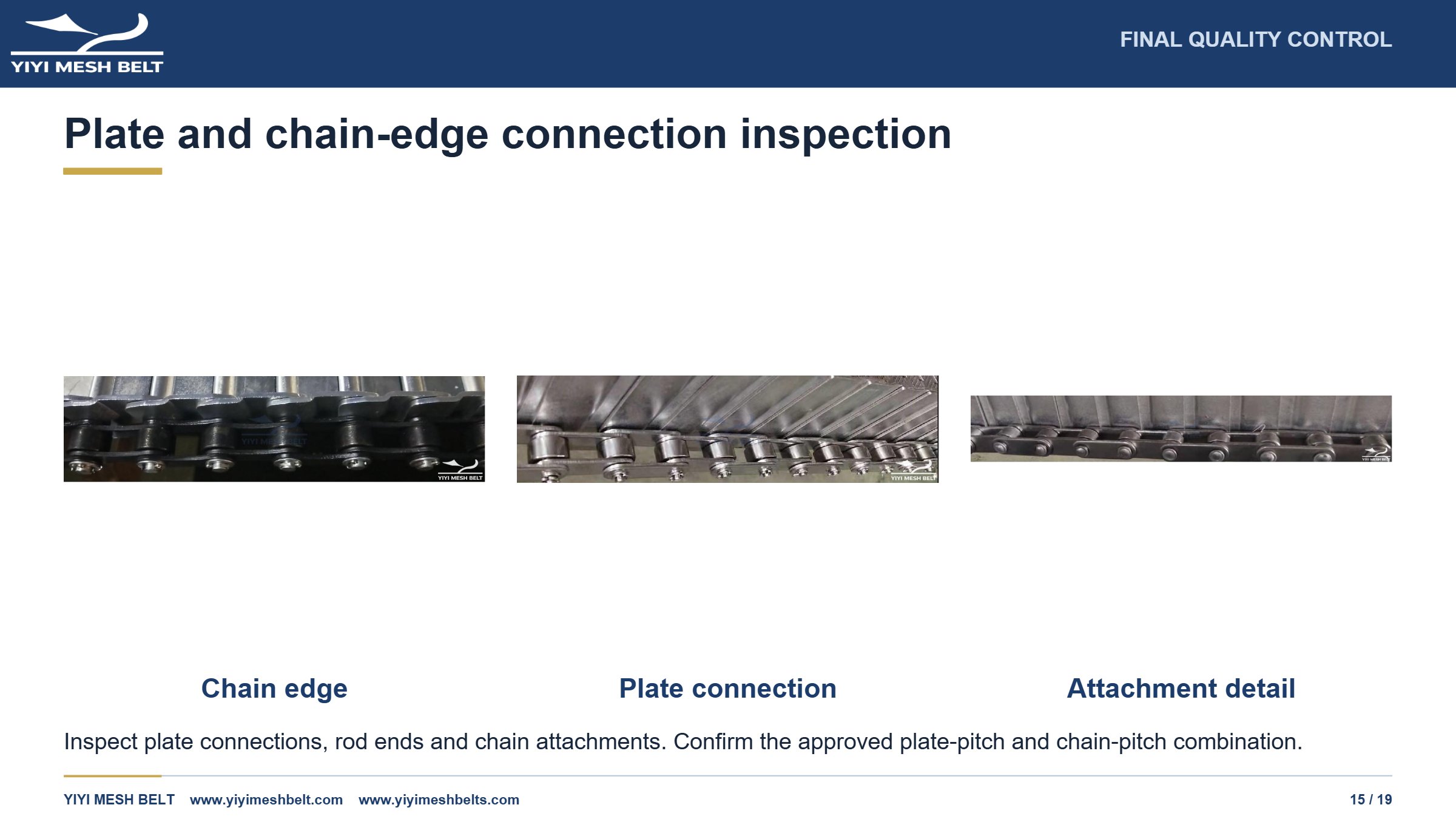

Page 15. FINAL QUALITY CONTROL Plate and chain-edge connection inspection Chain edge Plate connection Attachment detail Inspect plate connections, rod ends and chain attachments. Confirm the approved plate-pitch and chain-pitch combination.

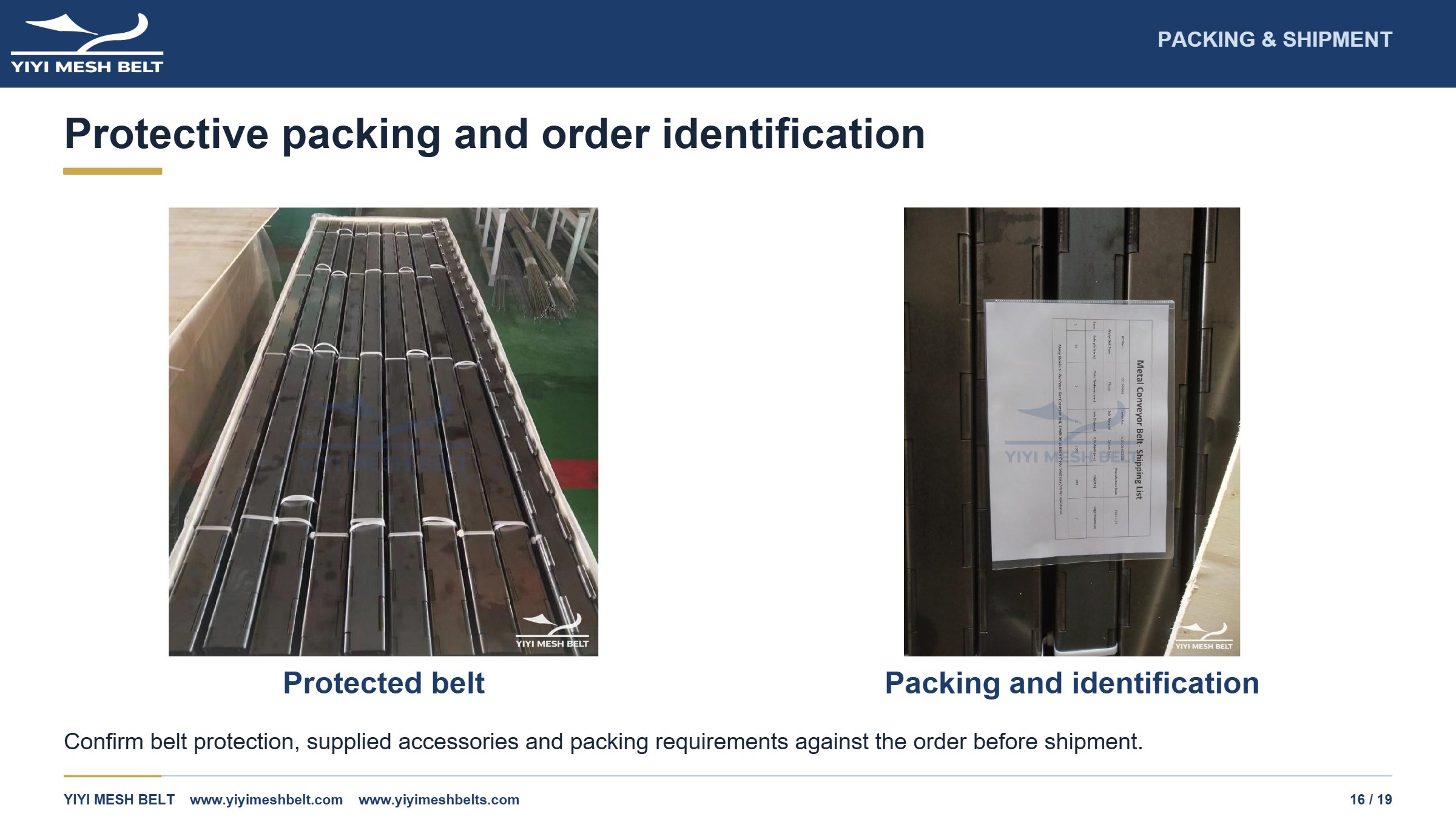

Page 16. PACKING & SHIPMENT Protective packing and order identification Protected belt Packing and identification Confirm belt protection, supplied accessories and packing requirements against the order before shipment.

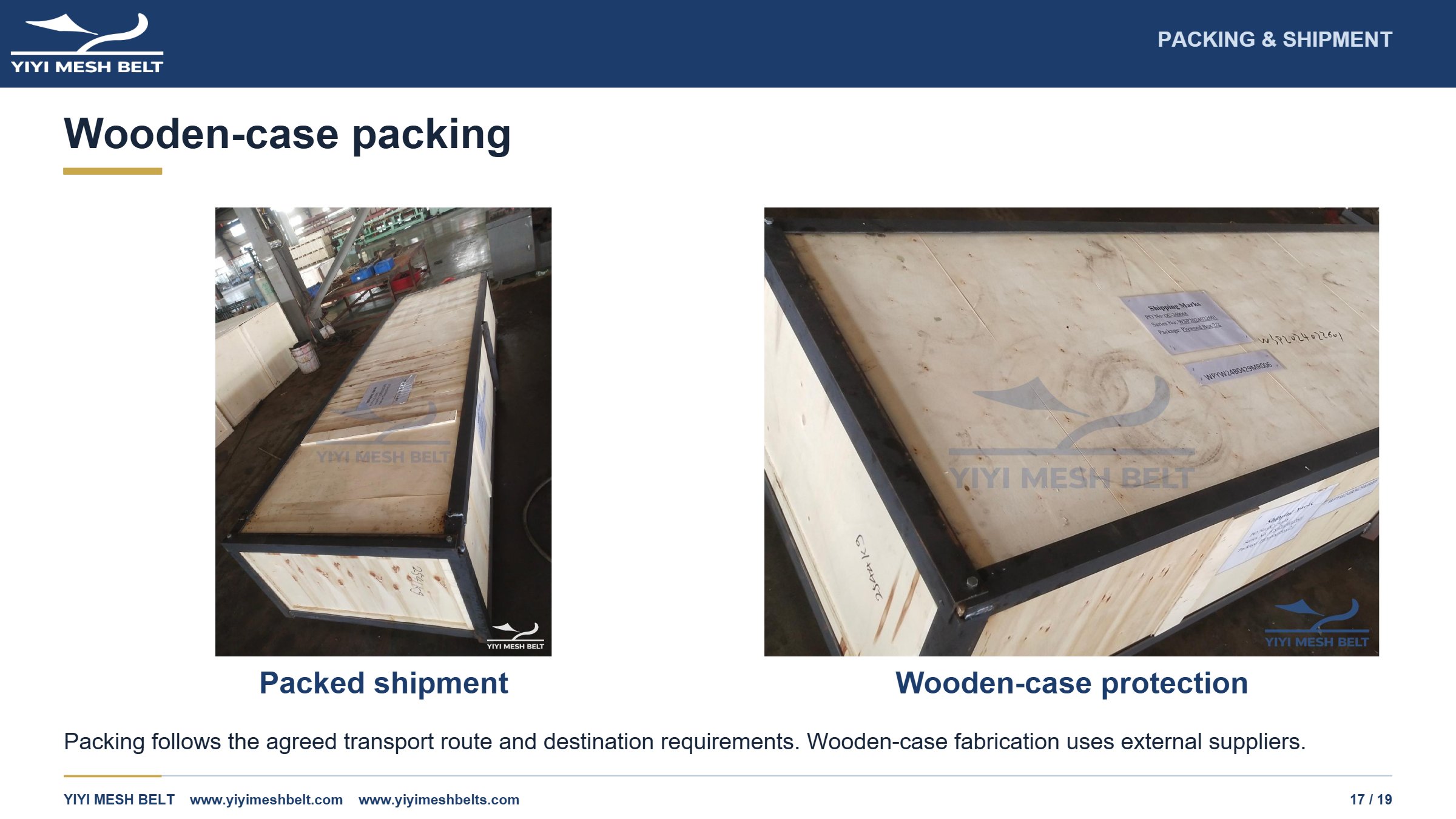

Page 17. PACKING & SHIPMENT Wooden-case packing Packed shipment Wooden-case protection Packing follows the agreed transport route and destination requirements. Wooden-case fabrication uses external suppliers.

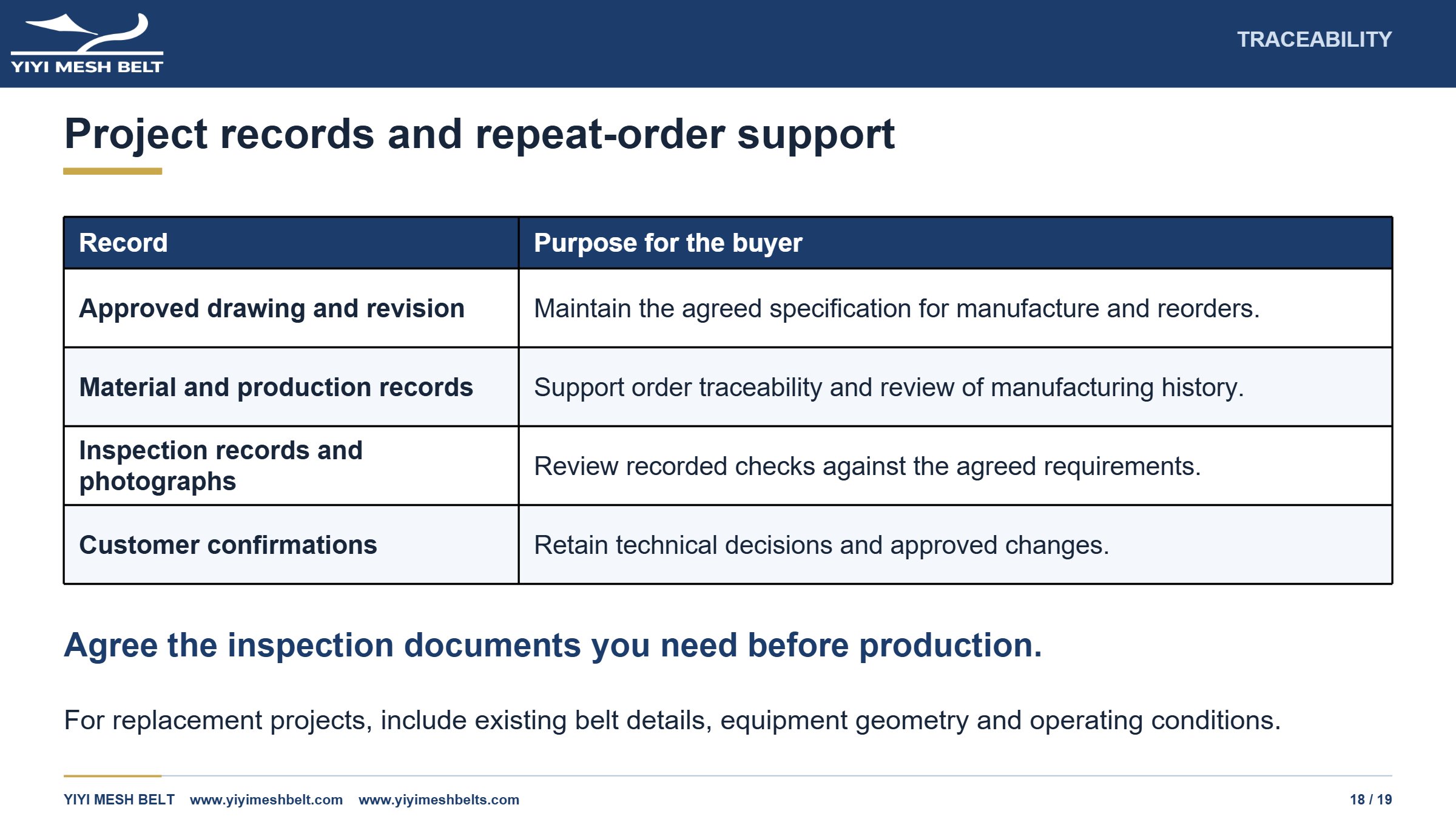

Page 18. TRACEABILITY Project records and repeat-order support Record Purpose for the buyer Approved drawing and revision Maintain the agreed specification for manufacture and reorders. Material and production records Support order traceability and review of manufacturing history. Inspection records and photographs Review recorded checks against the agreed requirements. Customer confirmations Retain technical decisions and approved changes. Agree the inspection documents you need before production. For replacement projects, include existing belt details, equipment geometry and operating conditions.
