YIYI Mesh Belt Eye Link Belt Technical Specification
Check what matters before you request a quote: key dimensions in mm and inches, pitch options, standard and heavy-duty configurations, edge options, accessories, drive sprocket options and typical applications. Compare it with your current belt or drawing, then send us the drawing or photos of your old belt for review.
Text version of this document
Page 1. TECHNICAL SPECIFICATION EYE LINK BELT Dimensions in mm and in Configuration options and drive interfaces PROVEN · STABLE · VERIFIED

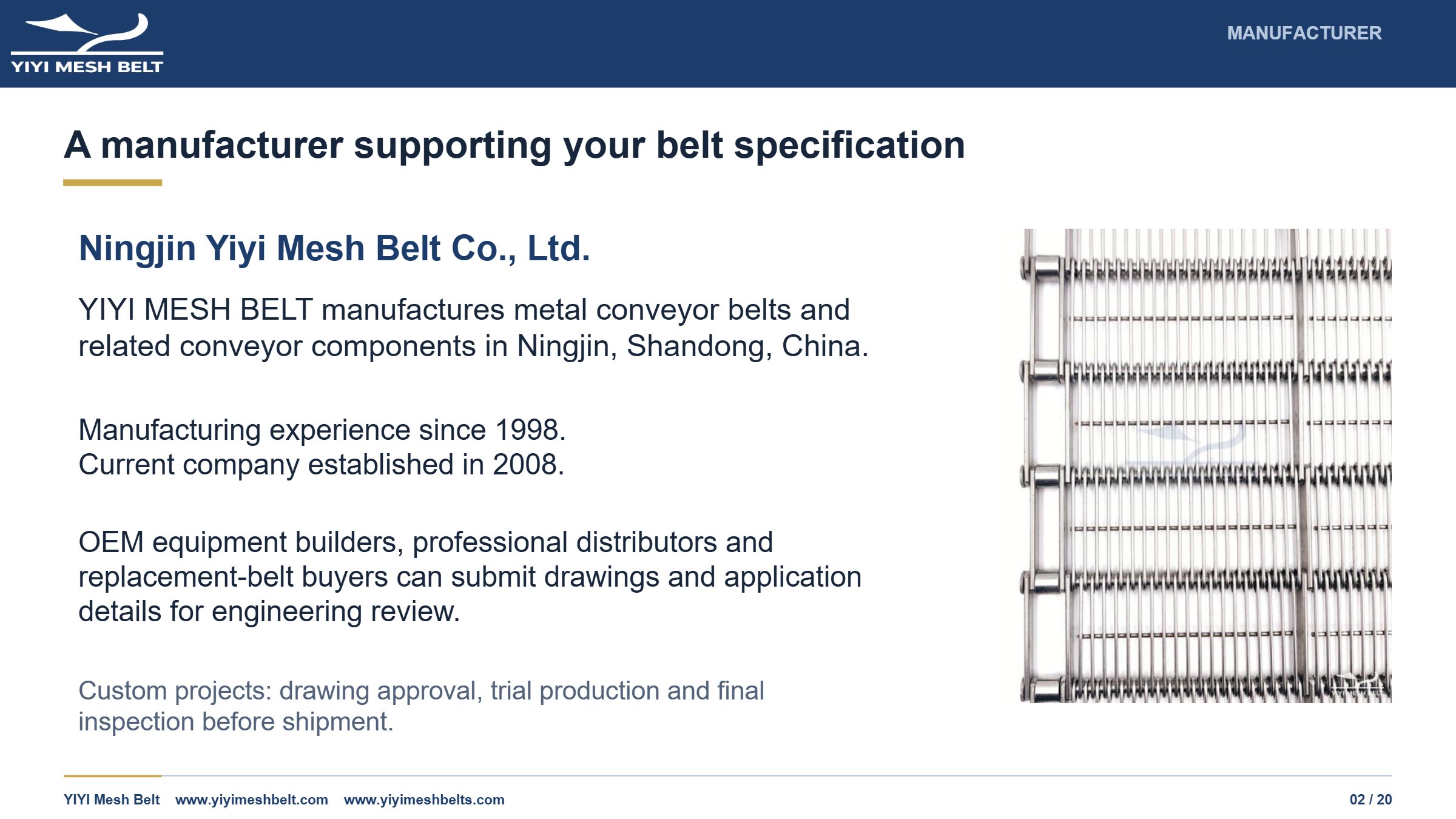

Page 2. MANUFACTURER A manufacturer supporting your belt specification Ningjin Yiyi Mesh Belt Co., Ltd. YIYI MESH BELT manufactures metal conveyor belts and related conveyor components in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. OEM equipment builders, professional distributors and replacement-belt buyers can submit drawings and application details for engineering review. Custom projects: drawing approval, trial production and final inspection before shipment.

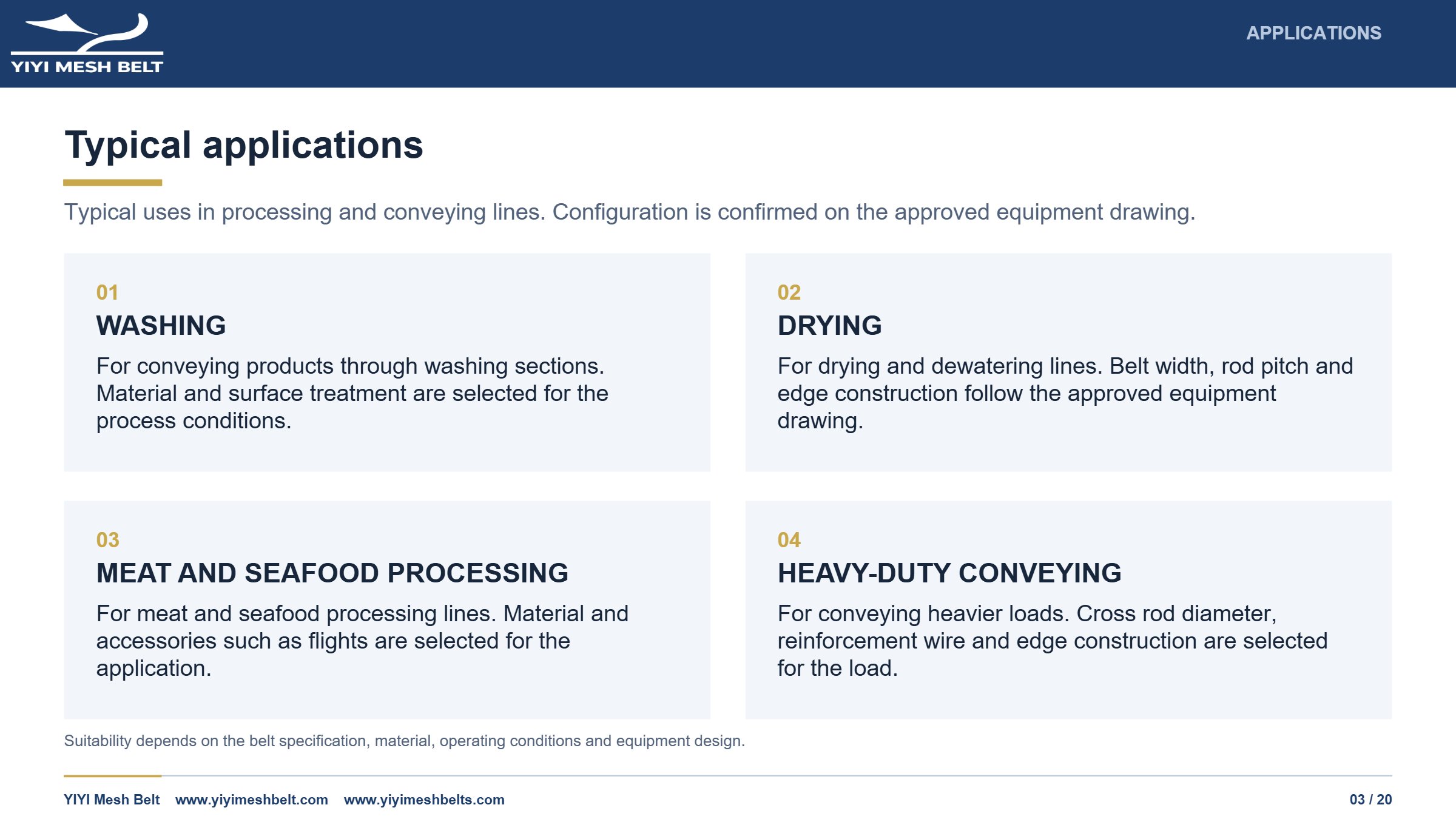

Page 3. APPLICATIONS Typical applications Typical uses in processing and conveying lines. Configuration is confirmed on the approved equipment drawing. 01 WASHING For conveying products through washing sections. Material and surface treatment are selected for the process conditions. 02 DRYING For drying and dewatering lines. Belt width, rod pitch and edge construction follow the approved equipment drawing. 03 MEAT AND SEAFOOD PROCESSING For meat and seafood processing lines. Material and accessories such as flights are selected for the application. 04 HEAVY-DUTY CONVEYING For conveying heavier loads. Cross rod diameter, reinforcement wire and edge construction are selected for the load. Suitability depends on the belt specification, material, operating conditions and equipment design.

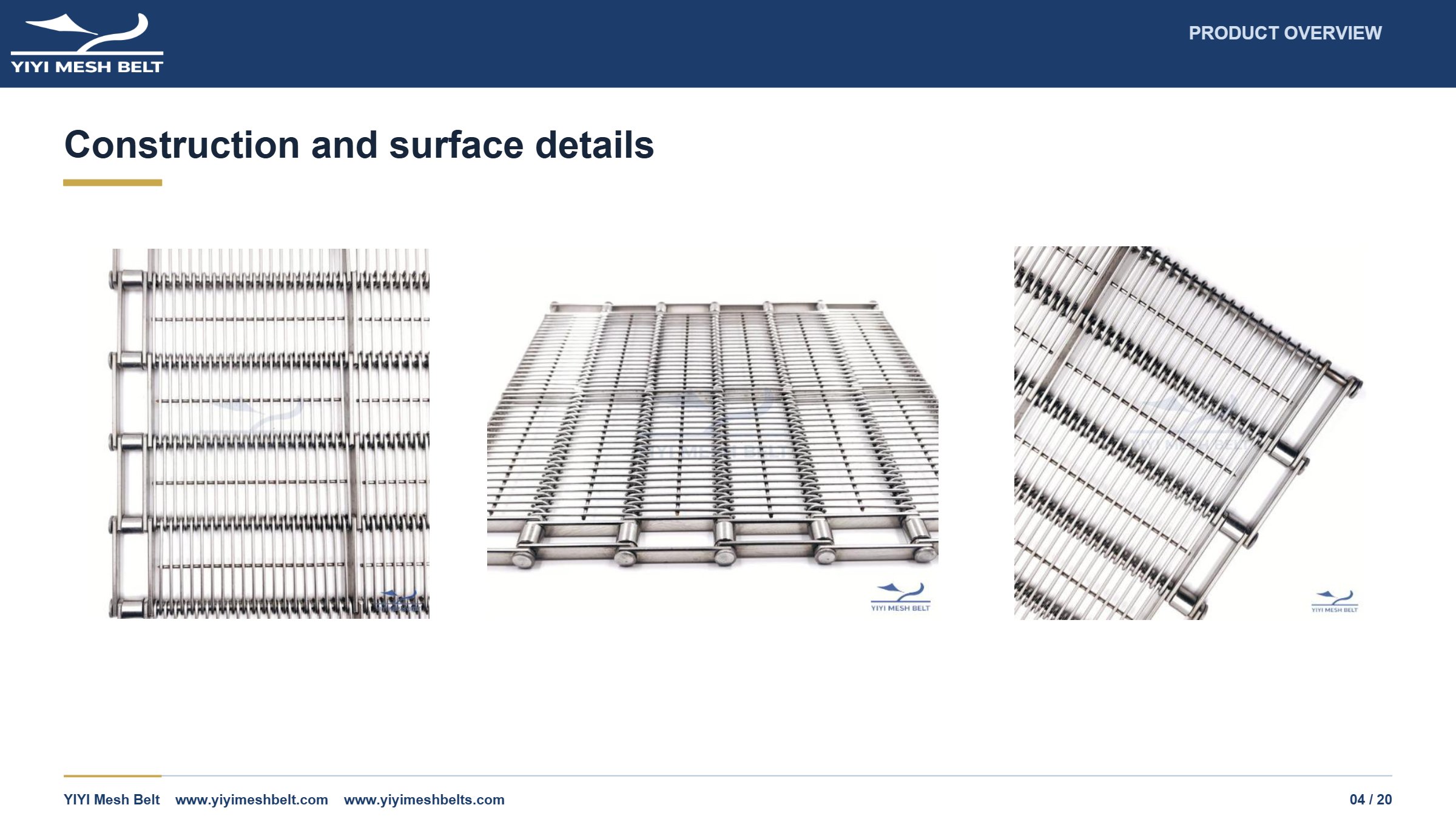

Page 4. PRODUCT OVERVIEW Construction and surface details

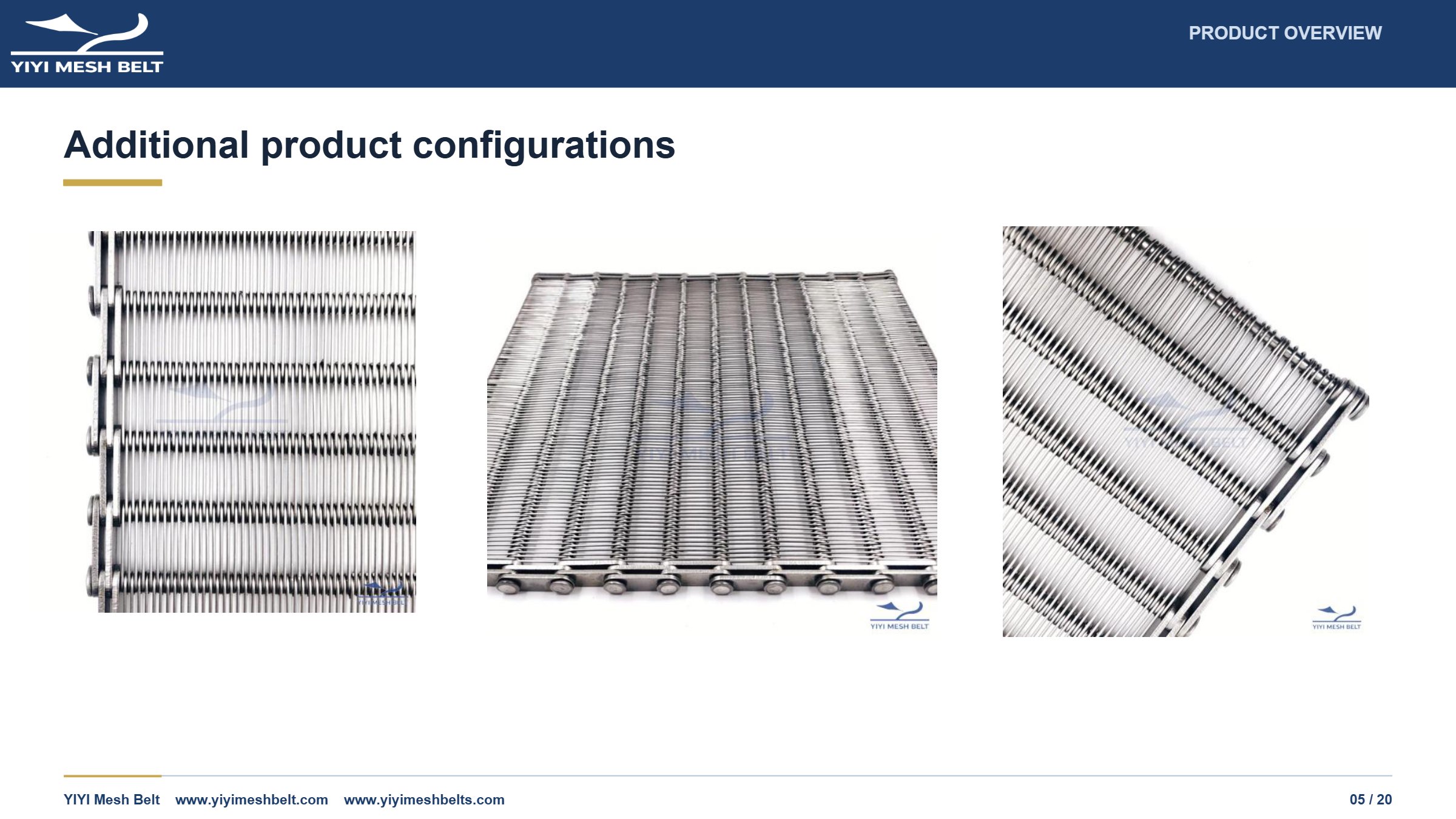

Page 5. PRODUCT OVERVIEW Additional product configurations

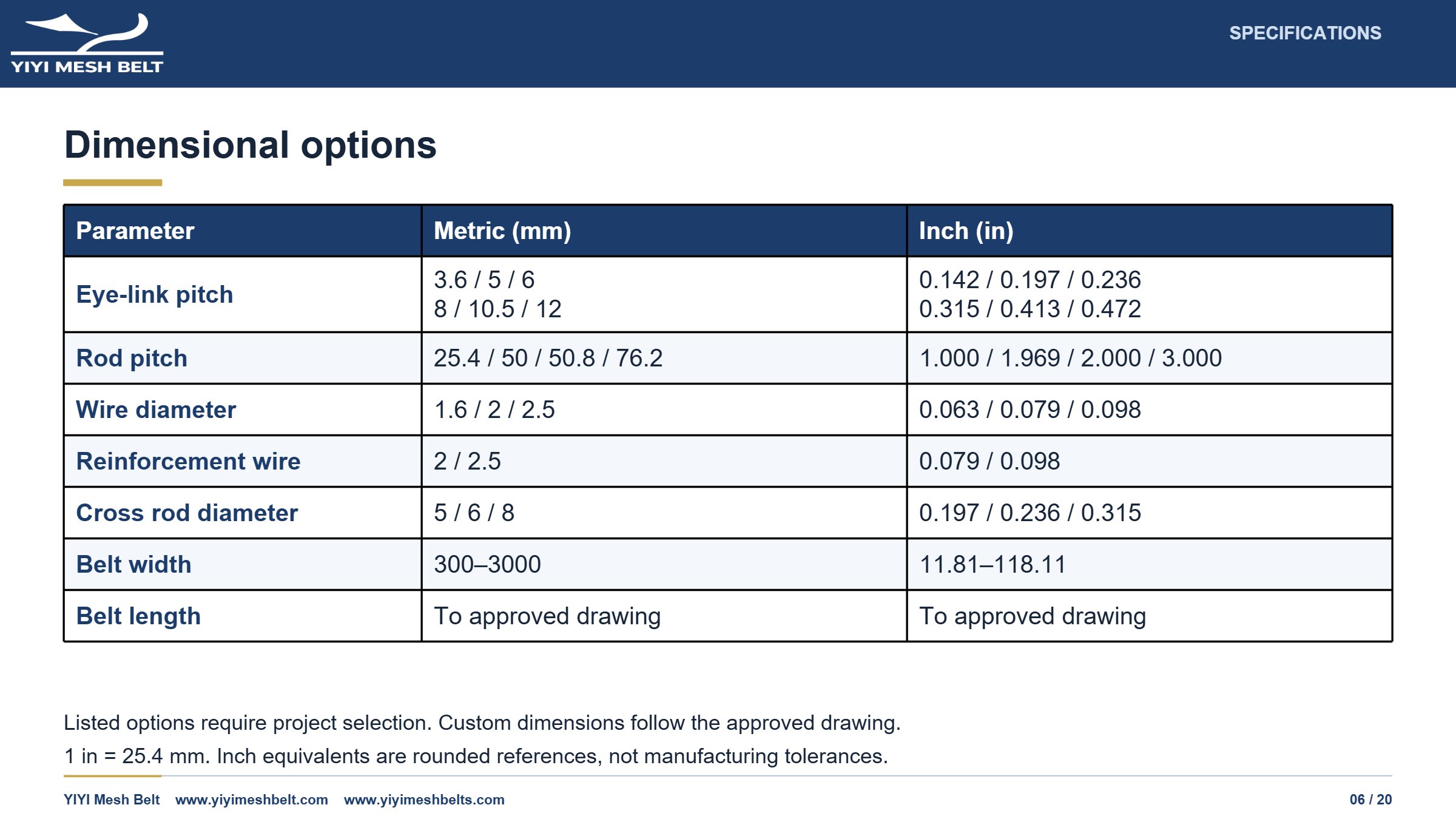

Page 6. SPECIFICATIONS Dimensional options Parameter Metric (mm) Inch (in) Eye-link pitch 3.6 / 5 / 6 8 / 10.5 / 12 0.142 / 0.197 / 0.236 0.315 / 0.413 / 0.472 Rod pitch 25.4 / 50 / 50.8 / 76.2 1.000 / 1.969 / 2.000 / 3.000 Wire diameter 1.6 / 2 / 2.5 0.063 / 0.079 / 0.098 Reinforcement wire 2 / 2.5 0.079 / 0.098 Cross rod diameter 5 / 6 / 8 0.197 / 0.236 / 0.315 Belt width 300–3000 11.81–118.11 Belt length To approved drawing To approved drawing Listed options require project selection. Custom dimensions follow the approved drawing. 1 in = 25.4 mm. Inch equivalents are rounded references, not manufacturing tolerances.

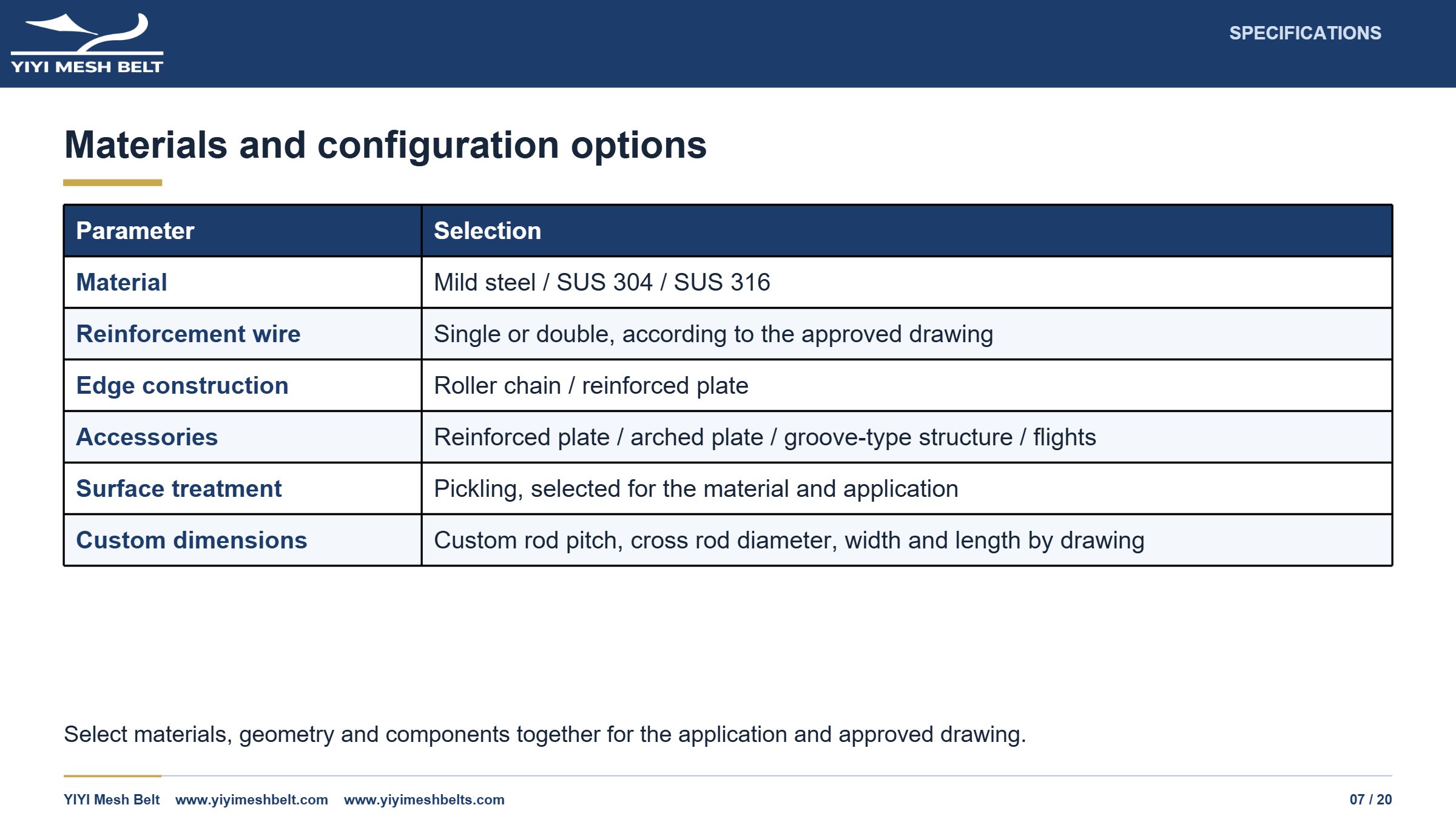

Page 7. SPECIFICATIONS Materials and configuration options Parameter Selection Material Mild steel / SUS 304 / SUS 316 Reinforcement wire Single or double, according to the approved drawing Edge construction Roller chain / reinforced plate Accessories Reinforced plate / arched plate / groove-type structure / flights Surface treatment Pickling, selected for the material and application Custom dimensions Custom rod pitch, cross rod diameter, width and length by drawing Select materials, geometry and components together for the application and approved drawing.

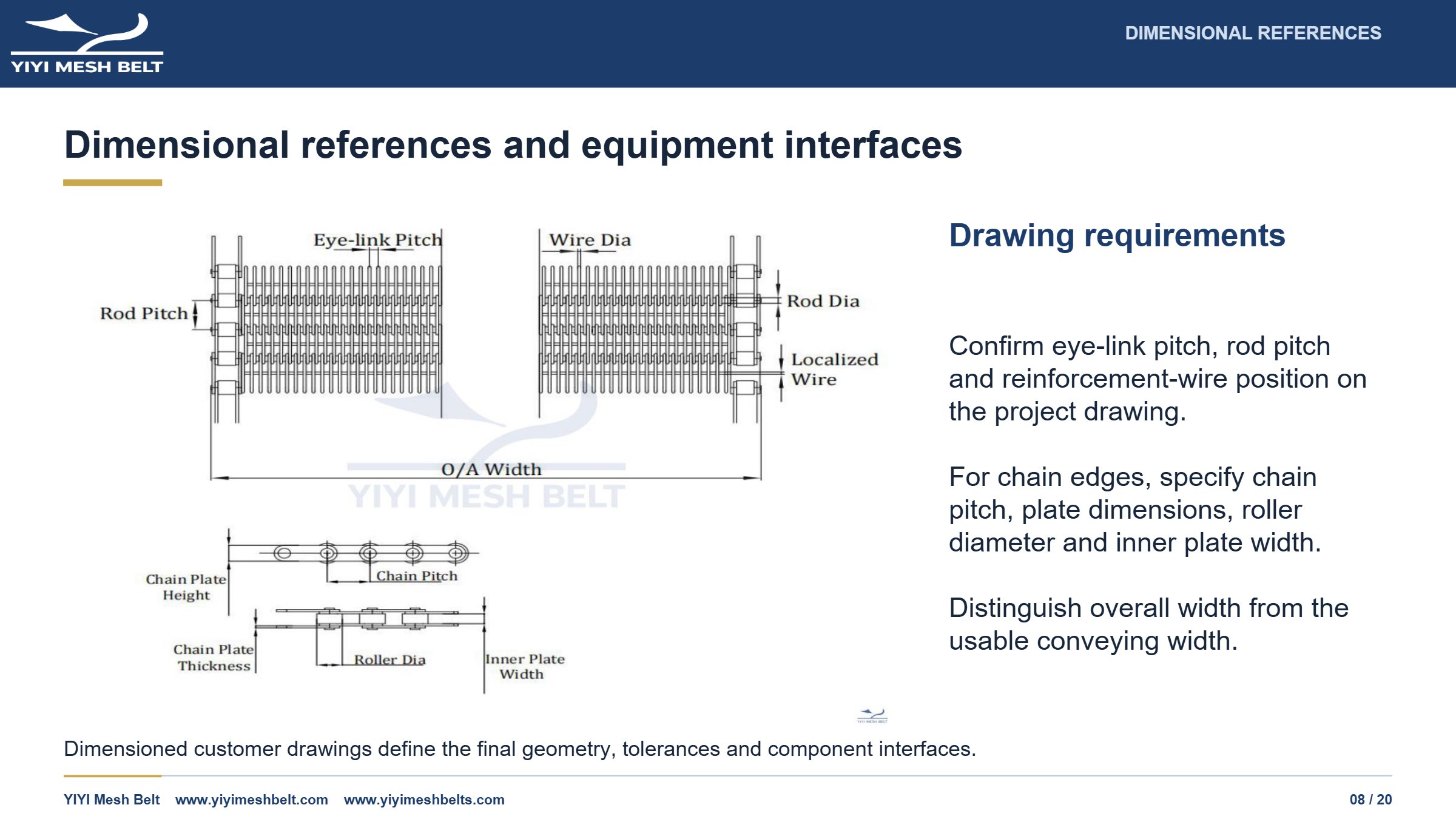

Page 8. DIMENSIONAL REFERENCES Dimensional references and equipment interfaces Drawing requirements Confirm eye-link pitch, rod pitch and reinforcement-wire position on the project drawing. For chain edges, specify chain pitch, plate dimensions, roller diameter and inner plate width. Distinguish overall width from the usable conveying width. Dimensioned customer drawings define the final geometry, tolerances and component interfaces.

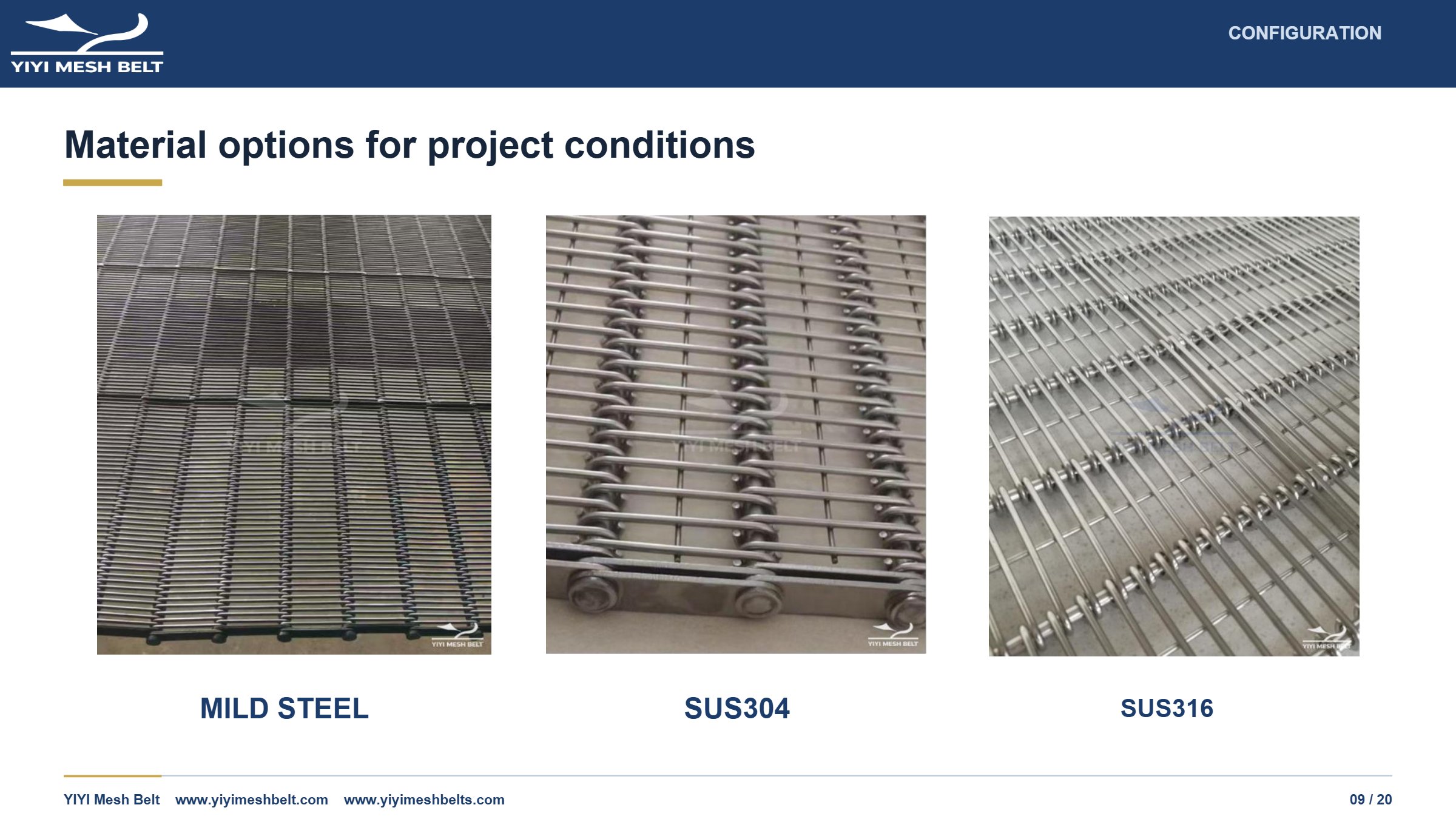

Page 9. CONFIGURATION Material options for project conditions MILD STEEL SUS304 SUS316

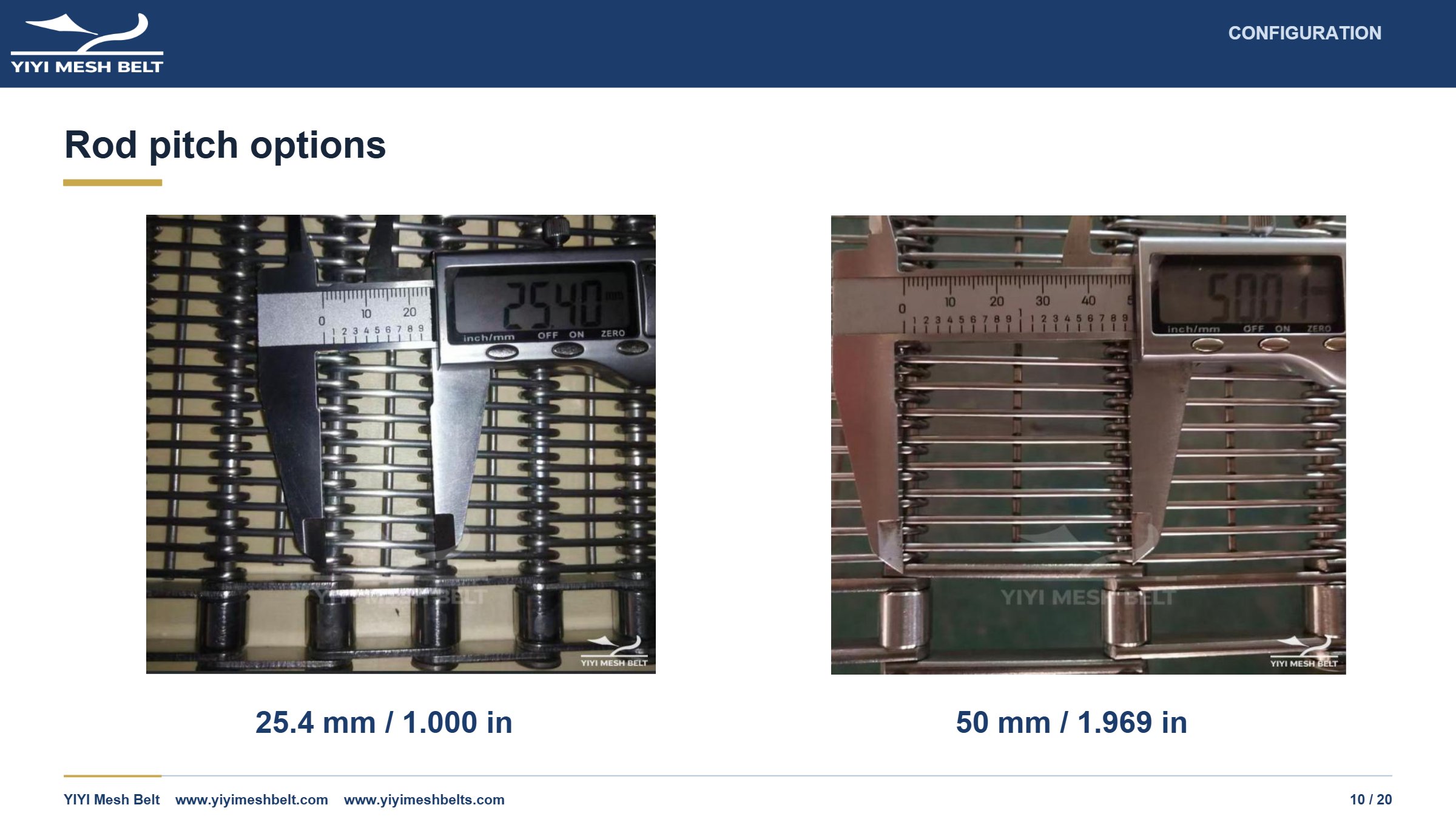

Page 10. CONFIGURATION Rod pitch options 25.4 mm / 1.000 in 50 mm / 1.969 in

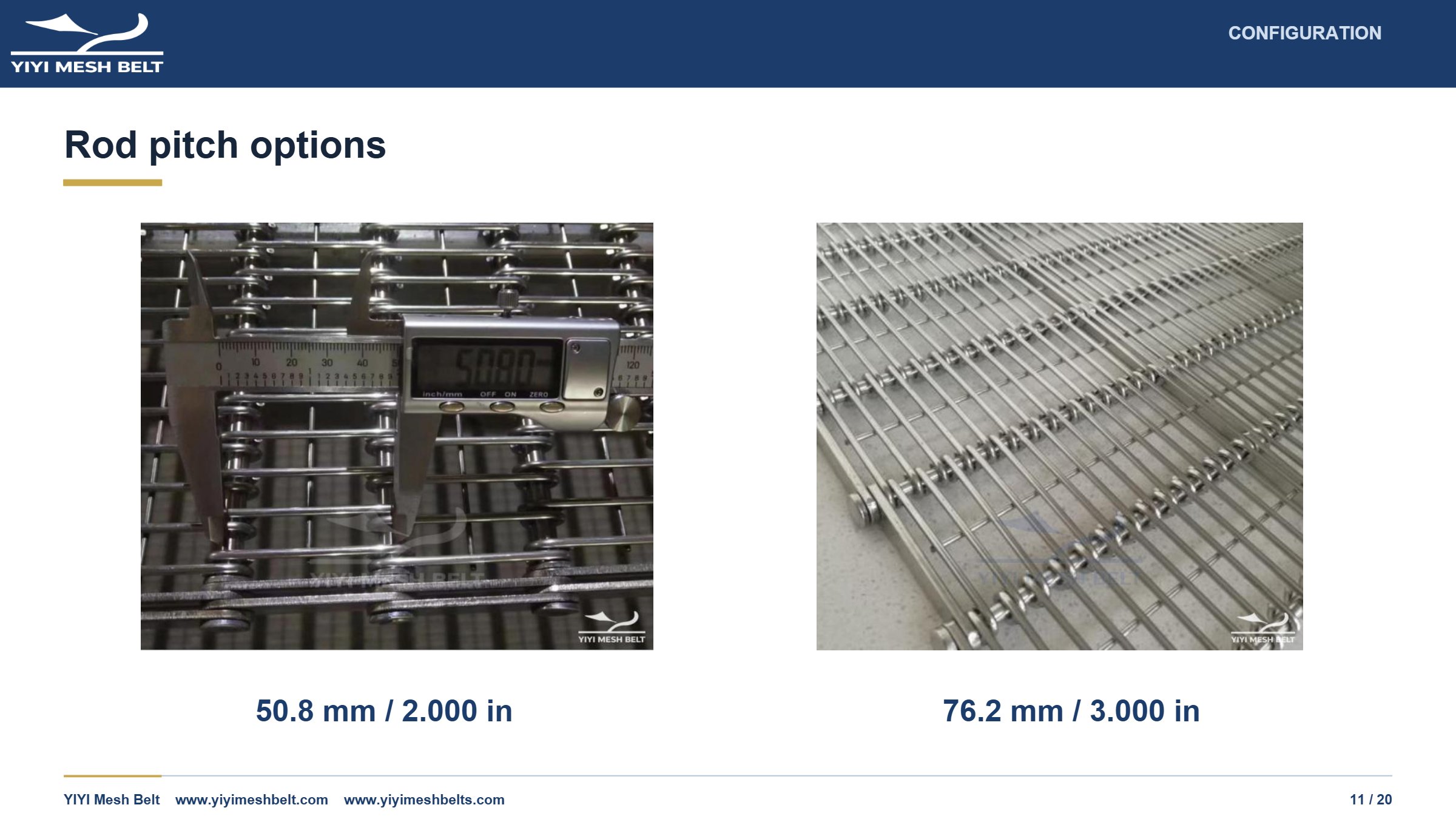

Page 11. CONFIGURATION Rod pitch options 50.8 mm / 2.000 in 76.2 mm / 3.000 in

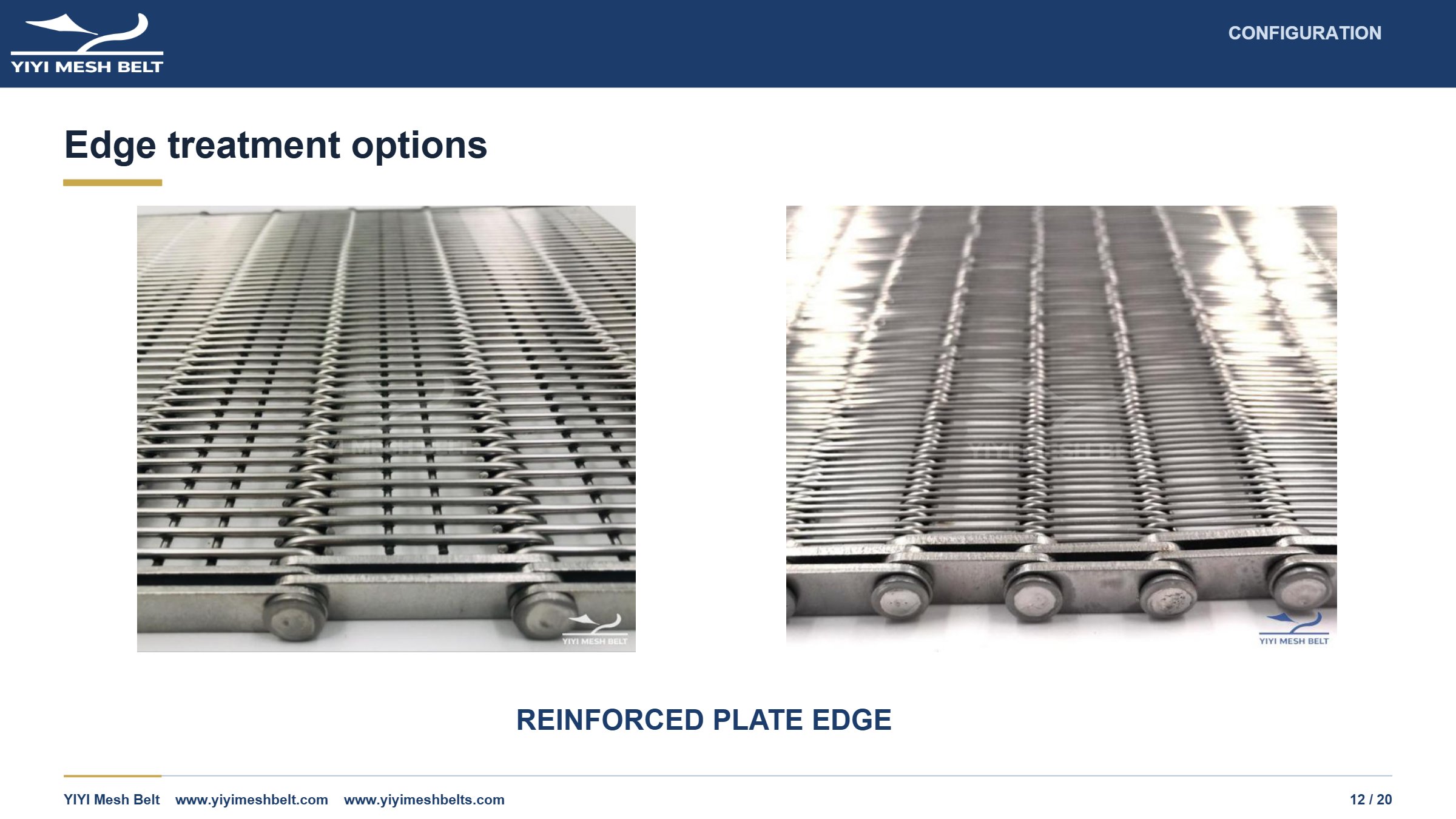

Page 12. CONFIGURATION Edge treatment options REINFORCED PLATE EDGE

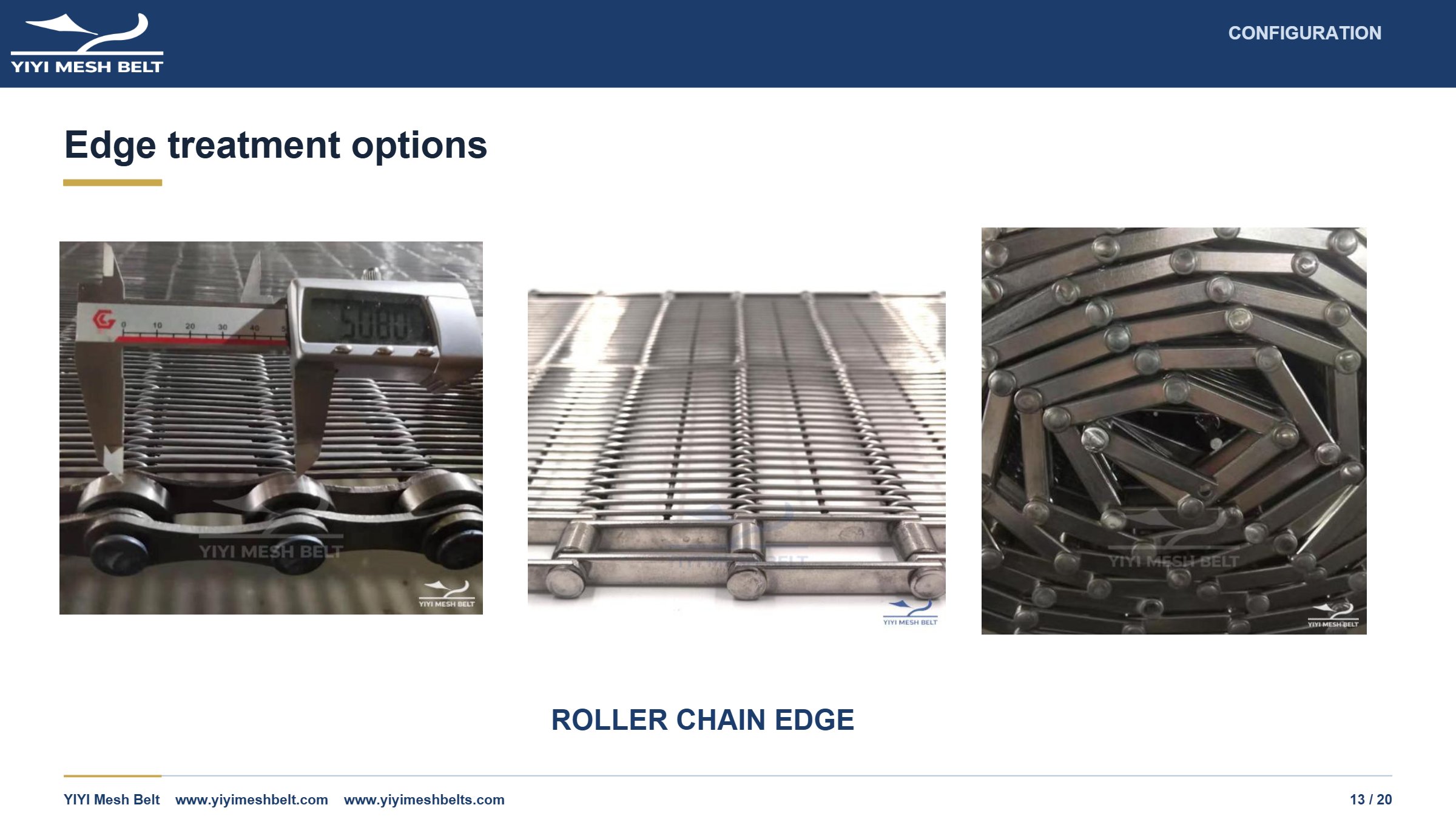

Page 13. CONFIGURATION Edge treatment options ROLLER CHAIN EDGE

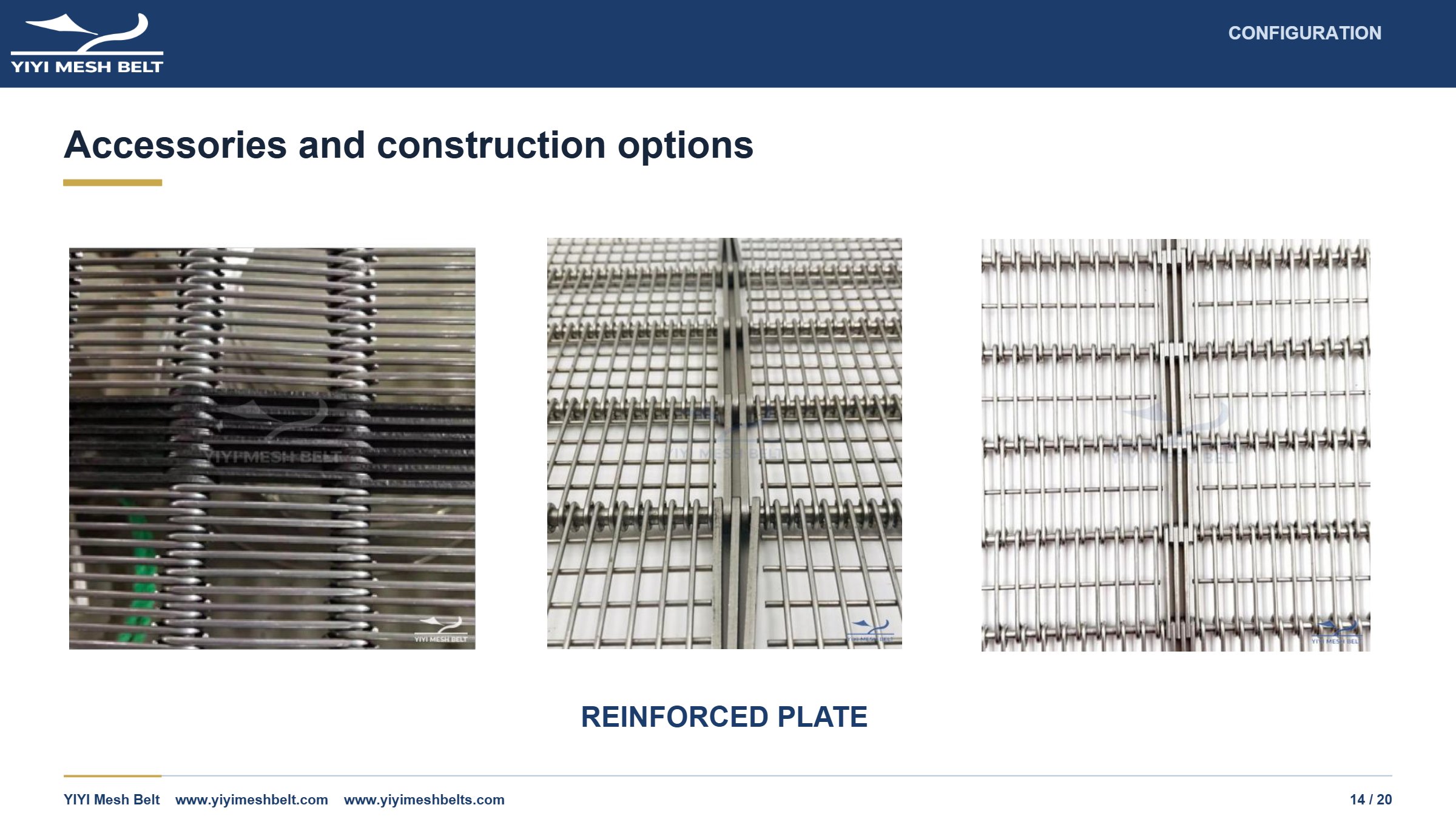

Page 14. CONFIGURATION Accessories and construction options REINFORCED PLATE

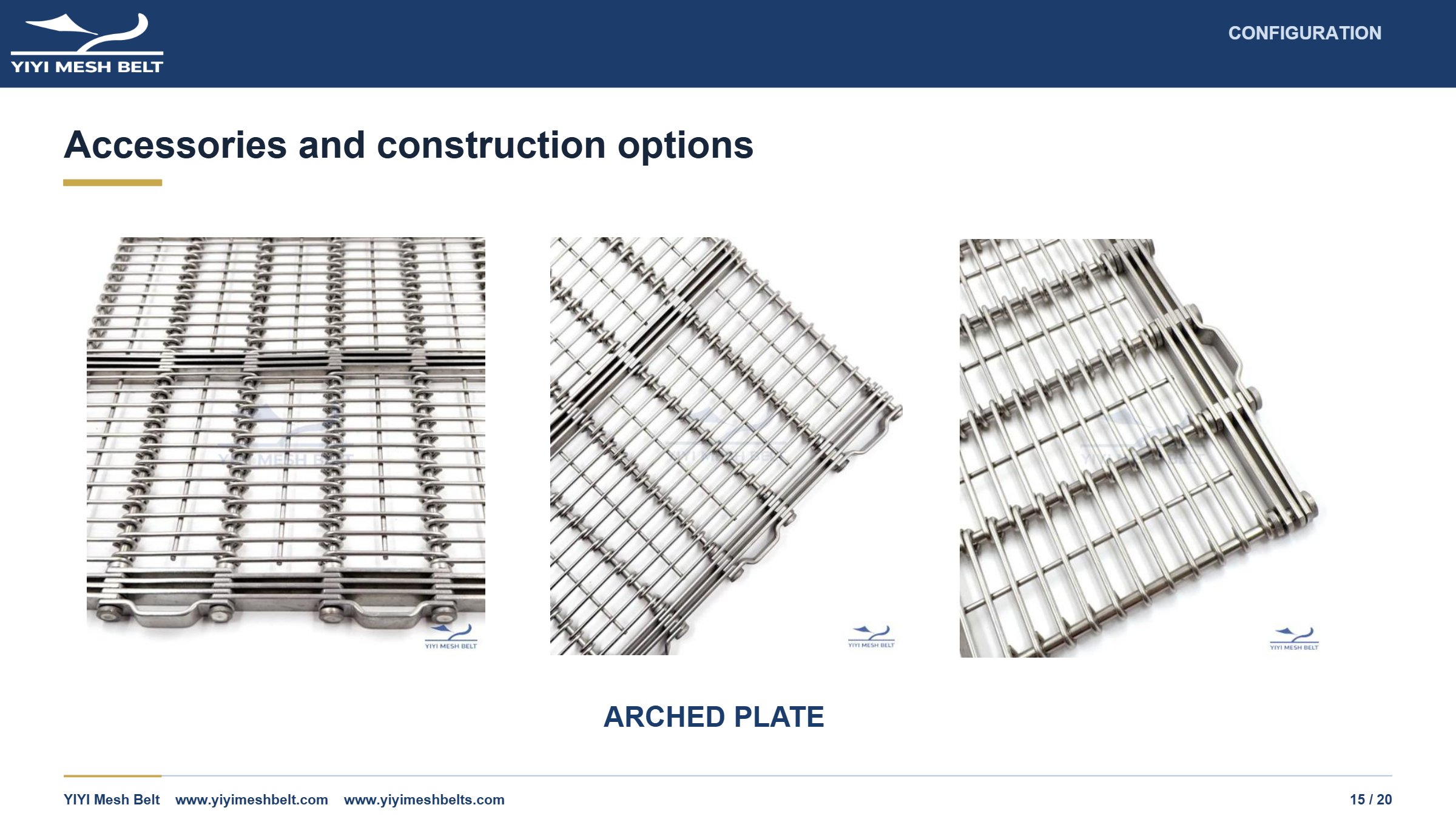

Page 15. CONFIGURATION Accessories and construction options ARCHED PLATE

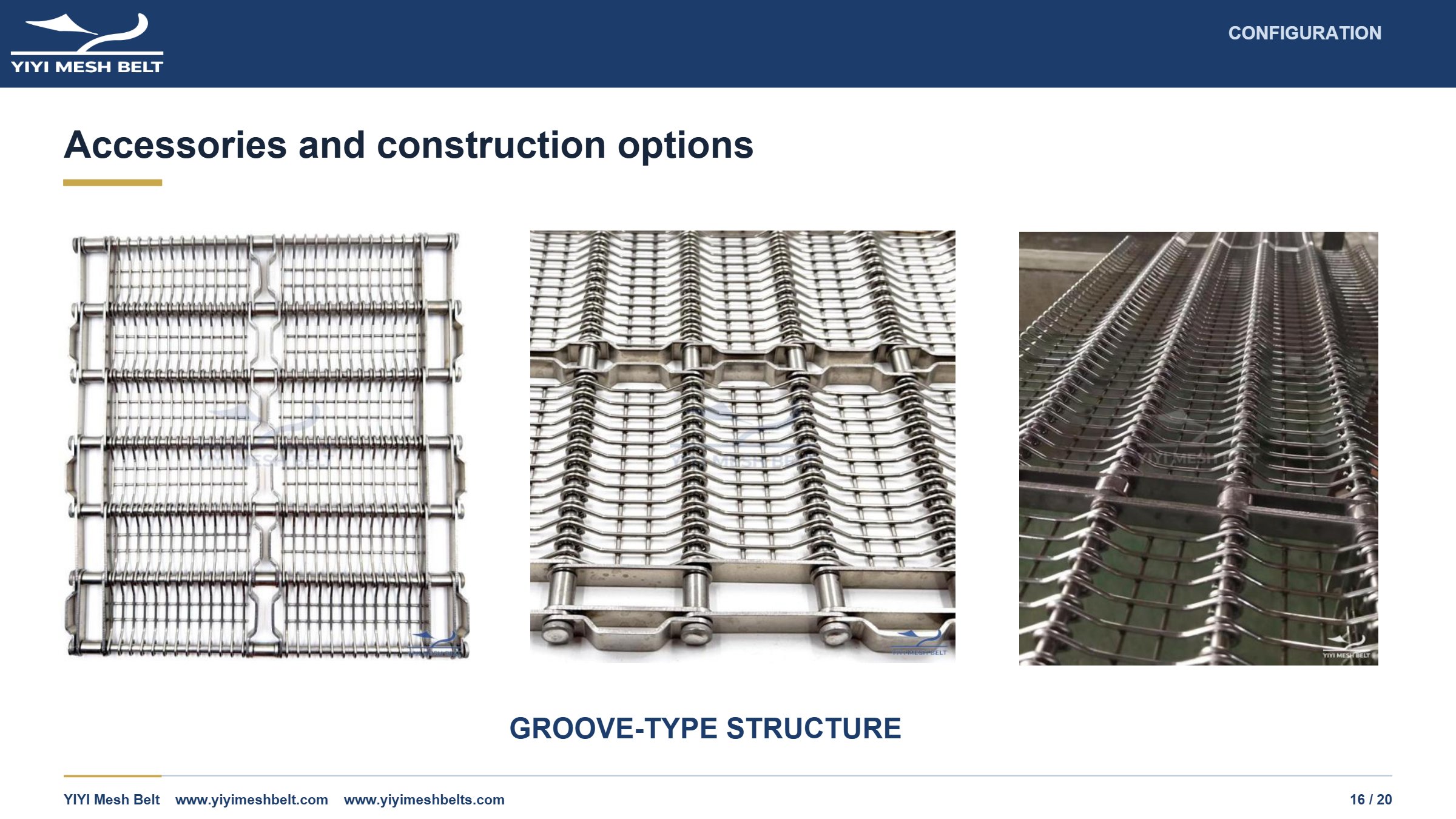

Page 16. CONFIGURATION Accessories and construction options GROOVE-TYPE STRUCTURE

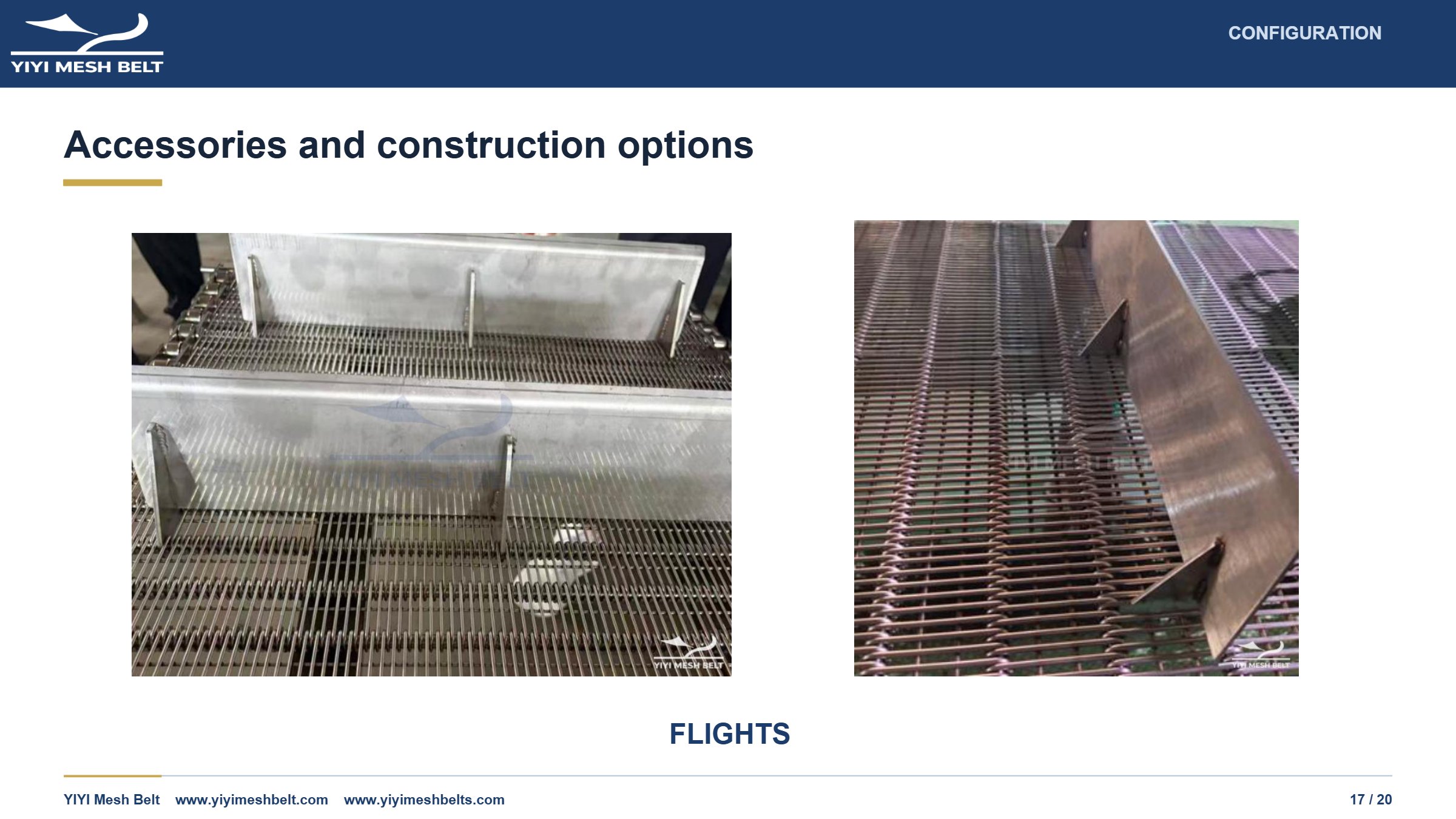

Page 17. CONFIGURATION Accessories and construction options FLIGHTS

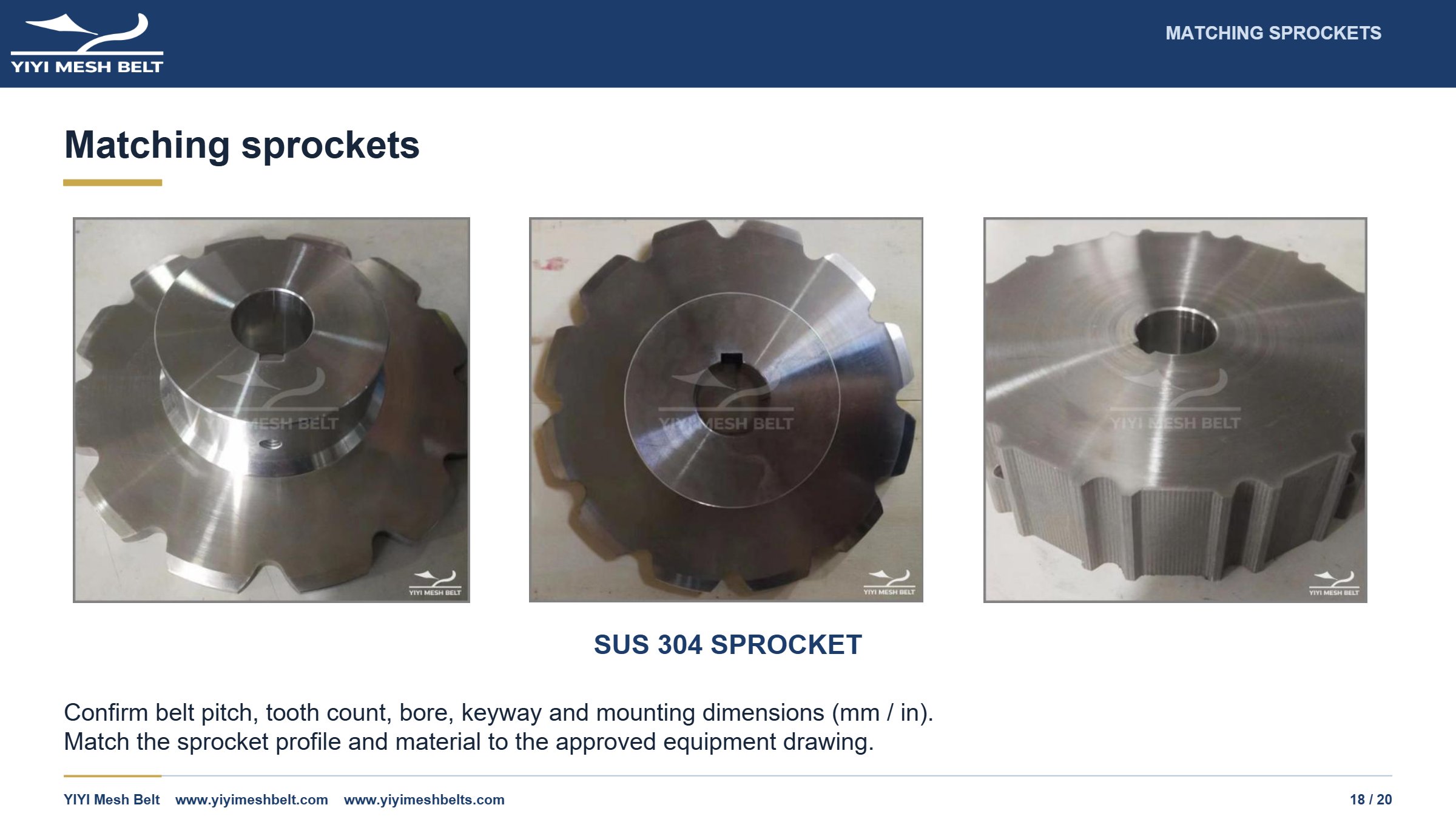

Page 18. MATCHING SPROCKETS Matching sprockets SUS 304 SPROCKET Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.

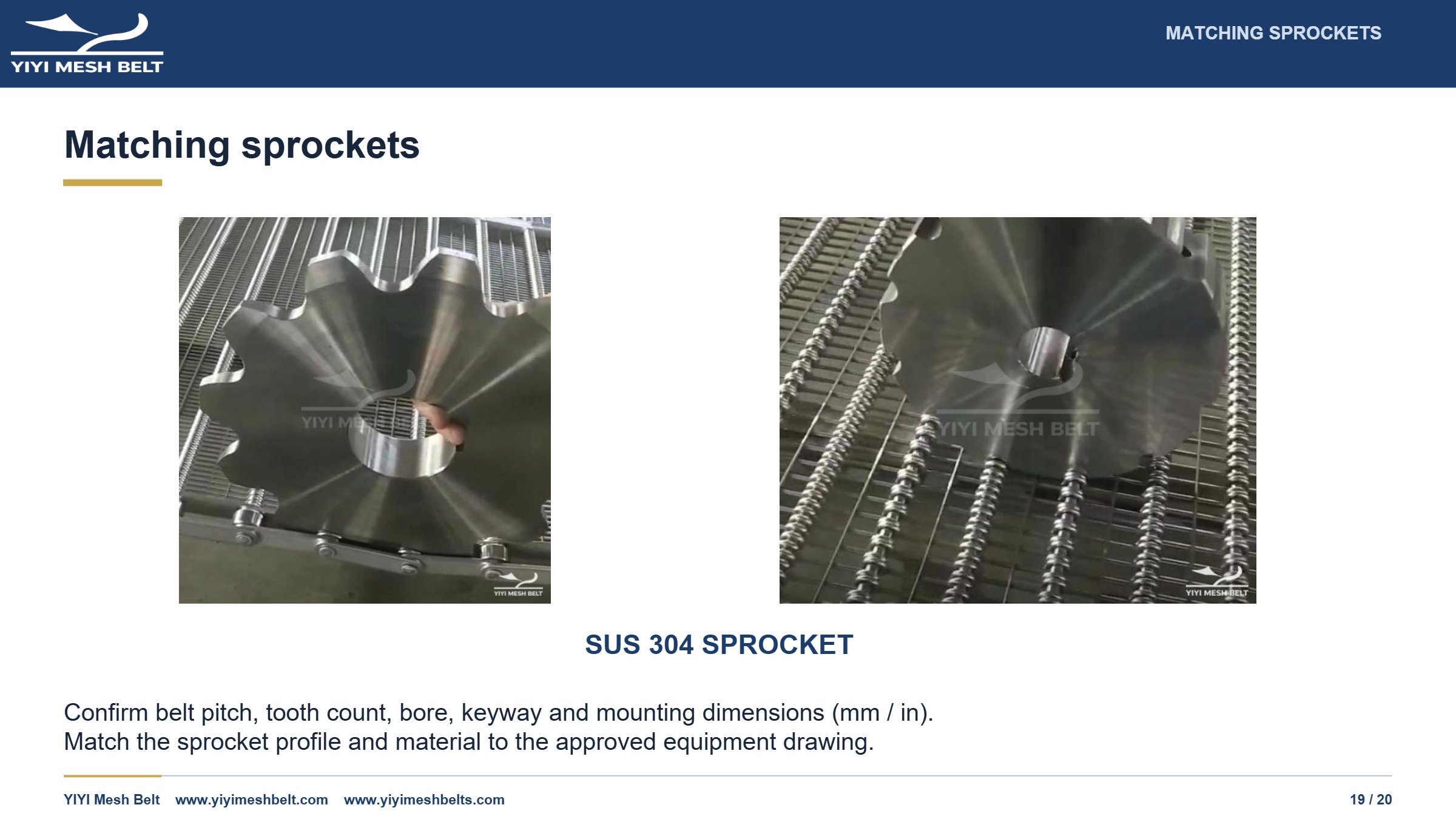

Page 19. MATCHING SPROCKETS Matching sprockets SUS 304 SPROCKET Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.
Page 20. PROVEN · STABLE · VERIFIED Metal Conveyor Belt Manufacturer Email: info@yiyimeshbelt.com Phone / WhatsApp: +86 134 5177 3742 Website: www.yiyimeshbelt.com www.yiyimeshbelts.com Company: Ningjin Yiyi Mesh Belt Co., Ltd. Send Your Drawing for Specification Review Belt dimensions (mm / in) Equipment and application Operating conditions Drive and shaft details Existing belt photos / sample Request an Engineering Review for OEMs & Professional Distributors © 2026 Ningjin Yiyi Mesh Belt Co., Ltd. All rights reserved. YIYI Mesh Belt’s original technical content, photographs and videos in this document and on www.yiyimeshbelt.com and www.yiyimeshbelts.com may not be reproduced or reused without prior written permission. Third-party materials remain the property of their respective owners.
