YIYI Mesh Belt Flat Wire / Honeycomb Belt Technical Specification
Check what matters before you request a quote: key dimensions in mm and inches, pitch options, edge options, accessories, drive sprocket options and typical applications. Compare it with your current belt or drawing, then send us the drawing or photos of your old belt for review.
Text version of this document

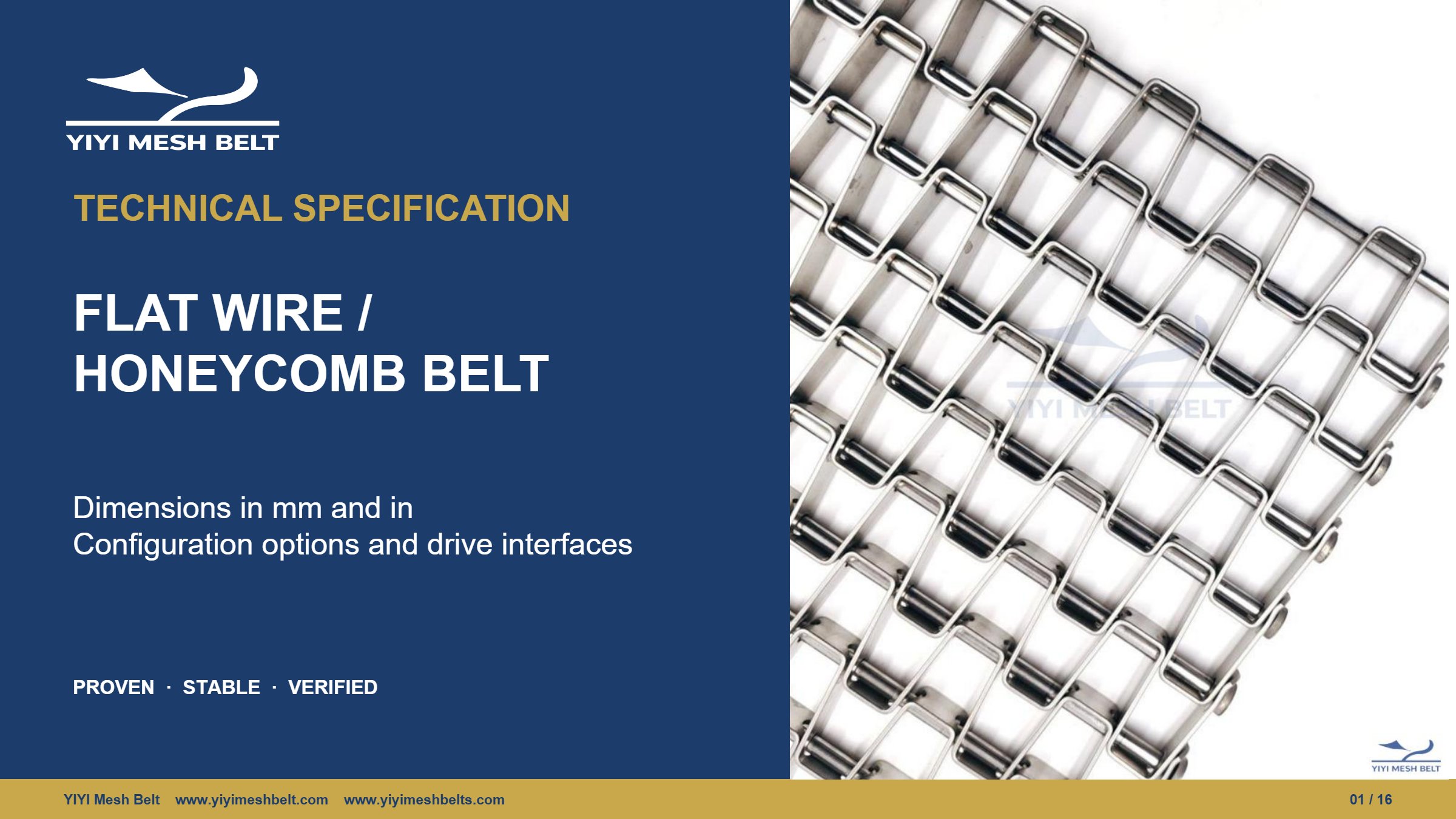

Page 1. TECHNICAL SPECIFICATION FLAT WIRE / HONEYCOMB BELT Dimensions in mm and in Configuration options and drive interfaces PROVEN · STABLE · VERIFIED

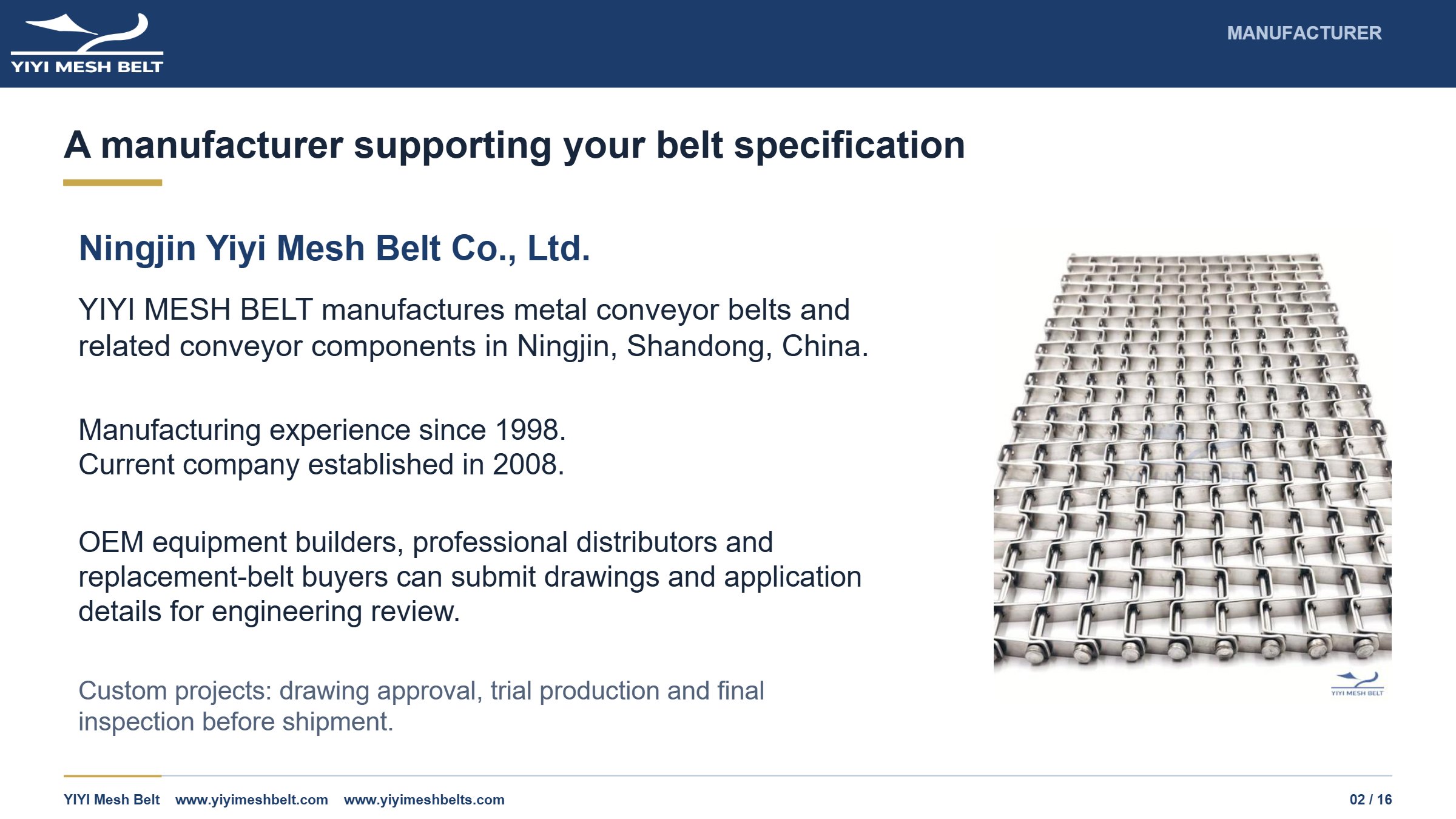

Page 2. MANUFACTURER A manufacturer supporting your belt specification Ningjin Yiyi Mesh Belt Co., Ltd. YIYI MESH BELT manufactures metal conveyor belts and related conveyor components in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. OEM equipment builders, professional distributors and replacement-belt buyers can submit drawings and application details for engineering review. Custom projects: drawing approval, trial production and final inspection before shipment.

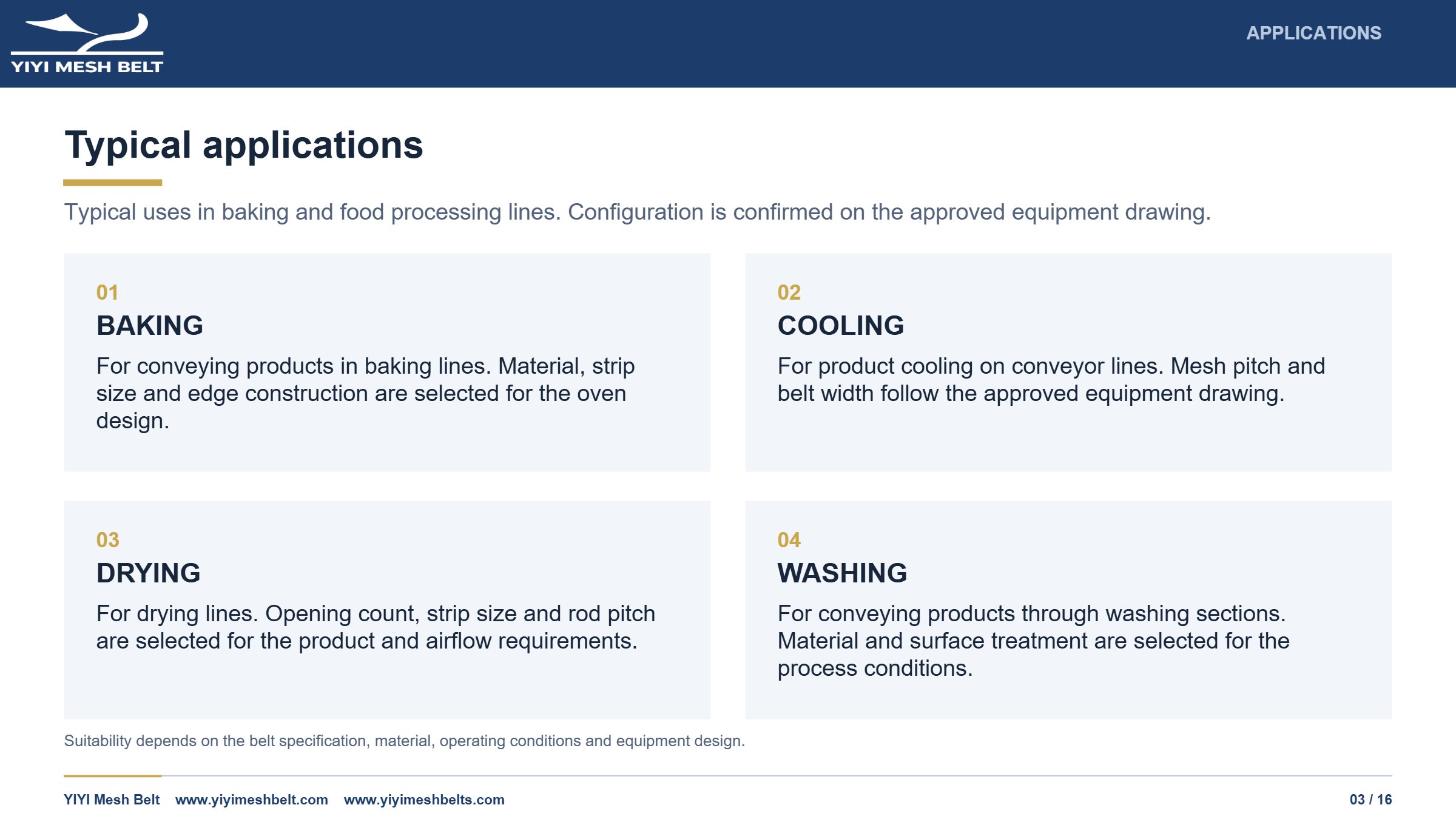

Page 3. APPLICATIONS Typical applications Typical uses in baking and food processing lines. Configuration is confirmed on the approved equipment drawing. 01 BAKING For conveying products in baking lines. Material, strip size and edge construction are selected for the oven design. 02 COOLING For product cooling on conveyor lines. Mesh pitch and belt width follow the approved equipment drawing. 03 DRYING For drying lines. Opening count, strip size and rod pitch are selected for the product and airflow requirements. 04 WASHING For conveying products through washing sections. Material and surface treatment are selected for the process conditions. Suitability depends on the belt specification, material, operating conditions and equipment design.

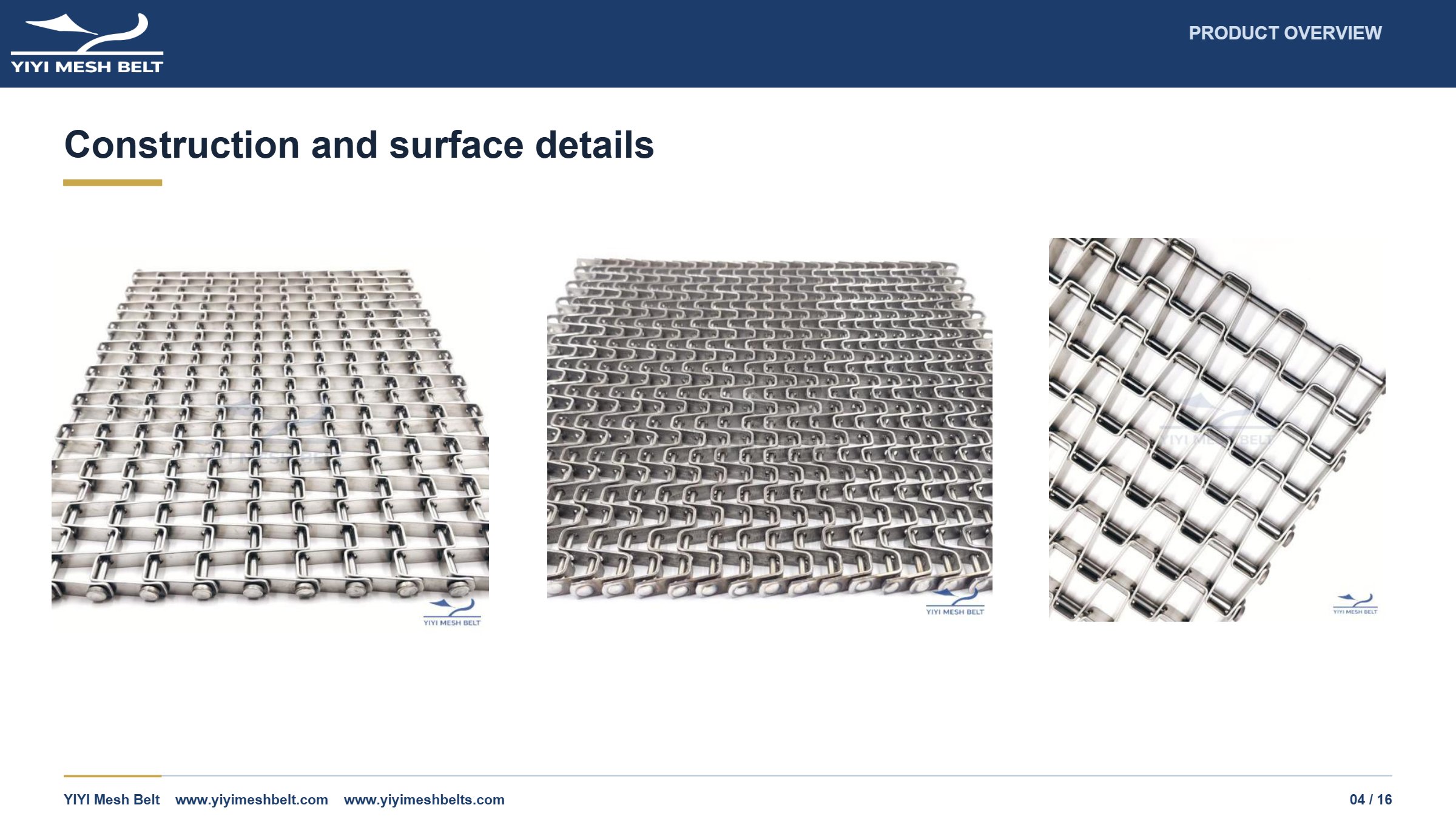

Page 4. PRODUCT OVERVIEW Construction and surface details

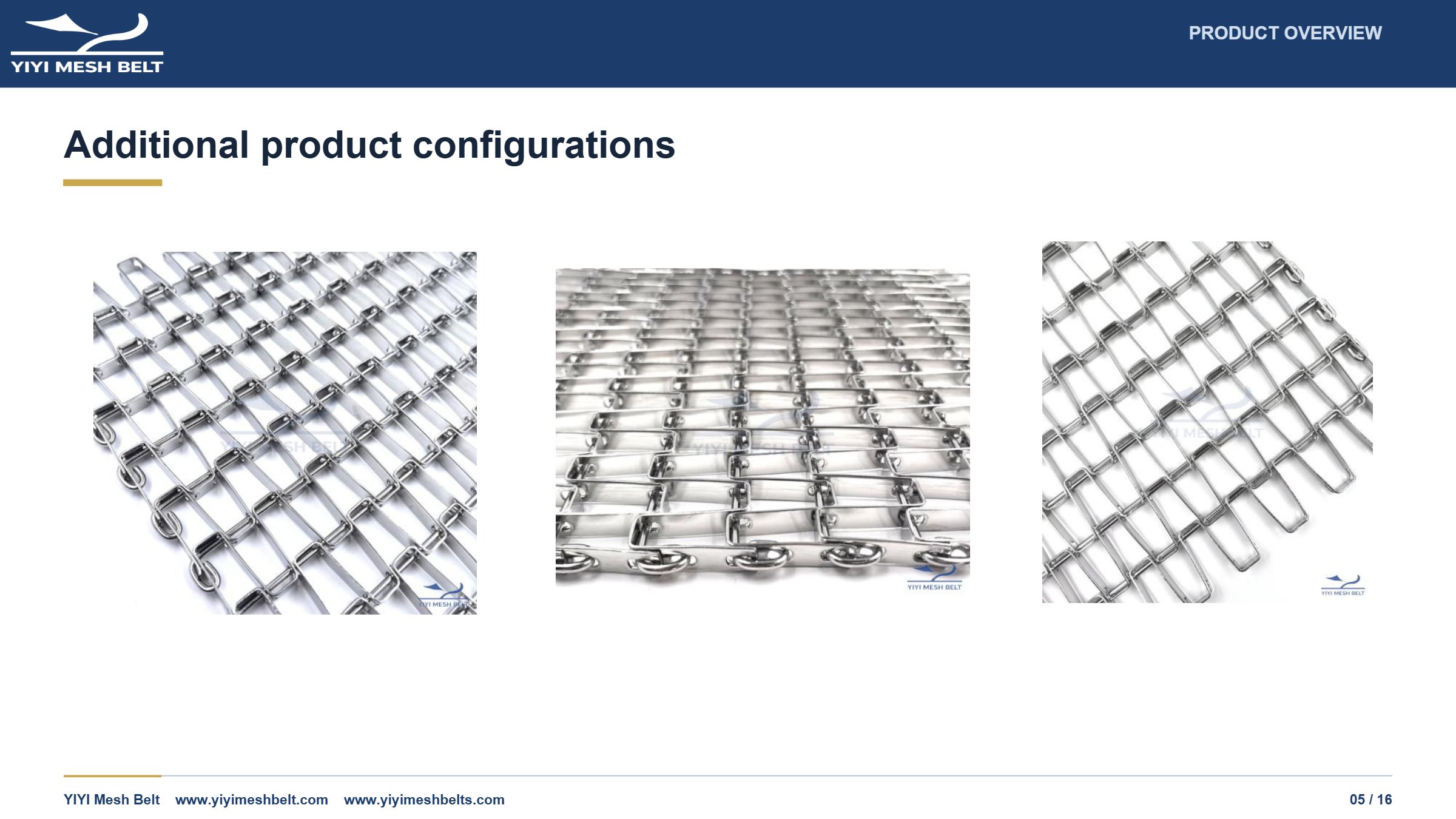

Page 5. PRODUCT OVERVIEW Additional product configurations

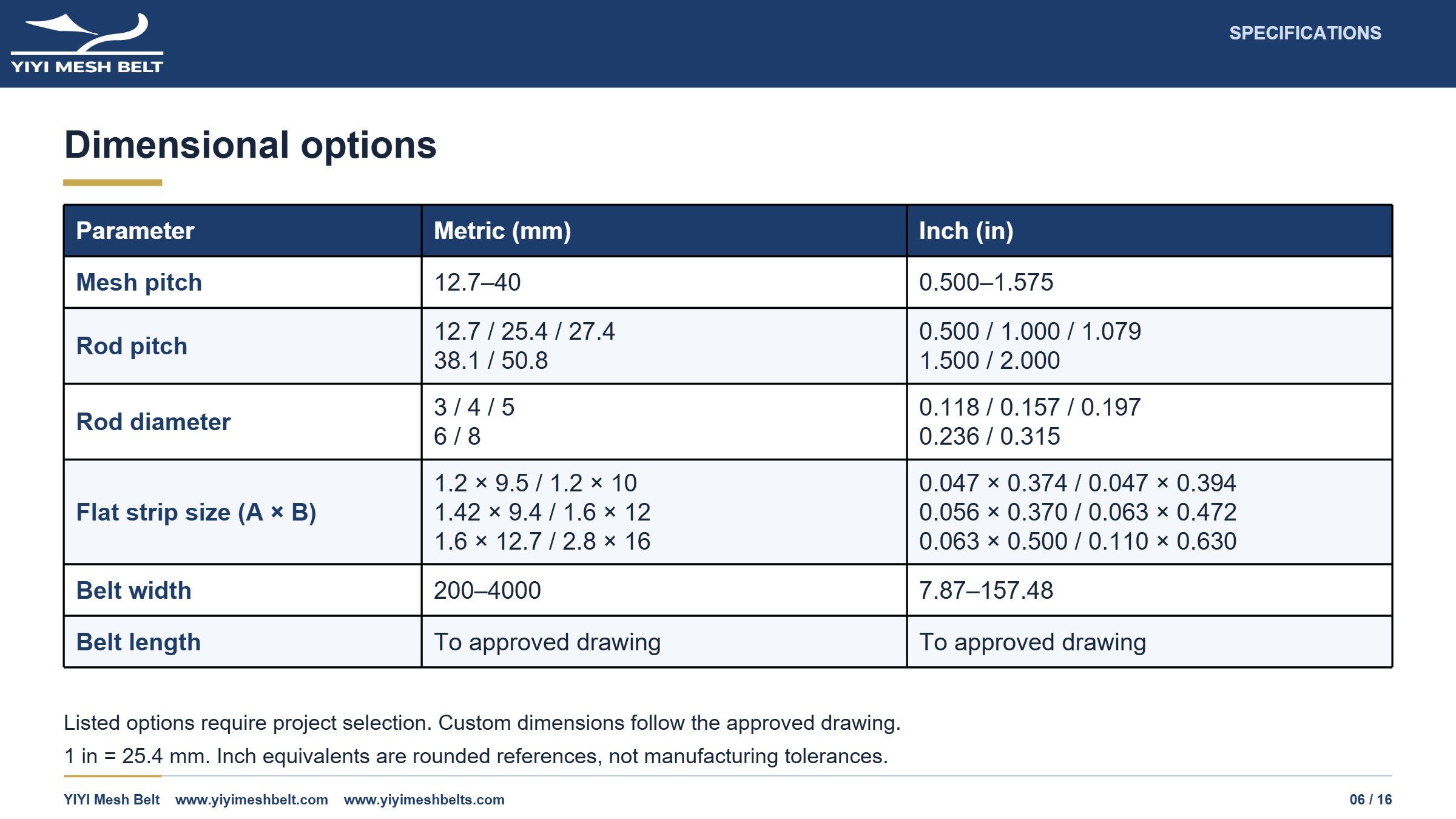

Page 6. SPECIFICATIONS Dimensional options Parameter Metric (mm) Inch (in) Mesh pitch 12.7–40 0.500–1.575 Rod pitch 12.7 / 25.4 / 27.4 38.1 / 50.8 0.500 / 1.000 / 1.079 1.500 / 2.000 Rod diameter 3 / 4 / 5 6 / 8 0.118 / 0.157 / 0.197 0.236 / 0.315 Flat strip size (A × B) 1.2 × 9.5 / 1.2 × 10 1.42 × 9.4 / 1.6 × 12 1.6 × 12.7 / 2.8 × 16 0.047 × 0.374 / 0.047 × 0.394 0.056 × 0.370 / 0.063 × 0.472 0.063 × 0.500 / 0.110 × 0.630 Belt width 200–4000 7.87–157.48 Belt length To approved drawing To approved drawing Listed options require project selection. Custom dimensions follow the approved drawing. 1 in = 25.4 mm. Inch equivalents are rounded references, not manufacturing tolerances.

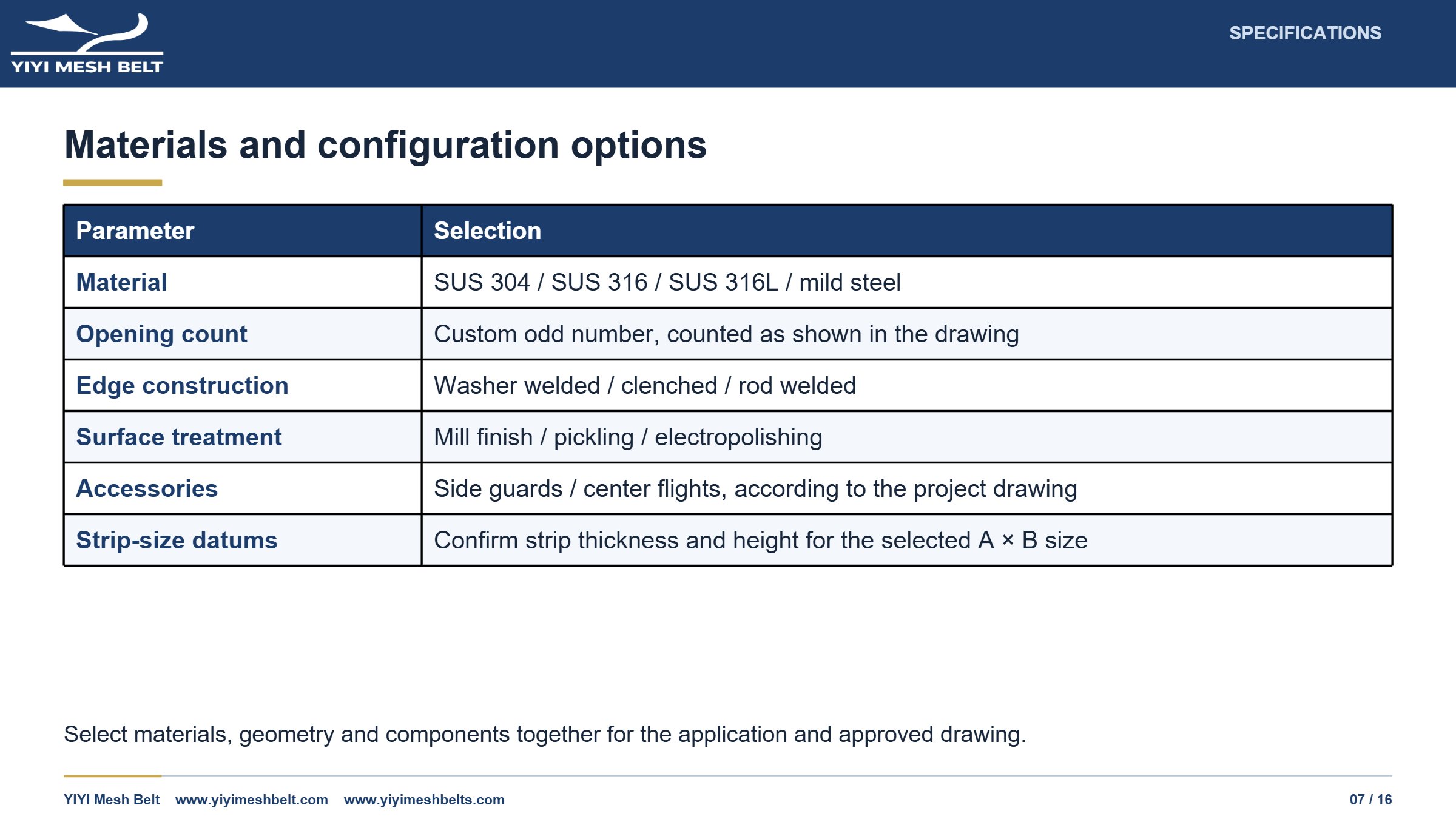

Page 7. SPECIFICATIONS Materials and configuration options Parameter Selection Material SUS 304 / SUS 316 / SUS 316L / mild steel Opening count Custom odd number, counted as shown in the drawing Edge construction Washer welded / clenched / rod welded Surface treatment Mill finish / pickling / electropolishing Accessories Side guards / center flights, according to the project drawing Strip-size datums Confirm strip thickness and height for the selected A × B size Select materials, geometry and components together for the application and approved drawing.

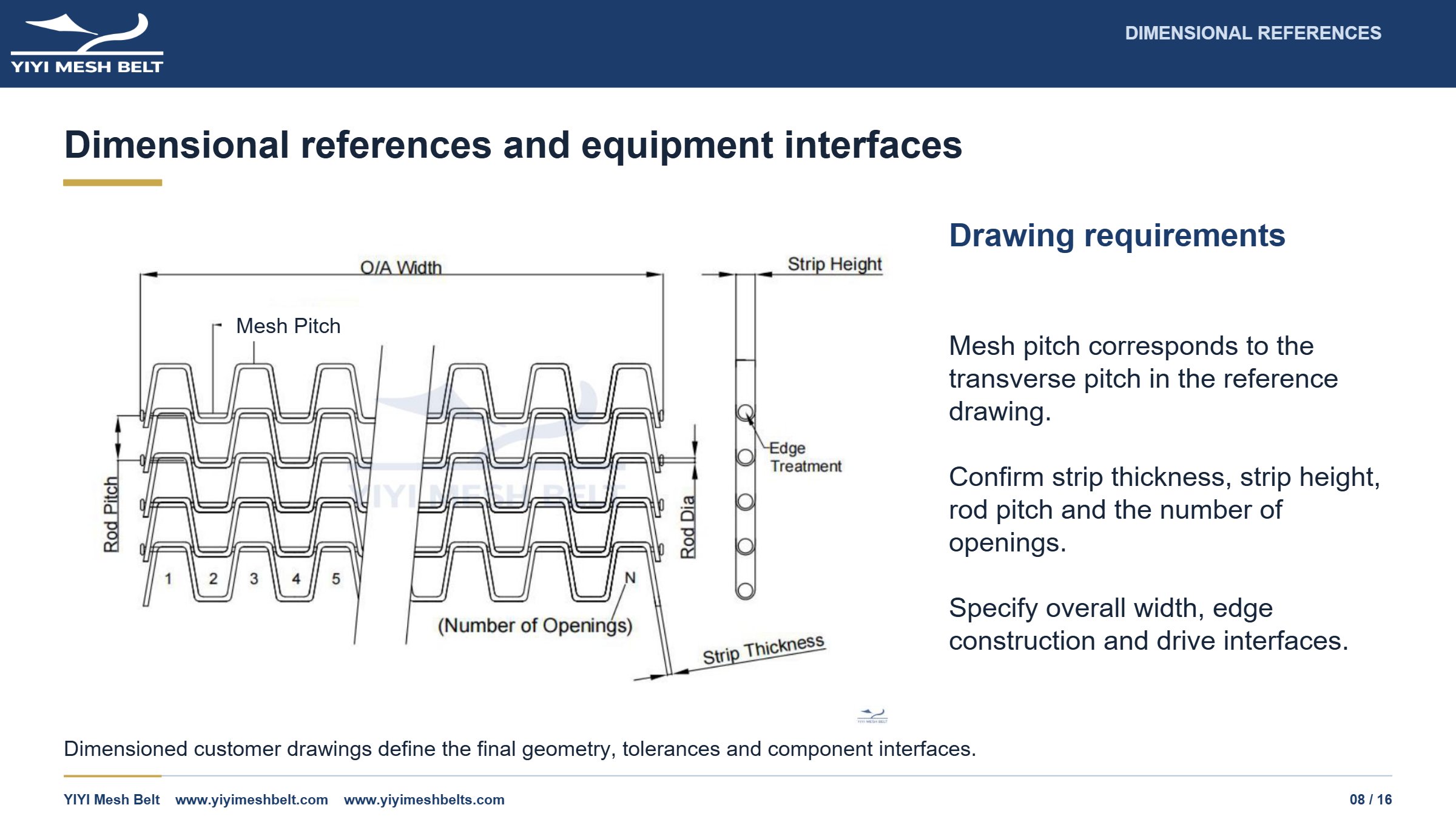

Page 8. DIMENSIONAL REFERENCES Dimensional references and equipment interfaces Drawing requirements Mesh pitch corresponds to the transverse pitch in the reference drawing. Confirm strip thickness, strip height, rod pitch and the number of openings. Specify overall width, edge construction and drive interfaces. Dimensioned customer drawings define the final geometry, tolerances and component interfaces. Mesh Pitch

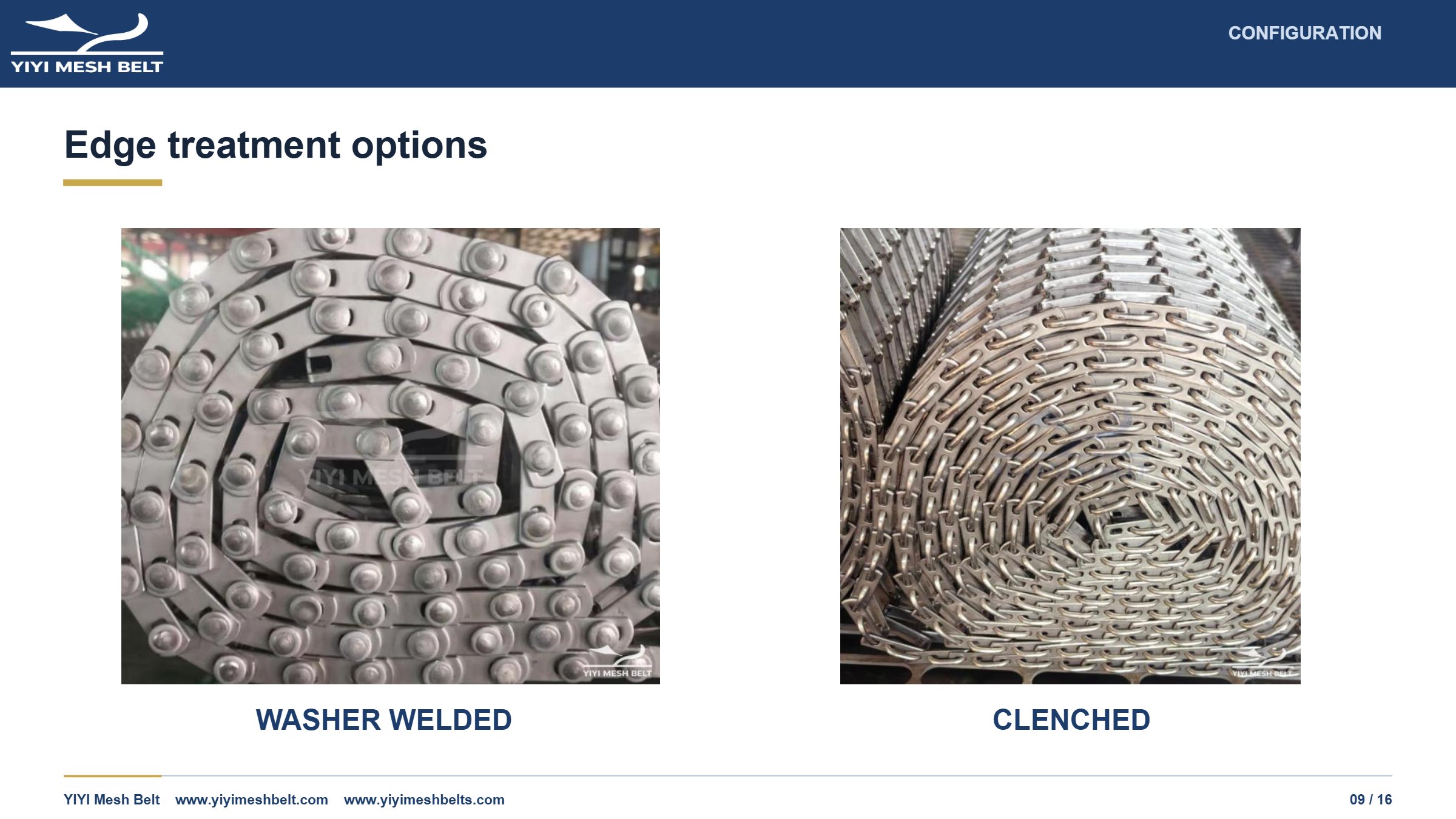

Page 9. CONFIGURATION Edge treatment options WASHER WELDED CLENCHED

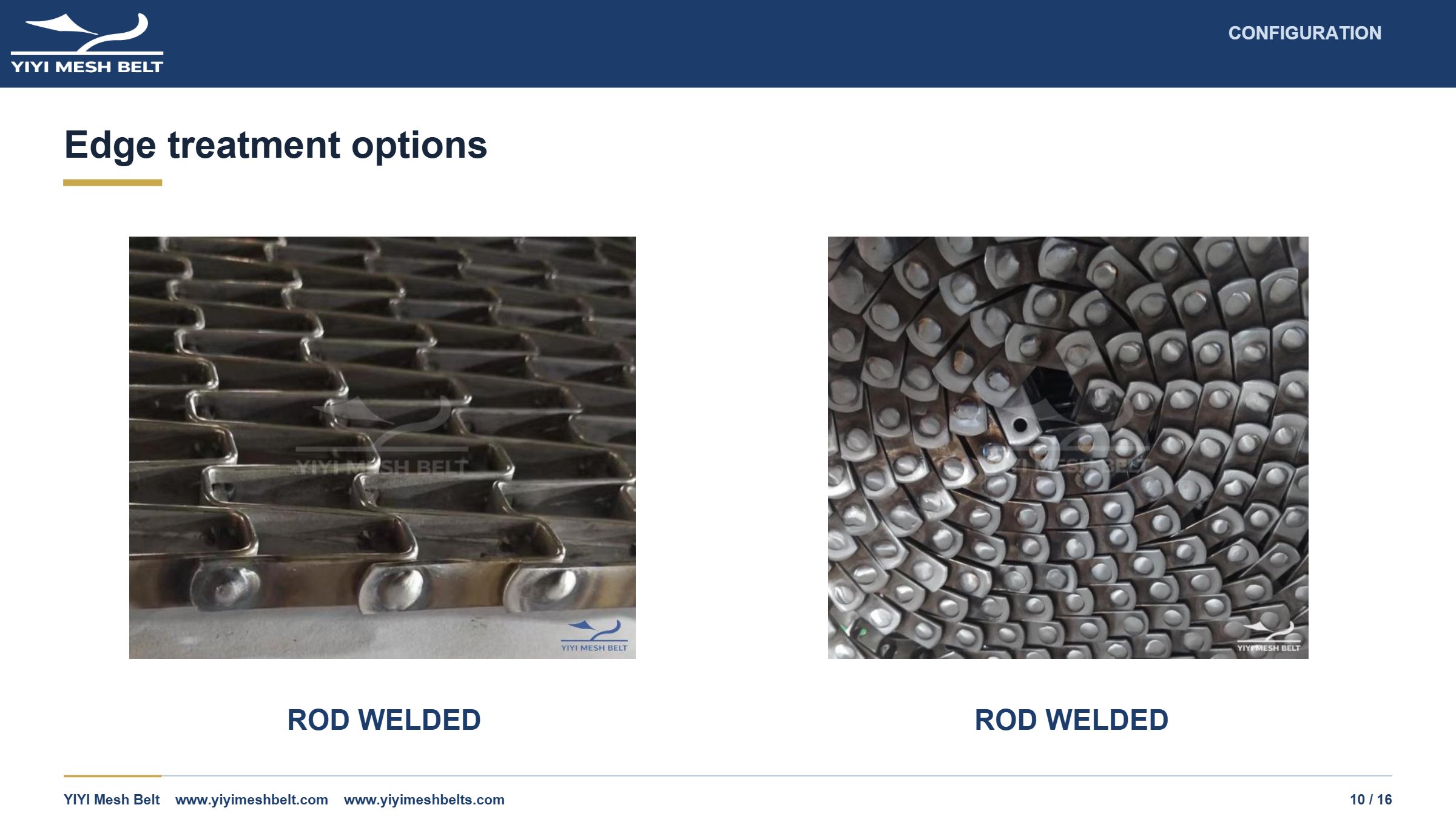

Page 10. CONFIGURATION Edge treatment options ROD WELDED ROD WELDED

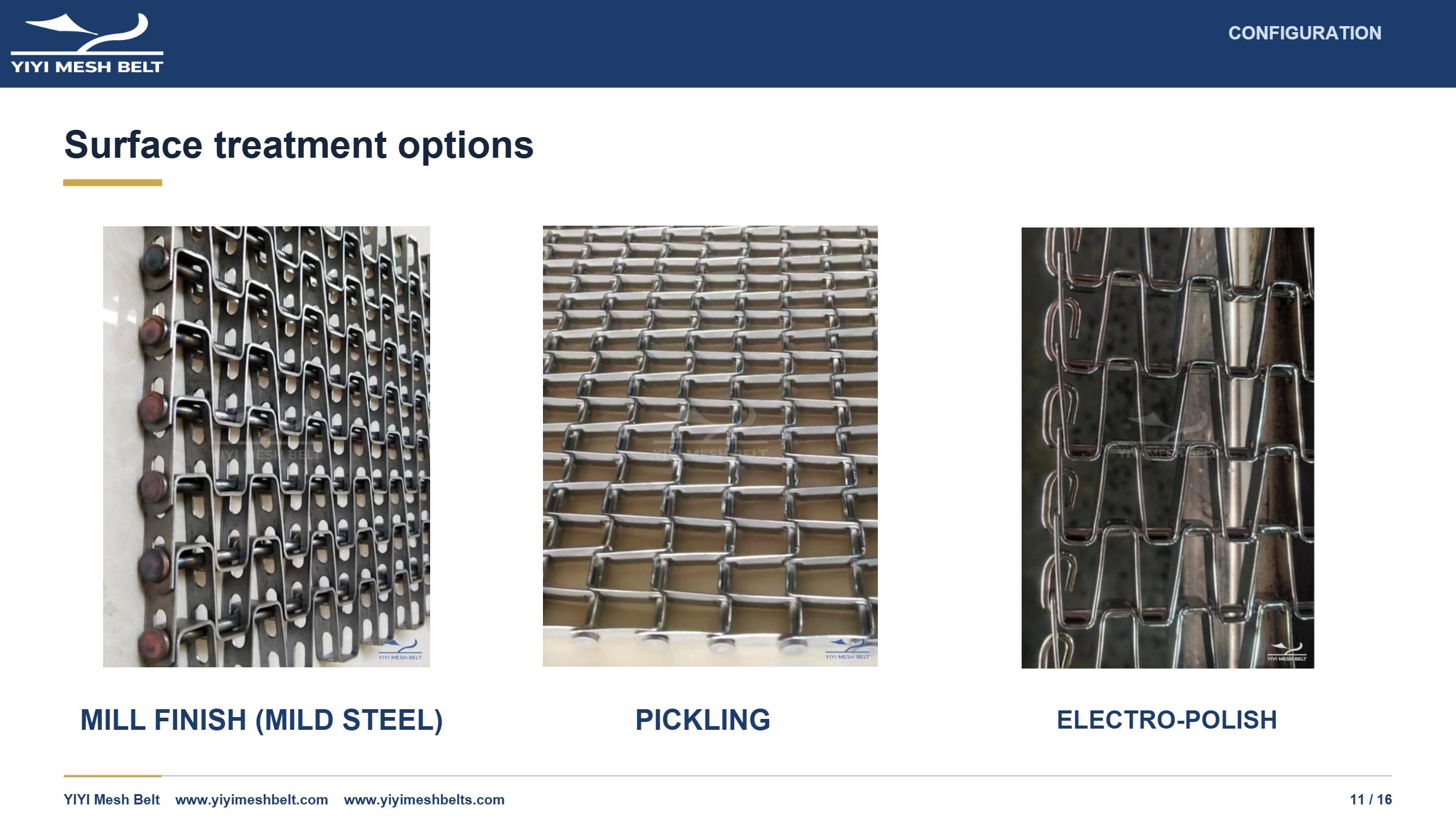

Page 11. CONFIGURATION Surface treatment options MILL FINISH (MILD STEEL) PICKLING ELECTRO-POLISH

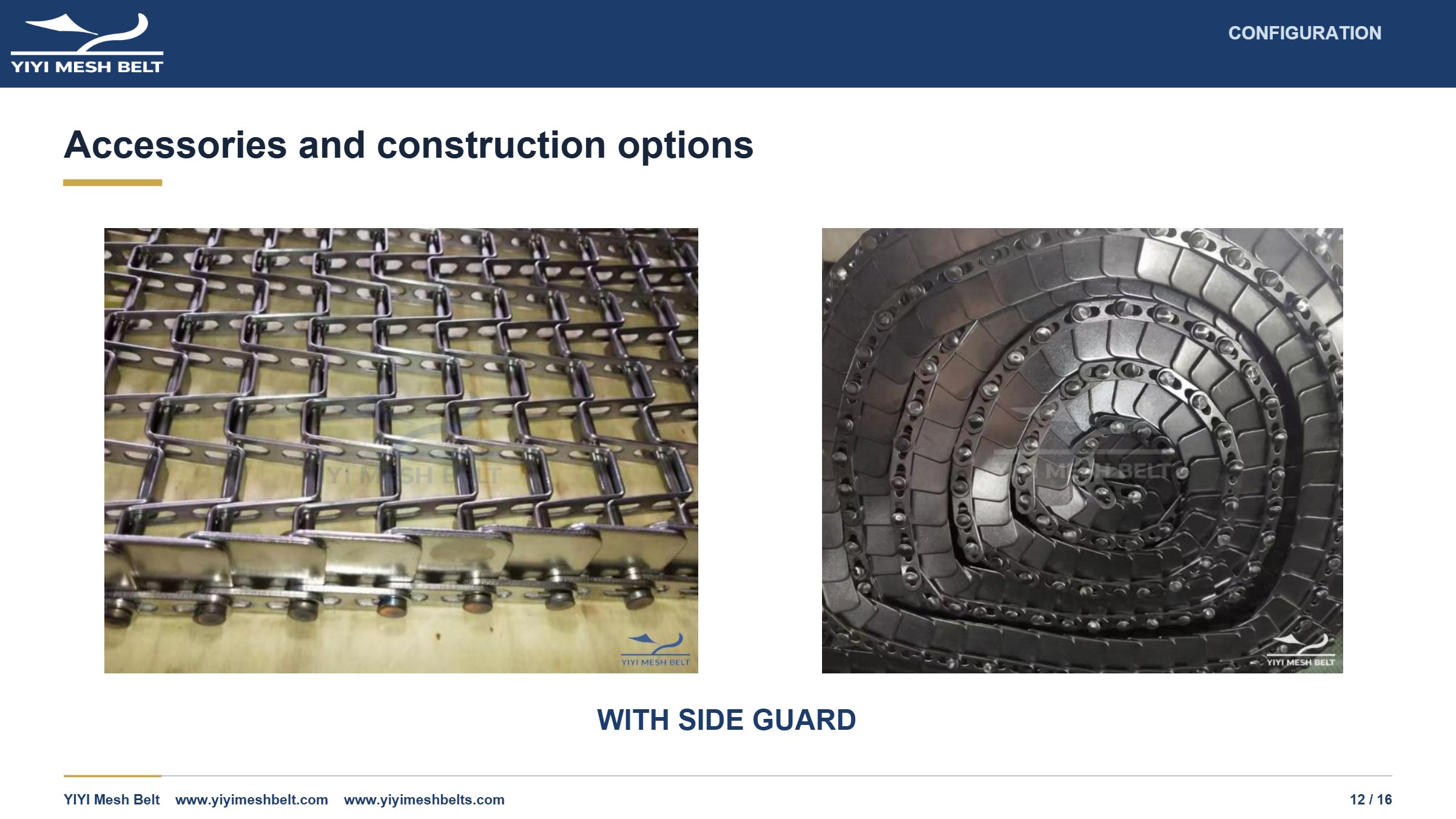

Page 12. CONFIGURATION Accessories and construction options WITH SIDE GUARD

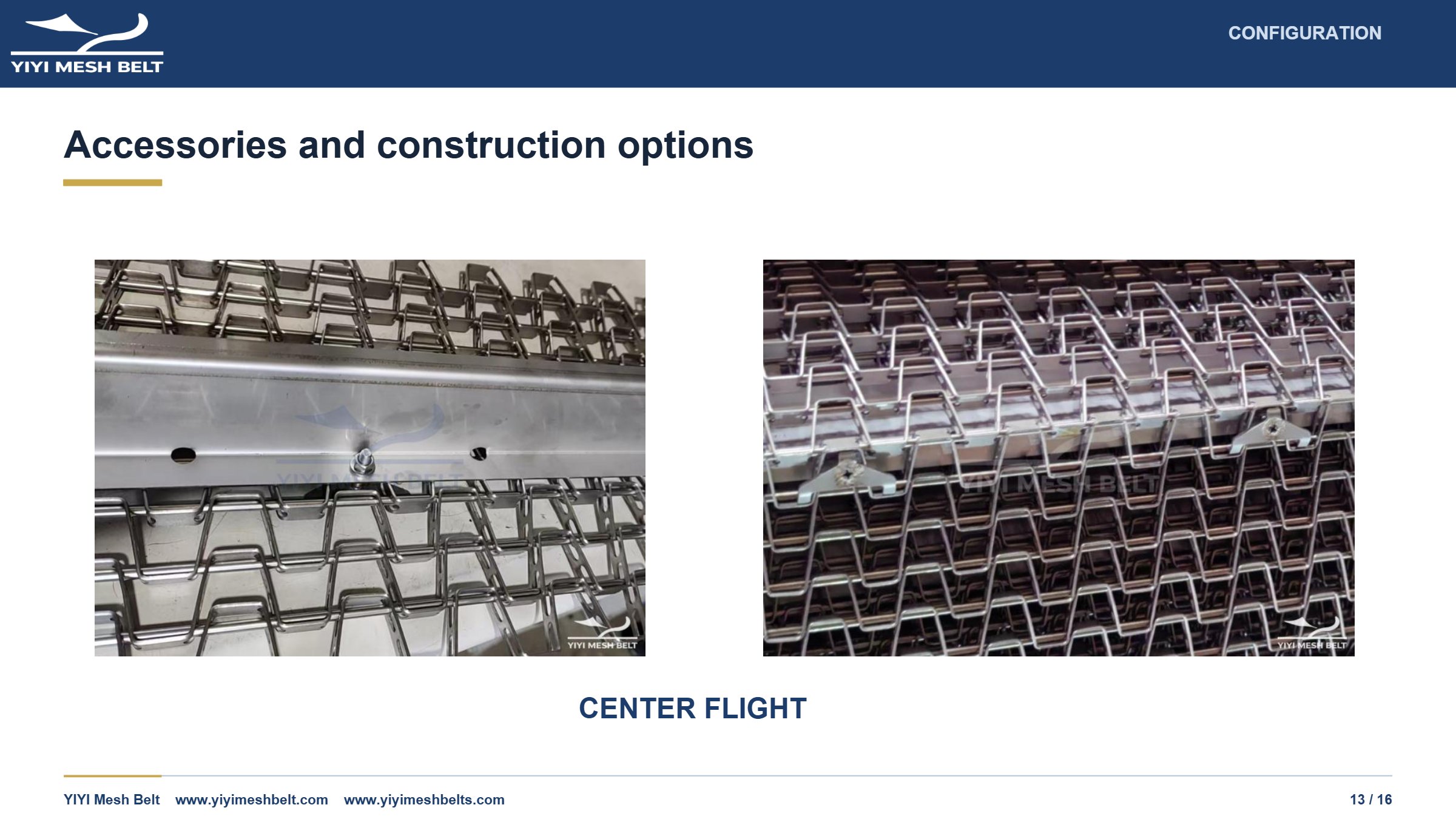

Page 13. CONFIGURATION Accessories and construction options CENTER FLIGHT

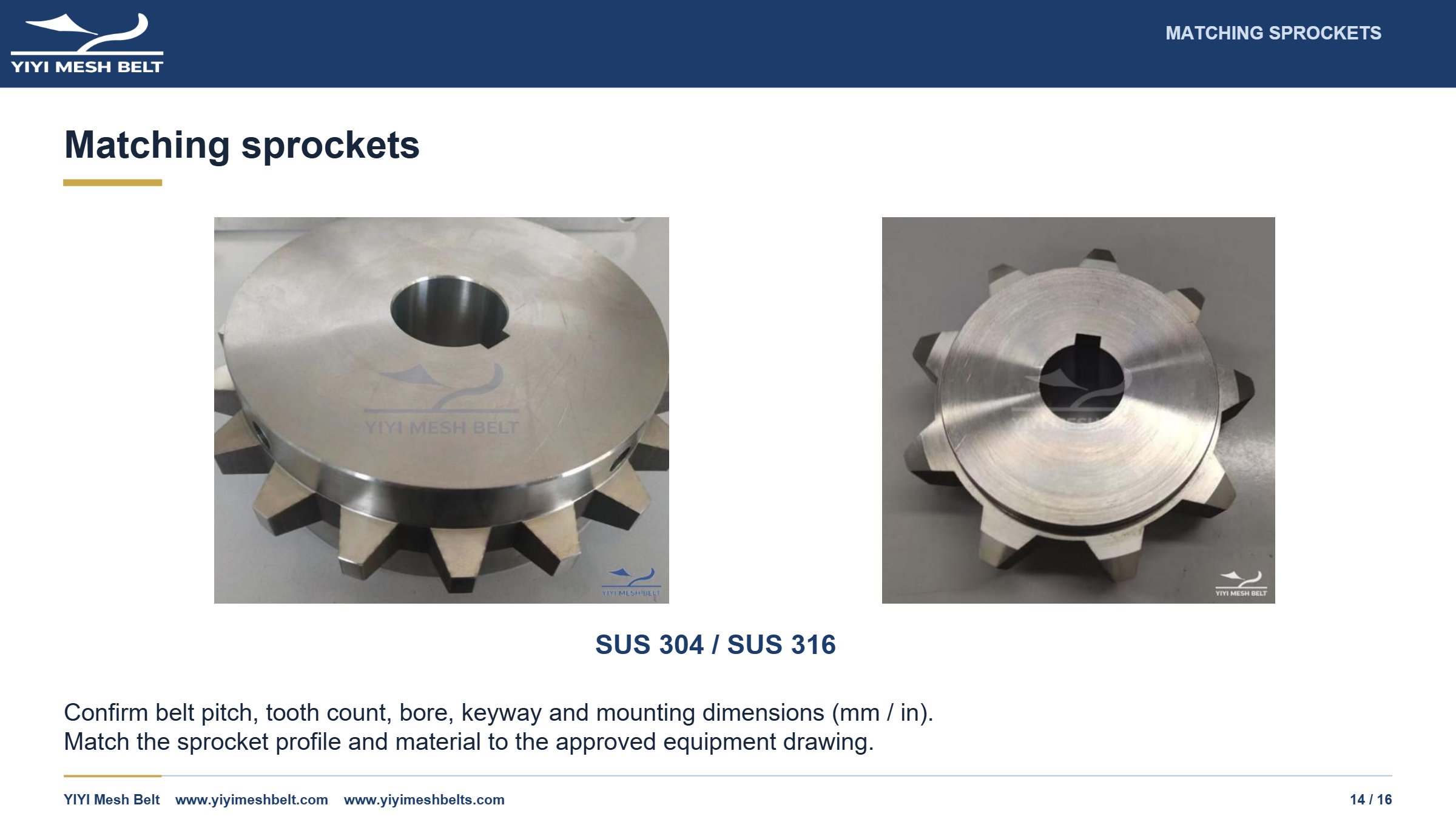

Page 14. MATCHING SPROCKETS Matching sprockets SUS 304 / SUS 316 Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.

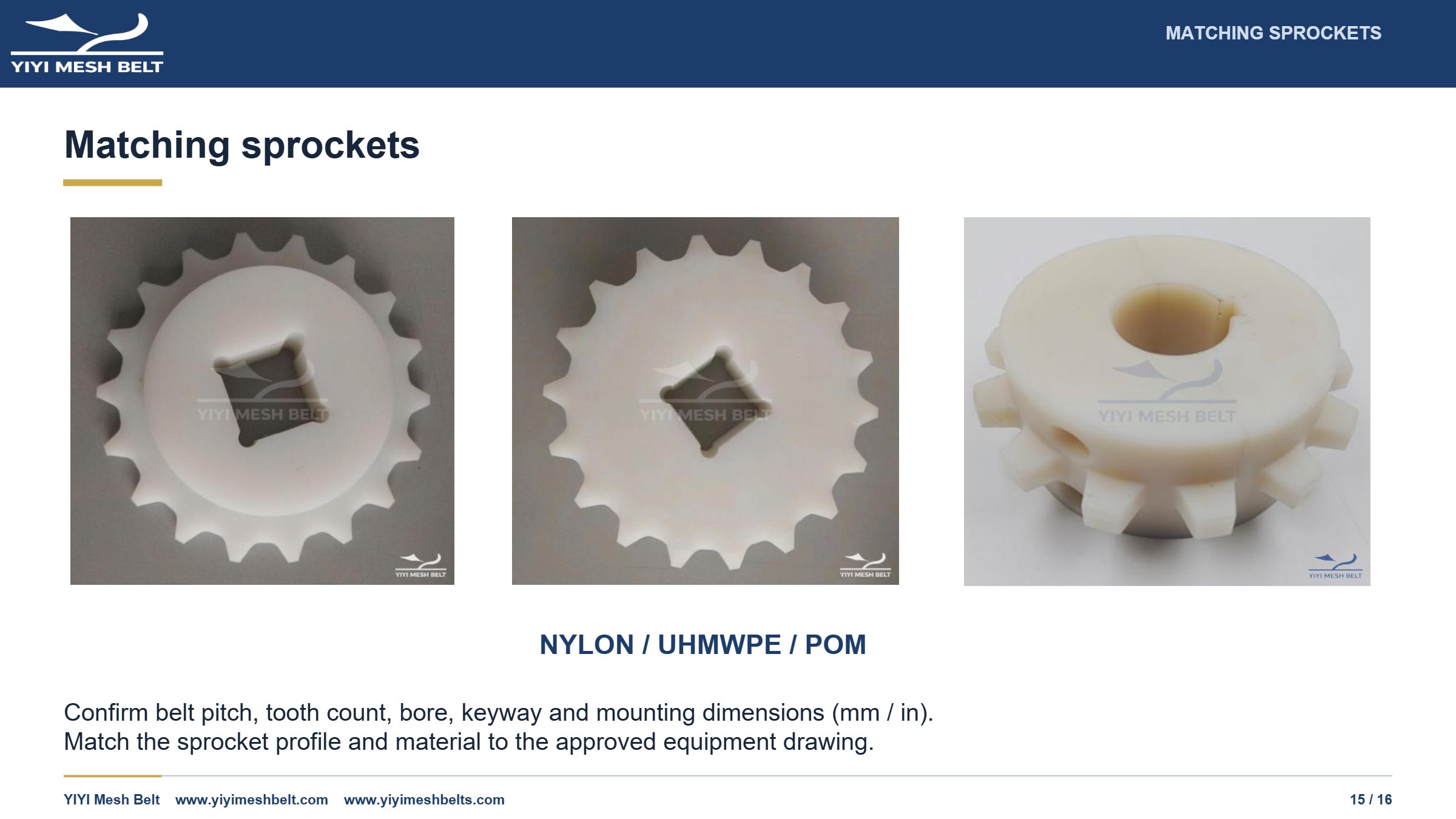

Page 15. MATCHING SPROCKETS Matching sprockets NYLON / UHMWPE / POM Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.
