YIYI Mesh Belt Side Driven Belt Production and Quality Control
See how your Side Driven Belt is made and checked before it ships: drawing approval, trial production and first-article inspection, in-house wire drawing, material testing, in-process dimensional checks, drum matching checks, wooden-case packing and project records for repeat orders. Use it as a checklist of what to confirm with us before production.
Text version of this document
Page 1. PRODUCTION & QUALITY CONTROL SIDE DRIVEN BELT Manufacturing processes and project inspection PROVEN · STABLE · VERIFIED

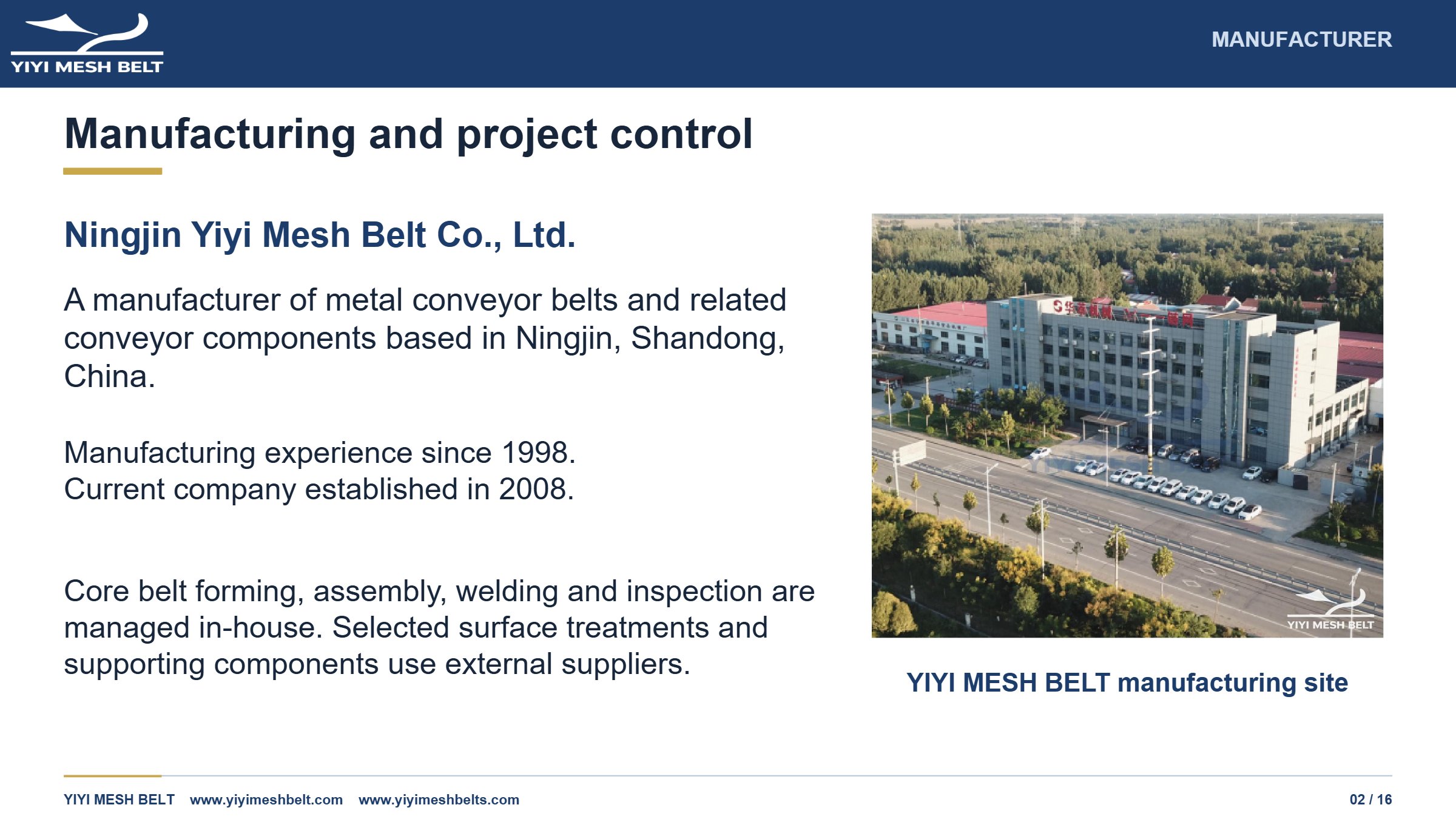

Page 2. MANUFACTURER Manufacturing and project control Ningjin Yiyi Mesh Belt Co., Ltd. A manufacturer of metal conveyor belts and related conveyor components based in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. Core belt forming, assembly, welding and inspection are managed in-house. Selected surface treatments and supporting components use external suppliers. YIYI MESH BELT manufacturing site

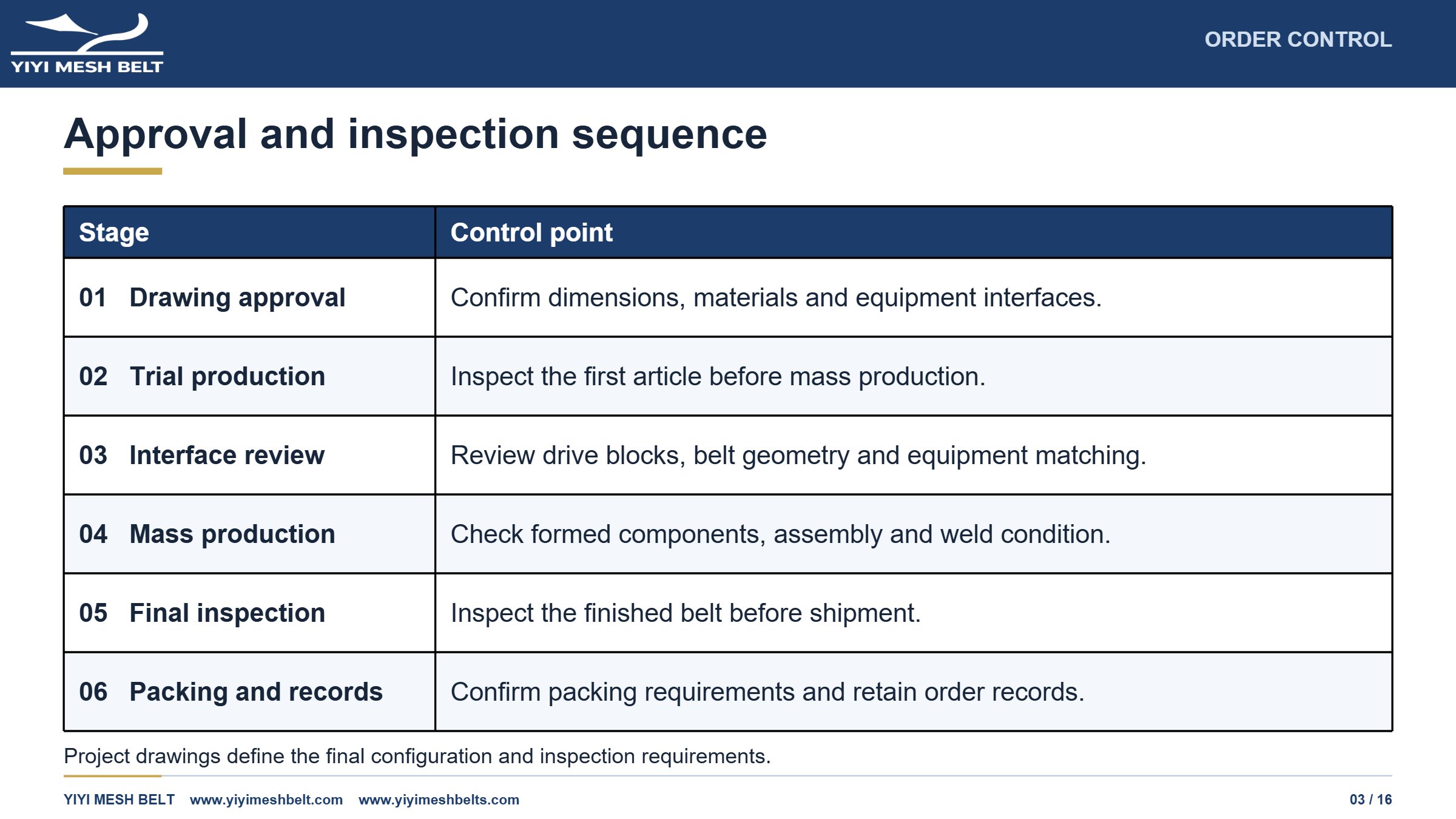

Page 3. ORDER CONTROL Approval and inspection sequence Stage Control point 01 Drawing approval Confirm dimensions, materials and equipment interfaces. 02 Trial production Inspect the first article before mass production. 03 Interface review Review drive blocks, belt geometry and equipment matching. 04 Mass production Check formed components, assembly and weld condition. 05 Final inspection Inspect the finished belt before shipment. 06 Packing and records Confirm packing requirements and retain order records. Project drawings define the final configuration and inspection requirements.

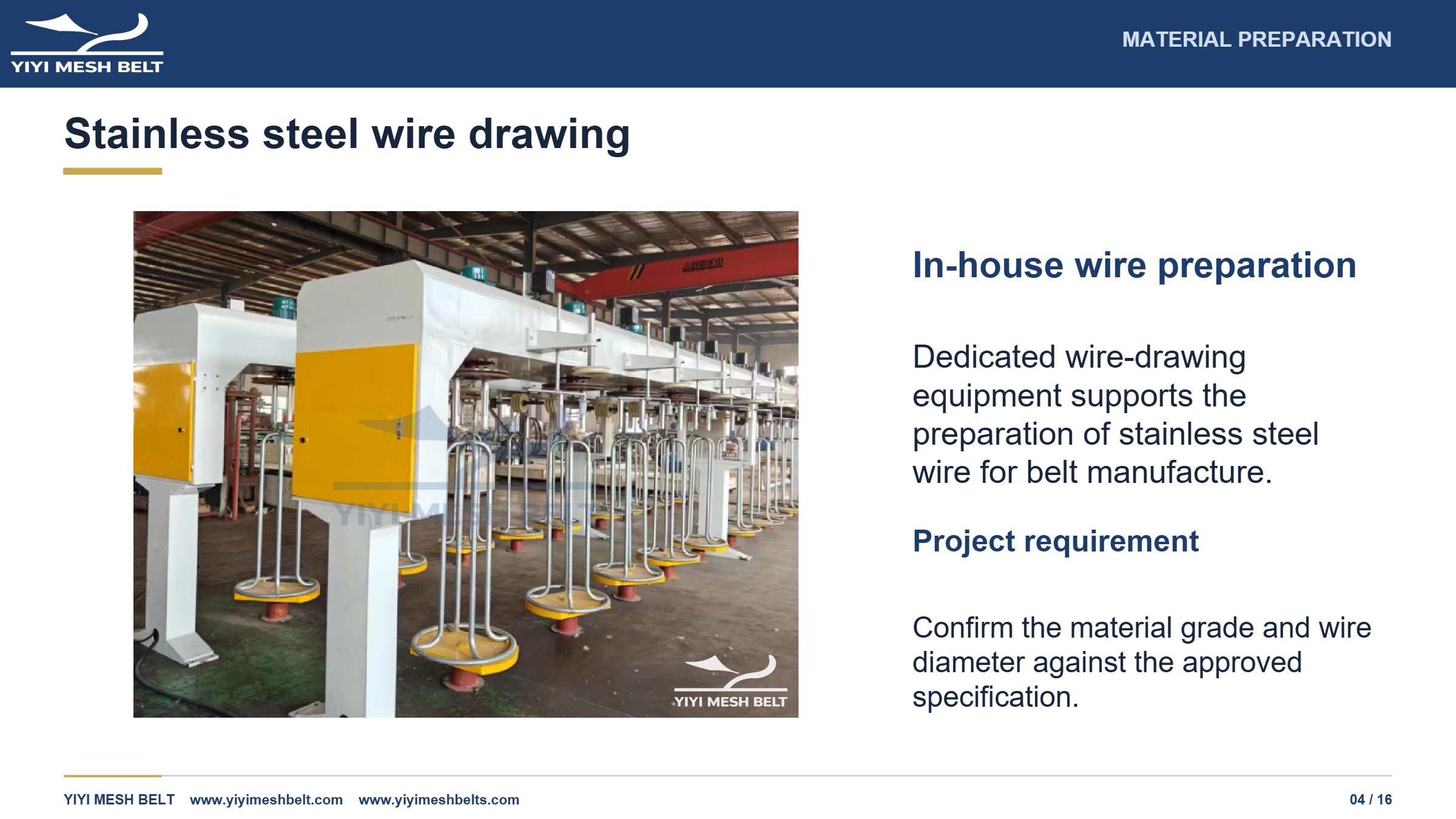

Page 4. MATERIAL PREPARATION Stainless steel wire drawing In-house wire preparation Dedicated wire-drawing equipment supports the preparation of stainless steel wire for belt manufacture. Project requirement Confirm the material grade and wire diameter against the approved specification.

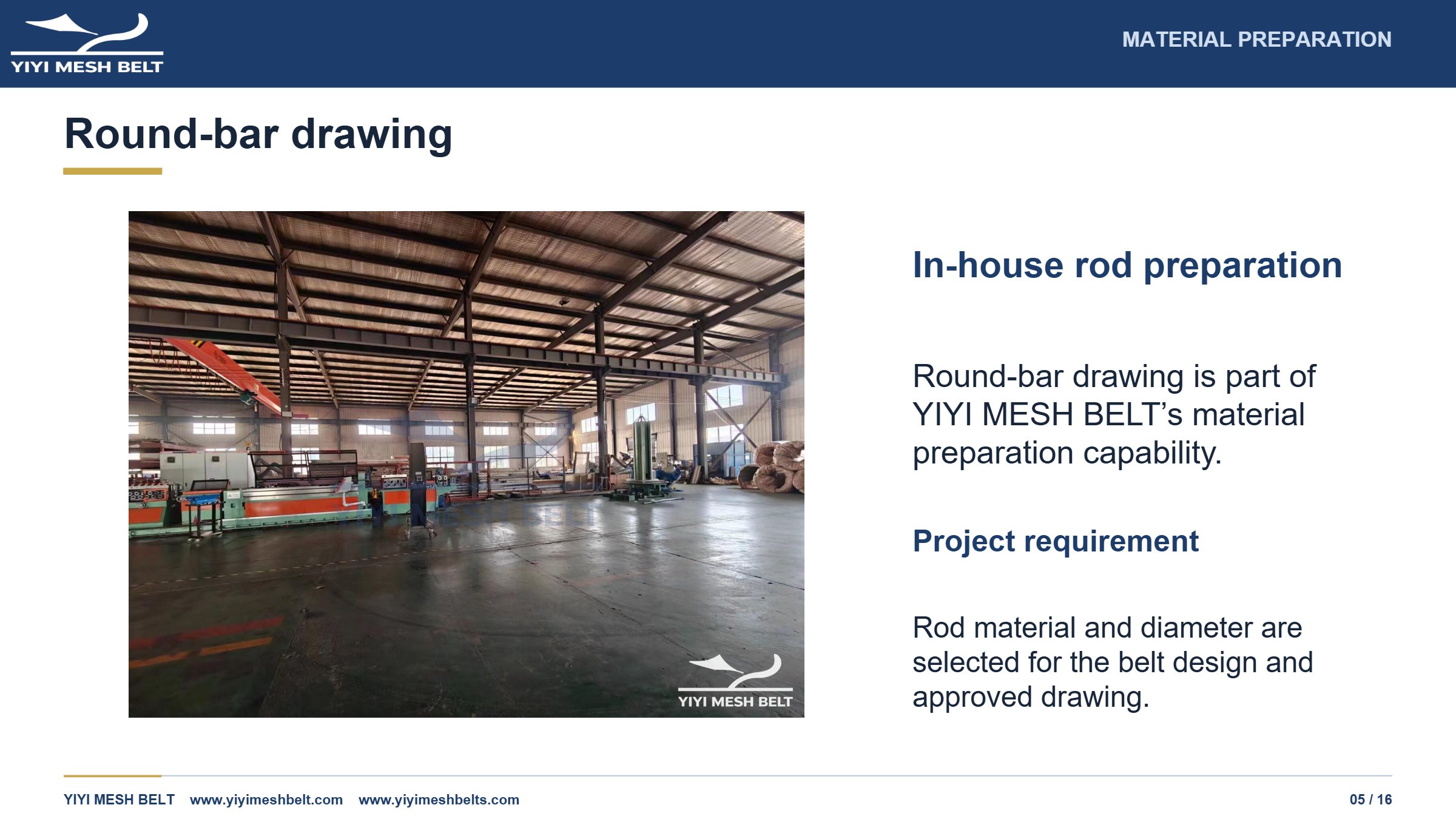

Page 5. MATERIAL PREPARATION Round-bar drawing In-house rod preparation Round-bar drawing is part of YIYI MESH BELT’s material preparation capability. Project requirement Rod material and diameter are selected for the belt design and approved drawing.

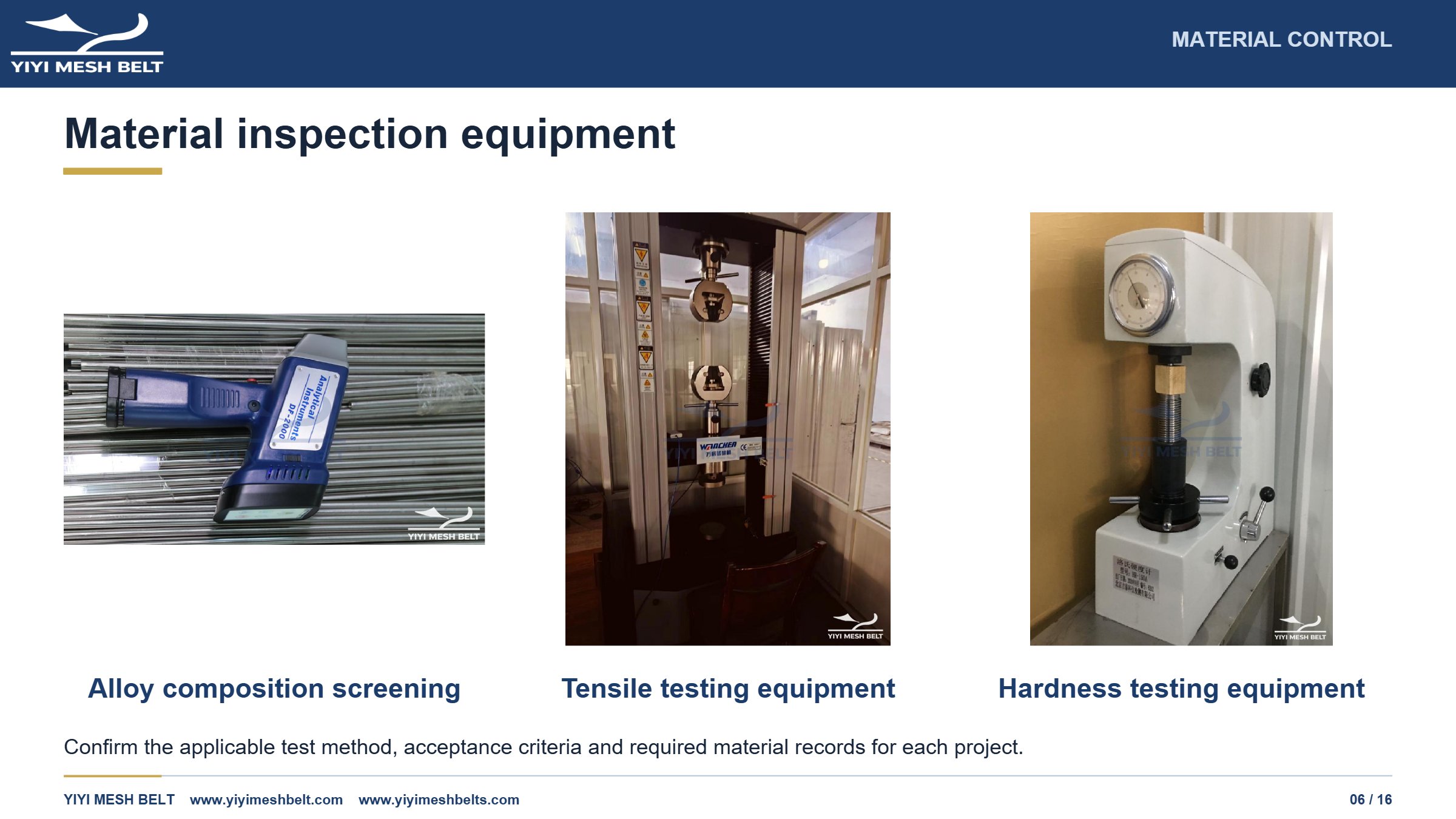

Page 6. MATERIAL CONTROL Material inspection equipment Alloy composition screening Tensile testing equipment Hardness testing equipment Confirm the applicable test method, acceptance criteria and required material records for each project.

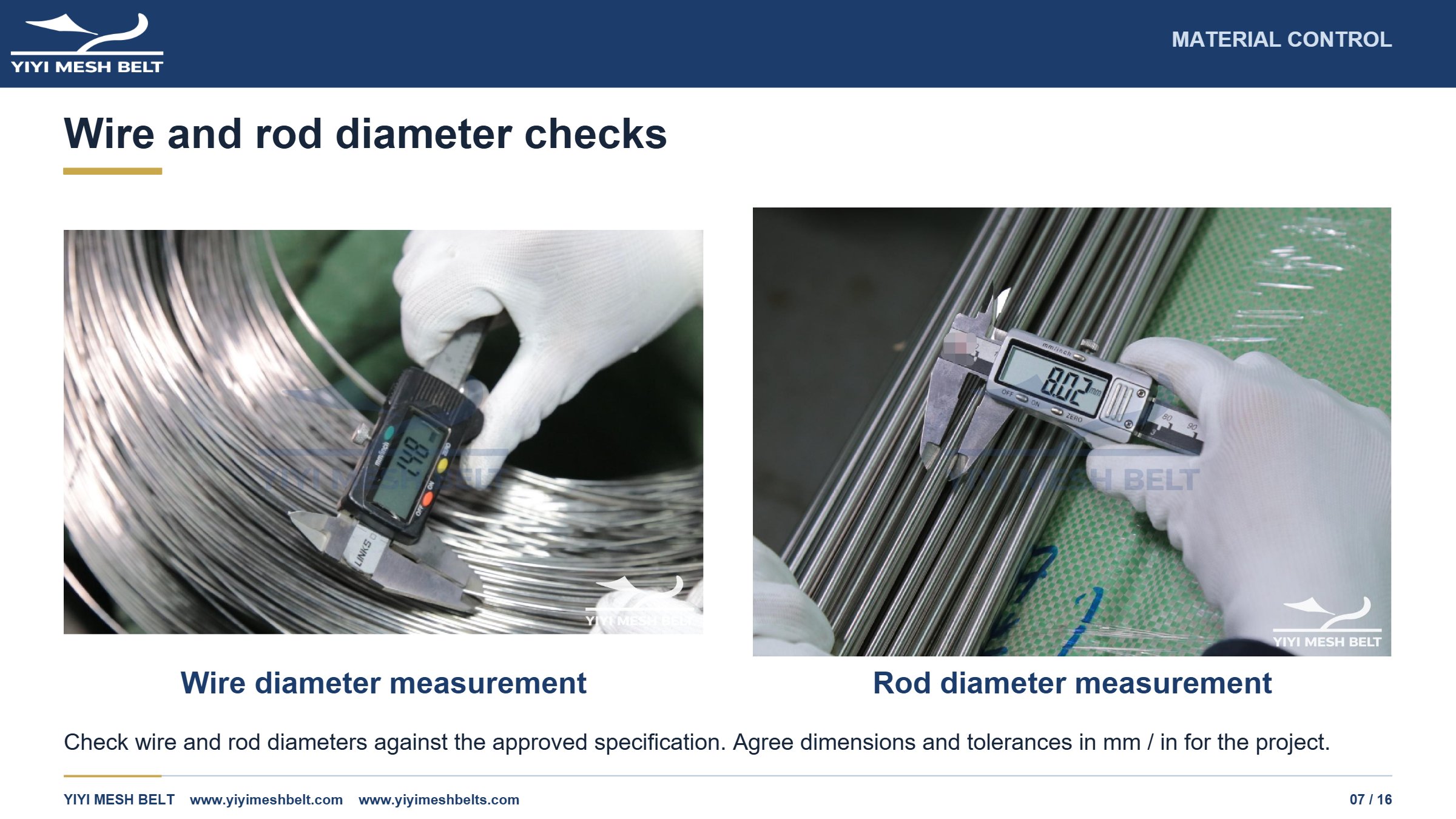

Page 7. MATERIAL CONTROL Wire and rod diameter checks Wire diameter measurement Rod diameter measurement Check wire and rod diameters against the approved specification. Agree dimensions and tolerances in mm / in for the project.

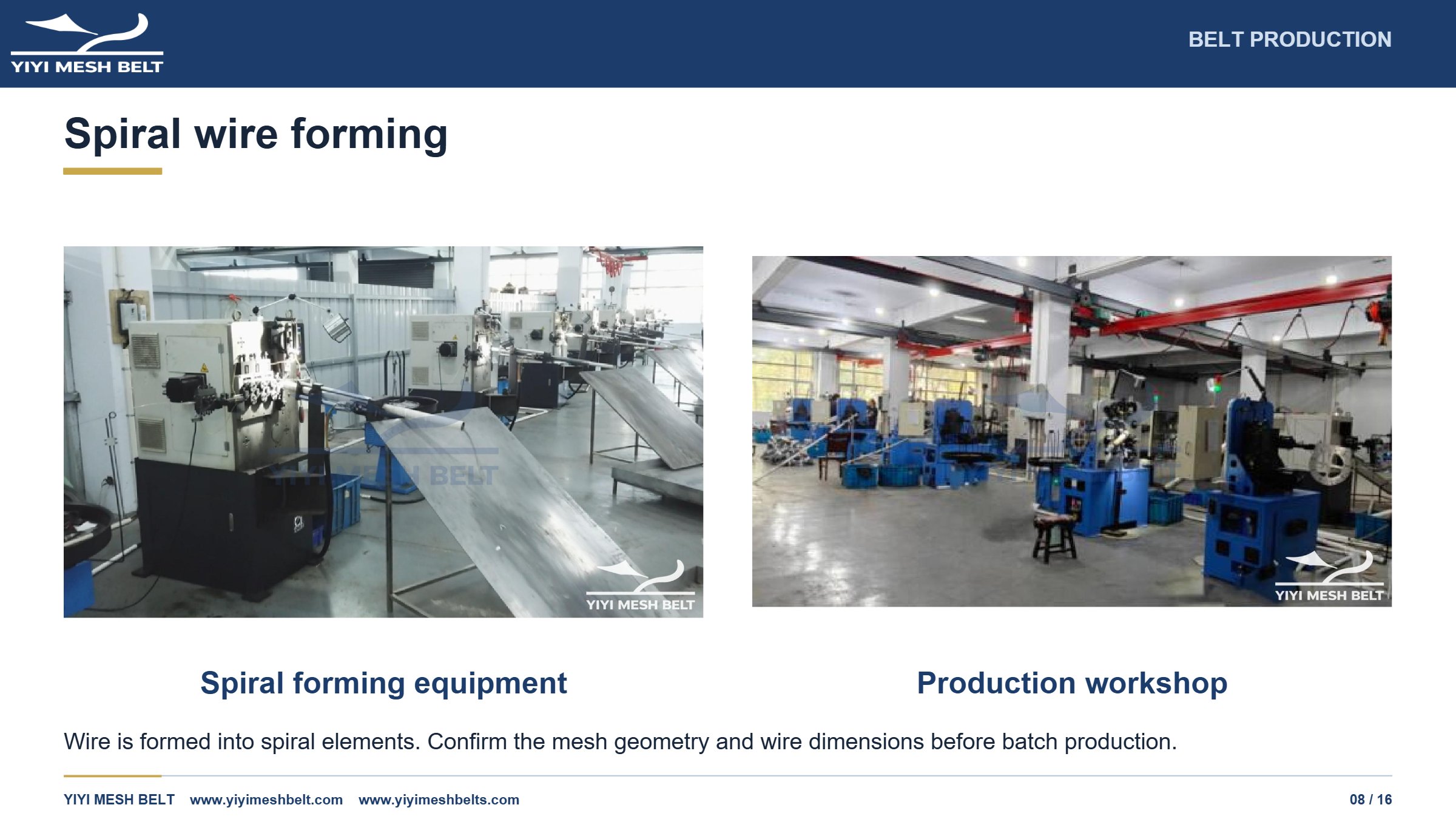

Page 8. BELT PRODUCTION Spiral wire forming Spiral forming equipment Production workshop Wire is formed into spiral elements. Confirm the mesh geometry and wire dimensions before batch production.

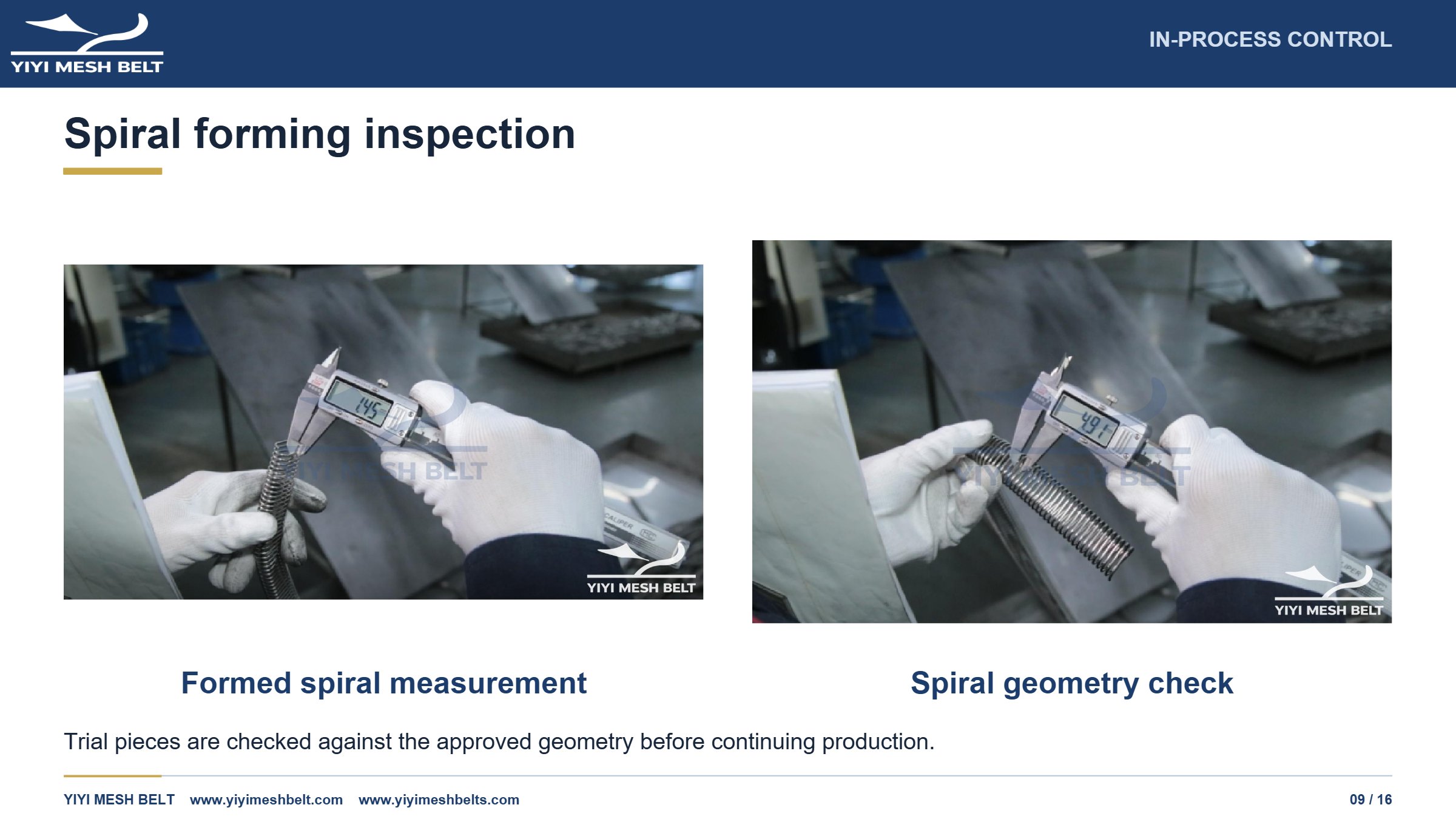

Page 9. IN-PROCESS CONTROL Spiral forming inspection Formed spiral measurement Spiral geometry check Trial pieces are checked against the approved geometry before continuing production.

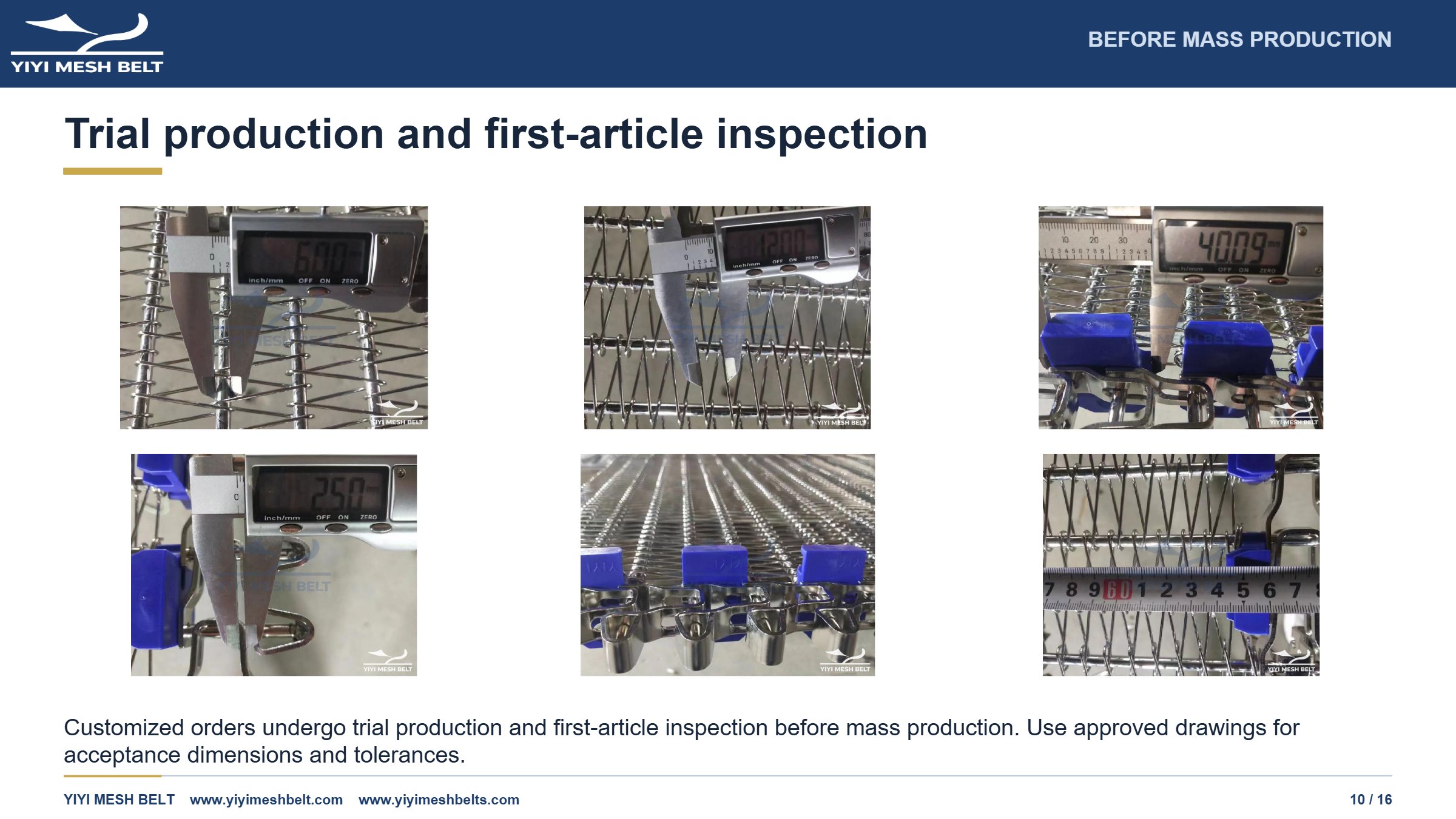

Page 10. BEFORE MASS PRODUCTION Trial production and first-article inspection Customized orders undergo trial production and first-article inspection before mass production. Use approved drawings for acceptance dimensions and tolerances.

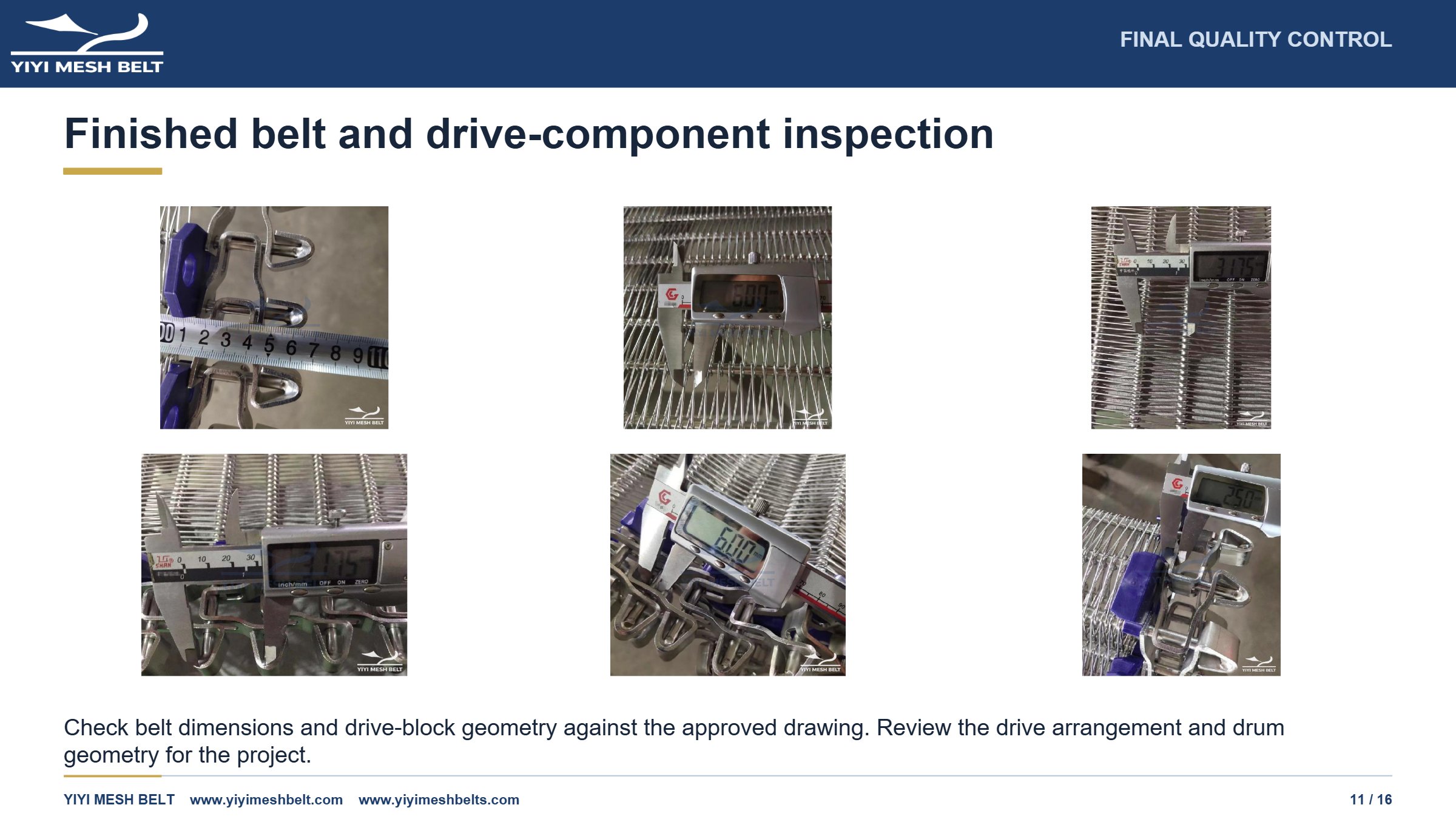

Page 11. FINAL QUALITY CONTROL Finished belt and drive-component inspection Check belt dimensions and drive-block geometry against the approved drawing. Review the drive arrangement and drum geometry for the project.

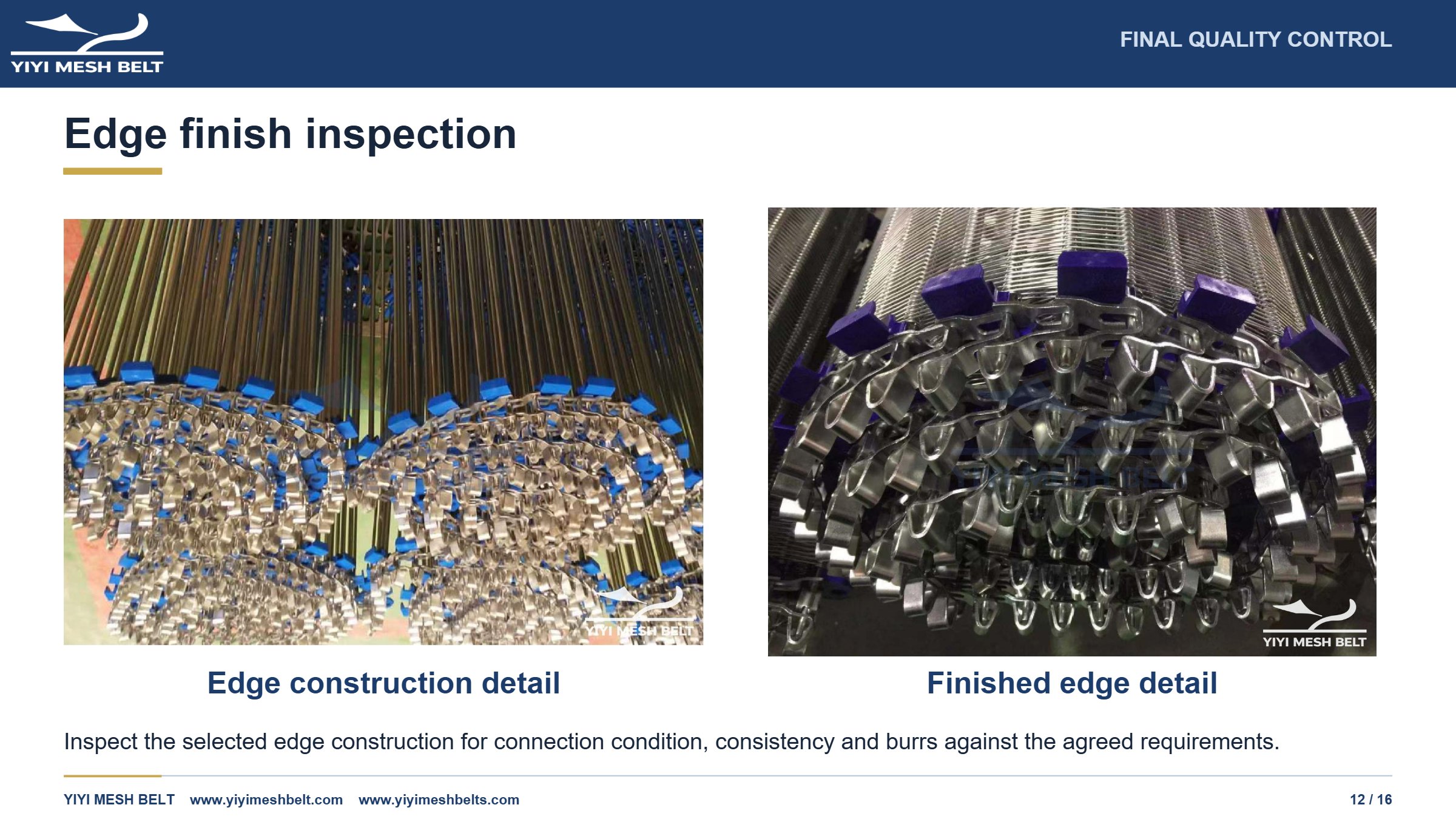

Page 12. FINAL QUALITY CONTROL Edge finish inspection Edge construction detail Finished edge detail Inspect the selected edge construction for connection condition, consistency and burrs against the agreed requirements.

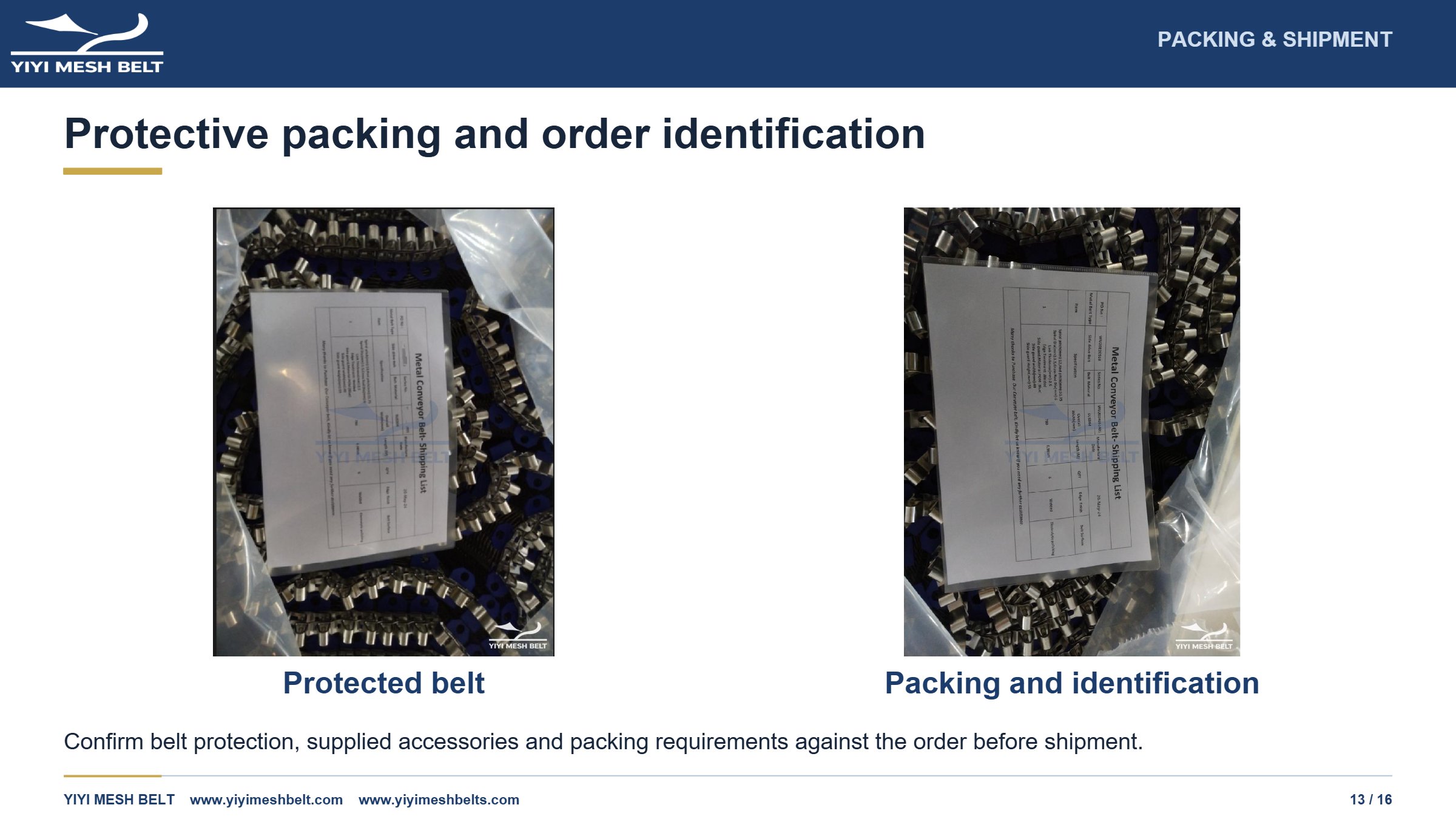

Page 13. PACKING & SHIPMENT Protective packing and order identification Protected belt Packing and identification Confirm belt protection, supplied accessories and packing requirements against the order before shipment.

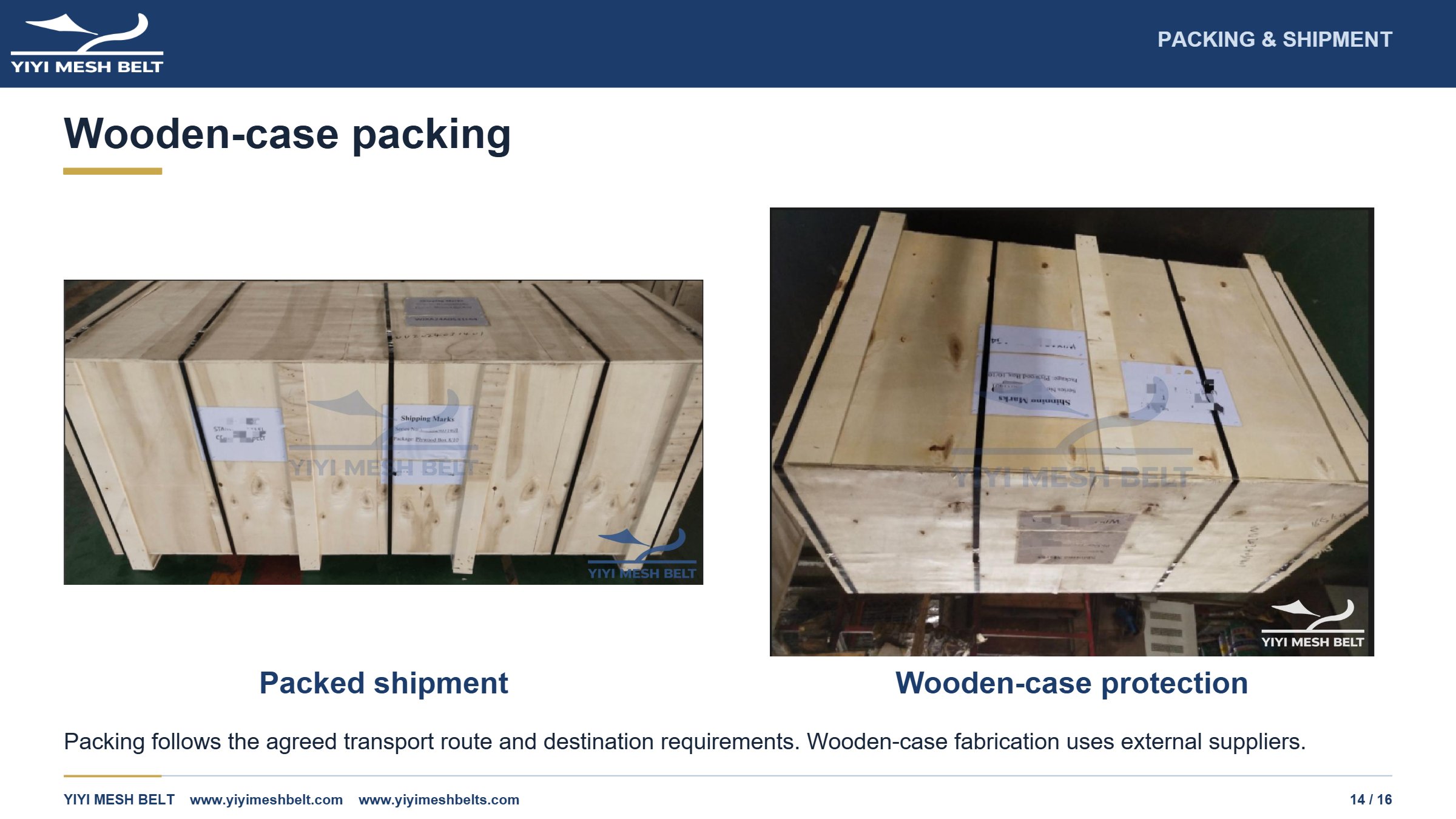

Page 14. PACKING & SHIPMENT Wooden-case packing Packed shipment Wooden-case protection Packing follows the agreed transport route and destination requirements. Wooden-case fabrication uses external suppliers.

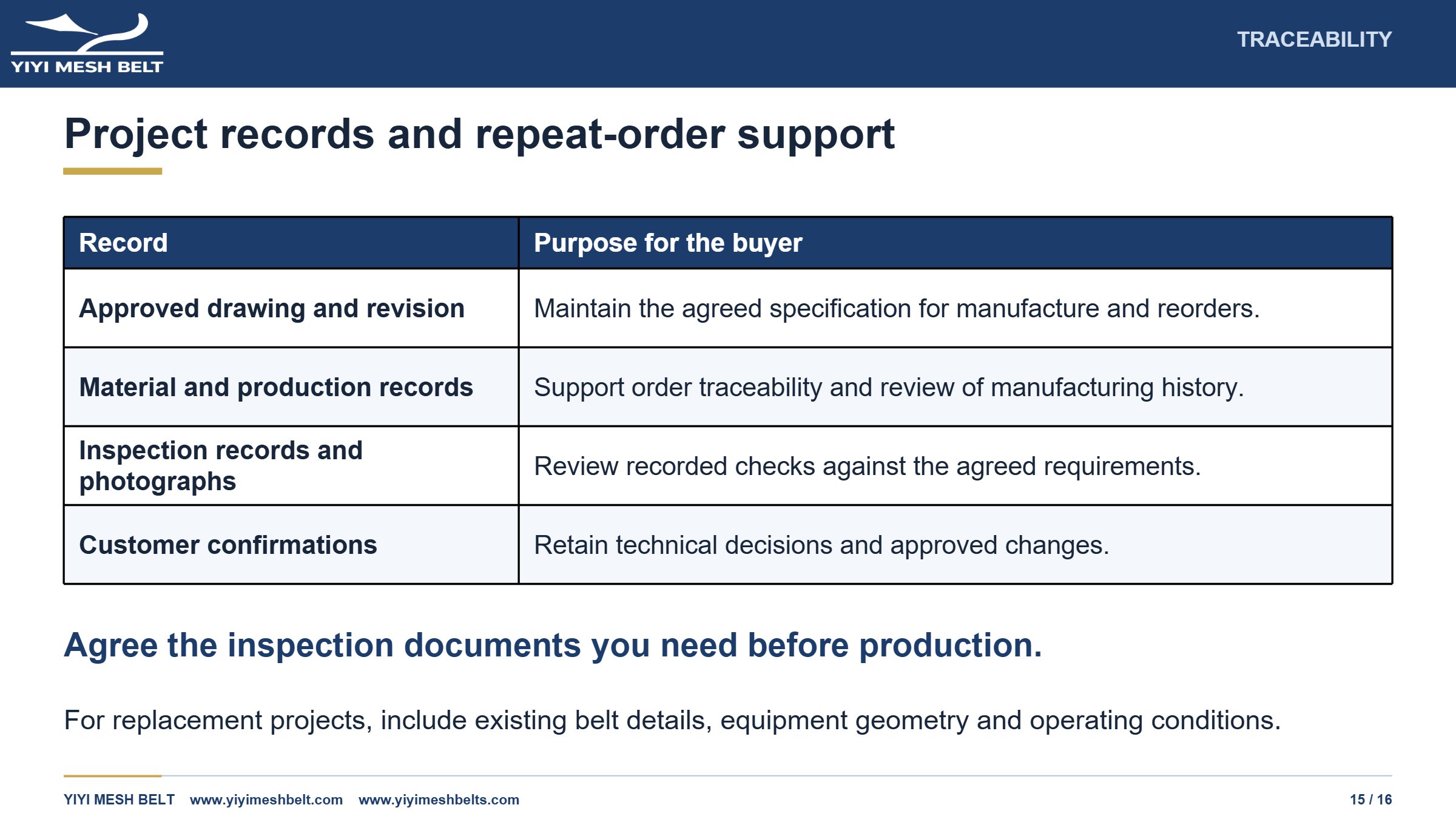

Page 15. TRACEABILITY Project records and repeat-order support Record Purpose for the buyer Approved drawing and revision Maintain the agreed specification for manufacture and reorders. Material and production records Support order traceability and review of manufacturing history. Inspection records and photographs Review recorded checks against the agreed requirements. Customer confirmations Retain technical decisions and approved changes. Agree the inspection documents you need before production. For replacement projects, include existing belt details, equipment geometry and operating conditions.
Page 16. PROVEN · STABLE · VERIFIED Metal Conveyor Belt Manufacturer Email: info@yiyimeshbelt.com Phone / WhatsApp: +86 134 5177 3742 Website: www.yiyimeshbelt.com www.yiyimeshbelts.com Company: Ningjin Yiyi Mesh Belt Co., Ltd. Send Your Drawing for Production Review Belt dimensions (mm / in) Equipment / drum geometry Material and operating conditions Inspection requirements Existing belt photos / sample Request an Engineering Review for OEMs & Professional Distributors
