YIYI Mesh Belt Side Driven Belt Technical Specification
Check what matters before you request a quote: key dimensions in mm and inches, pitch options, surface finishes, drive sprocket options and typical applications. Compare it with your current belt or drawing, then send us the drawing or photos of your old belt for review.
Text version of this document
Page 1. TECHNICAL SPECIFICATION SIDE DRIVEN BELT Stainless steel and POM configurations Dimensions in mm and in PROVEN · STABLE · VERIFIED

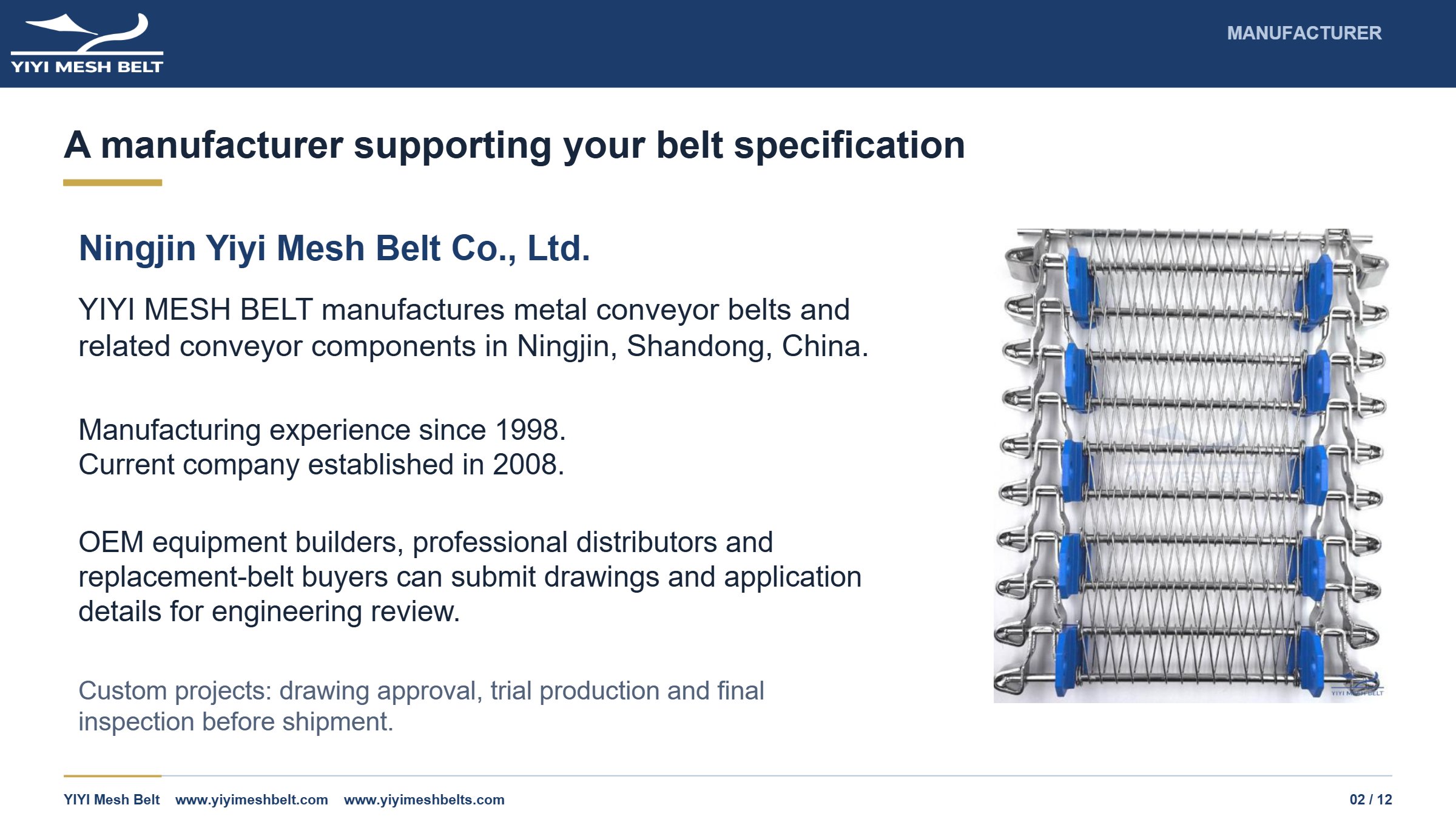

Page 2. MANUFACTURER A manufacturer supporting your belt specification Ningjin Yiyi Mesh Belt Co., Ltd. YIYI MESH BELT manufactures metal conveyor belts and related conveyor components in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. OEM equipment builders, professional distributors and replacement-belt buyers can submit drawings and application details for engineering review. Custom projects: drawing approval, trial production and final inspection before shipment.

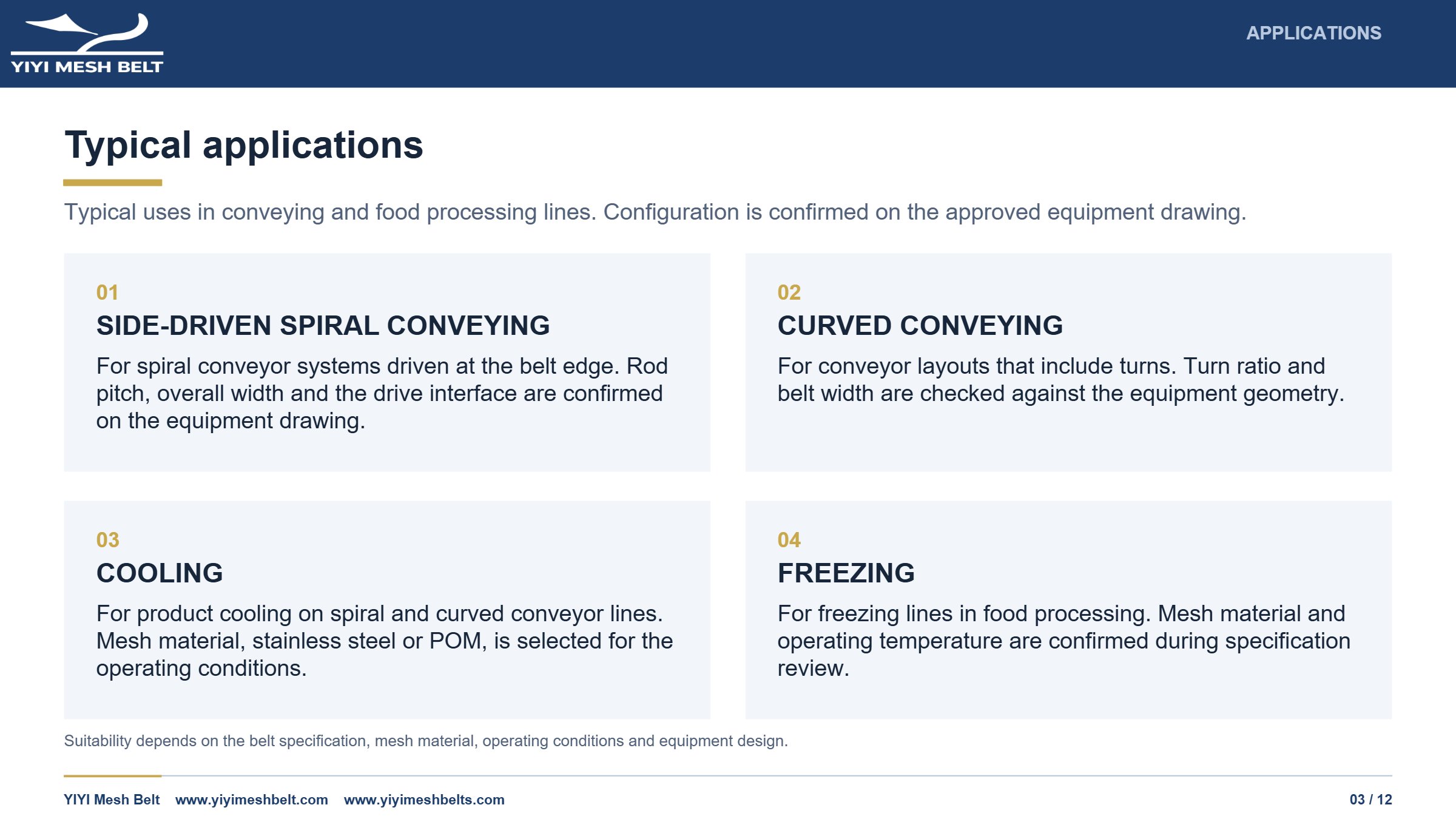

Page 3. APPLICATIONS Typical applications Typical uses in conveying and food processing lines. Configuration is confirmed on the approved equipment drawing. 01 SIDE-DRIVEN SPIRAL CONVEYING For spiral conveyor systems driven at the belt edge. Rod pitch, overall width and the drive interface are confirmed on the equipment drawing. 02 CURVED CONVEYING For conveyor layouts that include turns. Turn ratio and belt width are checked against the equipment geometry. 03 COOLING For product cooling on spiral and curved conveyor lines. Mesh material, stainless steel or POM, is selected for the operating conditions. 04 FREEZING For freezing lines in food processing. Mesh material and operating temperature are confirmed during specification review. Suitability depends on the belt specification, mesh material, operating conditions and equipment design.

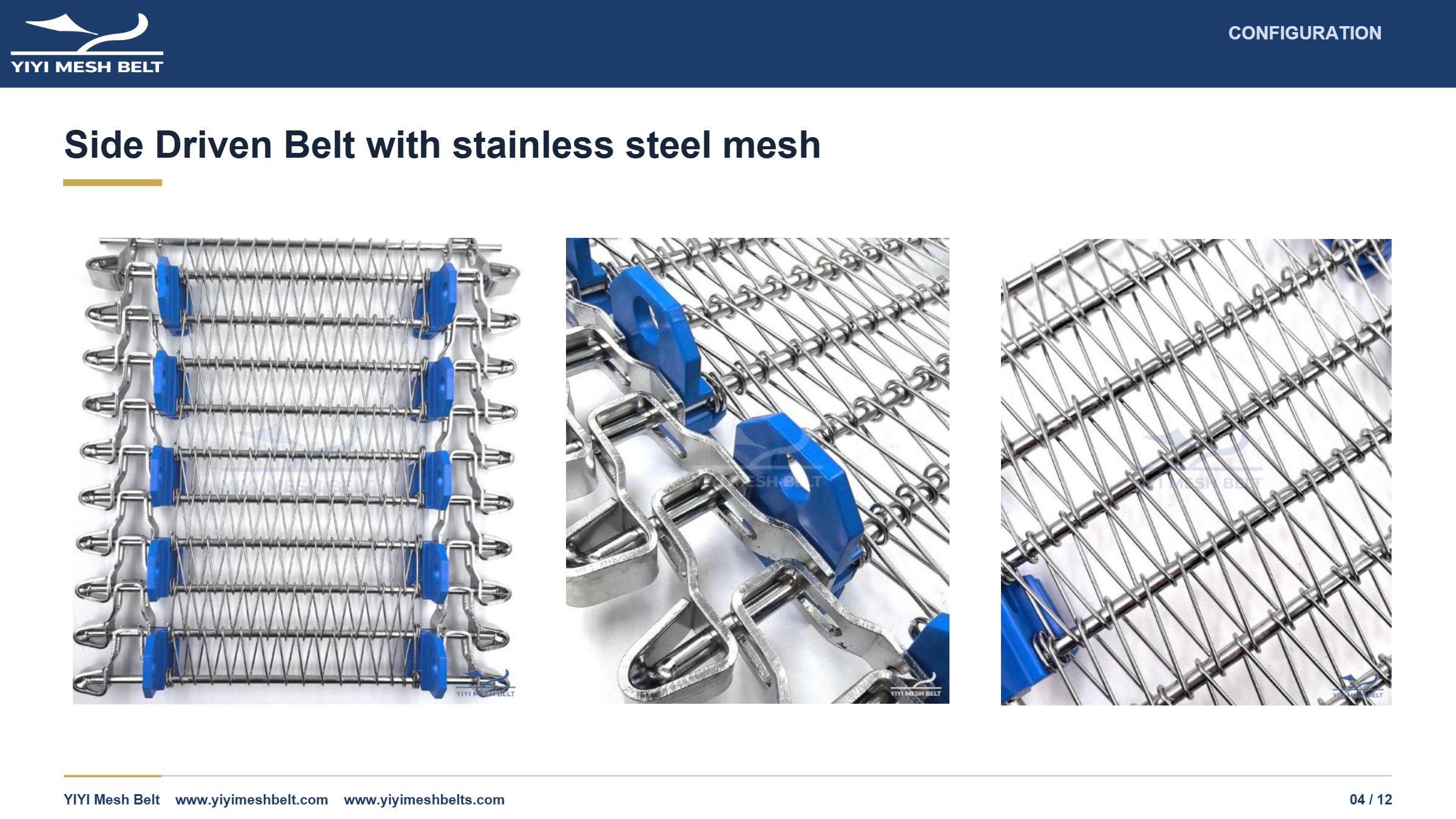

Page 4. CONFIGURATION Side Driven Belt with stainless steel mesh

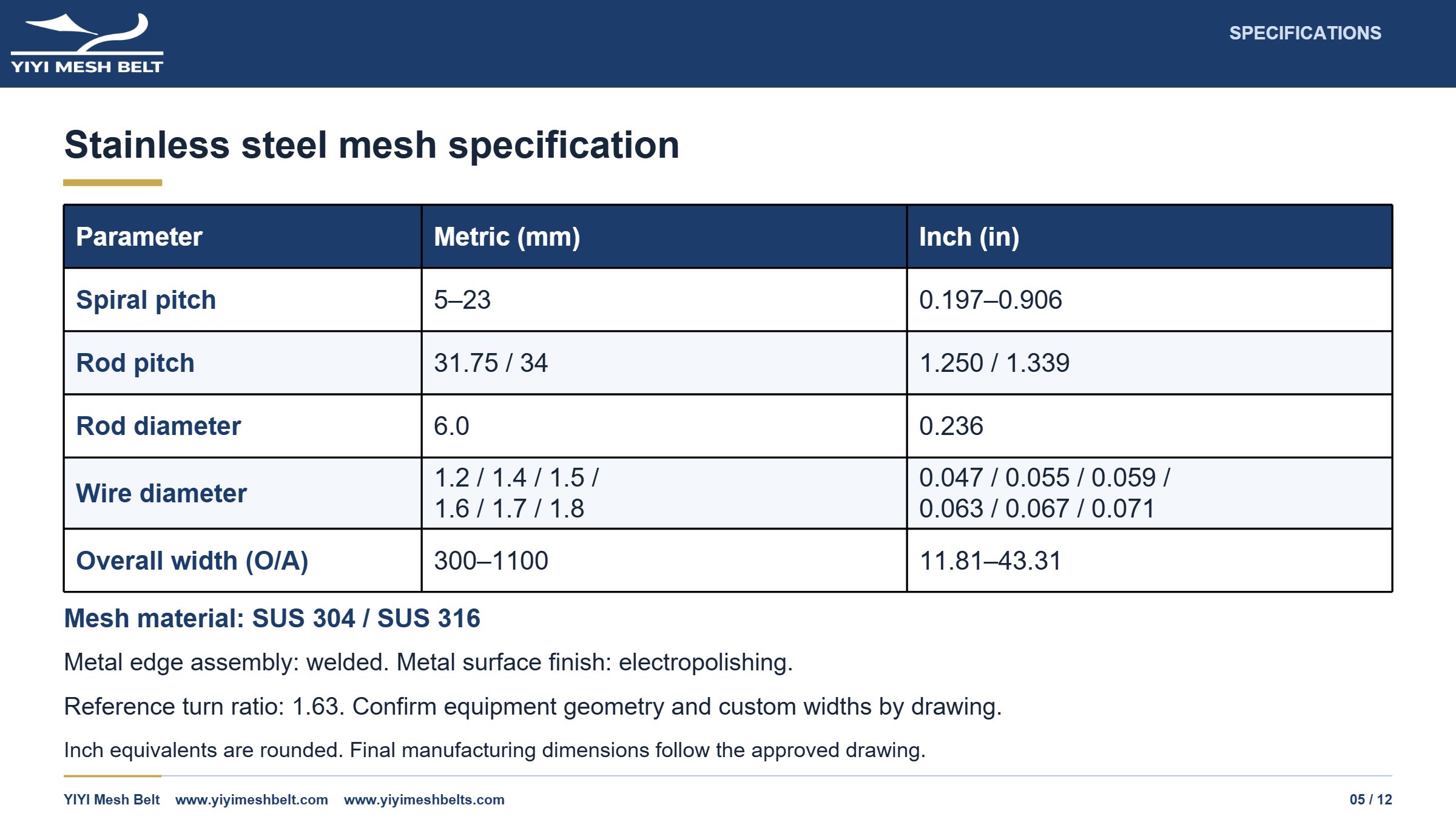

Page 5. SPECIFICATIONS Stainless steel mesh specification Parameter Metric (mm) Inch (in) Spiral pitch 5–23 0.197–0.906 Rod pitch 31.75 / 34 1.250 / 1.339 Rod diameter 6.0 0.236 Wire diameter 1.2 / 1.4 / 1.5 / 1.6 / 1.7 / 1.8 0.047 / 0.055 / 0.059 / 0.063 / 0.067 / 0.071 Overall width (O/A) 300–1100 11.81–43.31 Mesh material: SUS 304 / SUS 316 Metal edge assembly: welded. Metal surface finish: electropolishing. Reference turn ratio: 1.63. Confirm equipment geometry and custom widths by drawing. Inch equivalents are rounded. Final manufacturing dimensions follow the approved drawing.

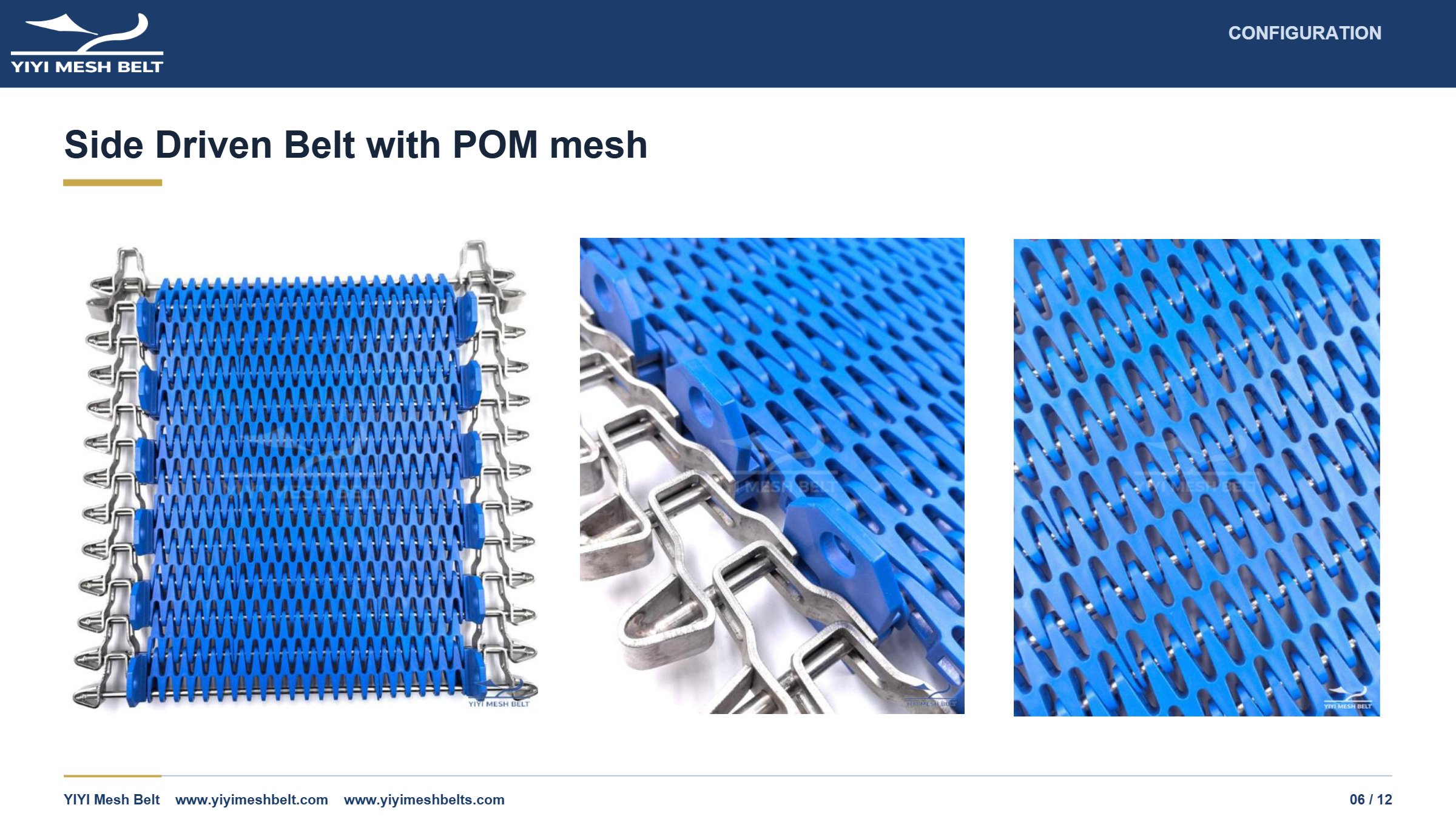

Page 6. CONFIGURATION Side Driven Belt with POM mesh

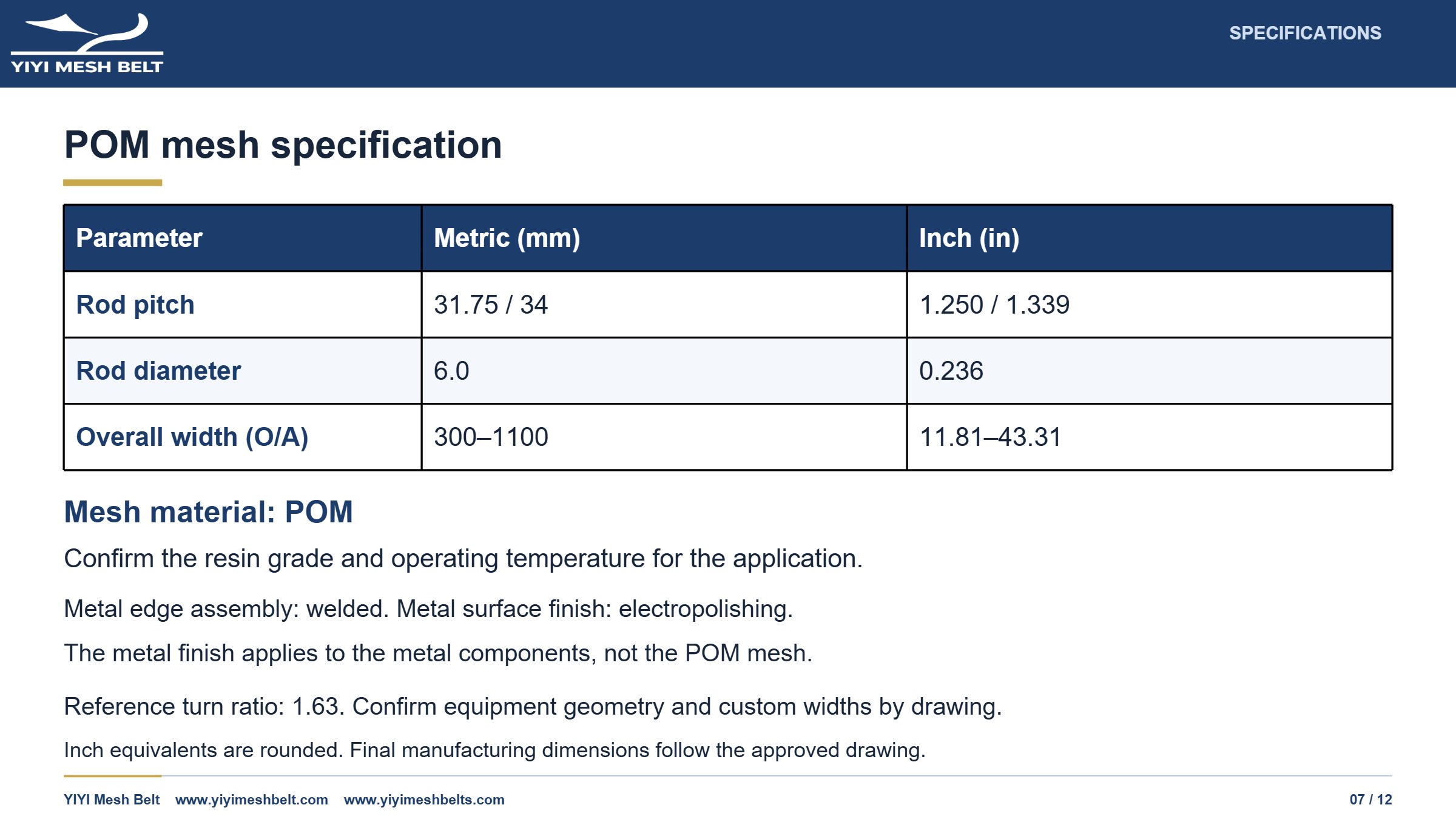

Page 7. SPECIFICATIONS POM mesh specification Parameter Metric (mm) Inch (in) Rod pitch 31.75 / 34 1.250 / 1.339 Rod diameter 6.0 0.236 Overall width (O/A) 300–1100 11.81–43.31 Mesh material: POM Confirm the resin grade and operating temperature for the application. Metal edge assembly: welded. Metal surface finish: electropolishing. The metal finish applies to the metal components, not the POM mesh. Reference turn ratio: 1.63. Confirm equipment geometry and custom widths by drawing. Inch equivalents are rounded. Final manufacturing dimensions follow the approved drawing.

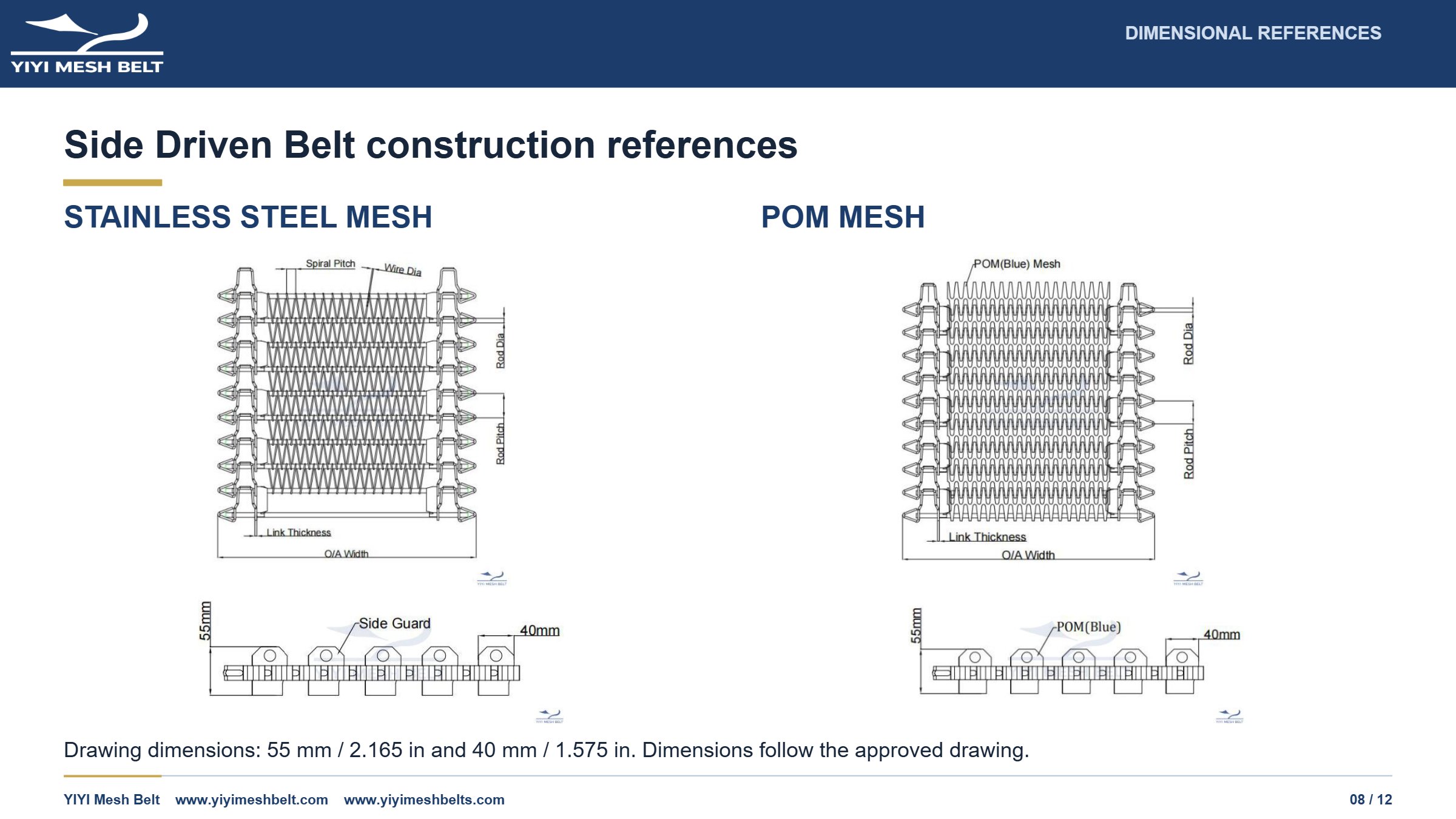

Page 8. DIMENSIONAL REFERENCES Side Driven Belt construction references STAINLESS STEEL MESH POM MESH Drawing dimensions: 55 mm / 2.165 in and 40 mm / 1.575 in. Dimensions follow the approved drawing.

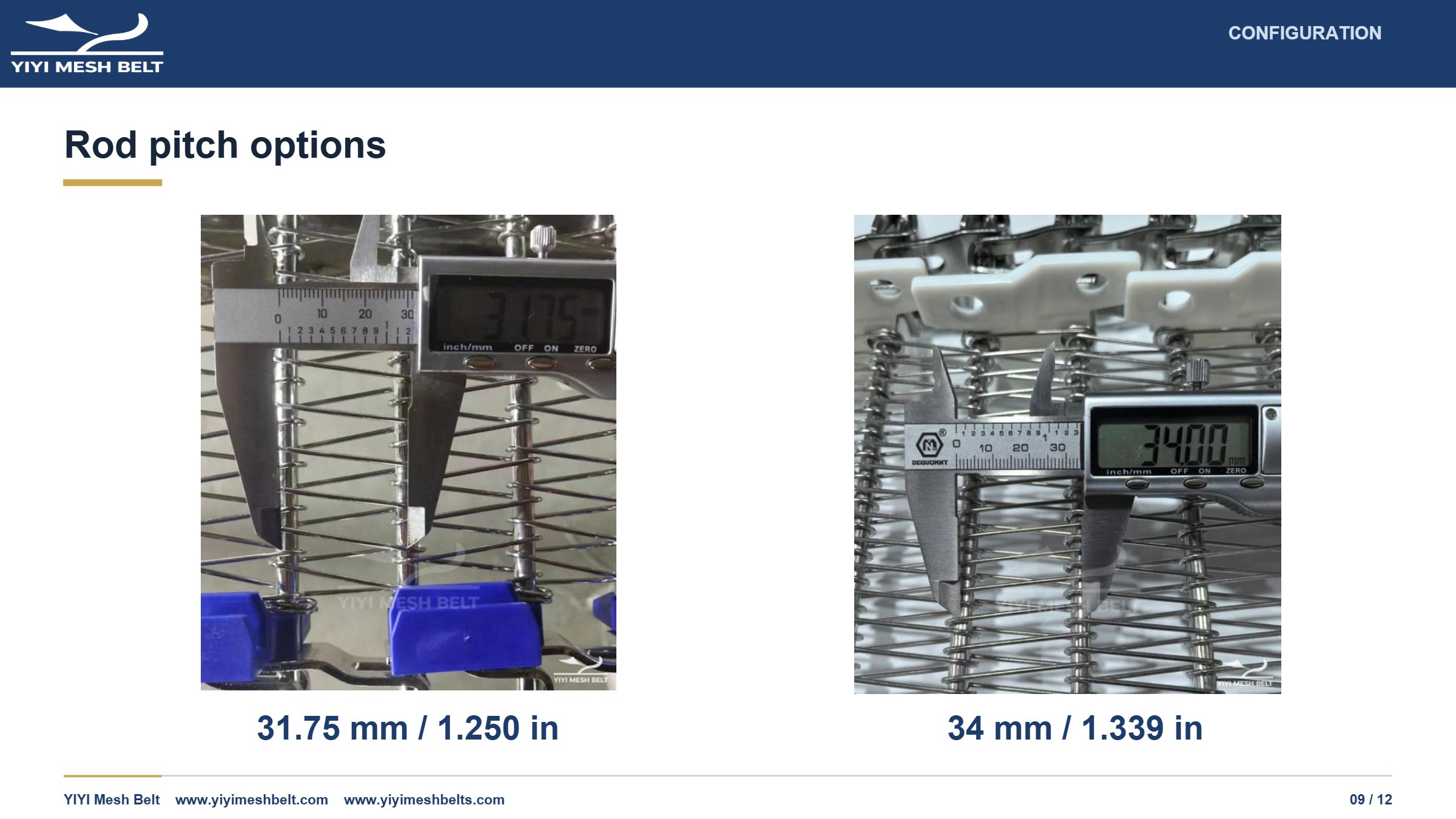

Page 9. CONFIGURATION Rod pitch options 31.75 mm / 1.250 in 34 mm / 1.339 in

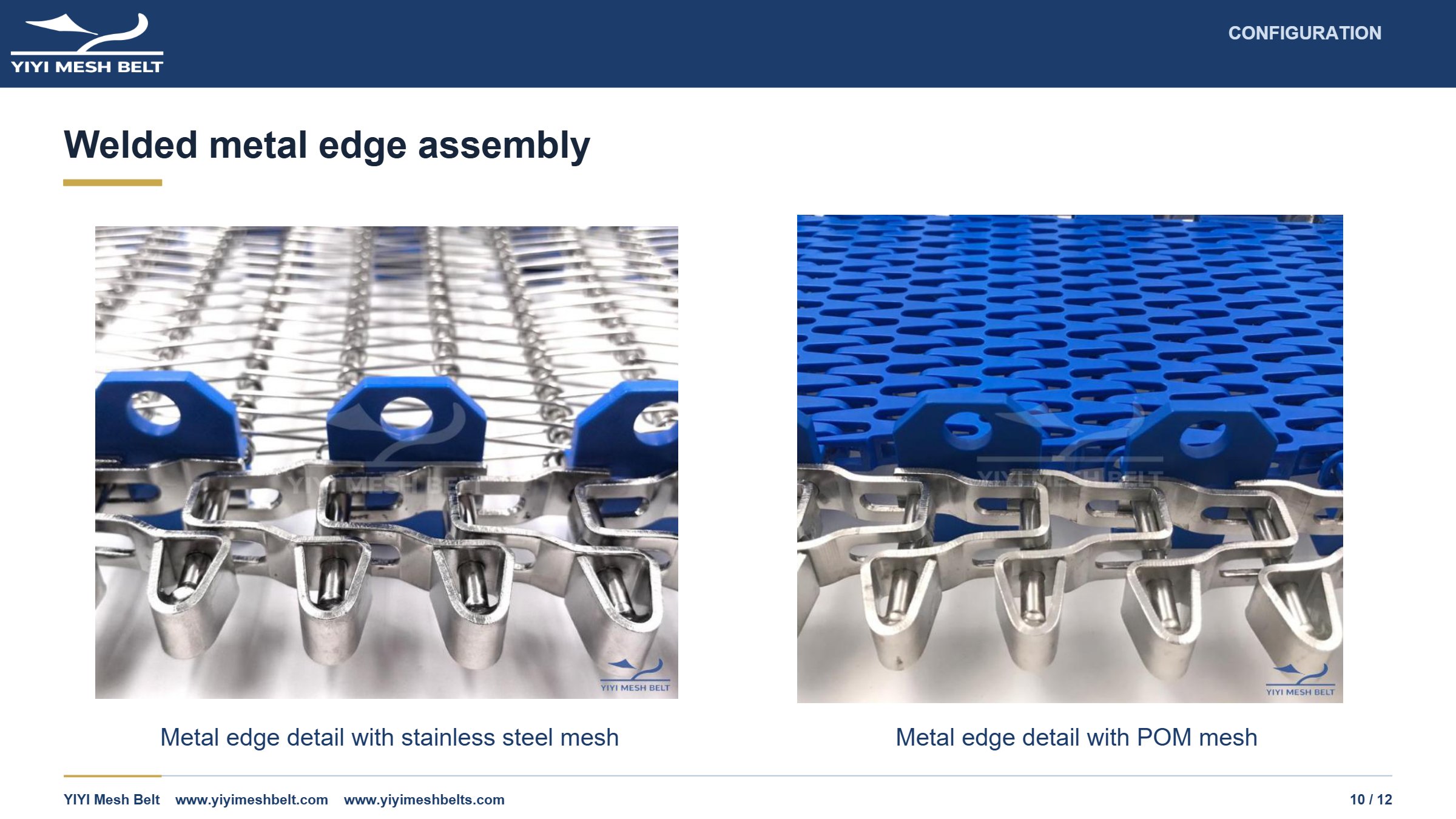

Page 10. CONFIGURATION Welded metal edge assembly Metal edge detail with stainless steel mesh Metal edge detail with POM mesh

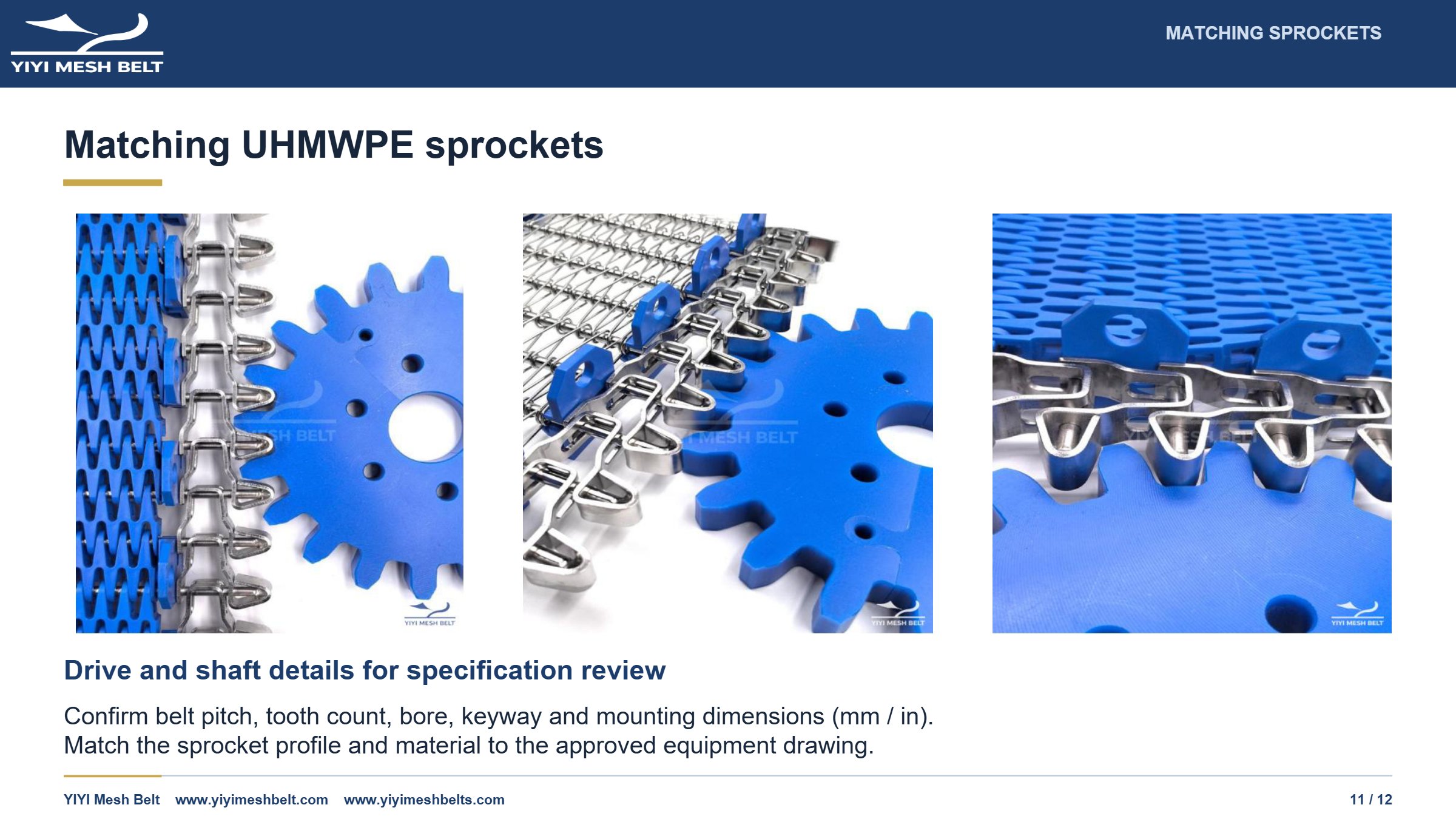

Page 11. MATCHING SPROCKETS Matching UHMWPE sprockets Drive and shaft details for specification review Confirm belt pitch, tooth count, bore, keyway and mounting dimensions (mm / in). Match the sprocket profile and material to the approved equipment drawing.
