YIYI Mesh Belt Spiral Freezer Belt Production and Quality Control
See how your Spiral Freezer Belt is made and checked before it ships: drawing approval, trial production and first-article inspection, in-house wire drawing, material testing, robotic edge welding, in-process dimensional checks, drum matching checks, 100% final inspection before shipment, wooden-case packing and project records for repeat orders. Use it as a checklist of what to confirm with us before production.
Text version of this document

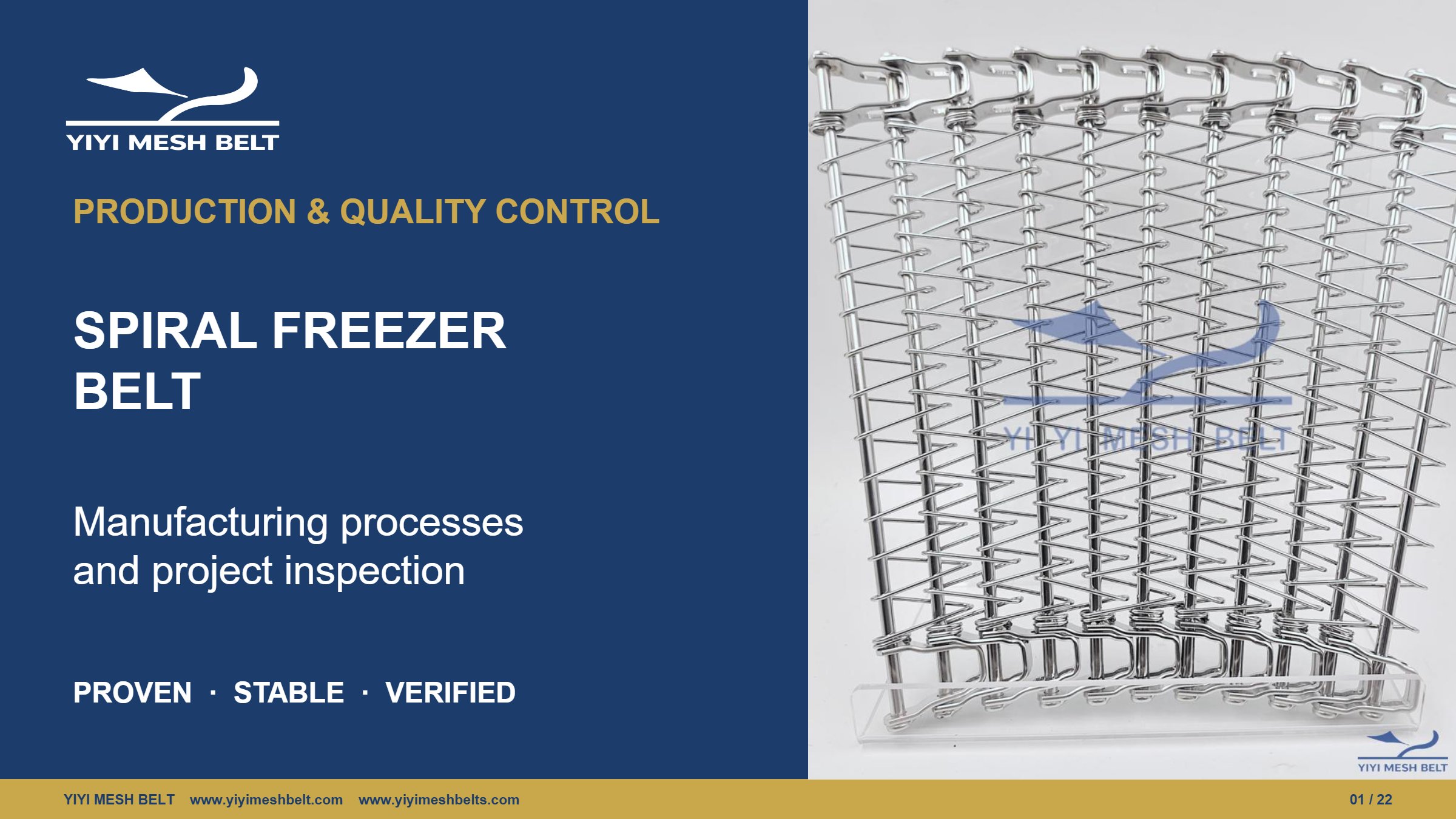

Page 1. PRODUCTION & QUALITY CONTROL SPIRAL FREEZER BELT Manufacturing processes and project inspection PROVEN · STABLE · VERIFIED

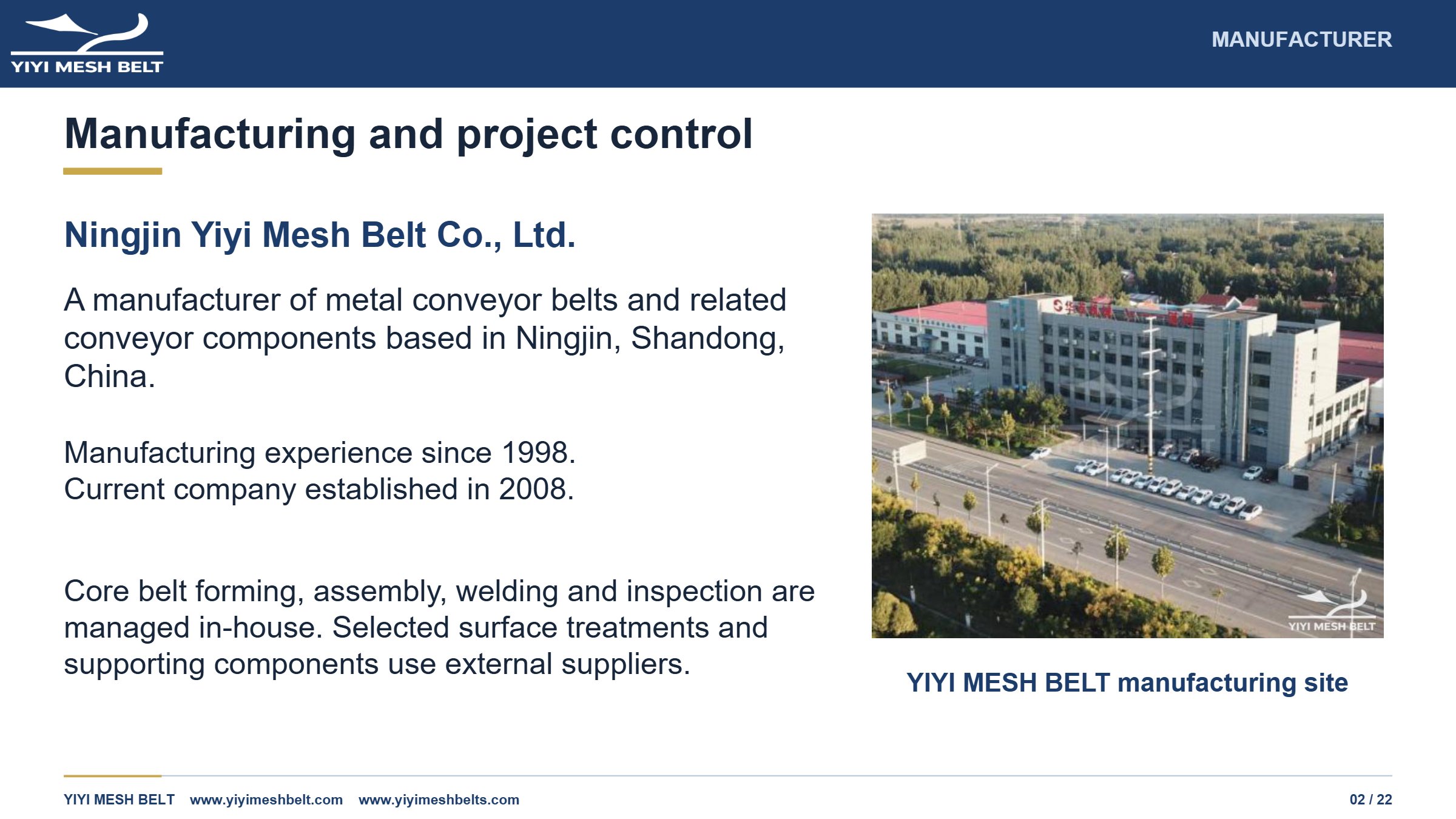

Page 2. MANUFACTURER Manufacturing and project control Ningjin Yiyi Mesh Belt Co., Ltd. A manufacturer of metal conveyor belts and related conveyor components based in Ningjin, Shandong, China. Manufacturing experience since 1998. Current company established in 2008. Core belt forming, assembly, welding and inspection are managed in-house. Selected surface treatments and supporting components use external suppliers. YIYI MESH BELT manufacturing site

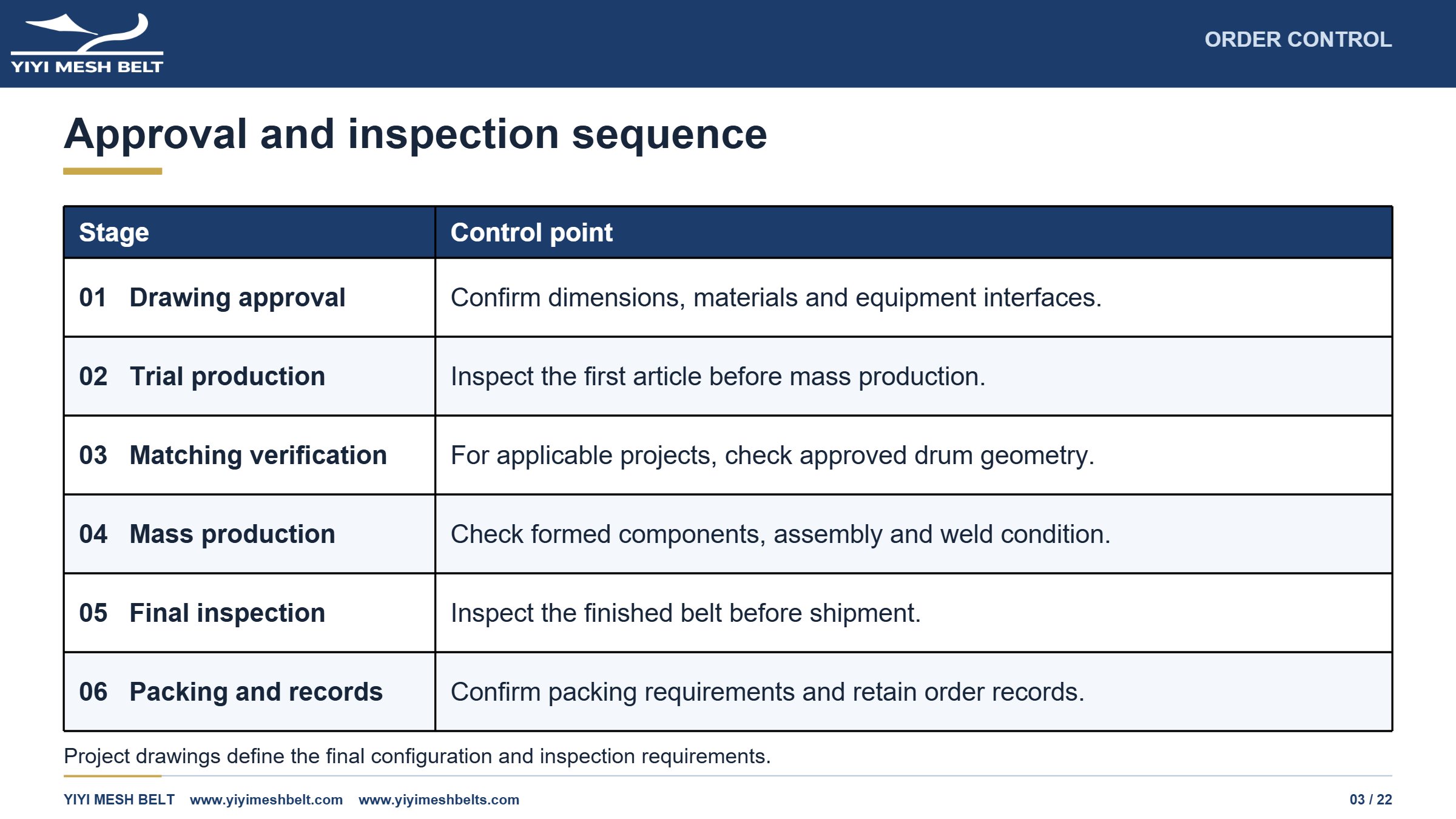

Page 3. ORDER CONTROL Approval and inspection sequence Stage Control point 01 Drawing approval Confirm dimensions, materials and equipment interfaces. 02 Trial production Inspect the first article before mass production. 03 Matching verification For applicable projects, check approved drum geometry. 04 Mass production Check formed components, assembly and weld condition. 05 Final inspection Inspect the finished belt before shipment. 06 Packing and records Confirm packing requirements and retain order records. Project drawings define the final configuration and inspection requirements.

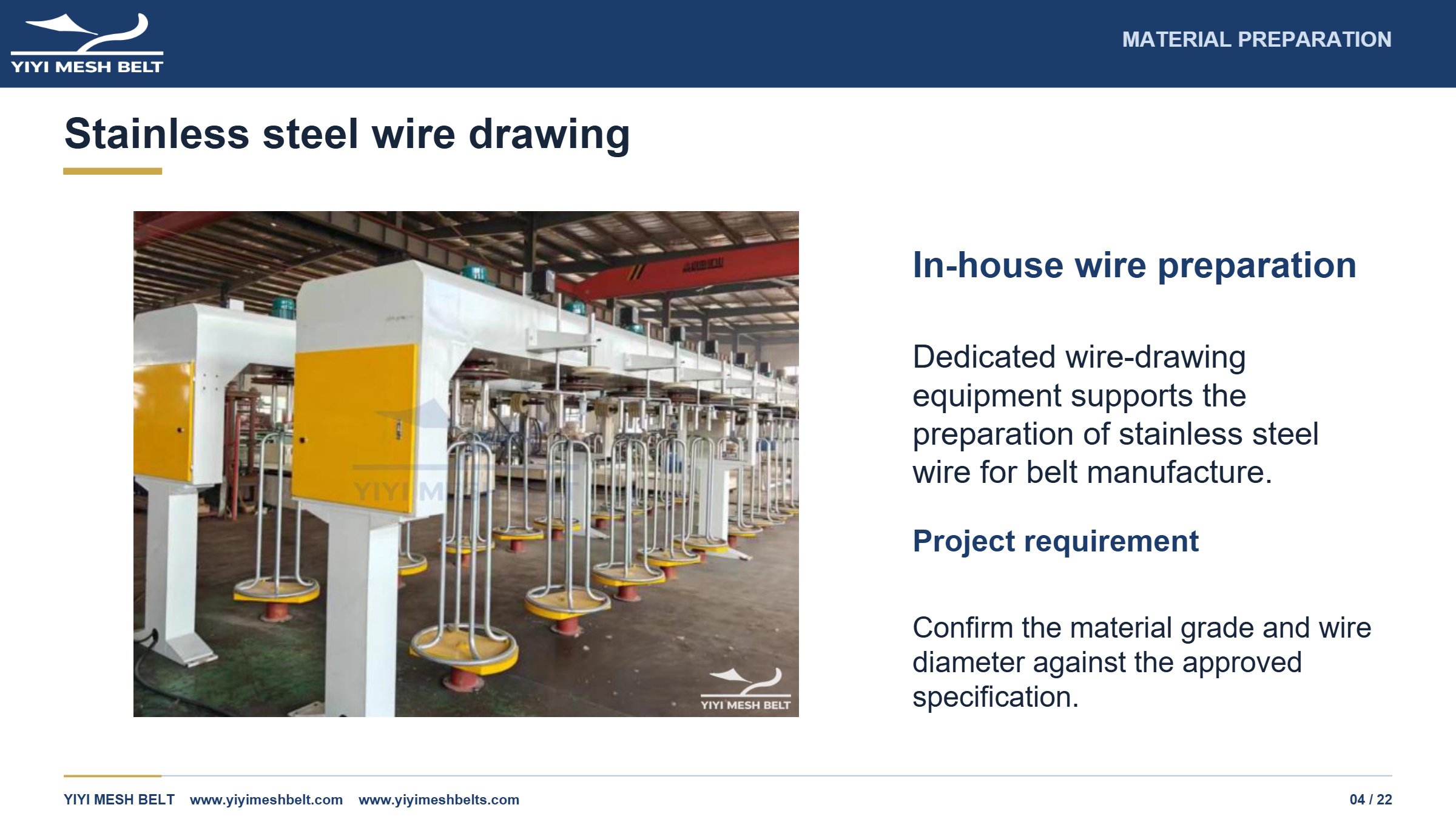

Page 4. MATERIAL PREPARATION Stainless steel wire drawing In-house wire preparation Dedicated wire-drawing equipment supports the preparation of stainless steel wire for belt manufacture. Project requirement Confirm the material grade and wire diameter against the approved specification.

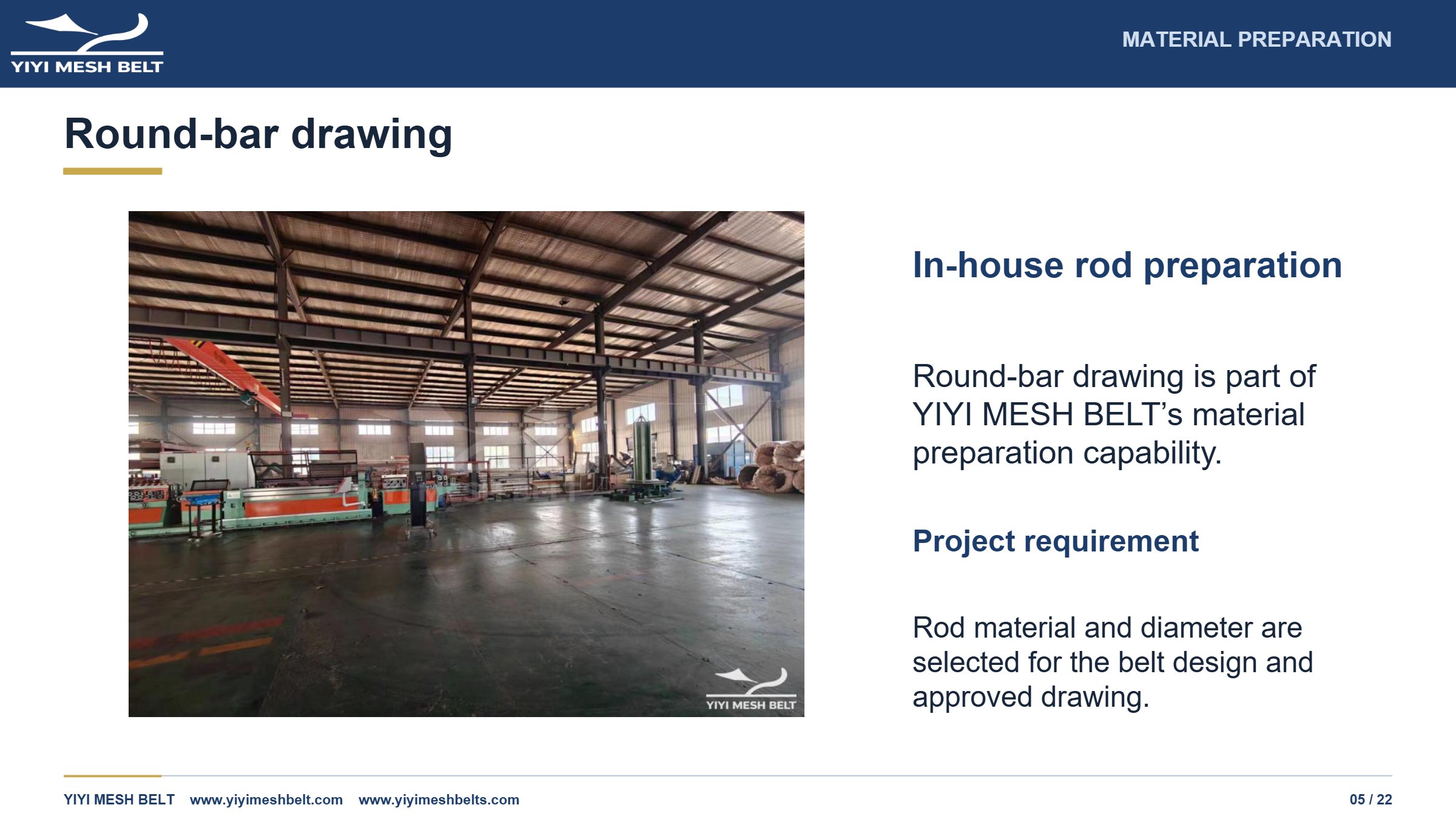

Page 5. MATERIAL PREPARATION Round-bar drawing In-house rod preparation Round-bar drawing is part of YIYI MESH BELT’s material preparation capability. Project requirement Rod material and diameter are selected for the belt design and approved drawing.

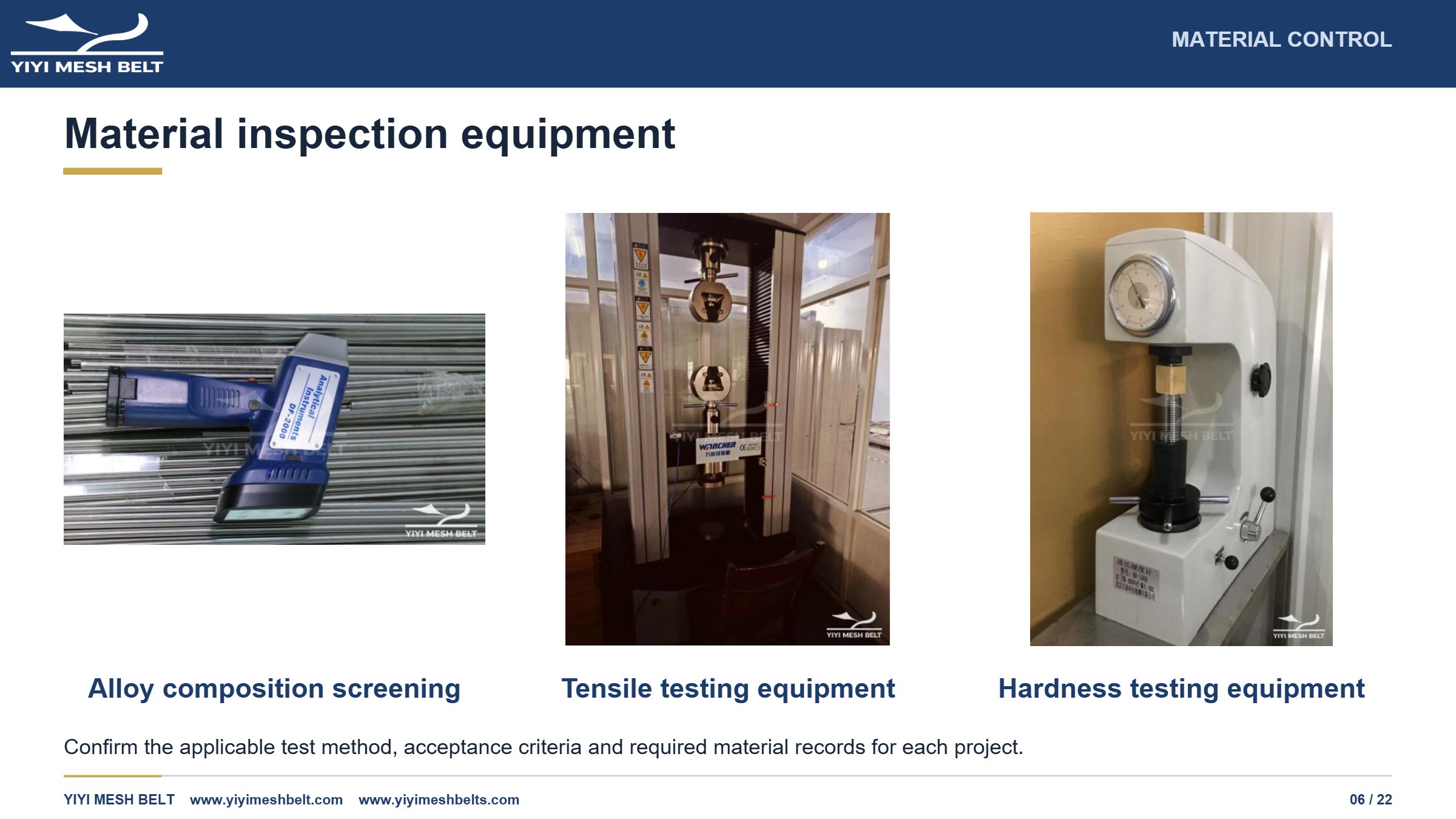

Page 6. MATERIAL CONTROL Material inspection equipment Alloy composition screening Tensile testing equipment Hardness testing equipment Confirm the applicable test method, acceptance criteria and required material records for each project.

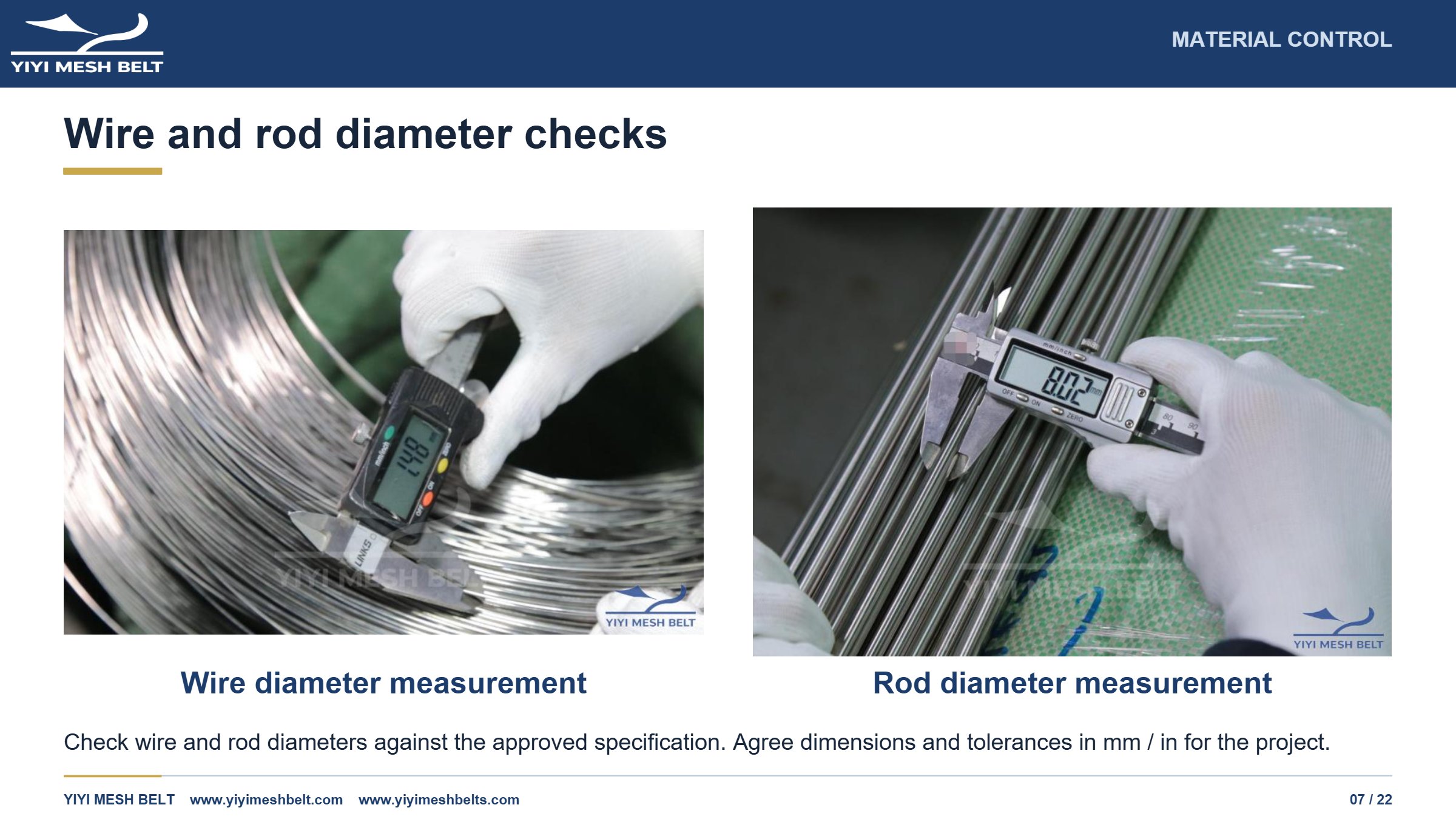

Page 7. MATERIAL CONTROL Wire and rod diameter checks Wire diameter measurement Rod diameter measurement Check wire and rod diameters against the approved specification. Agree dimensions and tolerances in mm / in for the project.

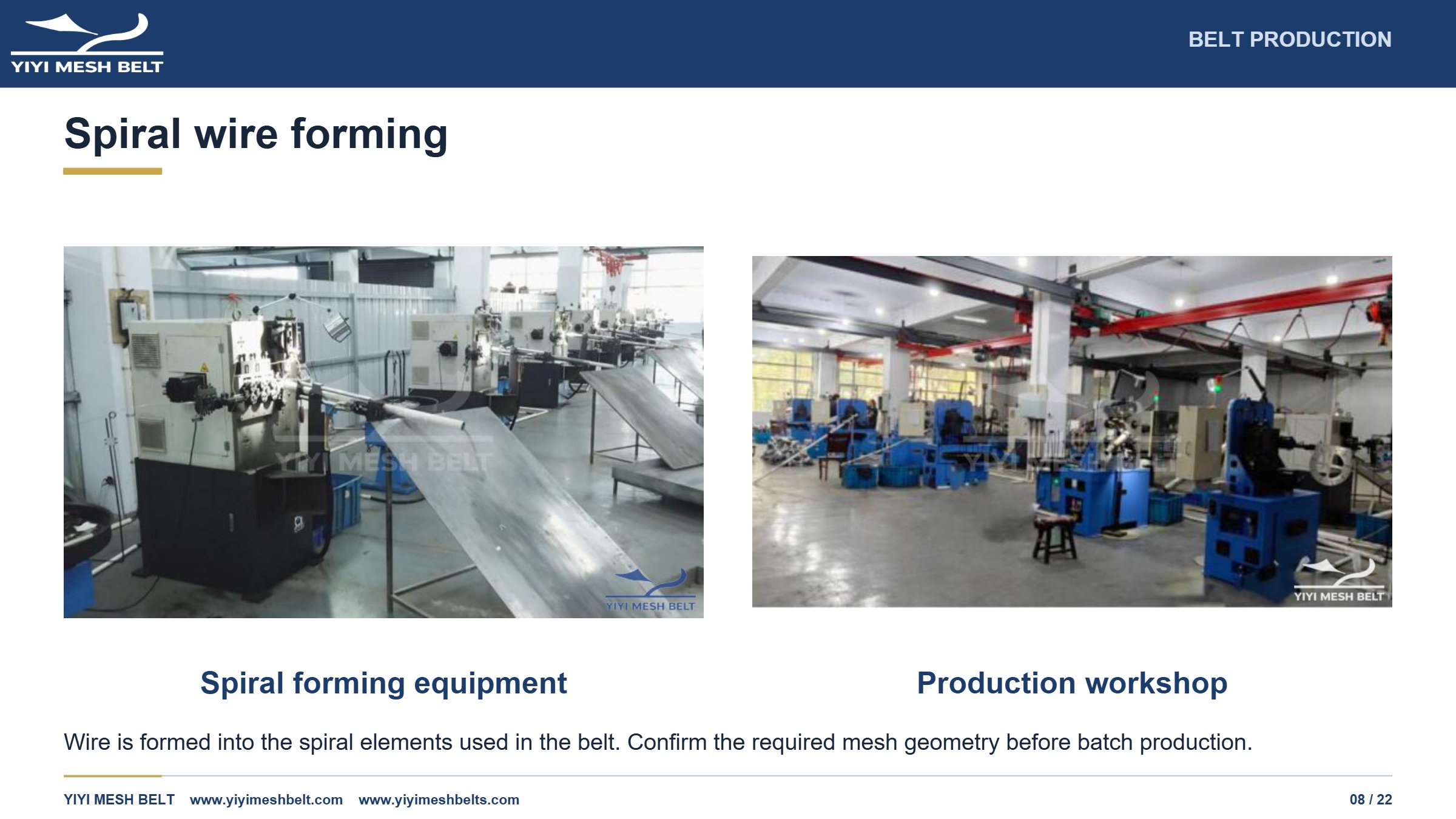

Page 8. BELT PRODUCTION Spiral wire forming Spiral forming equipment Production workshop Wire is formed into the spiral elements used in the belt. Confirm the required mesh geometry before batch production.

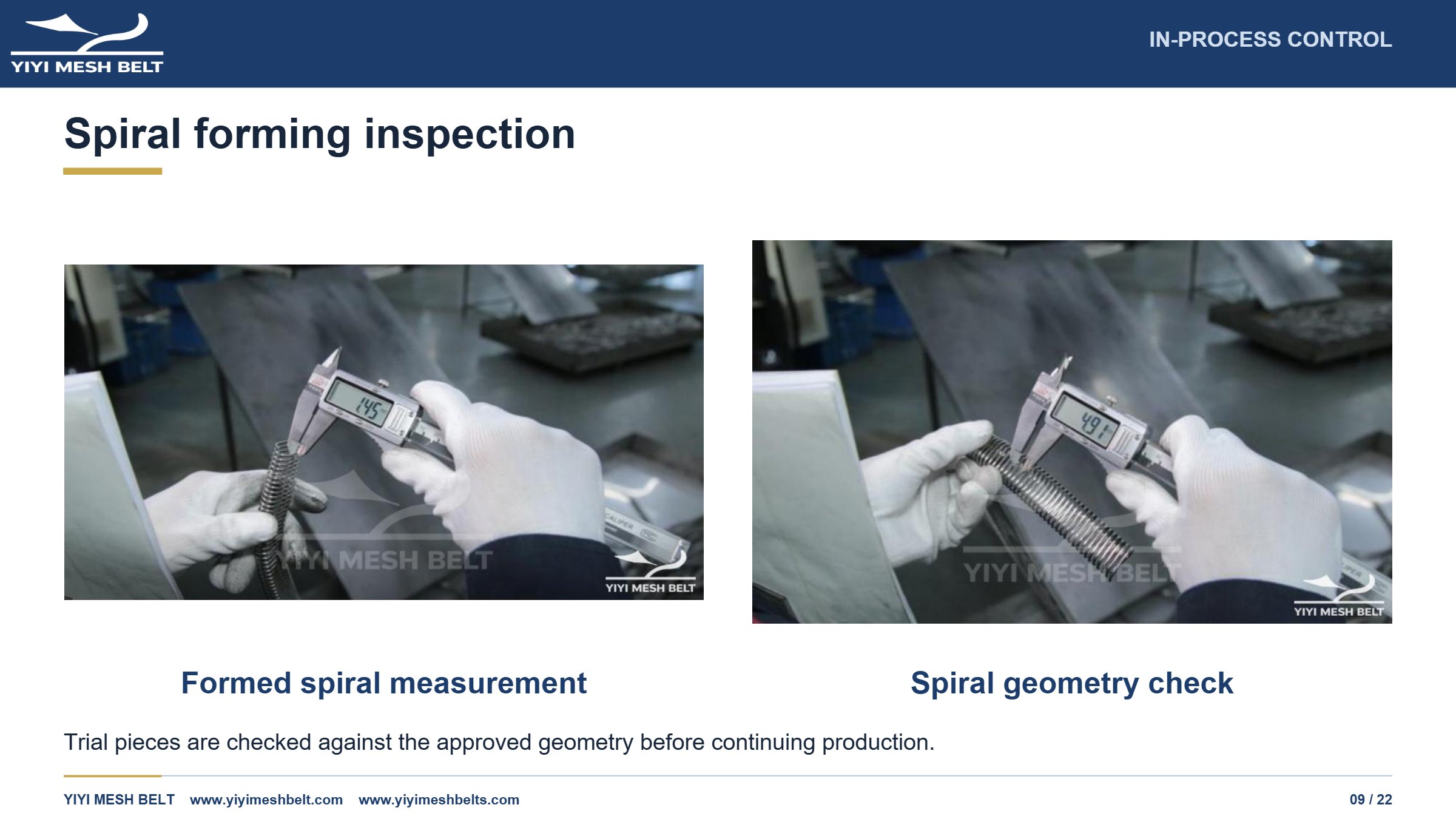

Page 9. IN-PROCESS CONTROL Spiral forming inspection Formed spiral measurement Spiral geometry check Trial pieces are checked against the approved geometry before continuing production.

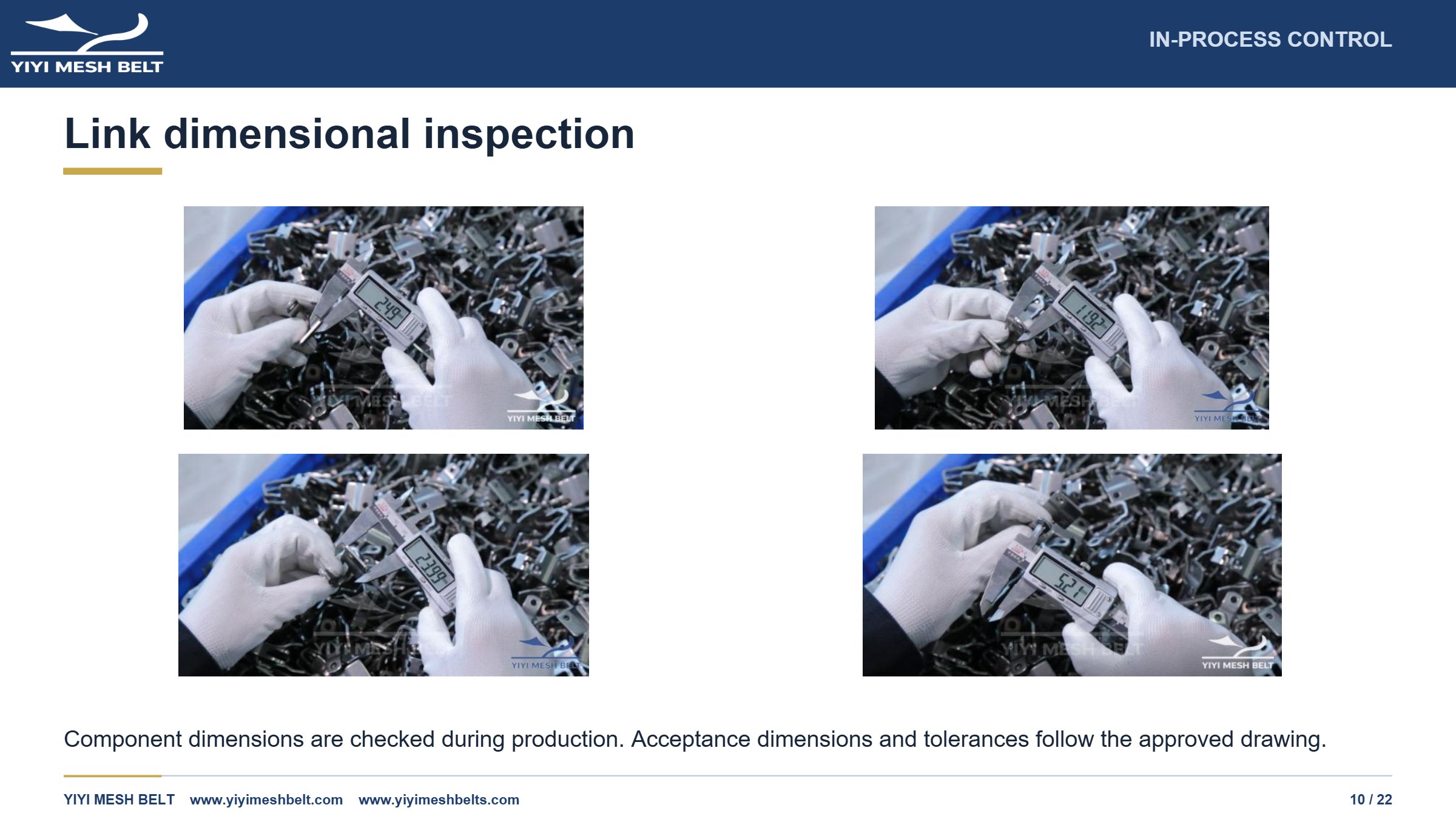

Page 10. IN-PROCESS CONTROL Link dimensional inspection Component dimensions are checked during production. Acceptance dimensions and tolerances follow the approved drawing.

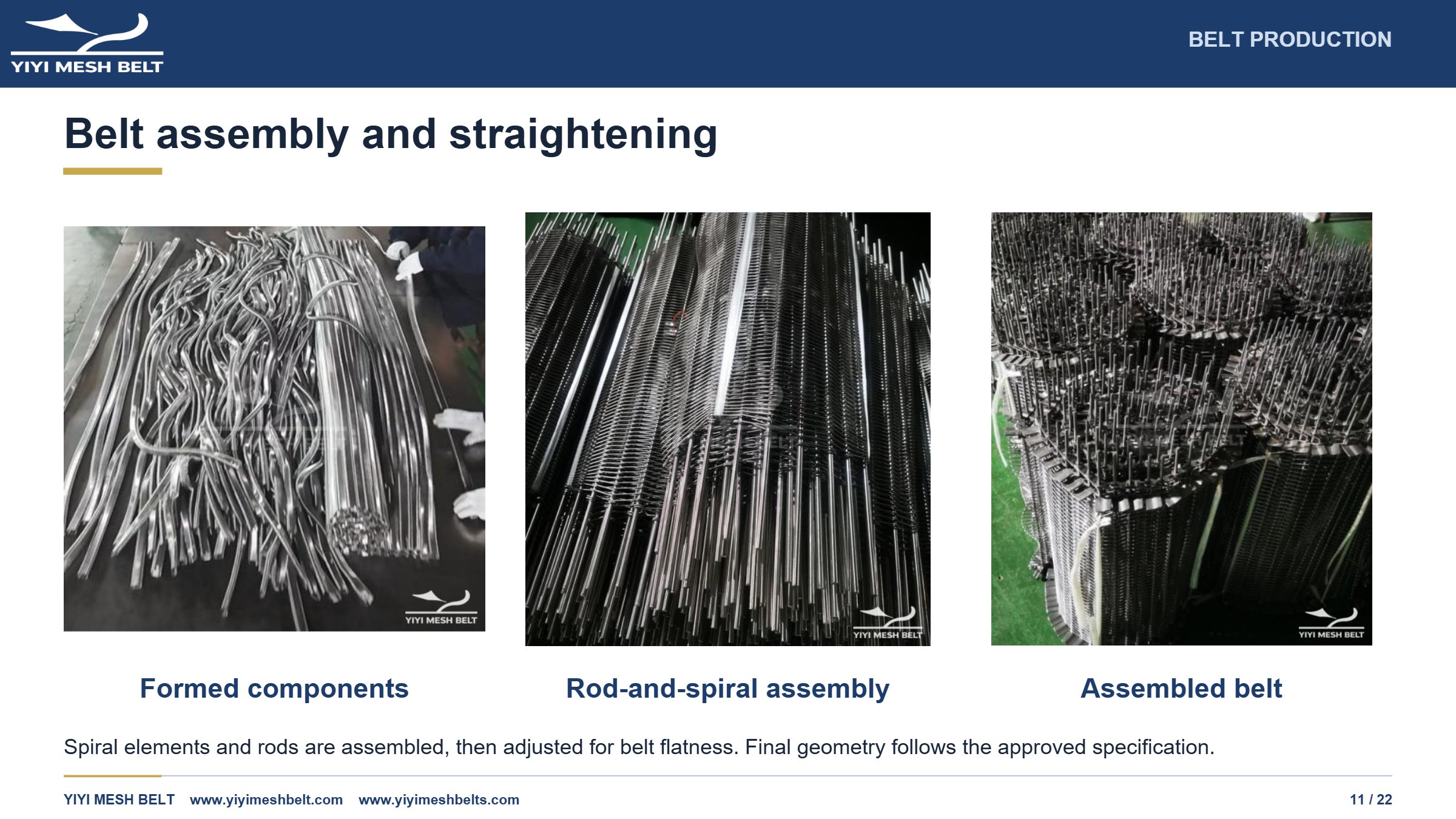

Page 11. BELT PRODUCTION Belt assembly and straightening Formed components Rod-and-spiral assembly Assembled belt Spiral elements and rods are assembled, then adjusted for belt flatness. Final geometry follows the approved specification.

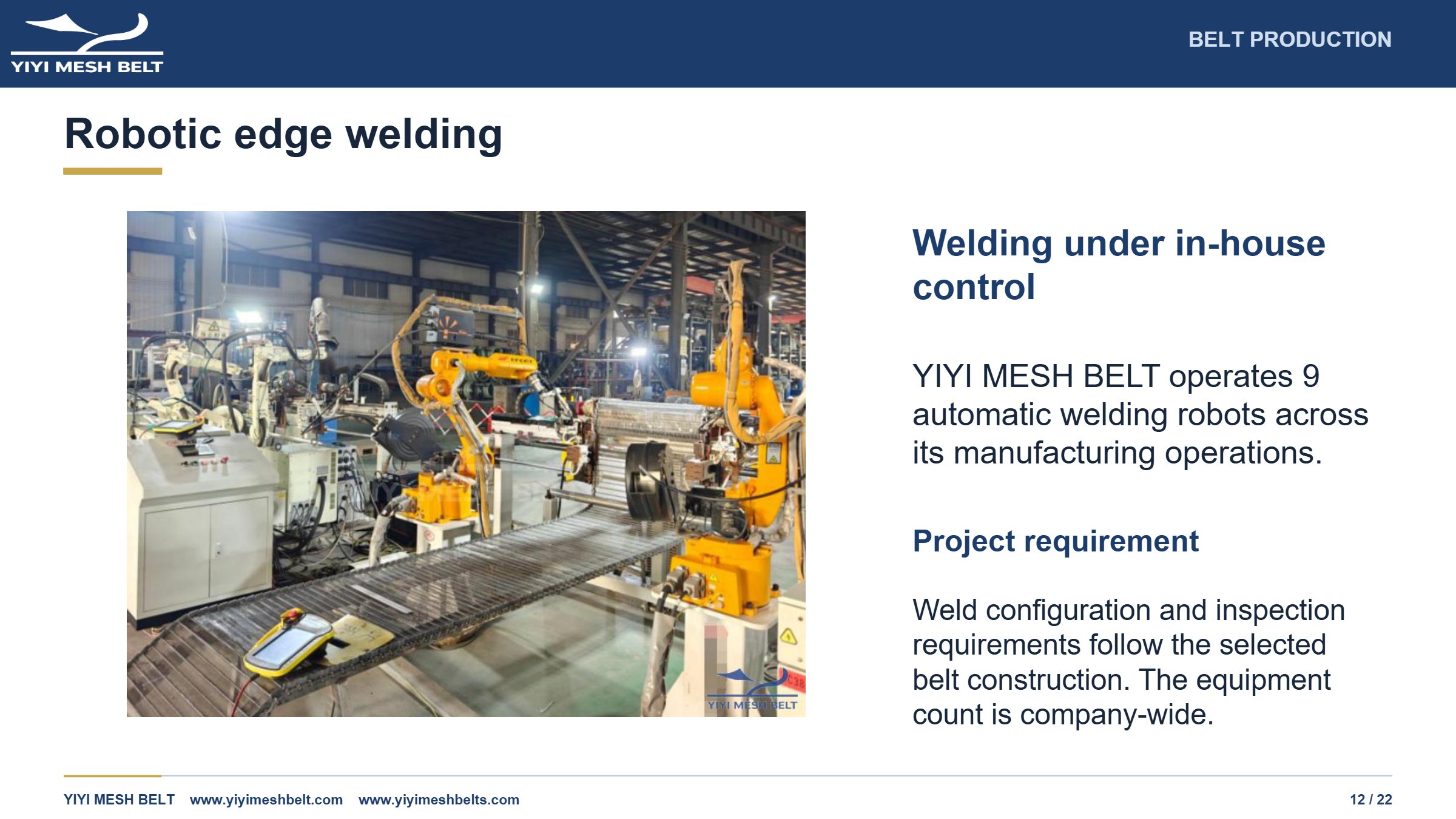

Page 12. BELT PRODUCTION Robotic edge welding Welding under in-house control YIYI MESH BELT operates 9 automatic welding robots across its manufacturing operations. Project requirement Weld configuration and inspection requirements follow the selected belt construction. The equipment count is company-wide.

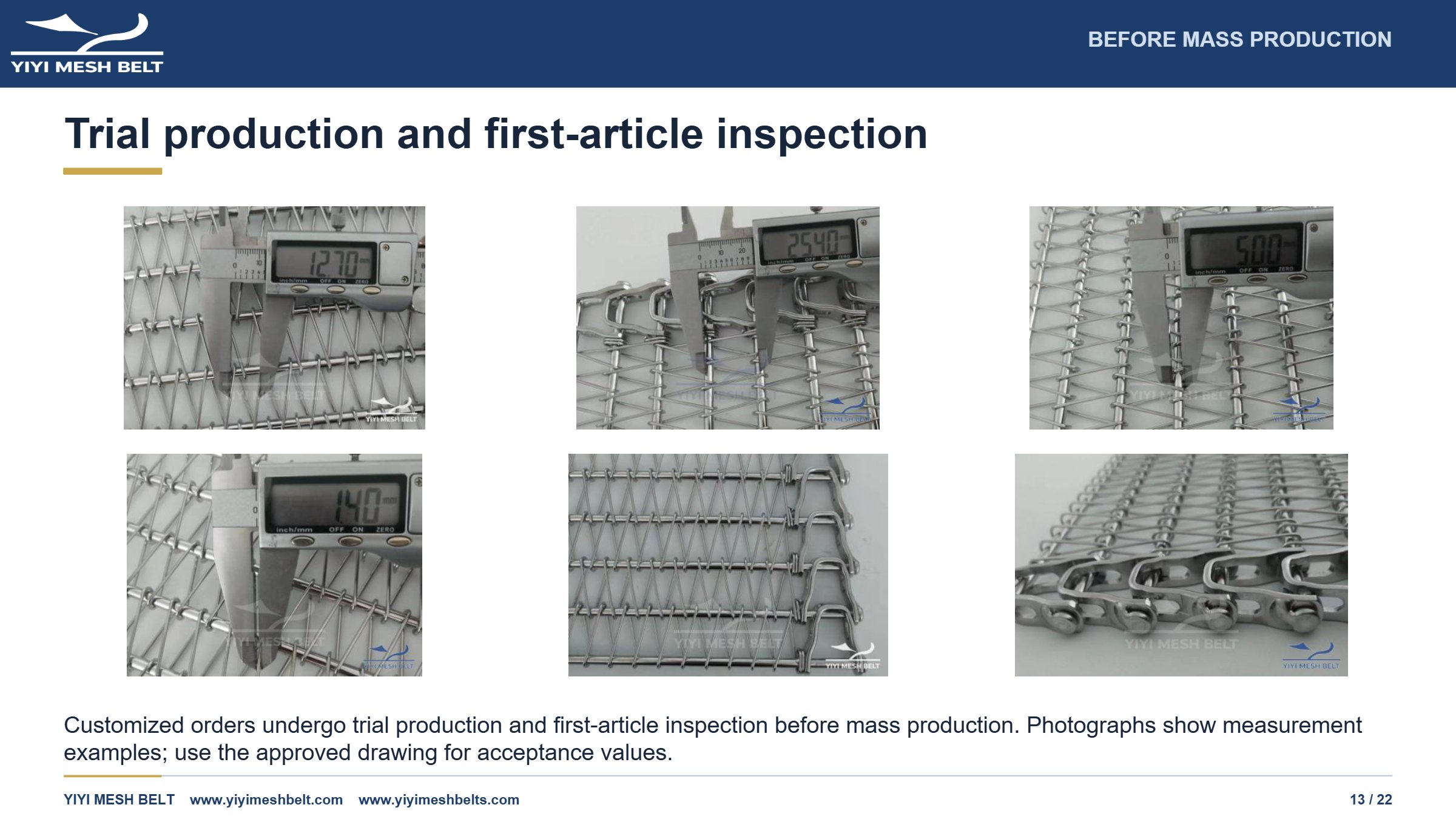

Page 13. BEFORE MASS PRODUCTION Trial production and first-article inspection Customized orders undergo trial production and first-article inspection before mass production. Photographs show measurement examples; use the approved drawing for acceptance values.

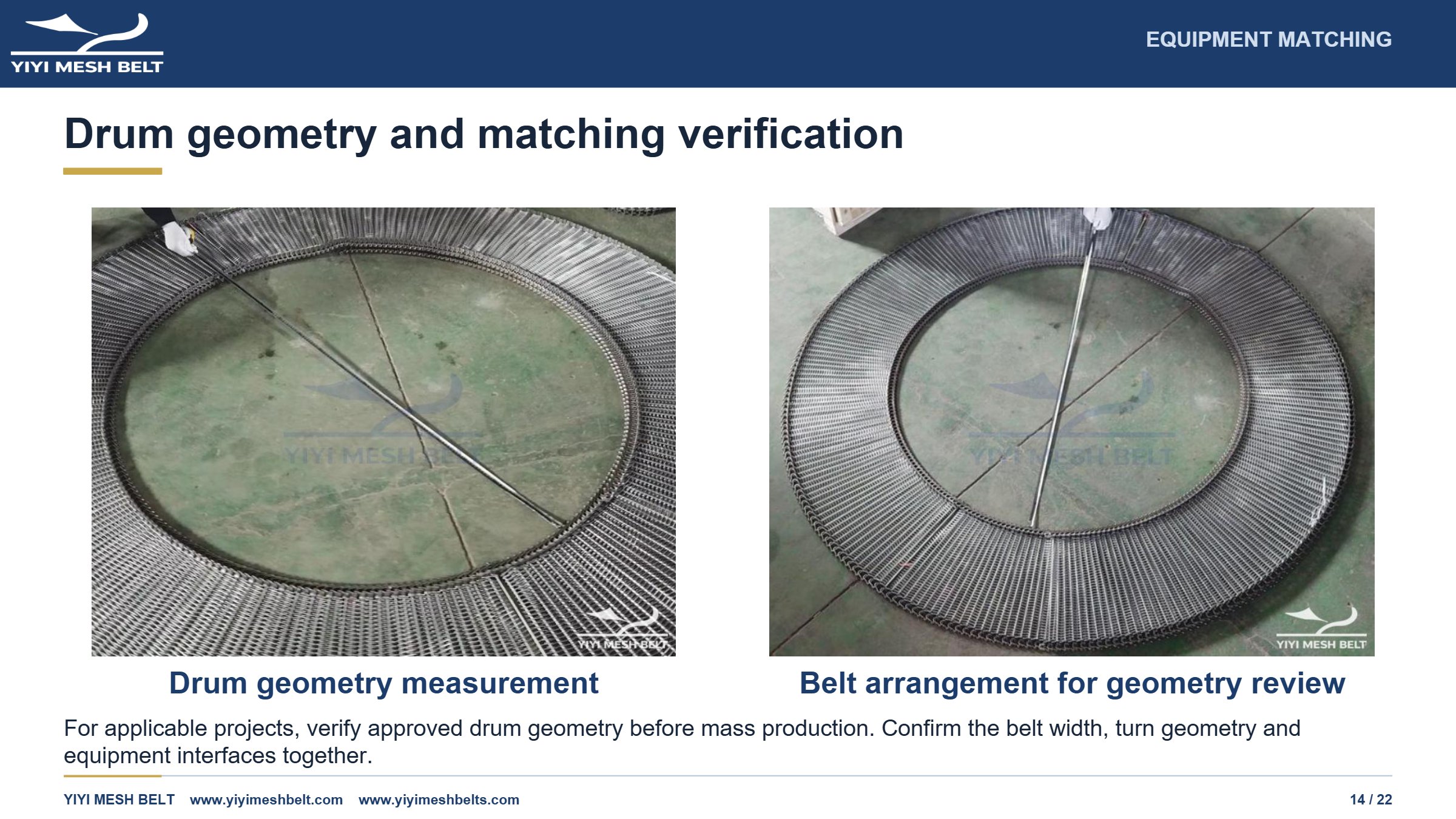

Page 14. EQUIPMENT MATCHING Drum geometry and matching verification Drum geometry measurement Belt arrangement for geometry review For applicable projects, verify approved drum geometry before mass production. Confirm the belt width, turn geometry and equipment interfaces together.

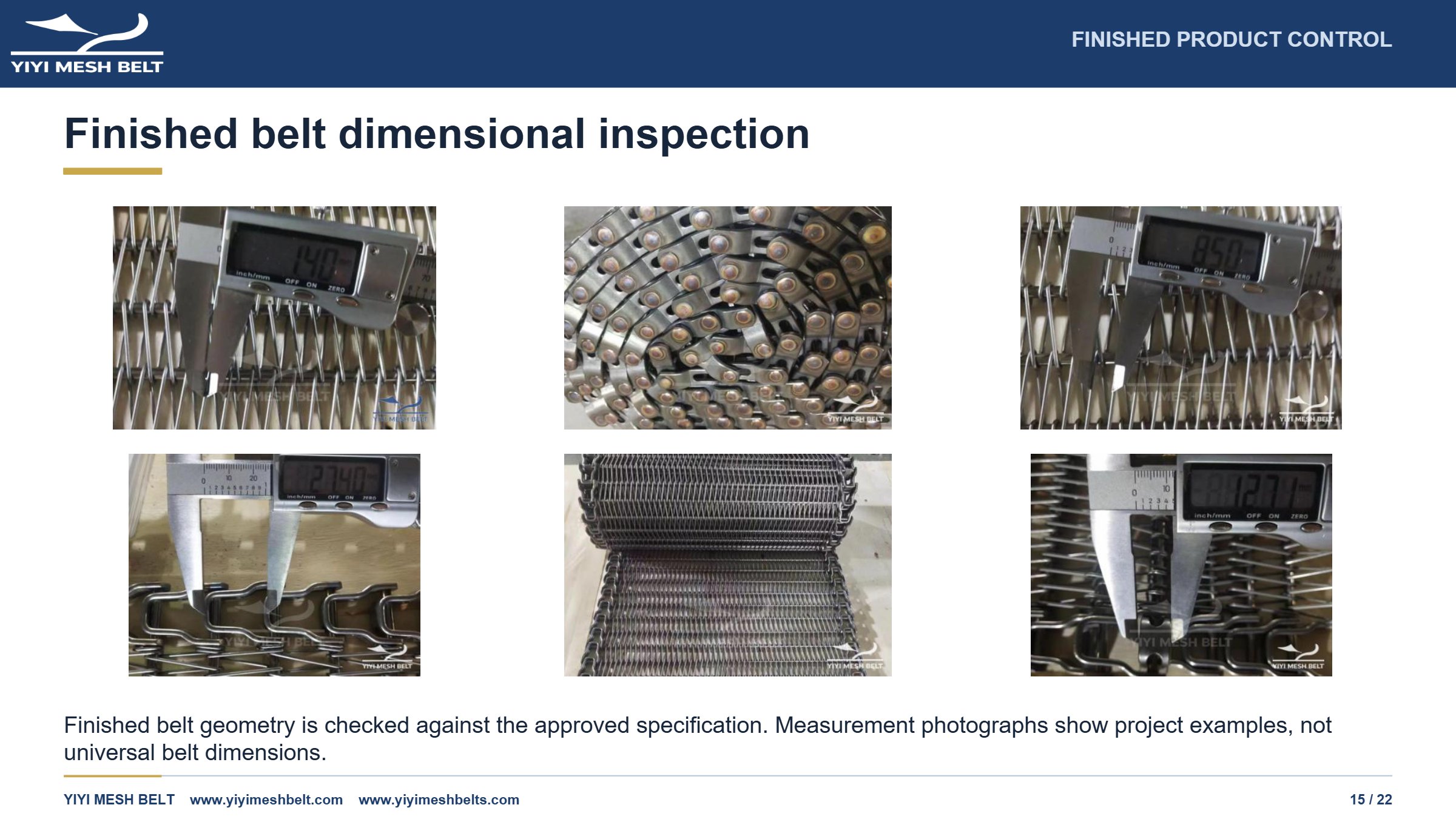

Page 15. FINISHED PRODUCT CONTROL Finished belt dimensional inspection Finished belt geometry is checked against the approved specification. Measurement photographs show project examples, not universal belt dimensions.

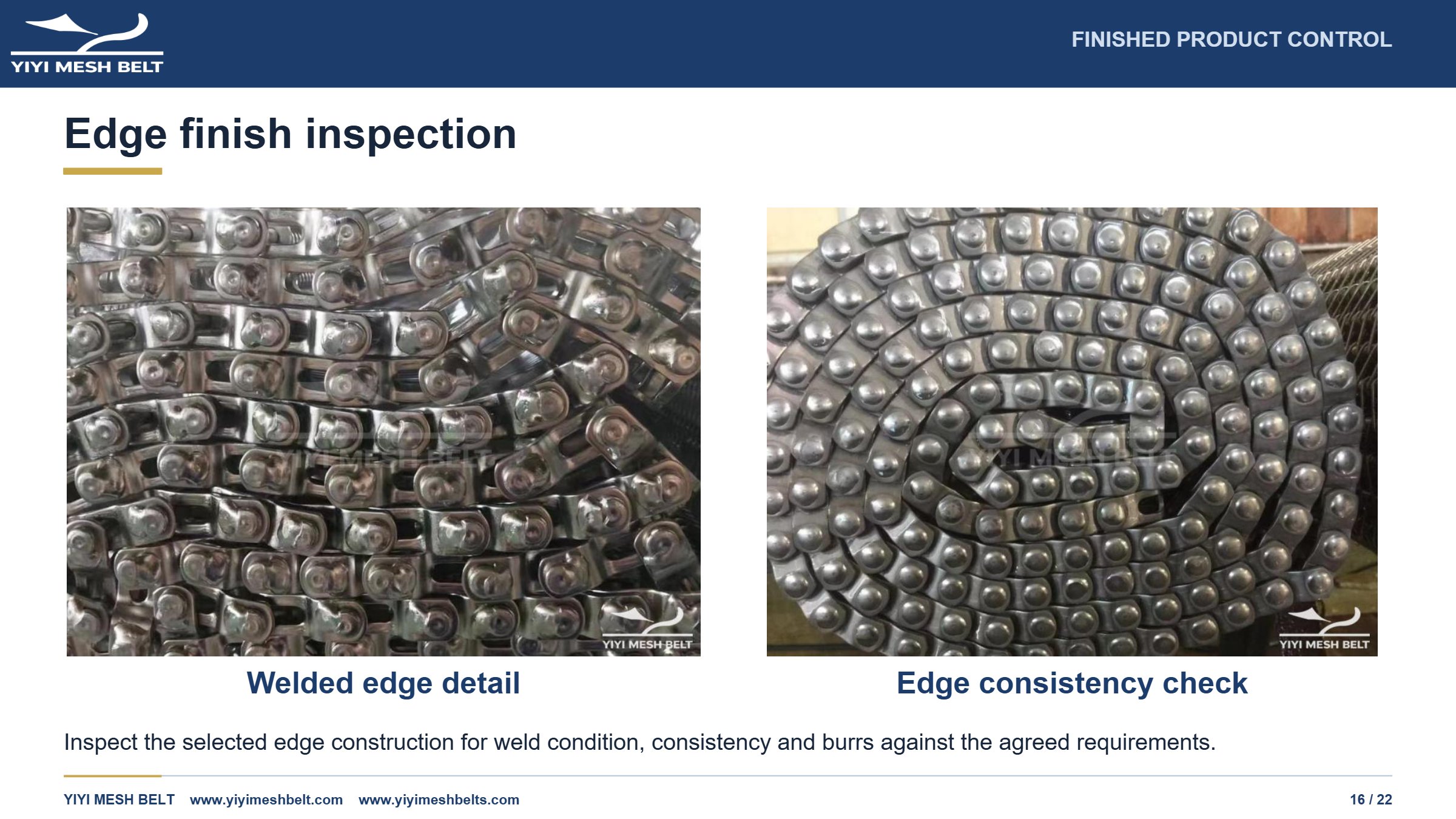

Page 16. FINISHED PRODUCT CONTROL Edge finish inspection Welded edge detail Edge consistency check Inspect the selected edge construction for weld condition, consistency and burrs against the agreed requirements.

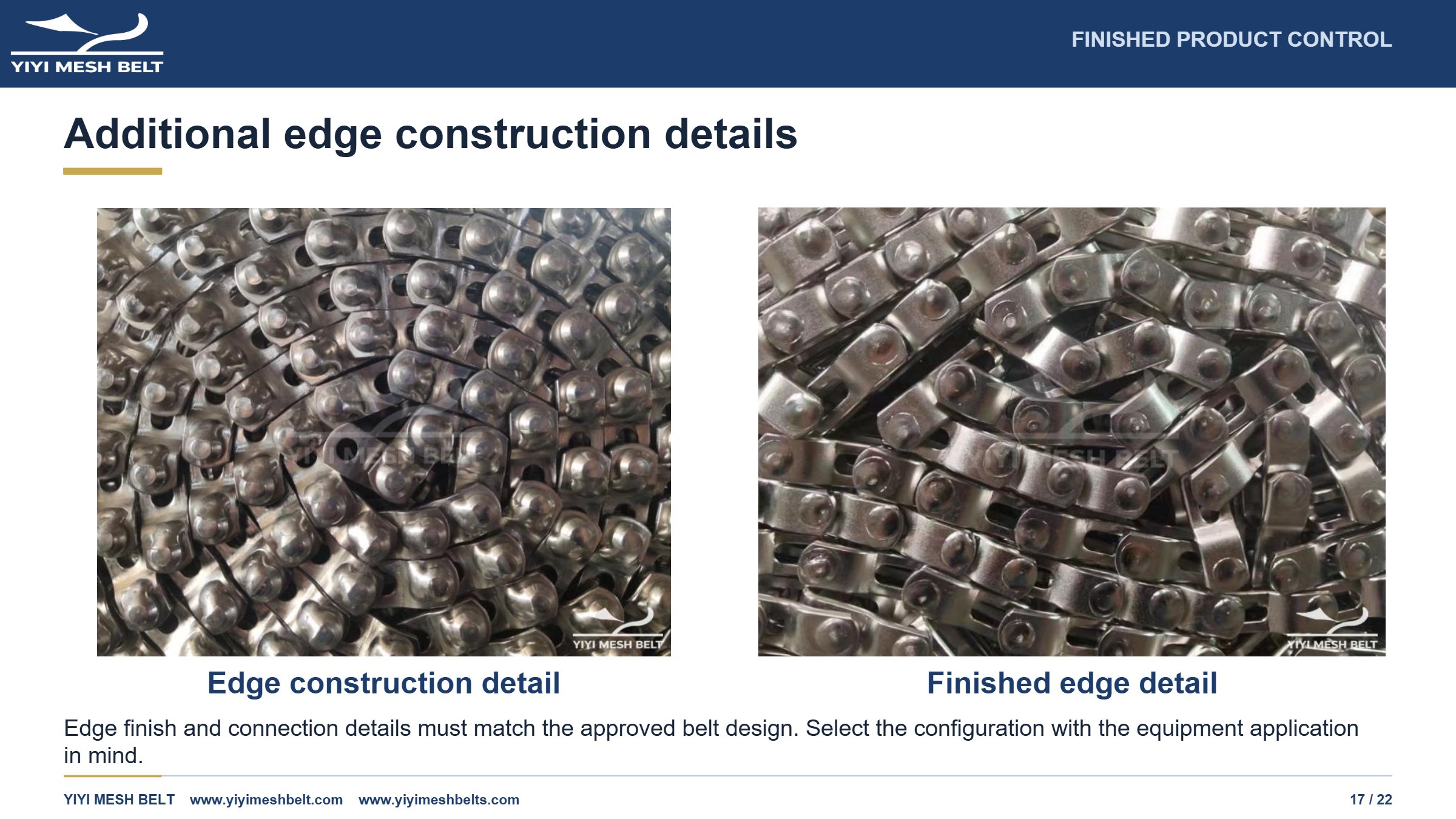

Page 17. FINISHED PRODUCT CONTROL Additional edge construction details Edge construction detail Finished edge detail Edge finish and connection details must match the approved belt design. Select the configuration with the equipment application in mind.

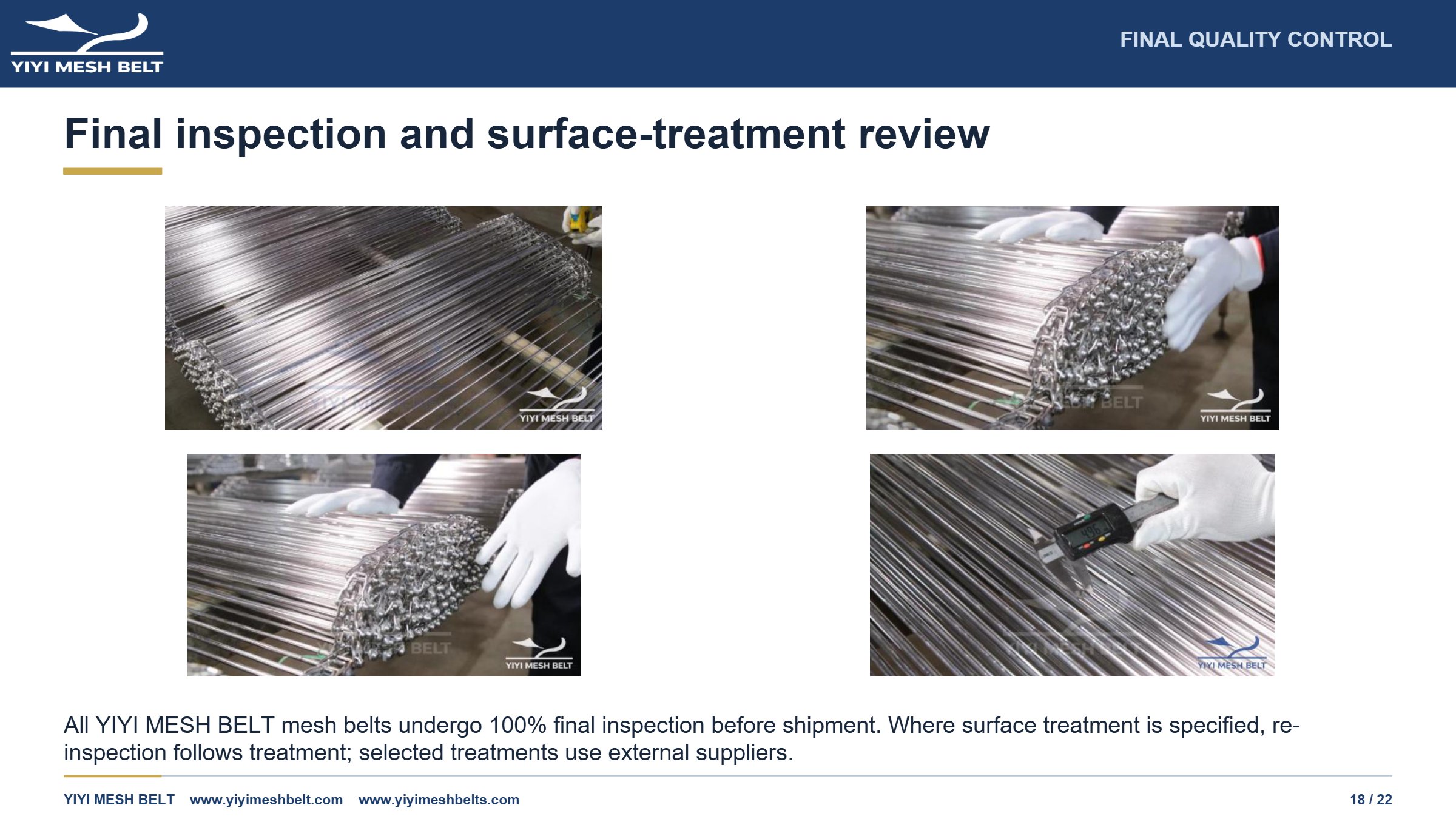

Page 18. FINAL QUALITY CONTROL Final inspection and surface-treatment review All YIYI MESH BELT mesh belts undergo 100% final inspection before shipment. Where surface treatment is specified, re- inspection follows treatment; selected treatments use external suppliers.

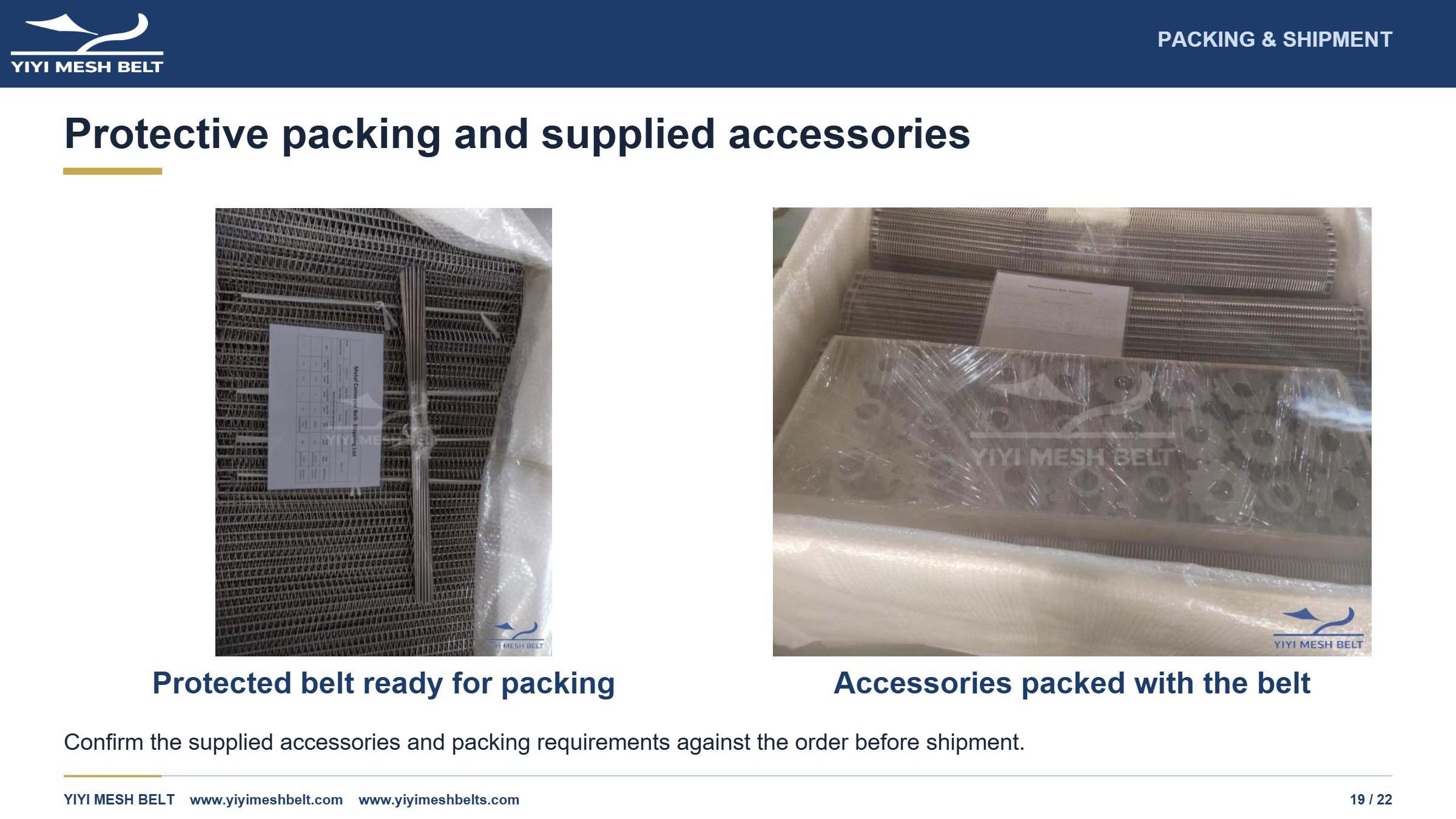

Page 19. PACKING & SHIPMENT Protective packing and supplied accessories Protected belt ready for packing Accessories packed with the belt Confirm the supplied accessories and packing requirements against the order before shipment.

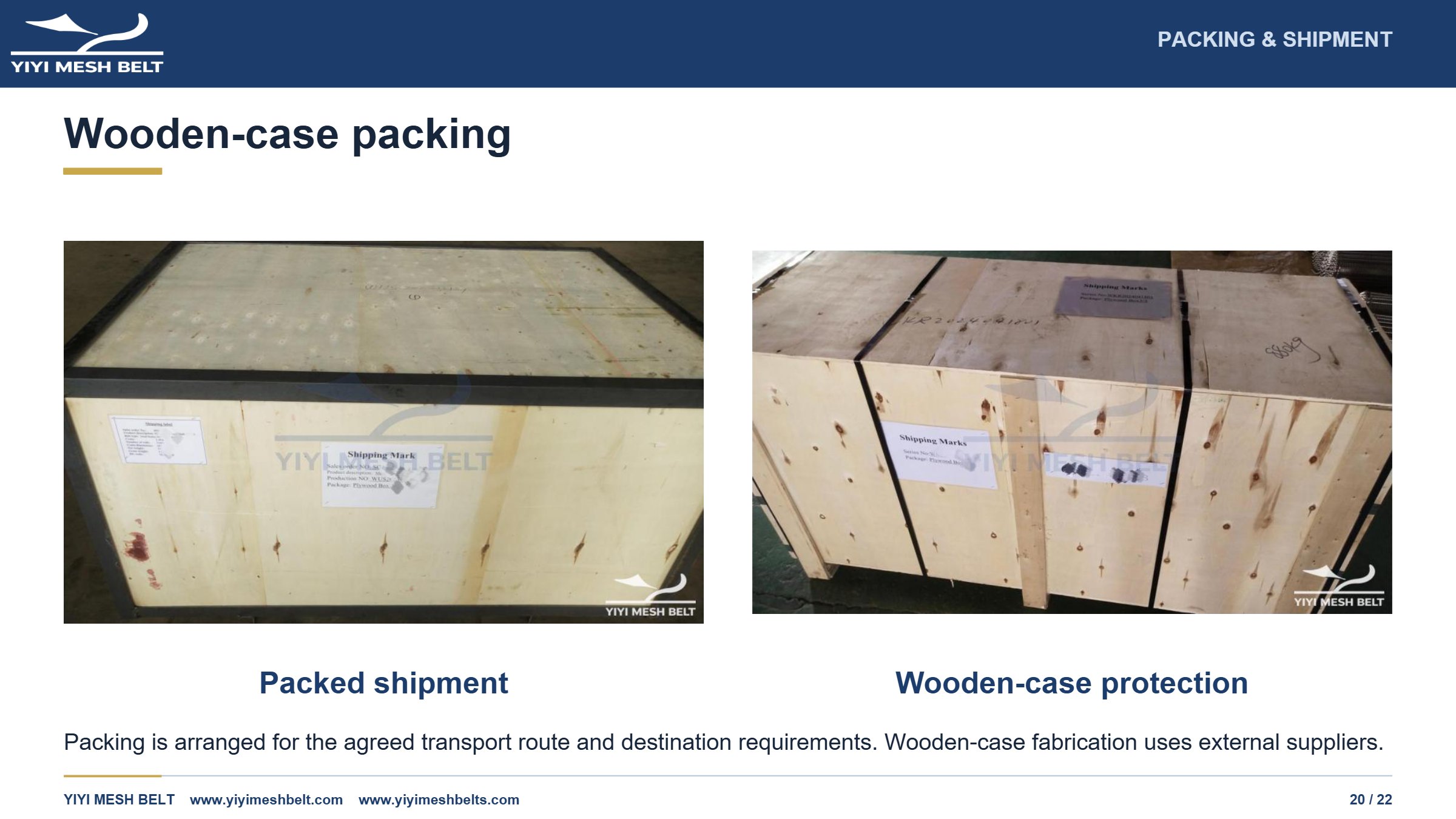

Page 20. PACKING & SHIPMENT Wooden-case packing Packed shipment Wooden-case protection Packing is arranged for the agreed transport route and destination requirements. Wooden-case fabrication uses external suppliers.

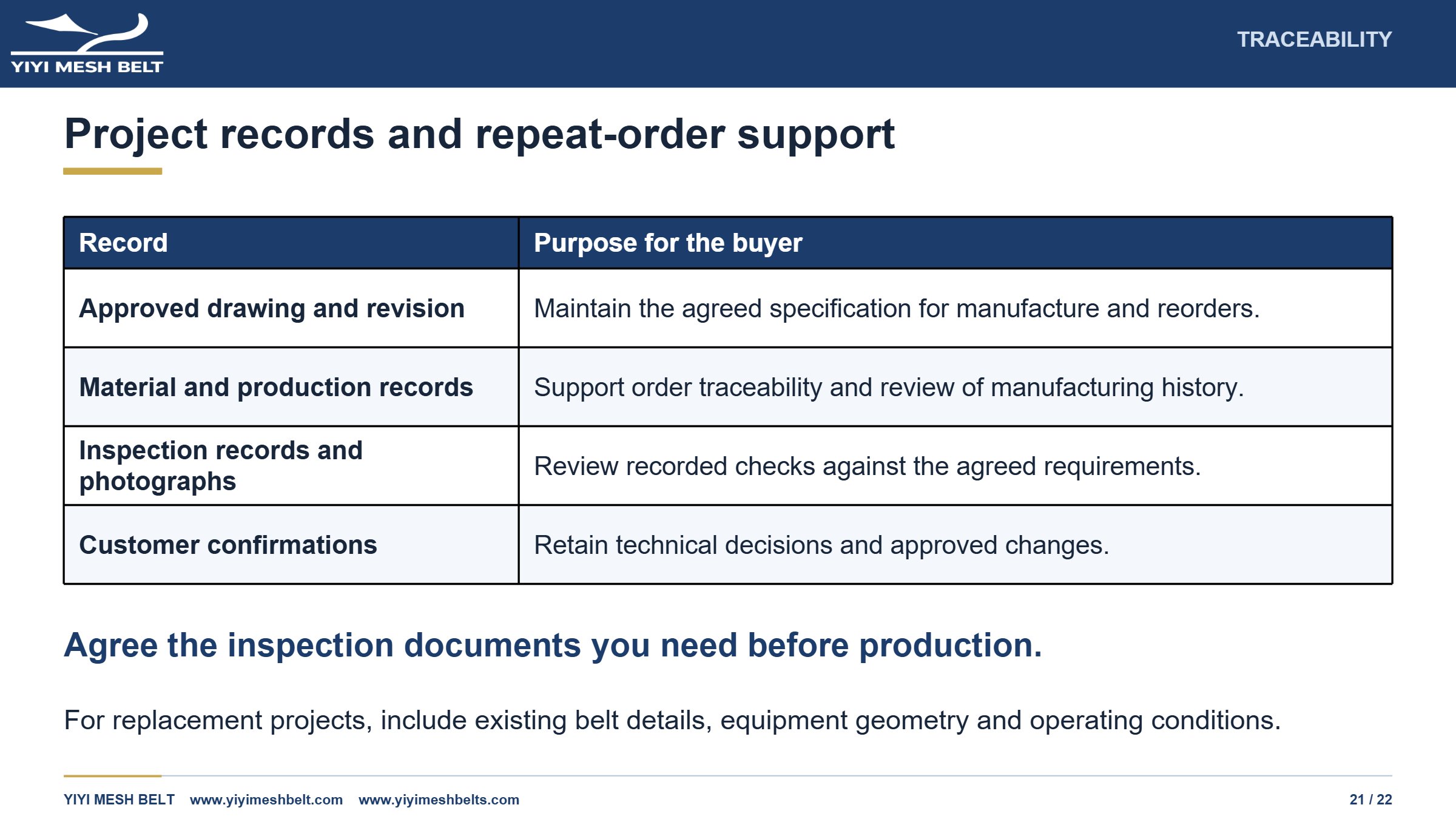

Page 21. TRACEABILITY Project records and repeat-order support Record Purpose for the buyer Approved drawing and revision Maintain the agreed specification for manufacture and reorders. Material and production records Support order traceability and review of manufacturing history. Inspection records and photographs Review recorded checks against the agreed requirements. Customer confirmations Retain technical decisions and approved changes. Agree the inspection documents you need before production. For replacement projects, include existing belt details, equipment geometry and operating conditions.
Page 22. PROVEN · STABLE · VERIFIED Metal Conveyor Belt Manufacturer Email: info@yiyimeshbelt.com Phone / WhatsApp: +86 134 5177 3742 Website: www.yiyimeshbelt.com www.yiyimeshbelts.com Company: Ningjin Yiyi Mesh Belt Co., Ltd. Send Your Drawing for Production Review Belt dimensions (mm / in) Equipment / drum geometry Material and operating conditions Inspection requirements Existing belt photos / sample Request an Engineering Review for OEMs & Professional Distributors
